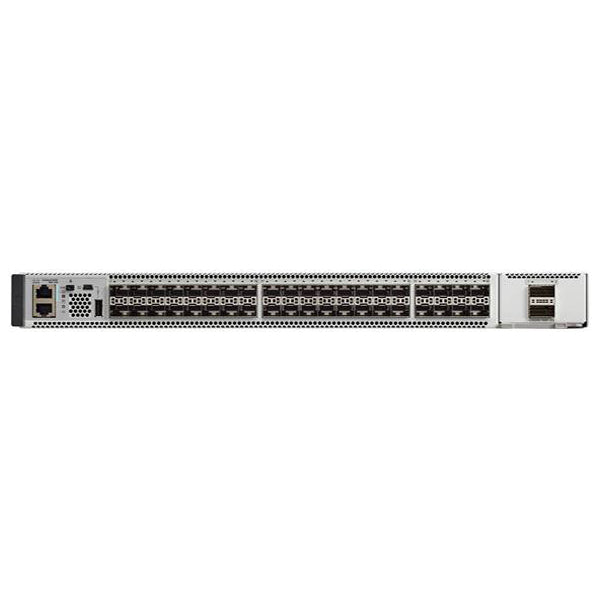

CISCO C9500-40X-2Q-E SWITCH

Model: C9500-40X-2Q-E
Detail: THIS ITEM IS A SPECIAL ORDER AND MAY TAKE ADDITIONAL SHIPPING TIME
, 40 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
, with Cisco 40GE C9500-NM-2Q Network Module
List Price: US$38,653.00
Price:
$18,590.64
You Save: $20,062.36 (52% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-

Description

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

[shortdesc]
  • THIS ITEM IS A SPECIAL ORDER AND MAY TAKE ADDITIONAL SHIPPING TIME
  • 40 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
  • with Cisco 40GE C9500-NM-2Q Network Module
[/shortdesc]
[properties]
Properties Cisco C9500-40X-2Q-E
Description Cisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Ess. License
Product Family Catalyst 9500
Product Type Ethernet Switch
Cisco IOS Software Network Essentials
Number of Ports 42
Includes C9500-NM-2Q (Cisco Catalyst 9500 2 x 40GE Network Module)
Port Density
(* with uplink module)
1G port density 40+8*
10G port density 40+8*
25G port density -
40G port density 2
100G port density -
10G port density with breakout cable 8*
25G port density with breakout cable -
Fans and Fan trays
FAN-T4-R (Max # of fans) Yes (5)
C9K-T1-FANTRAY (Max # of fans) No
Power Supply Selection PWR-C4-950WAC-R or PWR-C4-950WDC-R
Input Voltage 90 to 264 VAC
Dimensions (HxWxD) Inches 1.73 x 17.5 x 21.52
Weight 25.75 lb (11.68 kg)
Rack Units (RU) 1 RU
Minimum Software Requirements Open Cisco IOS XE Software Release 16.6.1
Software Features
  Network Essentials
Switch fundamentals
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF – Up to 1000 routes),PBR, PIM Stub Multicast (up to 1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1x, Macsec-128, CoPP, SXP, IP SLA Responder, SSO
+
Advanced switch capabilities and scale
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR, IP SLA, OSPF
-
Network segmentation
VRF, VXLAN, LISP, BGP-EVPN2, TrustSec2, SGT2, MPLS, mVPN2
-
Automation
NETCONF, RESTCONF, gRPC, gNMI/gNOI, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)
+
Telemetry and visibility
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN
+
High availability and resiliency
GIR, NSF, ISSU2, StackWise Virtual, SMU
-
IoT integration
PTP (IEEE1588v2)
-
Security
MACsec-256, WAN MACsec
-
Cisco trustworthy solutions
Trust Anchor module, Secure Boot, Image Signing, Modern Crypto, Runtime Defenses
+
[/properties]

[specifications]
Specifications C9500-40X-2Q-E
DRAM 16 GB
Flash Memory 16 GB
Switching Capacity Up to 960 Gbps
Forwarding Rate  Up to 720 Mpps
Total Number of MAC addresses Up to 64,000
Total Number of IPv4 routes (Address Resolution Protocol [ARP] + Direct Routes) Up to 80,000 host
Total Number of IPv4 routes (Indirect Routes) Up to 64,000 indirect
Total Number of IPv6 (NDP and Direct Routes) Up to 40,000 host
Total Number of IPv6 routes (Indirect Routes) Up to 32,000 indirect
VLAN IDs 4.094
Total Number of IPv4 Multicast Routes Up to 32,000
Total Number of IPv6 Multicast Routes Up to 16,000
QoS ACL Scale Up to 18,000
Security ACL Scale Up to 18,000
FNF entries Up to 512,000
Total Switched Virtual Interfaces (SVIs) 4.000
Jumbo Frame 9,198 bytes
PVST Instances 300
STP Virtual Ports (Port VLANs) for PVST
13,000
STP Virtual Ports (Port VLANs) for MST 13,000
Total Switched Virtual Interfaces (SVIs) 1,000
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -4° to 149°F (-20° to 65°C)
Operating Altitude Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C
Relative humidity operating and nonoperating (noncondensing) Ambient (noncondensing) operating: 5% to 90%
Ambient (noncondensing) nonoperating and storage: 5% to 95%
Mean-time between failures (MTBF) 277,310
Safety Certifications UL 60950-1
CAN/CSA-C22.2 No. 60950-1
EN 60950-1
IEC 60950-1
AS/NZS 60950-1
GB4943
EMI and EMC
compliance
 47 CFR Part 15 Class A
 CNS13438: 2006 Class A
 EN 300 386 V1.6.1
 EN61000-3-2: 2014
 EN61000-3-3: 2013
 ICES-003 Issue 6: 2016 Class A
 KN 32: 2015 Class A
 TCVN 7189: 2009 Class A
 EN 55032:2012/ AC:2013 Class A
 EN 55032:2015 Class A
 CISPR 32 Edition 2 Class A
 V-2/2015.04 Class A
 V-3/2015.04 Class A
 CISPR24: 2010 + A1: 2015
 EN 300 386 V1.6.1
 EN55024: 2010 + A1: 2015
 KN35: 2015
 TCVN 7317: 2003
[/specifications]

[accesories]
Network Modules
C9500-NM-8X Cisco Catalyst 9500 Series Network Module 8-port 1/10 Gigabit Ethernet with SFP/SFP+
C9500-NM-2Q Cisco Catalyst 9500 Series Network Module 2-port 40 Gigabit Ethernet with QSFP+
Stacking accessories
C9500- ACCKIT-19I= Accessory Kit for Cisco Catalyst 9500 Series - 19" rack mount
C9500- ACCKIT-23I= Accessory Kit for Cisco Catalyst 9500 Series - 23" rack moun
C9500- 4PT-KIT= Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series
Power Supplies
PWR-C4-950WAC-R 950W AC Config 4 Power Supply front to back cooling
PWR-C4-950WDC-R
Licenses
C9500-DNA-E-3Y Catalyst 9500 NW and Cisco DNA Essentials. license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-E-5Y Catalyst 9500 NW and Cisco DNA Essentials. license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-E-7Y Catalyst 9500 NW and Cisco DNA Essentials. license (7Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-3Y Catalyst 9500 NW and Cisco DNA Advantage license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-5Y Catalyst 9500 NW and Cisco DNA Advantage license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-7Y Catalyst 9500 NW and Cisco DNA Advantage license (7Y)
[/accesories]
The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

Accessories

Network Modules
C9500-NM-8X Cisco Catalyst 9500 Series Network Module 8-port 1/10 Gigabit Ethernet with SFP/SFP+
C9500-NM-2Q Cisco Catalyst 9500 Series Network Module 2-port 40 Gigabit Ethernet with QSFP+
Stacking accessories
C9500- ACCKIT-19I= Accessory Kit for Cisco Catalyst 9500 Series - 19" rack mount
C9500- ACCKIT-23I= Accessory Kit for Cisco Catalyst 9500 Series - 23" rack moun
C9500- 4PT-KIT= Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series
Power Supplies
PWR-C4-950WAC-R 950W AC Config 4 Power Supply front to back cooling
PWR-C4-950WDC-R
Licenses
C9500-DNA-E-3Y Catalyst 9500 NW and Cisco DNA Essentials. license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-E-5Y Catalyst 9500 NW and Cisco DNA Essentials. license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-E-7Y Catalyst 9500 NW and Cisco DNA Essentials. license (7Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-3Y Catalyst 9500 NW and Cisco DNA Advantage license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-5Y Catalyst 9500 NW and Cisco DNA Advantage license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-7Y Catalyst 9500 NW and Cisco DNA Advantage license (7Y)

Specifications

Specifications C9500-40X-2Q-E
DRAM 16 GB
Flash Memory 16 GB
Switching Capacity Up to 960 Gbps
Forwarding Rate  Up to 720 Mpps
Total Number of MAC addresses Up to 64,000
Total Number of IPv4 routes (Address Resolution Protocol [ARP] + Direct Routes) Up to 80,000 host
Total Number of IPv4 routes (Indirect Routes) Up to 64,000 indirect
Total Number of IPv6 (NDP and Direct Routes) Up to 40,000 host
Total Number of IPv6 routes (Indirect Routes) Up to 32,000 indirect
VLAN IDs 4.094
Total Number of IPv4 Multicast Routes Up to 32,000
Total Number of IPv6 Multicast Routes Up to 16,000
QoS ACL Scale Up to 18,000
Security ACL Scale Up to 18,000
FNF entries Up to 512,000
Total Switched Virtual Interfaces (SVIs) 4.000
Jumbo Frame 9,198 bytes
PVST Instances 300
STP Virtual Ports (Port VLANs) for PVST
13,000
STP Virtual Ports (Port VLANs) for MST 13,000
Total Switched Virtual Interfaces (SVIs) 1,000
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -4° to 149°F (-20° to 65°C)
Operating Altitude Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C
Relative humidity operating and nonoperating (noncondensing) Ambient (noncondensing) operating: 5% to 90%
Ambient (noncondensing) nonoperating and storage: 5% to 95%
Mean-time between failures (MTBF) 277,310
Safety Certifications UL 60950-1
CAN/CSA-C22.2 No. 60950-1
EN 60950-1
IEC 60950-1
AS/NZS 60950-1
GB4943
EMI and EMC
compliance
 47 CFR Part 15 Class A
 CNS13438: 2006 Class A
 EN 300 386 V1.6.1
 EN61000-3-2: 2014
 EN61000-3-3: 2013
 ICES-003 Issue 6: 2016 Class A
 KN 32: 2015 Class A
 TCVN 7189: 2009 Class A
 EN 55032:2012/ AC:2013 Class A
 EN 55032:2015 Class A
 CISPR 32 Edition 2 Class A
 V-2/2015.04 Class A
 V-3/2015.04 Class A
 CISPR24: 2010 + A1: 2015
 EN 300 386 V1.6.1
 EN55024: 2010 + A1: 2015
 KN35: 2015
 TCVN 7317: 2003

Properties

Properties Cisco C9500-40X-2Q-E
Description Cisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Ess. License
Product Family Catalyst 9500
Product Type Ethernet Switch
Cisco IOS Software Network Essentials
Number of Ports 42
Includes C9500-NM-2Q (Cisco Catalyst 9500 2 x 40GE Network Module)
Port Density
(* with uplink module)
1G port density 40+8*
10G port density 40+8*
25G port density -
40G port density 2
100G port density -
10G port density with breakout cable 8*
25G port density with breakout cable -
Fans and Fan trays
FAN-T4-R (Max # of fans) Yes (5)
C9K-T1-FANTRAY (Max # of fans) No
Power Supply Selection PWR-C4-950WAC-R or PWR-C4-950WDC-R
Input Voltage 90 to 264 VAC
Dimensions (HxWxD) Inches 1.73 x 17.5 x 21.52
Weight 25.75 lb (11.68 kg)
Rack Units (RU) 1 RU
Minimum Software Requirements Open Cisco IOS XE Software Release 16.6.1
Software Features
  Network Essentials
Switch fundamentals
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF – Up to 1000 routes),PBR, PIM Stub Multicast (up to 1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1x, Macsec-128, CoPP, SXP, IP SLA Responder, SSO
+
Advanced switch capabilities and scale
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR, IP SLA, OSPF
-
Network segmentation
VRF, VXLAN, LISP, BGP-EVPN2, TrustSec2, SGT2, MPLS, mVPN2
-
Automation
NETCONF, RESTCONF, gRPC, gNMI/gNOI, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)
+
Telemetry and visibility
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN
+
High availability and resiliency
GIR, NSF, ISSU2, StackWise Virtual, SMU
-
IoT integration
PTP (IEEE1588v2)
-
Security
MACsec-256, WAN MACsec
-
Cisco trustworthy solutions
Trust Anchor module, Secure Boot, Image Signing, Modern Crypto, Runtime Defenses
+
