Cisco C9500-32C-E Switch

Name: Cisco C9500-32C-E Switch
Brand: Cisco
SKU: C9500-32C-E-NEW
Price: 18708.48 USD
Availability: InStock

Part Number: C9500-32C-E

Technical Details

Managed, Rack-mountable, 32 x 100G ports, No PoE (Data Only), Layer 3, Network Essentials License

$39,473.00

$18,708.48

53% OFF

You Save: $20,764.52

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

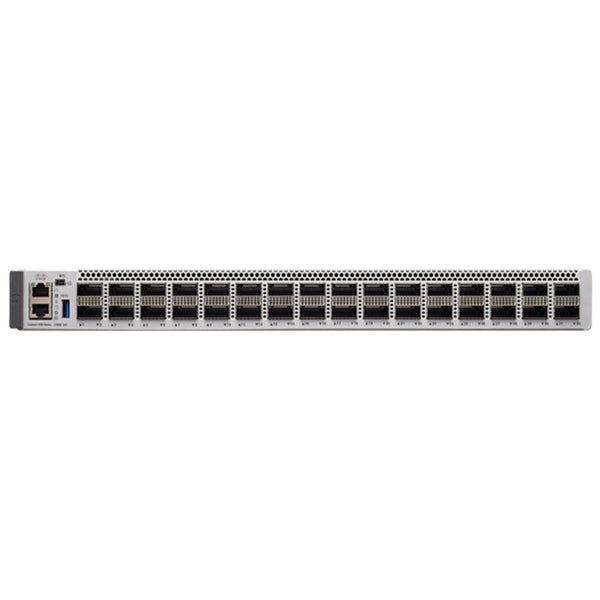

Cisco Catalyst C9500-32C-E Switch

The Cisco Catalyst C9500-32C-E Switch is a high-performance switch designed to meet the demands of modern enterprise networks. Featuring 32 non-blocking 100G Ethernet ports, it provides reliable, high-speed connectivity for core and aggregation layers in large data centers and campuses. Powered by Cisco's Network Essentials license, the C9500-32C-E ensures efficient Layer 3 routing, automation, and security features, enabling seamless and scalable network operations.

Key Features:

32 x 100G Ethernet Ports: Delivers fast, non-blocking connectivity for bandwidth-heavy applications.
Cisco StackWise Virtual Technology: Simplifies network management and provides seamless redundancy across multiple switches.
Advanced Layer 3 Routing: Supports OSPF, EIGRP, BGP, and MPLS for dynamic routing and traffic segmentation.
Energy-Efficient: Compliant with IEEE 802.3az standards, optimizing energy consumption without compromising performance.
Network Essentials License: Unlocks essential automation, security, and routing features for enterprise networks.

Technical Overview:

Recommended for: Enterprise core networks, data centers, and large campuses.
Ports: 32 x 100G QSFP28 ports.
Switching Capacity: 6.4 Tbps.
Forwarding Rate: 2 Bpps.
Layer 3 Features: OSPF, EIGRP, BGP, MPLS, and VRF-Lite.
Management: Web-based GUI, CLI, SNMP, and Cisco DNA Center.
Licensing: Network Essentials.
Energy Efficiency: Supports IEEE 802.3az standards for energy-efficient operations.

You can check the related tab for the Cisco C9500-32C-E datasheet.

Properties

Properties	Cisco C9500-32C-E
Description	Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Ess. License
Product Family	Catalyst 9500
Product Type	Ethernet Switch
Cisco IOS Software	Network Essentials
Number of Ports	32
Port Density (* with uplink module)
1G port density	48
10G port density	-
25G port density	-
40G port density	32
100G port density	32
10G port density with breakout cable	96
25G port density with breakout cable	96
Fans and Fan trays
FAN-T4-R (Max # of fans)	Yes (5)
C9K-T1-FANTRAY (Max # of fans)	No
Power Supply Selection	C9K-PWR-1600WAC-R or C9K-PWR-1600WDC-R
Input Voltage	90 to 264 VAC
Dimensions (HxWxD) Inches	1.73 x 17.5 x 21.2 in
Weight	25.64 lb (11.63 kg)
Rack Units (RU)	1 RU
Minimum Software Requirements	Cisco IOS XE Software Release 16.8.1a
Software Features
‚	Network Essentials
Switch fundamentals Layer 2, Routed Access (RIP, EIGRP Stub, OSPF Up to 1000 routes),PBR, PIM Stub Multicast (up to 1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1x, Macsec-128, CoPP, SXP, IP SLA Responder, SSO	+
	+
Advanced switch capabilities and scale BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR, IP SLA, OSPF	-
Network segmentation VRF, VXLAN, LISP, BGP-EVPN2, TrustSec2, SGT2, MPLS, mVPN2	-
	-
Automation NETCONF, RESTCONF, gRPC, gNMI/gNOI, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)	+
Telemetry and visibility Model-driven telemetry, sampled NetFlow, SPAN, RSPAN	+
High availability and resiliency GIR, NSF, ISSU2, StackWise Virtual, SMU	-
IoT integration PTP (IEEE1588v2)	-
Security MACsec-256, WAN MACsec	-
Cisco trustworthy solutions Trust Anchor module, Secure Boot, Image Signing, Modern Crypto, Runtime Defenses	+

Specifications

Specifications	C9500-32C-E
DRAM	16 GB
Flash Memory	16 GB
Switching Capacity	Up to 6.4 Tbps
Forwarding Rate‚	Up to 2 Bpps
Total Number of MAC addresses	Up to 82,000
Total Number of IPv4 routes (Address Resolution Protocol [ARP] + Direct Routes)	Up to 90,000 host/ARP
Total Number of IPv4 routes (Indirect Routes)	Up to 256,000 indirect + direct
Total Number of IPv6 (NDP and Direct Routes)	Up to 90,000 host
Total Number of IPv6 routes (Indirect Routes)	Up to 256,000 indirect + direct
VLAN IDs	4.094
Total Number of IPv4 Multicast Routes	Up to 32,000
Total Number of IPv6 Multicast Routes	Up to 32,000
QoS ACL Scale	Up to 16,000
Security ACL Scale	Up to 27,000
FNF entries	Up to 256,000
Total Switched Virtual Interfaces (SVIs)	4.000
Jumbo Frame	9,216 bytes
PVST Instances	4,000
STP Virtual Ports (Port VLANs) for PVST	16,000
STP Virtual Ports (Port VLANs) for MST	52,000
Operating Temperature	32° to 104°F (0° to 40°C)
Storage Temperature	-4° to 149°F (-20° to 65°C)
Operating Altitude	Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C
Relative humidity operating and nonoperating (noncondensing)	Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95%
Mean-time between failures (MTBF)	212,820
Safety Certifications	EC 60950-1 plus Am1, Am2 Am9, Am10, Am11, Am12 and all deviations and differences AS/NZS 60950.1.2011 CAN/CSA-C22.2 No. 60950-1-07 GB 4943-95 EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences NOM-019-SCFI-1998 UL 60950-1, Second Edition
EMI and EMC compliance	‚ 47 CFR Part 15 Class A ‚ CNS13438: 2006 Class A ‚ EN 300 386 V1.6.1 ‚ EN61000-3-2: 2014 ‚ EN61000-3-3: 2013 ‚ ICES-003 Issue 6: 2016 Class A ‚ KN 32: 2015 Class A ‚ TCVN 7189: 2009 Class A ‚ EN 55032:2012/ AC:2013 Class A ‚ EN 55032:2015 Class A ‚ CISPR 32 Edition 2 Class A ‚ V-2/2015.04 Class A ‚ V-3/2015.04 Class A ‚ CISPR24: 2010 + A1: 2015 ‚ EN 300 386 V1.6.1 ‚ EN55024: 2010 + A1: 2015 ‚ KN35: 2015 ‚ TCVN 7317: 2003

Accessories

Stacking accessories
C9500- ACCKITH -19I=	Accessory Kit for Cisco Catalyst 9500X Switch - 19" rack mount
C9500- ACCKITH -23I=	Accessory Kit for Cisco Catalyst 9500X Switch - 23" rack mount
C9500- 4PTHKIT=	Extension rails and brackets for four-point mounting for Cisco Catalyst 9500X Switch
C9K-F1-SSD-240G	Cisco pluggable SSD storage 240 GB
C9K-F1-SSD-480G	Cisco pluggable SSD storage 480 GB
C9K-F1-SSD-960G	Cisco pluggable SSD storage 960 GB
Power Supplies
C9K-PWR-1600WAC-R	1600W AC Power Supply
C9K-PWR-1600WDC-R	1600W DC Power Supply
Licenses
C9500-DNA-E-3Y	Catalyst 9500 NW and Cisco DNA Essentials. license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-E-5Y	Catalyst 9500 NW and Cisco DNA Essentials. license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-E-7Y	Catalyst 9500 NW and Cisco DNA Essentials. license (7Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-3Y	Catalyst 9500 NW and Cisco DNA Advantage license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-5Y	Catalyst 9500 NW and Cisco DNA Advantage license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-7Y	Catalyst 9500 NW and Cisco DNA Advantage license (7Y)
