CISCO C9500-32C-A SWITCH
| Model: | C9500-32C-A |
| Detail: |
|
| List Price: | |
| Price: | $27,895.00 |
| You Save: | $11,577.87 (29% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

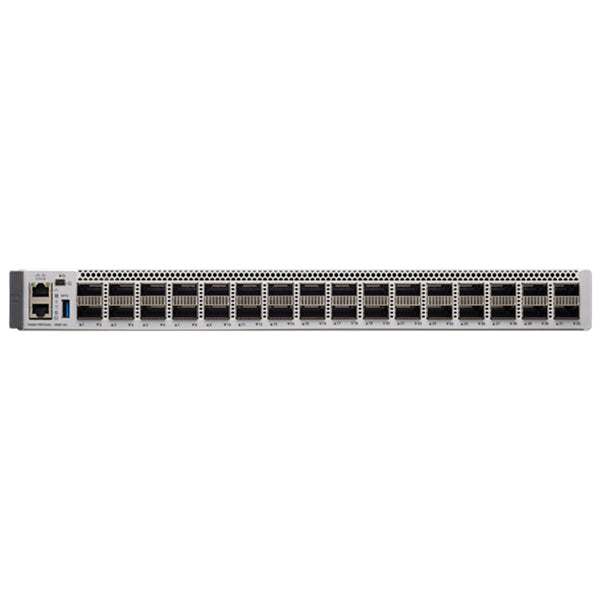

Cisco Catalyst C9500-32C-A Switch
The Cisco Catalyst C9500-32C-A Switch is built for high-performance and scalability, designed to support modern enterprise networks with 32 non-blocking 100G Ethernet ports. Ideal for core and aggregation layers in large data centers and campus environments, this switch ensures seamless network operations with advanced Layer 3 routing, automation, and security features. Powered by Cisco's Network Advantage license, it unlocks cutting-edge capabilities to drive efficient, secure, and scalable network growth.
Key Features:
- 32 x 100G Ethernet Ports: Provides high-speed, non-blocking connectivity for bandwidth-heavy applications.
- Cisco StackWise Virtual Technology: Enables seamless redundancy and simplifies management across multiple switches.
- Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, BGP, and MPLS for dynamic routing and traffic segmentation.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing energy consumption without sacrificing performance.
- Network Advantage License: Unlocks advanced automation, security, and routing features for enterprise networks.
Technical Overview:
- Recommended for: Enterprise core networks, data centers, and large campuses.
- Ports: 32 x 100G QSFP28 ports.
- Switching Capacity: 6.4 Tbps.
- Forwarding Rate: 2 Bpps.
- Layer 3 Features: OSPF, EIGRP, BGP, MPLS, and VRF-Lite.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA Center.
- Licensing: Network Advantage.
- Energy Efficiency: Supports IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the Cisco C9500-32C-A datasheet.
Accessories
| Stacking accessories | |
| C9500- ACCKITH -19I= | Accessory Kit for Cisco Catalyst 9500X Switch - 19" rack mount |
| C9500- ACCKITH -23I= | Accessory Kit for Cisco Catalyst 9500X Switch - 23" rack mount |
| C9500- 4PTHKIT= | Extension rails and brackets for four-point mounting for Cisco Catalyst 9500X Switch |
| C9K-F1-SSD-240G | Cisco pluggable SSD storage 240 GB |
| C9K-F1-SSD-480G | Cisco pluggable SSD storage 480 GB |
| C9K-F1-SSD-960G | Cisco pluggable SSD storage 960 GB |
| Power Supplies | |
| C9K-PWR-1600WAC-R | 1600W AC Power Supply |
| C9K-PWR-1600WDC-R | 1600W DC Power Supply |
| Licenses | |
| C9500-DNA-E-3Y | Catalyst 9500 NW and Cisco DNA Essentials. license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-E-5Y | Catalyst 9500 NW and Cisco DNA Essentials. license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-E-7Y | Catalyst 9500 NW and Cisco DNA Essentials. license (7Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-3Y | Catalyst 9500 NW and Cisco DNA Advantage license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-5Y | Catalyst 9500 NW and Cisco DNA Advantage license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-7Y | Catalyst 9500 NW and Cisco DNA Advantage license (7Y) |
Specifications
| Specifications | C9500-32C-A |
| DRAM | 16 GB |
| Flash Memory | 16 GB |
| Switching Capacity | Up to 6.4 Tbps |
| Forwarding Rate‚ | Up to 2 Bpps |
| Total Number of MAC addresses | Up to 82,000 |
| Total Number of IPv4 routes (Address Resolution Protocol [ARP] + Direct Routes) | Up to 90,000 host/ARP |
| Total Number of IPv4 routes (Indirect Routes) | Up to 256,000 indirect + direct |
| Total Number of IPv6 (NDP and Direct Routes) | Up to 90,000 host |
| Total Number of IPv6 routes (Indirect Routes) | Up to 256,000 indirect + direct |
| VLAN IDs | 4.094 |
| Total Number of IPv4 Multicast Routes | Up to 32,000 |
| Total Number of IPv6 Multicast Routes | Up to 32,000 |
| QoS ACL Scale | Up to 16,000 |
| Security ACL Scale | Up to 27,000 |
| FNF entries | Up to 256,000 |
| Total Switched Virtual Interfaces (SVIs) | 4.000 |
| Jumbo Frame | 9,216 bytes |
| PVST Instances | 4,000 |
| STP Virtual Ports (Port VLANs) for PVST |
16,000 |
| STP Virtual Ports (Port VLANs) for MST | 52,000 |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 149°F (-20° to 65°C) |
| Operating Altitude | Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C |
| Relative humidity operating and nonoperating (noncondensing) | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Mean-time between failures (MTBF) | 212,820 |
| Safety Certifications | EC 60950-1 plus Am1, Am2 Am9, Am10, Am11, Am12 and all deviations and differences AS/NZS 60950.1.2011 CAN/CSA-C22.2 No. 60950-1-07 GB 4943-95 EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences NOM-019-SCFI-1998 UL 60950-1, Second Edition |
| EMI and EMC compliance |
‚ 47 CFR Part 15 Class A ‚ CNS13438: 2006 Class A ‚ EN 300 386 V1.6.1 ‚ EN61000-3-2: 2014 ‚ EN61000-3-3: 2013 ‚ ICES-003 Issue 6: 2016 Class A ‚ KN 32: 2015 Class A ‚ TCVN 7189: 2009 Class A ‚ EN 55032:2012/ AC:2013 Class A ‚ EN 55032:2015 Class A ‚ CISPR 32 Edition 2 Class A ‚ V-2/2015.04 Class A ‚ V-3/2015.04 Class A ‚ CISPR24: 2010 + A1: 2015 ‚ EN 300 386 V1.6.1 ‚ EN55024: 2010 + A1: 2015 ‚ KN35: 2015 ‚ TCVN 7317: 2003 |
Properties
| Properties | Cisco C9500-32C-A |
| Description | Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Adv. License |
| Product Family | Catalyst 9500 |
| Product Type | Ethernet Switch |
| Cisco IOS Software | Network Advantage |
| Port Density (* with uplink module) |
|
| 1G port density | 48 |
| 10G port density | - |
| 25G port density | - |
| 40G port density | 32 |
| 100G port density | 32 |
| 10G port density with breakout cable | 96 |
| 25G port density with breakout cable |
96 |
| Fans and Fan trays | |
| FAN-T4-R (Max # of fans) | Yes (5) |
| C9K-T1-FANTRAY (Max # of fans) | No |
| Power Supply Selection | C9K-PWR-1600WAC-R or C9K-PWR-1600WDC-R |
| Input Voltage | 90 to 264 VAC |
| Dimensions (HxWxD) Inches | 1.73 x 17.5 x 21.2 in |
| Weight | 25.64 lb (11.63 kg) |
| Rack Units (RU) | 1 RU |
| Minimum Software Requirements | Cisco IOS XE Software Release 16.8.1a |
| Software Features | |
| ‚ | Network Advantage |
| Switch fundamentals Layer 2, Routed Access (RIP, EIGRP Stub, OSPF Up to 1000 routes),PBR, PIM Stub Multicast (up to 1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1x, Macsec-128, CoPP, SXP, IP SLA Responder, SSO |
+ |
| Advanced switch capabilities and scale BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR, IP SLA, OSPF |
+ |
| Network segmentation VRF, VXLAN, LISP, BGP-EVPN2, TrustSec2, SGT2, MPLS, mVPN2 |
+ |
| Automation NETCONF, RESTCONF, gRPC, gNMI/gNOI, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python) |
+ |
| Telemetry and visibility Model-driven telemetry, sampled NetFlow, SPAN, RSPAN |
+ |
| High availability and resiliency GIR, NSF, ISSU2, StackWise Virtual, SMU |
+ |
| IoT integration PTP (IEEE1588v2) |
+ |
| Security MACsec-256, WAN MACsec |
- |
| Cisco trustworthy solutions Trust Anchor module, Secure Boot, Image Signing, Modern Crypto, Runtime Defenses |
+ |
