CISCO C9410R-96U-BNDL-E SWITCH
| Part No: | C9410R-96U-BNDL-E |
| Detail: |
|
| List Price: |
|
| Price: |
$20,549.79
|
| You Save: | $16,858.21 (45% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

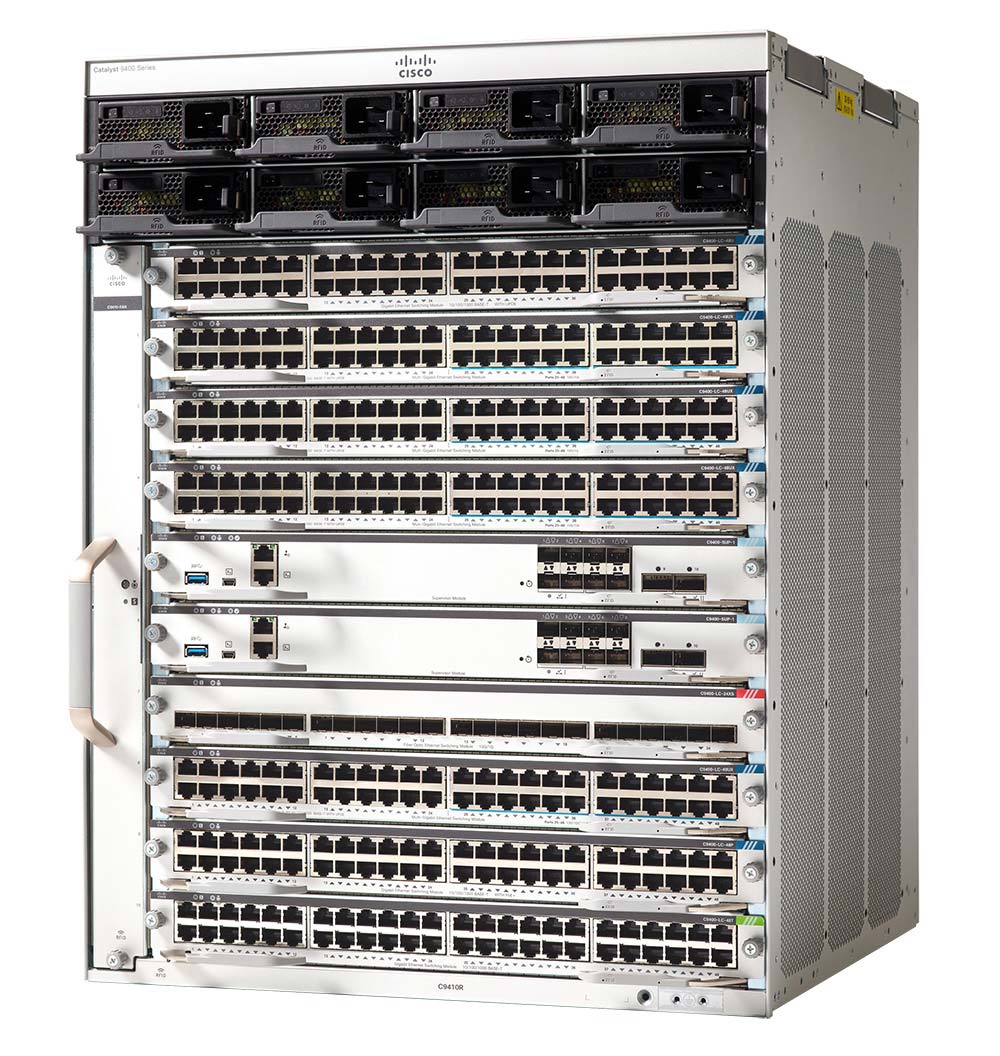

Cisco Catalyst C9410R-96U-BNDL-E Switch
The Cisco Catalyst C9410R-96U-BNDL-E Switch is designed for high-density enterprise access networks, providing 96 Universal Power over Ethernet (UPOE) ports to support a wide range of PoE devices, such as IP phones, wireless access points, and cameras. This modular switch is built for scalability and efficiency, ensuring seamless network operations across large campus environments. Powered by Cisco’s Network Essentials license, it delivers essential Layer 3 routing and automation capabilities for secure and reliable connectivity.
Key Features:
- 96 x UPOE Ports: Supports up to 90W per port, ideal for powering IoT and mobility devices.
- Cisco StackWise Virtual Technology: Simplifies network management and enables seamless redundancy across multiple switches.
- Layer 3 Routing: Supports dynamic routing protocols like OSPF, EIGRP, and BGP for optimized traffic flow and network segmentation.
- Energy-Efficient Design: Complies with IEEE 802.3az standards, optimizing power consumption without sacrificing performance.
- Network Essentials License: Unlocks essential routing, automation, and security features for modern enterprise networks.
Technical Overview:
- Recommended for: Enterprise access networks, large campuses, and branch environments.
- Ports: 96 x 10/100/1000 UPOE ports.
- Switching Capacity: 480 Gbps.
- Forwarding Rate: 240 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, MPLS, and VRF-Lite.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA Center.
- Licensing: Network Essentials.
- Energy Efficiency: Supports IEEE 802.3az standards for energy-efficient operations.
You can check the related tab for the Cisco C9410R-96U-BNDL-E datasheet.
Accessories
Specifications
| Specifications | Cisco C9410R-96U-BNDL-E Switch |
| Total number of slots | 10 |
| Line-card slots | 8 |
| Supervisor engine slots | 2 |
| Dedicated supervisor engine slot numbers | 5 and 6 |
| Supervisor engine redundancy | Yes |
| Supervisor engines supported | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Maximum PoE per slot | 2880W |
| Maximum Bandwidth scalability per line-card slot | Up to 480 Gbps on all slots |
| Number of power supply bays | 8 |
| AC input power | Yes |
| Integrated PoE | Yes |
| Power supplies supported | 3200W AC, 2100W AC |
| Number of fan-tray bays | 1 |
| Location of 19-inch rack-mount | Front |
| Dimensions (H x W x D) | 22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70cm) |
| Rack Units (RU) | 13 RU |
| Chassis weight (with fan tray) | 65.0 lb (29.48 kg) |
| Mounting | 19-in rack compatible (19-in. rack and cable guide hardware included) |
| Regulatory compliance | 22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70cm) |
| Safety | ● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
| EMC | ● 47 CFR Part 15 ● CISPR22 Class A ● KN 32 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CNS13438 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317 ● KN35 |
| Industry EMC, safety, and environmental standards | ● NEBS: Operating temperature: -5 to 55C ● Relative Humidity: 10-93% ● Operating Altitude: up to 1829 m (6000 ft) at 55C ● ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. ● SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) ● ETS 300 019-2-1, Class 1.2 Storage ● ETS 300 019-2-2, Class 2.3 Transportation ● ETS 300 019-2-3, Class 3.2 Stationary ● EN50121-4 ● EN 300 386 |
| ROHS compliance | ROHS5 |
Properties
| Properties | C9410R-96U-BNDL-E |
| Description | C9410R-96U-BNDL-E is a versatile networking bundle featuring the Cisco Catalyst 9410R Series Switch with 96 UPOE (Universal Power over Ethernet) ports, ideal for enhancing network efficiency and scalability in enterprise settings. |
| Product Family | Cisco Switch Catalyst 9400 |
| Product Type | Switch |
| Key Features | • 96 UPOE (Universal Power over Ethernet) ports • High-performance switching capabilities • Scalable design for growing networks • Enhanced network efficiency • Advanced security features • Ideal for enterprise environments • Robust and reliable Cisco networking technology |
