CISCO C9410R-96U-BNDL-A SWITCH
| Part No: | C9410R-96U-BNDL-A | ||
| Detail: |
Managed, Rack-mountable, 8 x line-card slots, 2 x Supervisor slots, Integrated PoE (2880W per slot), Layer 3, Network Advantage License ,
| List Price: |
|
| Price: |
$26,495.00
|
||
| You Save: | $10,912.56 (29% OFF) | ||
| Condition: | Brand New Sealed | ||
| Availability: | SPECIAL ORDER | ||
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. | ||
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA | ||
| Quantity: |
|
Description

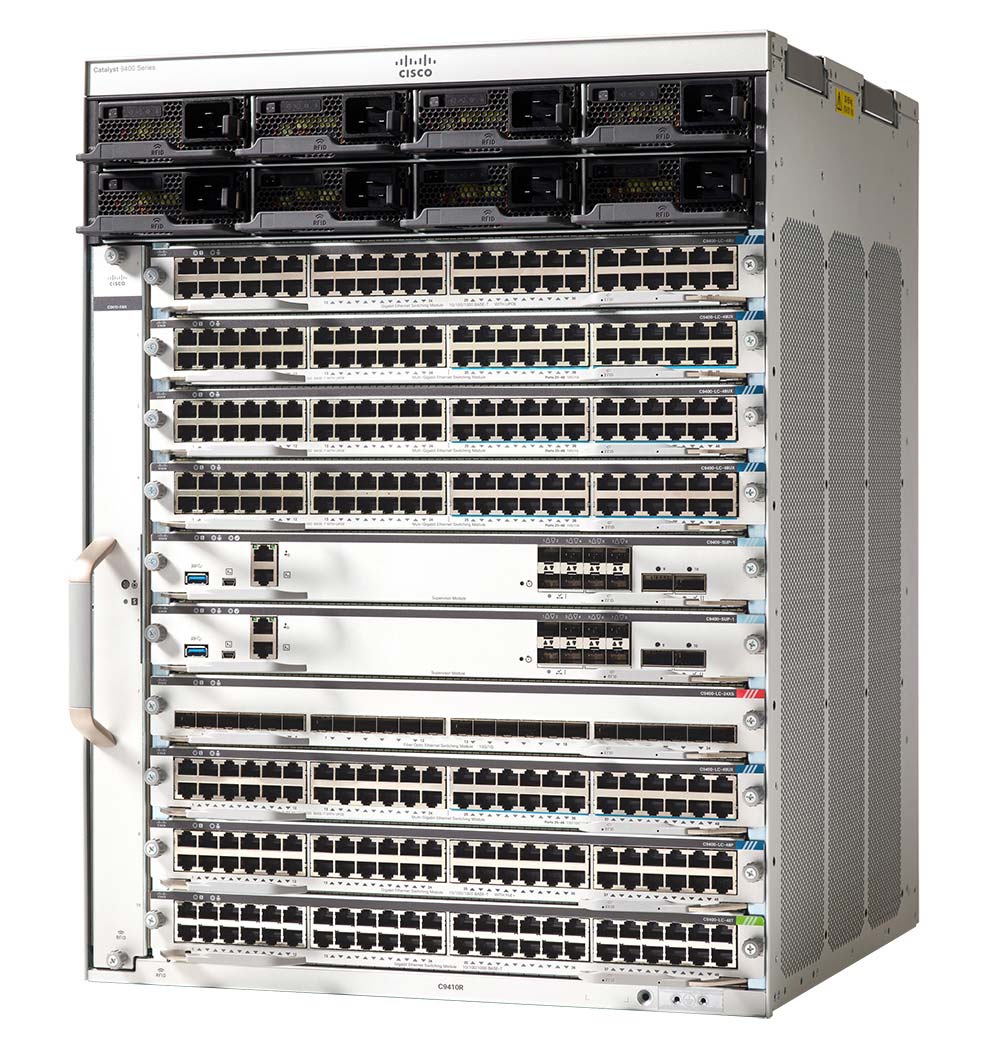

Cisco Catalyst C9410R-96U-BNDL-A Switch
The Cisco Catalyst C9410R-96U-BNDL-A Switch is a highly scalable and modular access switch designed for large enterprise networks. With 96 Universal Power over Ethernet (UPOE) ports, it provides reliable power and data connectivity for high-density deployments, including IoT and mobility networks. Powered by Cisco’s Network Advantage license, the C9410R-96U-BNDL-A offers advanced Layer 3 routing, automation, and security features, making it an ideal solution for expanding networks.
Key Features:
- 96 x UPOE Ports: Supports up to 90W per port, perfect for powering high-performance devices like IP phones, access points, and cameras.
- Cisco StackWise Virtual Technology: Simplifies network management and enables redundancy across multiple switches.
- Advanced Layer 3 Routing: Supports protocols like OSPF, EIGRP, and BGP, ensuring efficient traffic segmentation and routing.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining performance.
- Network Advantage License: Unlocks advanced automation, routing, and security features for enterprise-grade deployments.
Technical Overview:
- Recommended for: Large enterprise networks, campus environments, and IoT-heavy deployments.
- Ports: 96 x 10/100/1000 UPOE ports.
- Switching Capacity: 480 Gbps.
- Forwarding Rate: 240 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, MPLS, and VRF-Lite.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA Center.
- Licensing: Network Advantage.
- Energy Efficiency: Supports IEEE 802.3az standards for energy-efficient operations.
You can check the related tab for the Cisco C9410R-96U-BNDL-A datasheet.
Accessories
Specifications
| Specifications | Cisco C9410R-96U-BNDL-A Switch |
| Total number of slots | 7 |
| Line-card slots | 5 |
| Supervisor engine slots | 2 |
| Dedicated supervisor engine slot numbers | 3 and 4 |
| Supervisor engine redundancy | Yes |
| Supervisor engines supported | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Maximum PoE per slot | 2880W |
| Maximum Bandwidth scalability per line-card slot | Up to 480 Gbps on all slots |
| Number of power supply bays | 8 |
| AC input power | Yes |
| Integrated PoE | Yes |
| Power supplies supported | 3200W AC, 2100W AC |
| Number of fan-tray bays | 1 |
| Location of 19-inch rack-mount | Front |
| Dimensions (H x W x D) | 17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm) |
| Rack Units (RU) | 10 RU |
| Chassis weight (with fan tray) | 63.0 lb (28.58 kg) |
| Mounting | 19-in rack compatible (19-in. rack and cable guide hardware included) |
| Regulatory compliance | CE Marking |
| Safety | ● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
| EMC | ● 47 CFR Part 15 ● CISPR22 Class A ● KN 32 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CNS13438 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317 ● KN35 |
| Industry EMC, safety, and environmental standards | ● NEBS: Operating temperature: -5 to 55C ● Relative Humidity: 10-93% ● Operating Altitude: up to 1829 m (6000 ft) at 55C ● ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. ● SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) ● ETS 300 019-2-1, Class 1.2 Storage ● ETS 300 019-2-2, Class 2.3 Transportation ● ETS 300 019-2-3, Class 3.2 Stationary ● EN50121-4 ● EN 300 386 |
| ROHS compliance | ROHS5 |
