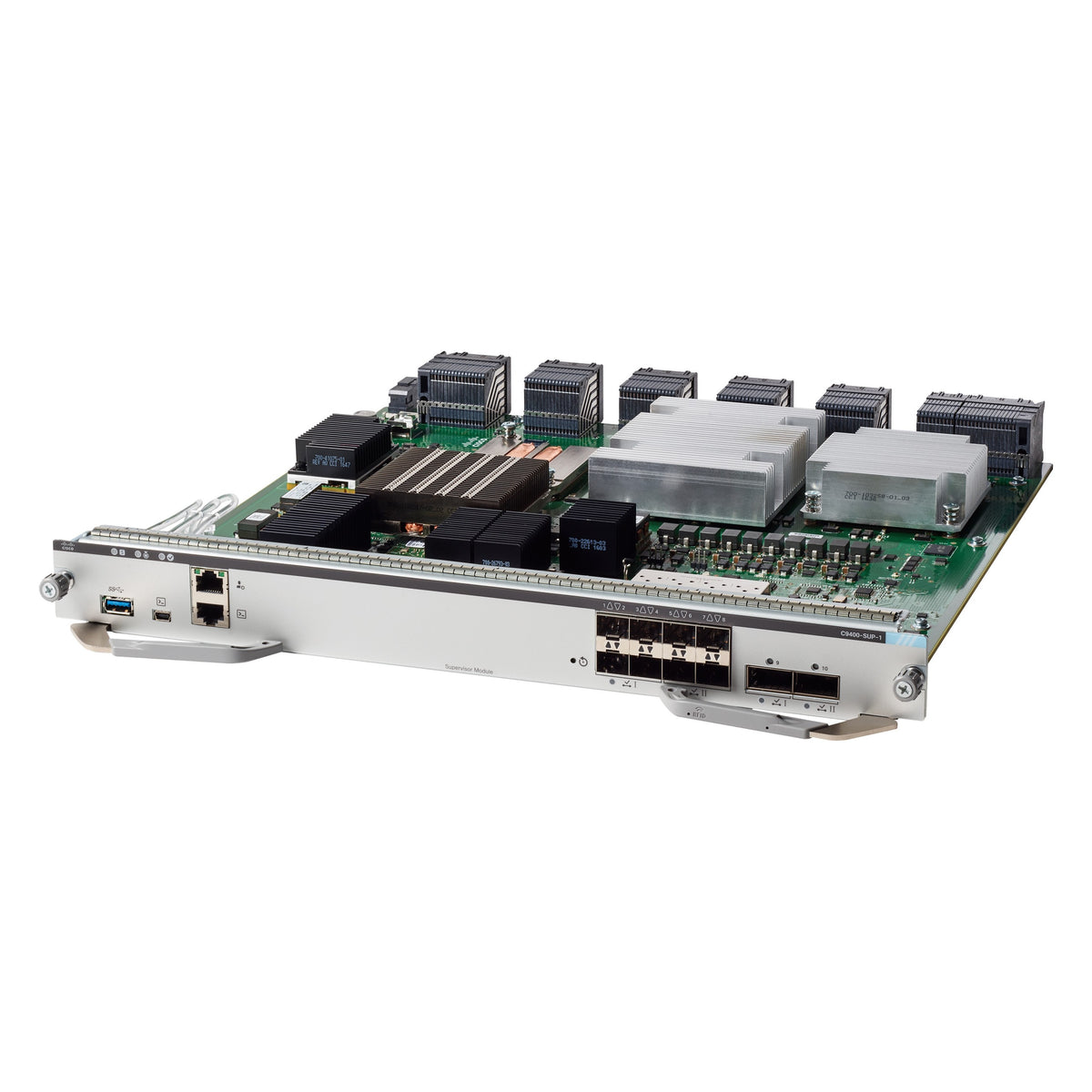

CISCO C9400-SUP-1XL-Y SUPERVISOR ENGINE MODULE
| Part No: | C9400-SUP-1XL-Y |
| Detail: | Control processor 10 GigE 40 Gigabit LAN Plug-in module With 25G Modul |
| List Price: |
|
| Price: |
$21,195.00
|
| You Save: | $8,968.57 (30% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
Cisco Catalyst C9400-SUP-1XL-Y Supervisor Engine
The Cisco Catalyst C9400-SUP-1XL-Y Supervisor Engine is a high-performance, next-generation control module specifically designed for the Cisco Catalyst 9400 Series modular switches. This supervisor engine offers advanced capabilities for managing and securing large enterprise networks, with enhanced processing power, network automation, and comprehensive security features. The C9400-SUP-1XL-Y is optimized for high-performance deployments, ensuring seamless scalability, high availability, and future-ready infrastructure for mission-critical network environments.
Key Features:
- Next-Generation Processing: Delivers enhanced processing power for advanced networking applications and high-throughput environments.
- Advanced Security: Integrated with Cisco TrustSec, MACsec encryption, and other cutting-edge security protocols to protect your network from threats.
- High Availability: Supports redundant supervisor configurations, ensuring continuous operation and minimizing network downtime.
- Future-Ready Scalability: Designed to scale seamlessly with your network, supporting future growth and higher network demands.
- Comprehensive Management: Fully manageable through Cisco DNA Center, offering centralized control, automation, and network visibility.
Technical Overview:
- Recommended for: Large enterprise networks that require advanced management, high availability, and secure operations with scalability.
- Compatibility: Fully compatible with Cisco Catalyst 9400 Series modular switches.
- Management: Managed through Cisco DNA Center, providing comprehensive network automation and monitoring capabilities.
- Security: Features Cisco TrustSec, MACsec encryption, and other advanced security protocols to safeguard the network.
- High Availability: Supports redundant supervisor configurations for maximum uptime and network resilience.
You can check the related tab for the C9400-SUP-1XL-Y datasheet.
Accessories
| Accessories | |
| C9400-SSD-240GB | Cisco Catalyst 9400 Series 240GB M2 SATA memory (Supervisor) |
| C9400-SSD-480GB | Cisco Catalyst 9400 Series 480GB M2 SATA memory (Supervisor) |
| C9400-SSD-960GB | Cisco Catalyst 9400 Series 960GB M2 SATA memory (Supervisor) |
Specifications
| Specifications | C9400-SUP-1XL-Y |
| Centralized wired capacity | Up to 1.44 Tbps |
| Per-slot switching Capacity | 240 Gbps C9404R 120 Gbps C9407R 80 Gbps C9410R |
| Total number of MAC addresses | Up to 64,000 |
| Total number of IPv4 routes (ARP plus learned routes) | Up to 144,000 |
| FNF entries (v4/v6) | Up to 384,000/192,000 |
| DRAM | 16 GB |
| Flash | 10 GB |
| VLAN Ids | 4096 |
| PVST Instances | 300 |
| STP Virtual Ports (Port* VLANs) for PVST | 13,000 |
| STP Virtual Ports (Port* VALNs) for MST | 13,000 |
| SSD capacity | 960 GB |
| Total Switched Virtual Interfaces (SVIs) | 1,000 |
| Jumbo frame | 9216 bytes |
| Forwarding rate | ¢‚ 900 Mpps for IPv4 ¢‚ 782.6 Mpps for IPv6 (@95 byte) |
| IPv4 routing entries | Up to 144,000 |
| IPv6 routing entries | Up to 56,000 |
| Multicast routes | Layer 2 up to 16,000 Layer 3 up to 32,000 |
| QoS hardware entries | Up to 18,000 |
| Security ACL hardware entries |
Up to 18,000 |
| 2 Packet buffer |
96 MB |
| Operating temperature | Normal operating* temperature and altitudes: ¢‚ 23‚° to 113‚°F (-5‚° to +45‚°C), up to 6000 feet (1800 m) ¢‚ 23‚° to 104‚°F (-5‚° to +40‚°C), up to 10,000 feet (3000 m) *Minimum ambient temperature for cold startup is 0‚°C Short-term** exceptional conditions: ¢‚ 23‚° to 131‚°F (-5‚° to +55‚°C), up to 6000 feet (1800 m) ¢‚ 23‚° to 122‚°F (-5‚° to +50‚°C), up to 10,000 feet (3000 m) **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature | 40‚° to 158‚°F (-40‚° to 70‚°C) |
| Relative humidity operating and nonoperating noncondensing | 10 to 95 percent, noncondensing |
| Altitude | -60 to 3000m |
| MTBF | 237,670 hours |
| Safety certifications |
¢‚ UL 60950-1 |
| Electromagnetic emissions certifications |
¢‚ 47 CFR Part 15 |
| Environmental |
Reduction Of Hazardous Substances (ROHS) 5 |
Properties
| Properties | Cisco C9400-SUP-1XL-Y |
| Description | Cisco Catalyst 9400 Series Supervisor v1XL with 25G Module |
| Product Family | Catalyst 9400 |
| Product Type | Supervisor Engine |
| Bandwidth per Slot for Different Chassis | |
| C9404R | 240 Gbps per slot |
| C9407R | 120 Gbps per slot |
| C9410R | 80 Gbps per slot |
| Minimum Software Support | |
| C9404R | Cisco IOS XE 16.9.1 |
| C9407R | Cisco IOS XE 16.9.1 |
| C9410R | Cisco IOS XE 16.9.1 |
| Line Card and Module Support | C9400-LC-48U C9400-LC-48T C9400-LC-48UX C9400-LC-24XS C9400-LC-48P C9400-LC-24S C9400-LC-48S C9400-LC-48H C9400-LC-48HN |
| Uplink ports options | |
| Single supervisor | 8x 10 Gigabit Ethernet ports are active (ports 1 to 8) (2x 40 Gigabit Ethernet ports are disabled [ports 9 to 10]) 2x 40 Gigabit Ethernet ports are active (ports 9 to 10) (8x 10 Gigabit Ethernet ports are disabled [ports 1 to 8]) 4x 10 Gigabit Ethernet and 1x 40 Gigabit Ethernet ports are active (the other 4x 10 Gigabit Ethernet 1x 40 Gigabit Ethernet ports are disabled) 2x 25 Gigabit Ethernet ports are active (ports 1 and 5) (6 x 10 Gigabit Ethernet ports are disabled (ports 2-4 and 6-8) and 2 x 40G [ports 9 to 10]) 4x 10 Gigabit Ethernet and 1 x 25 Gigabit Ethernet ports are active (the remaining ports are disabled) 1x 25 Gigabit Ethernet and 1x 40 Gigabit Ethernet ports are active (the remaining ports are disabled) |
| Dual supervisors | Active supervisor: 4x 10 Gigabit Ethernet ports are active (ports 1 to 4) (the other 4x 10 Gigabit Ethernet ports are disabled) Standby supervisor: 4x 10 Gigabit Ethernet ports (ports 1 to 4) (the other 4x10 Gigabit Ethernet ports are disabled) Active supervisor: 1x 40 Gigabit Ethernet port is active (port 9) (the other 1x 40 Gigabit Ethernet port is disabled) Standby supervisor: 1x 40 Gigabit Ethernet port (port 9) (the other 1x 40 Gigabit Ethernet port is disabled) Active supervisor: 1x 25 Gigabit Ethernet port is active (port 1) (the other 1x 25 Gigabit Ethernet port is disabled) Standby supervisor: 1x 25 Gigabit Ethernet port (port 1) (the other 1x 25 Gigabit Ethernet port is disabled) Active supervisor: 1x 25 Gigabit Ethernet port is active (the remaining ports are disabled); Standby supervisor: 1x 40 Gigabit Ethernet port (the remaining ports are disabled) vice versa Active supervisor: 1x 25 Gigabit Ethernet port is active (the remaining ports are disabled) Standby supervisor: 4 x 10 Gigabit Ethernet port (the remaining ports are disabled) vice versa Active supervisor: 1x 40 Gigabit Ethernet port is active (the other 1x 40 Gigabit Ethernet port and 8 x 10 Gigabit Ethernet ports are disabled) Standby supervisor: 4x 10 Gigabit Ethernet ports (the other 4x10 Gigabit Ethernet ports and 2 x 40 Gigabit Ethernet are disabled) vice versa |
| Active supervisor C9400-SUP-1/XL/XL-Y power | Maximum power (400W) |
| Standby supervisor C9400-SUP-1/XL/XL-Y power | Maximum power (400W) |
| Dimensions (H x W x D) | 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Weight | 10 lb (4.5 kg) |
