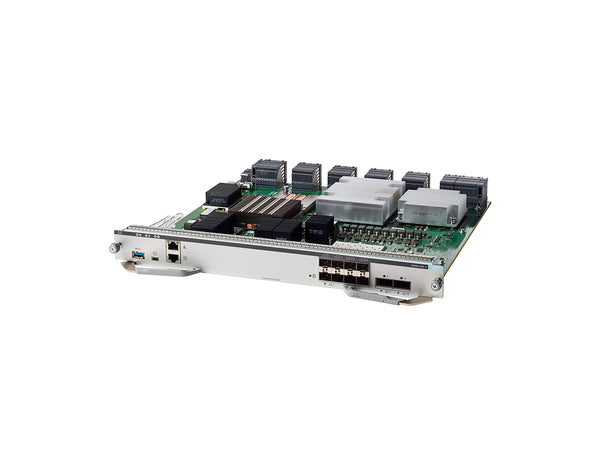

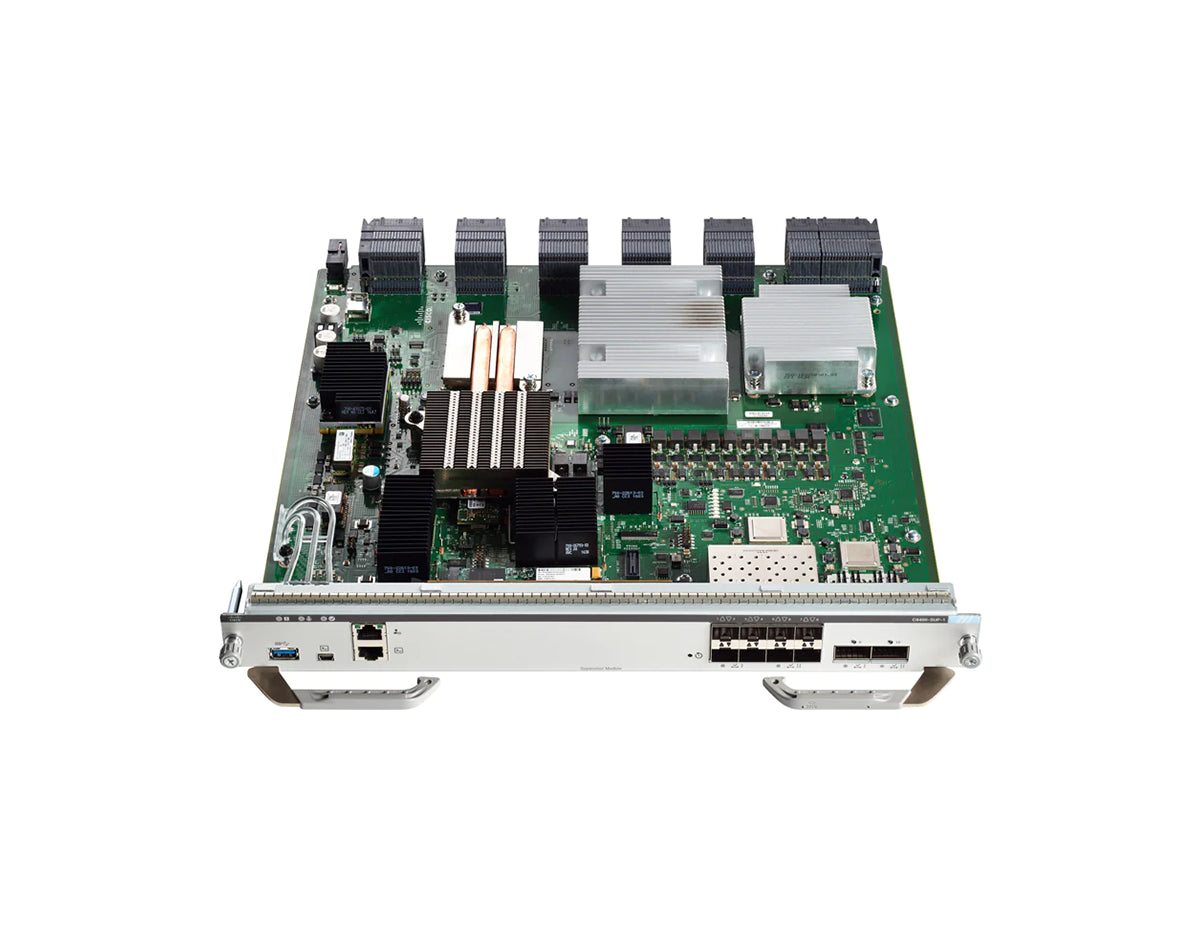

CISCO C9400-SUP-1XL SUPERVISOR ENGINE MODULE

Model: C9400-SUP-1XL
Detail: Control processor, 10 GigE, 40 Gigabit LAN, Plug-in module, for Catalyst 9400 Series chassis
List Price: US$30,164.00
Price:
$17,495.00
You Save: $12,669.00 (42% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description


Accessories

Accessories
C9400-SSD-240GB Cisco Catalyst 9400 Series 240GB M2 SATA memory (Supervisor)
C9400-SSD-480GB Cisco Catalyst 9400 Series 480GB M2 SATA memory (Supervisor)
C9400-SSD-960GB Cisco Catalyst 9400 Series 960GB M2 SATA memory (Supervisor)

Specifications

Specifications C9400-SUP-1XL
Centralized wired capacity Up to 1.44 Tbps
Per-slot switching Capacity 240 Gbps C9404R
120 Gbps C9407R
80 Gbps C9410R
Total number of MAC addresses Up to 64,000
Total number of IPv4 routes (ARP plus learned routes) Up to 144,000
FNF entries (v4/v6) Up to 384,000/192,000
DRAM 16 GB
Flash 10 GB
VLAN Ids 4096
PVST Instances 300
STP Virtual Ports (Port* VLANs) for PVST 13,000
STP Virtual Ports (Port* VALNs) for MST 13,000
SSD capacity 960 GB
Total Switched Virtual Interfaces (SVIs) 1,000
Jumbo frame 9216 bytes
Forwarding rate ‚ 900 Mpps for IPv4
‚ 782.6 Mpps for IPv6 (@95 byte)
IPv4 routing entries Up to 144,000
IPv6 routing entries Up to 56,000
Multicast routes Layer 2 up to 16,000
Layer 3 up to 32,000
QoS hardware entries Up to 18,000
Security ACL hardware entries Up to 18,000
2 Packet buffer 96 MB
Operating temperature Normal operating* temperature and altitudes:
‚ 23‚° to 113‚°F (-5‚° to +45‚°C), up to 6000 feet (1800 m)
‚ 23‚° to 104‚°F (-5‚° to +40‚°C), up to 10,000 feet (3000 m)
*Minimum ambient temperature for cold startup is 0‚°C

Short-term** exceptional conditions:
‚ 23‚° to 131‚°F (-5‚° to +55‚°C), up to 6000 feet (1800 m)
‚ 23‚° to 122‚°F (-5‚° to +50‚°C), up to 10,000 feet (3000 m)
**Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences
Storage temperature 40‚° to 158‚°F (-40‚° to 70‚°C)
Relative humidity operating and nonoperating noncondensing 10 to 95 percent, noncondensing
Altitude -60 to 3000m
MTBF 253,010 hours
Safety certifications ‚ UL 60950-1
‚ CAN/CSA-C222.2 No. 60950-1
‚ EN 60950-1
‚ IEC 60950-1
‚ AS/NZS 60950.1
‚ IEEE 802.3
Electromagnetic emissions certifications ‚ 47 CFR Part 15
‚ CISPR22 Class A
‚ EN 300 386 V1.6.1
‚ EN 55022 Class A
‚ EN 55032 Class A
‚ CISPR 32 Class A
‚ EN61000-3-2
‚ EN61000-3-3
‚ ICES-003 Class A
‚ TCVN 7189 Class A
‚ V-3 Class A
‚ CISPR24
‚ EN 300 386
‚ EN55024
‚ TCVN 7317
Environmental Reduction Of Hazardous Substances (ROHS) 5

Properties

Properties Cisco C9400-SUP-1XL
Description Cisco Catalyst 9400 Series Supervisor v1XL Module
Product Family Catalyst 9400
Product Type Supervisor Engine
Bandwidth per Slot for Different Chassis
C9404R 240 Gbps per slot
C9407R 120 Gbps per slot
C9410R 80 Gbps per slot
Minimum Software Support
C9404R Cisco IOS XE 16.9.1
C9407R Cisco IOS XE 16.6.2
C9410R Cisco IOS XE 16.6.2
Line Card and Module Support C9400-LC-48U
C9400-LC-48T
C9400-LC-48UX
C9400-LC-24XS
C9400-LC-48P
C9400-LC-24S
C9400-LC-48S
C9400-LC-48H
C9400-LC-48HN
Uplink ports options
Single supervisor 8x 10 Gigabit Ethernet ports are active (ports 1 to 8) (2x 40 Gigabit Ethernet ports are disabled [ports 9 to 10])

2x 40 Gigabit Ethernet ports are active (ports 9 to 10) (8x 10 Gigabit Ethernet ports are disabled [ports 1 to 8])

4x 10 Gigabit Ethernet and 1x 40 Gigabit Ethernet ports are active (the other 4x 10 Gigabit Ethernet and 1x 40 Gigabit Ethernet ports are disabled)
Dual supervisors Active supervisor: 4x 10 Gigabit Ethernet ports are active (ports 1 to 4) (the other 4x 10 Gigabit Ethernet ports are disabled);

Standby supervisor: 4x 10 Gigabit Ethernet ports (ports 1 to 4) (the other 4x10 Gigabit Ethernet ports are disabled)

Active supervisor: 1x 40 Gigabit Ethernet port is active (port 9) (the other 1x 40 Gigabit Ethernet port is disabled);

Standby supervisor: 1x 40 Gigabit Ethernet port (port 9) (the other 1x 40 Gigabit Ethernet port is disabled)

Active supervisor: 1x 40 Gigabit Ethernet port is active (the other 1x 40 Gigabit Ethernet port and 8 x 10 Gigabit Ethernet ports are disabled);

Standby supervisor: 4x 10 Gigabit Ethernet ports (the other 4x10 Gigabit Ethernet ports and 2 x 40 Gigabit Ethernet are disabled)
Active supervisor C9400-SUP-1/XL/XL-Y power Maximum power (400W)
Standby supervisor C9400-SUP-1/XL/XL-Y power Maximum power (400W)
Dimensions (H x W x D) 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)
Weight 10 lb (4.5 kg)
