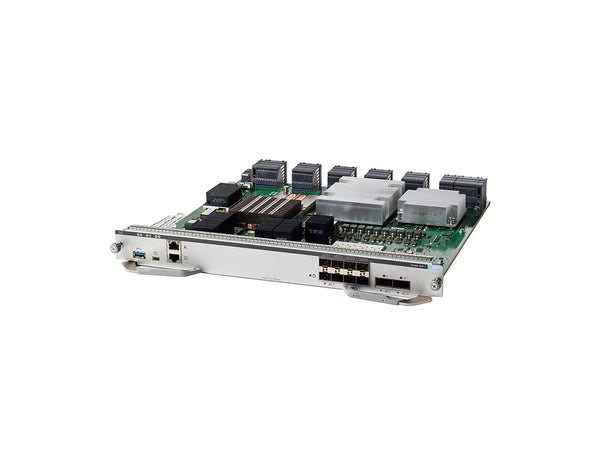

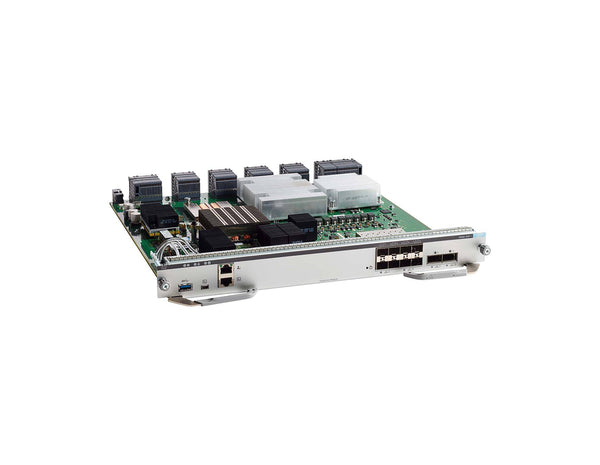

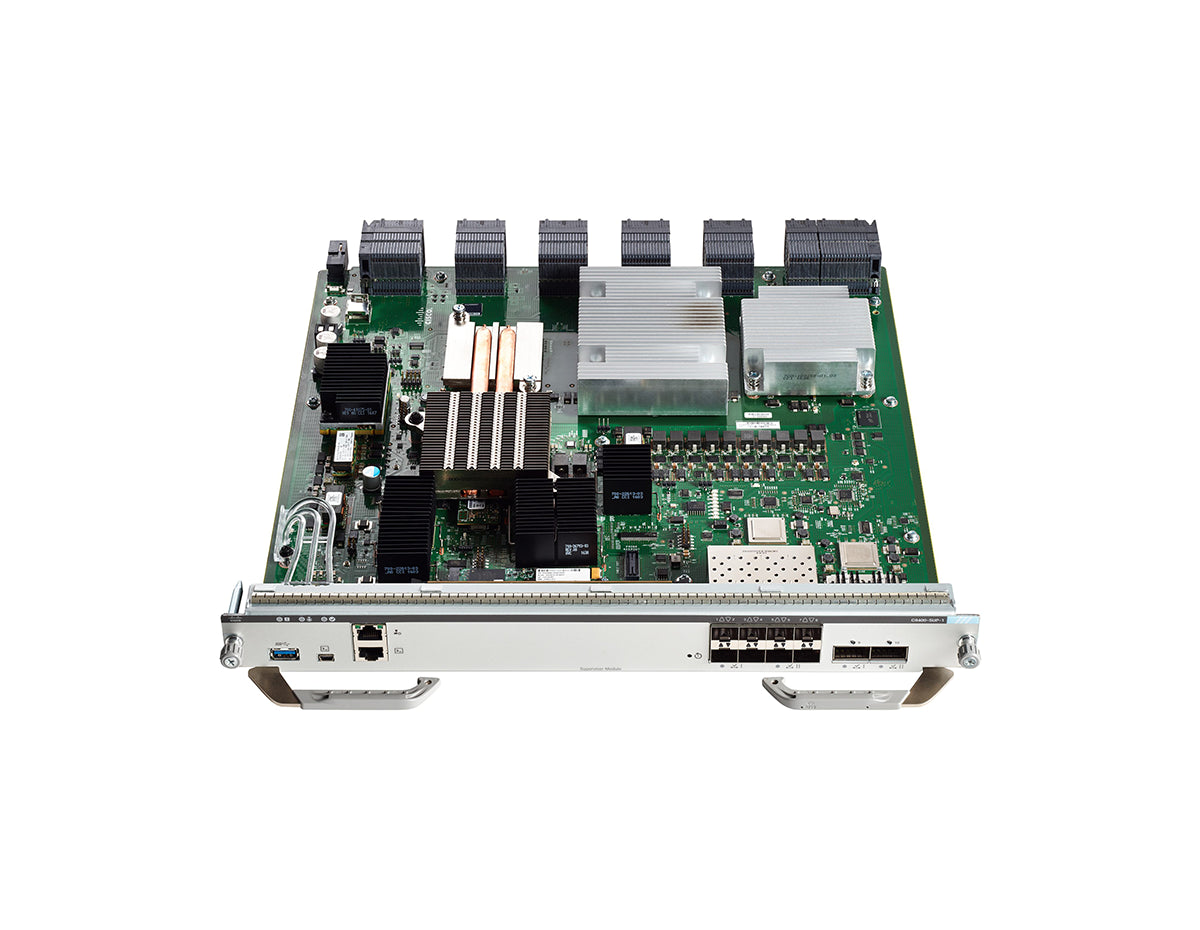

CISCO C9400-SUP-1 SUPERVISOR ENGINE MODULE
| Model: | C9400-SUP-1 |
| Detail: |
Control processor , 10 GigE, 40 Gigabit LAN, Plug-in module, for Catalyst 9400 Series chassis |
| List Price: | |
| Price: | $11,412.92 |
| You Save: | $12,718.08 (53% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside New Jersey |
| Quantity: |
Description
[shortdesc]
- Control processor
- 10 GigE
- 40 Gigabit LAN
- Plug-in module
- for Catalyst 9400 Series chassis
[properties]
| Properties | Cisco C9400-SUP-1 |
| Description | Cisco Catalyst 9400 Series Supervisor v1 Module |
| Product Family | Catalyst 9400 |
| Product Type | Supervisor Engine |
| Bandwidth per Slot for Different Chassis | |
| C9404R | 80 Gbps per slot |
| C9407R | 80 Gbps per slot |
| C9410R | 80 Gbps per slot |
| Minimum Software Support | |
| C9404R | Cisco IOS XE 16.9.1 |
| C9407R | Cisco IOS XE 16.6.1 |
| C9410R | Cisco IOS XE 16.6.1 |
| Line Card and Module Support | C9400-LC-48U C9400-LC-48T C9400-LC-48UX C9400-LC-24XS C9400-LC-48P C9400-LC-24S C9400-LC-48S C9400-LC-48H C9400-LC-48HN |
| Uplink ports options | |
| Single supervisor | 8x 10 Gigabit Ethernet ports are active (ports 1 to 8) (2x 40 Gigabit Ethernet ports are disabled [ports 9 to 10]) 2x 40 Gigabit Ethernet ports are active (ports 9 to 10) (8x 10 Gigabit Ethernet ports are disabled [ports 1 to 8]) 4x 10 Gigabit Ethernet and 1x 40 Gigabit Ethernet ports are active (the other 4x 10 Gigabit Ethernet and 1x 40 Gigabit Ethernet ports are disabled) |
| Dual supervisors | Active supervisor: 4x 10 Gigabit Ethernet ports are active (ports 1 to 4) (the other 4x 10 Gigabit Ethernet ports are disabled); Standby supervisor: 4x 10 Gigabit Ethernet ports (ports 1 to 4) (the other 4x10 Gigabit Ethernet ports are disabled) Active supervisor: 1x 40 Gigabit Ethernet port is active (port 9) (the other 1x 40 Gigabit Ethernet port is disabled); Standby supervisor: 1x 40 Gigabit Ethernet port (port 9) (the other 1x 40 Gigabit Ethernet port is disabled) Active supervisor: 1x 40 Gigabit Ethernet port is active (the other 1x 40 Gigabit Ethernet port and 8 x 10 Gigabit Ethernet ports are disabled); Standby supervisor: 4x 10 Gigabit Ethernet ports (the other 4x10 Gigabit Ethernet ports and 2 x 40 Gigabit Ethernet are disabled) |
| Active supervisor C9400-SUP-1/XL/XL-Y power | Maximum power (400W) |
| Standby supervisor C9400-SUP-1/XL/XL-Y power | Maximum power (400W) |
| Dimensions (H x W x D) | 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Weight | 10 lb (4.5 kg) |
[/properties]
[specifications]
| Specifications | C9400-SUP-1 |
| Centralized wired capacity | Up to 1.44 Tbps |
| Per-slot switching Capacity | 80 Gbps |
| Total number of MAC addresses | Up to 64,000 |
| Total number of IPv4 routes (ARP plus learned routes) | Up to 112,000 |
| FNF entries (v4/v6) | Up to 384,000/192,000 |
| DRAM | 16 GB |
| Flash | 10 GB |
| VLAN Ids | 4096 |
| PVST Instances | 3007 |
| STP Virtual Ports (Port* VLANs) for PVST | 13,000 |
| STP Virtual Ports (Port* VALNs) for MST | 13,000 |
| SSD capacity | 960 GB |
| Total Switched Virtual Interfaces (SVIs) | 1,000 |
| Jumbo frame | 9216 bytes |
| Forwarding rate |
● 900 Mpps for IPv4 |
| IPv4 routing entries | Up to 112,000 |
| IPv6 routing entries | Up to 56,000 |
| Multicast routes | Up to 16,000 |
| QoS hardware entries | Up to 18,000 |
| Security ACL hardware entries | Up to 18,000 |
| 2 Packet buffer | 96 MB |
| Operating temperature | Normal operating* temperature and altitudes: ● 23° to 113°F (-5° to +45°C), up to 6000 feet (1800 m) ● 23° to 104°F (-5° to +40°C), up to 10,000 feet (3000 m) *Minimum ambient temperature for cold startup is 0°C Short-term** exceptional conditions: ● 23° to 131°F (-5° to +55°C), up to 6000 feet (1800 m) ● 23° to 122°F (-5° to +50°C), up to 10,000 feet (3000 m) **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature | 40° to 158°F (-40° to 70°C) |
| Relative humidity operating and nonoperating noncondensing | 10 to 95 percent, noncondensing |
| Altitude | -60 to 3000m |
| MTBF | 253,010 hours |
| Safety certifications | ● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
| Electromagnetic emissions certifications | ● 47 CFR Part 15 ● CISPR22 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317 |
| Environmental | Reduction Of Hazardous Substances (ROHS) 5 |
[/specifications]
[accesories]
| Accessories | |
| C9400-SSD-240GB | Cisco Catalyst 9400 Series 240GB M2 SATA memory (Supervisor) |
| C9400-SSD-480GB | Cisco Catalyst 9400 Series 480GB M2 SATA memory (Supervisor) |
| C9400-SSD-960GB | Cisco Catalyst 9400 Series 960GB M2 SATA memory (Supervisor) |
[/accesories]
Accessories
| Accessories | |
| C9400-SSD-240GB | Cisco Catalyst 9400 Series 240GB M2 SATA memory (Supervisor) |
| C9400-SSD-480GB | Cisco Catalyst 9400 Series 480GB M2 SATA memory (Supervisor) |
| C9400-SSD-960GB | Cisco Catalyst 9400 Series 960GB M2 SATA memory (Supervisor) |
Specifications
| Specifications | C9400-SUP-1 |
| Centralized wired capacity | Up to 1.44 Tbps |
| Per-slot switching Capacity | 80 Gbps |
| Total number of MAC addresses | Up to 64,000 |
| Total number of IPv4 routes (ARP plus learned routes) | Up to 112,000 |
| FNF entries (v4/v6) | Up to 384,000/192,000 |
| DRAM | 16 GB |
| Flash | 10 GB |
| VLAN Ids | 4096 |
| PVST Instances | 3007 |
| STP Virtual Ports (Port* VLANs) for PVST | 13,000 |
| STP Virtual Ports (Port* VALNs) for MST | 13,000 |
| SSD capacity | 960 GB |
| Total Switched Virtual Interfaces (SVIs) | 1,000 |
| Jumbo frame | 9216 bytes |
| Forwarding rate |
● 900 Mpps for IPv4 |
| IPv4 routing entries | Up to 112,000 |
| IPv6 routing entries | Up to 56,000 |
| Multicast routes | Up to 16,000 |
| QoS hardware entries | Up to 18,000 |
| Security ACL hardware entries | Up to 18,000 |
| 2 Packet buffer | 96 MB |
| Operating temperature | Normal operating* temperature and altitudes: ● 23° to 113°F (-5° to +45°C), up to 6000 feet (1800 m) ● 23° to 104°F (-5° to +40°C), up to 10,000 feet (3000 m) *Minimum ambient temperature for cold startup is 0°C Short-term** exceptional conditions: ● 23° to 131°F (-5° to +55°C), up to 6000 feet (1800 m) ● 23° to 122°F (-5° to +50°C), up to 10,000 feet (3000 m) **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature | 40° to 158°F (-40° to 70°C) |
| Relative humidity operating and nonoperating noncondensing | 10 to 95 percent, noncondensing |
| Altitude | -60 to 3000m |
| MTBF | 253,010 hours |
| Safety certifications | ● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
| Electromagnetic emissions certifications | ● 47 CFR Part 15 ● CISPR22 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317 |
| Environmental | Reduction Of Hazardous Substances (ROHS) 5 |
Properties
| Properties | Cisco C9400-SUP-1 |
| Description | Cisco Catalyst 9400 Series Supervisor v1 Module |
| Product Family | Catalyst 9400 |
| Product Type | Supervisor Engine |
| Bandwidth per Slot for Different Chassis | |
| C9404R | 80 Gbps per slot |
| C9407R | 80 Gbps per slot |
| C9410R | 80 Gbps per slot |
| Minimum Software Support | |
| C9404R | Cisco IOS XE 16.9.1 |
| C9407R | Cisco IOS XE 16.6.1 |
| C9410R | Cisco IOS XE 16.6.1 |
| Line Card and Module Support | C9400-LC-48U C9400-LC-48T C9400-LC-48UX C9400-LC-24XS C9400-LC-48P C9400-LC-24S C9400-LC-48S C9400-LC-48H C9400-LC-48HN |
| Uplink ports options | |
| Single supervisor | 8x 10 Gigabit Ethernet ports are active (ports 1 to 8) (2x 40 Gigabit Ethernet ports are disabled [ports 9 to 10]) 2x 40 Gigabit Ethernet ports are active (ports 9 to 10) (8x 10 Gigabit Ethernet ports are disabled [ports 1 to 8]) 4x 10 Gigabit Ethernet and 1x 40 Gigabit Ethernet ports are active (the other 4x 10 Gigabit Ethernet and 1x 40 Gigabit Ethernet ports are disabled) |
| Dual supervisors | Active supervisor: 4x 10 Gigabit Ethernet ports are active (ports 1 to 4) (the other 4x 10 Gigabit Ethernet ports are disabled); Standby supervisor: 4x 10 Gigabit Ethernet ports (ports 1 to 4) (the other 4x10 Gigabit Ethernet ports are disabled) Active supervisor: 1x 40 Gigabit Ethernet port is active (port 9) (the other 1x 40 Gigabit Ethernet port is disabled); Standby supervisor: 1x 40 Gigabit Ethernet port (port 9) (the other 1x 40 Gigabit Ethernet port is disabled) Active supervisor: 1x 40 Gigabit Ethernet port is active (the other 1x 40 Gigabit Ethernet port and 8 x 10 Gigabit Ethernet ports are disabled); Standby supervisor: 4x 10 Gigabit Ethernet ports (the other 4x10 Gigabit Ethernet ports and 2 x 40 Gigabit Ethernet are disabled) |
| Active supervisor C9400-SUP-1/XL/XL-Y power | Maximum power (400W) |
| Standby supervisor C9400-SUP-1/XL/XL-Y power | Maximum power (400W) |
| Dimensions (H x W x D) | 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Weight | 10 lb (4.5 kg) |
