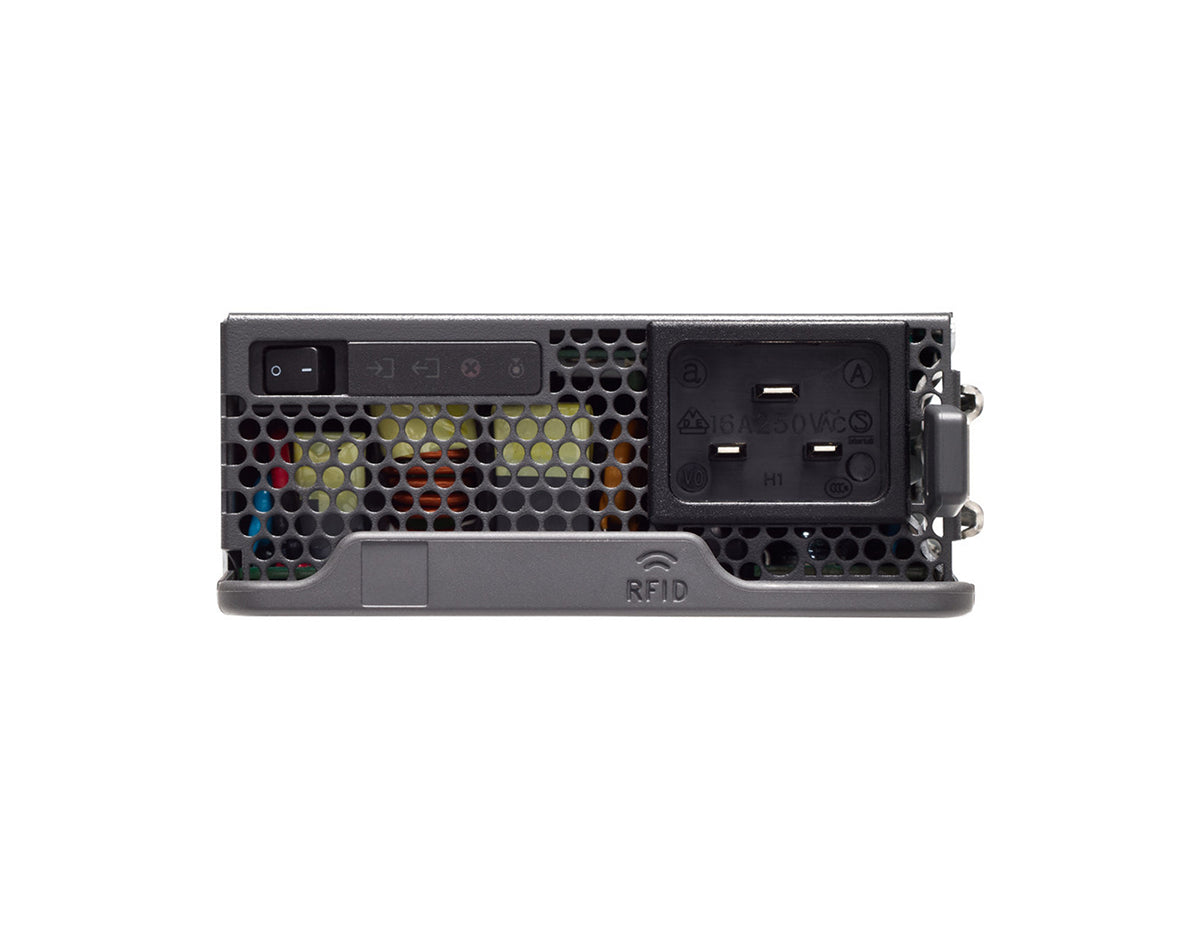

CISCO C9400-PWR-3200AC POWER SUPPLY

Model: C9400-PWR-3200AC
Detail: Power Supply, Hot-plug / redundant (plug-in module), AC 100-240 V, 3200 Watt, for P/N: C9404R, C9407R, C9410R
List Price: US$2,413.09
Price:
$1,765.00
You Save: $648.09 (27% OFF)
Condition: Brand New Sealed
Availability: Out of Stock
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-



Cisco Catalyst 9400 Series 3200 Watt Power Supply

Specifications

Properties Cisco C9400-PWR-3200AC
Description 3200WAC power supply
Product Family Catalyst 9400
Product Type Power Supply
Power supply rated maximum 3200W
AC-input voltage Low-line (115 VAC nominal)—85 VAC (min) to 132 VAC (max)
High-line (230 VAC nominal)—180 VAC (min) to 264 VAC (max)
AC-input current 17.6 A at 100 VAC (1570 W output)
17.6 A at 200 VAC (3200 W output)
AC-input frequency 50/60Hz nominal (47 to 63Hz full range)
Form Factor Plug-in module
Power Device Features Integrated PoE
Power supply output
capacity
For 55 VDC output—1560 W at 115 VAC; 3190 W at 230 VAC
For 3.3VDC output—10 W at 115 VAC; 10 W at 230 VAC
Power supply output • 100 to 120 VAC operation
    • 3.0A @ 3.3 V
    • 28.36 A @ 55V
• 200 to 240 VAC operation
    • 3.0A @ 3.3 V
    • 58 A @ 55V
Output holdup time 20 ms minimum.
kVA rating 3200W (total output power ) or 3478.3 kVA (high-line operation).
Heat dissipation (in
British Thermal Units
(BTU))
For 3200W—948.86 BTU per hour
For 1570W—594.85 BTU per hour
Mean Time Between Failures – MTBF (hours) 300,000 hours
Weight 5.0 lb (2.3 kg)
Branch circuit
requirement
Each chassis power supply should have its own dedicated, fused-branch circuit:
• North America—20 A.
• International—Circuits sized to local and national codes.
• All AC power supply inputs are fully isolated.
