Description

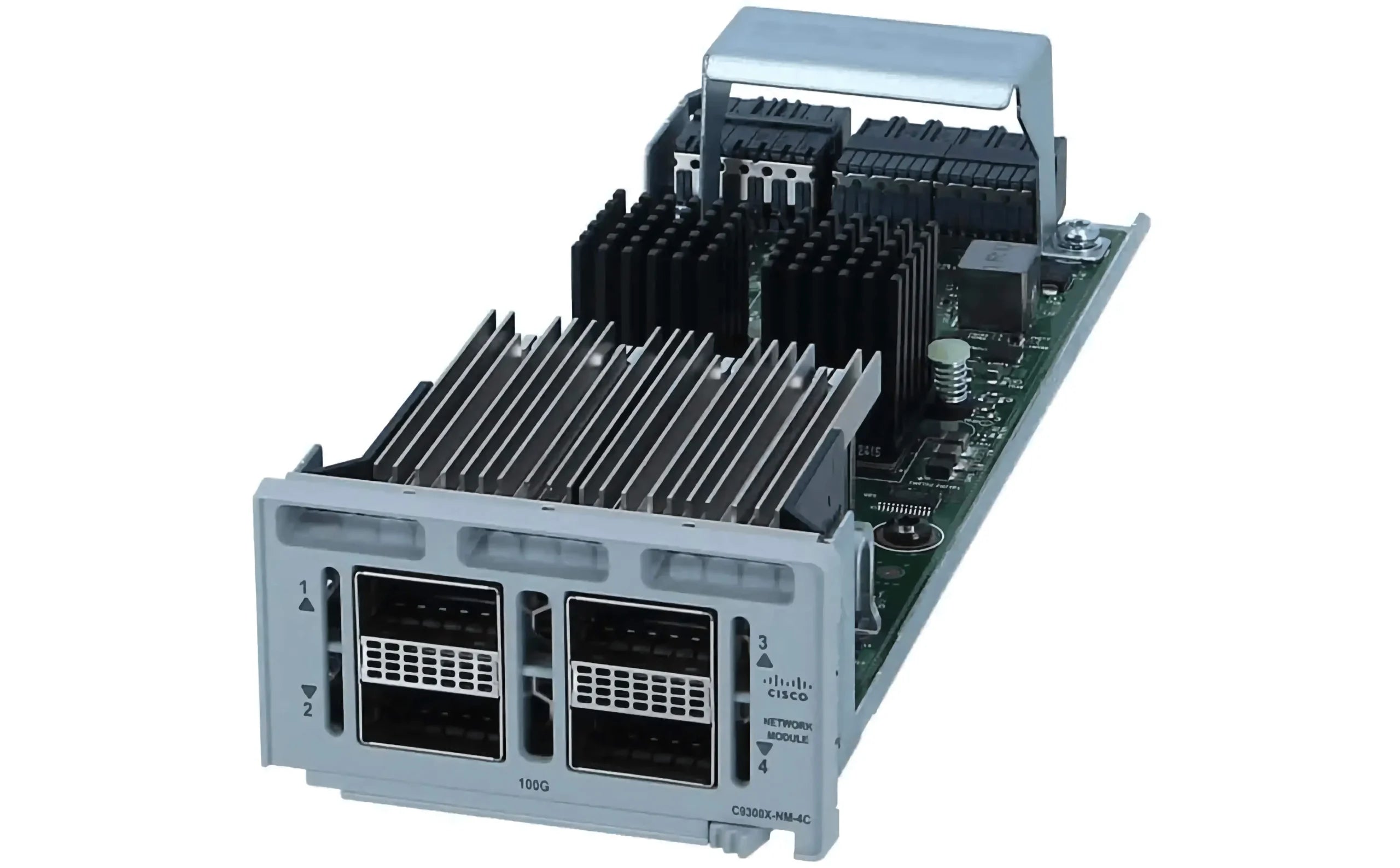

Cisco Catalyst C9300X-NM-4C Network Module 4x100G/40G

The Cisco C9300X-NM-4C is a QSFP+/QSFP28 expansion module for Catalyst 9300X switches, offering four 40GbE/100GbE uplink ports. Ideal for scalable enterprise core and aggregation layers, it supports high-throughput, low-latency fiber deployments and is fully compatible with C9300X models.

Key Features:

• Dual-Speed Support: Supports both 40GBase-X and 100GBase-X through QSFP+ and QSFP28 interfaces
• High Port Density: Provides 4 high-speed uplink ports to improve aggregation and core connectivity
• Flexible Media Options: Compatible with a wide range of optical fiber modules for diverse deployment needs
• Optimized for Catalyst 9300X: Seamless integration with multiple models including C9300X-24Y, C9300X-48TX, C9300X-48HX series and more
• Reliable Throughput: Engineered for low-latency, high-bandwidth performance in enterprise networks
• Plug-and-Play: Simple, hot-swappable design ensures rapid module installation and replacement
• Durable Build: Hardware tested and qualified for rigorous enterprise environments

Technical Specifications:

• Model: C9300X-NM-4C
• Form Factor: Plug-in module
• Interface Type: 4 x 40/100 Gigabit Ethernet (QSFP+/QSFP28)
• Media Type Supported: Optical Fiber
• Ethernet Standards: 40GBase-X, 100GBase-X
• Connectivity: Wired
• Product Compatibility: Compatible with Cisco Catalyst 9300X Series including C9300X-24HX-1A, C9300X-24Y-10A/E, C9300X-48TX-A/E, C9300X-48HX-10A/E and more
• Total Number of Ports: 4
• Port Types: 4 x 100GBase-X or 40GBase-X QSFP
• Data Rate: Up to 100 Gbps per port
• Installation: Hot-swappable into designated network module bay
• Certifications: ENERGY STAR Non-certified, TCO Non-certified, EPEAT Non-compliant
