CISCO C9300L-48PF-4X-E SWITCH
| Model: | C9300L-48PF-4X-E |
| Detail: |
|
| List Price: | |
| Price: | $6,100.00 |
| You Save: | $5,586.90 (48% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

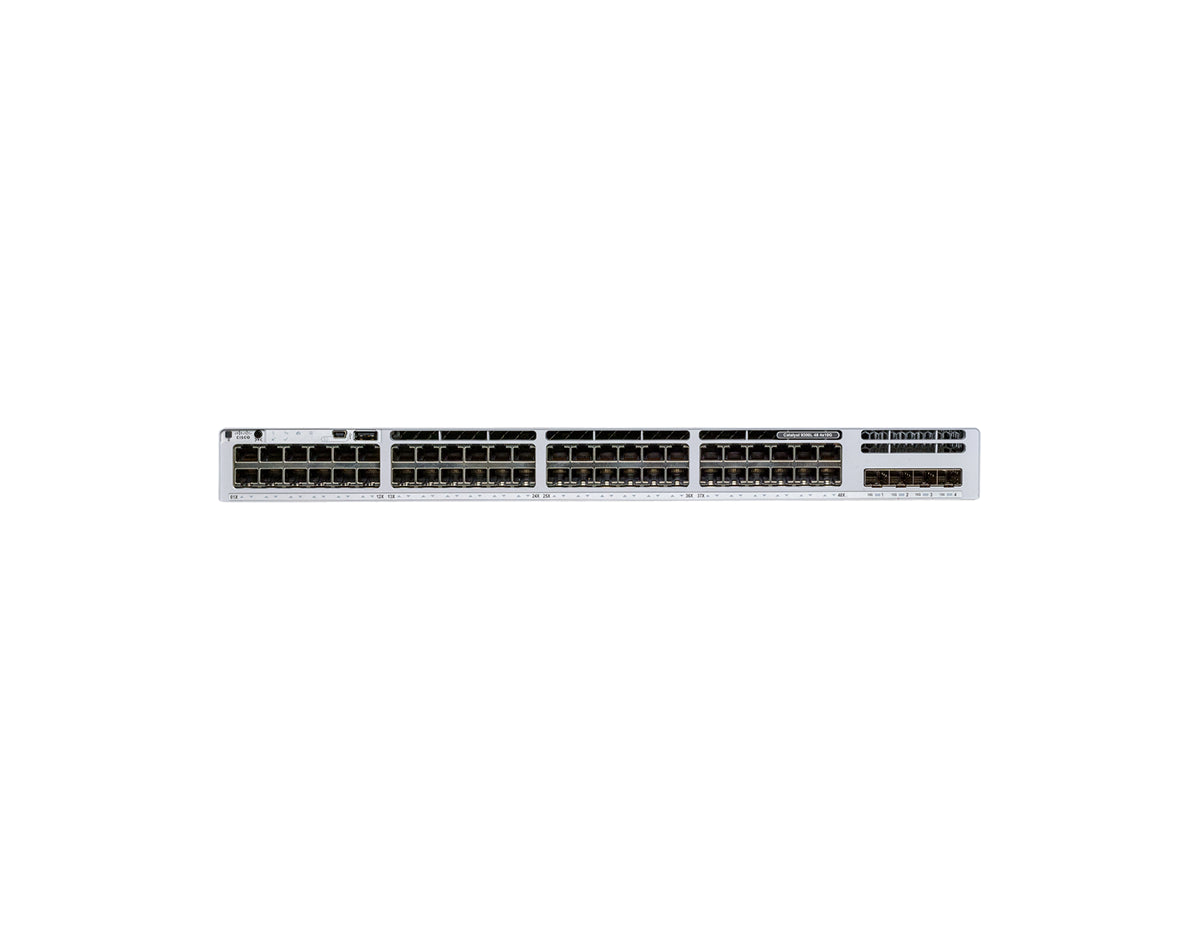

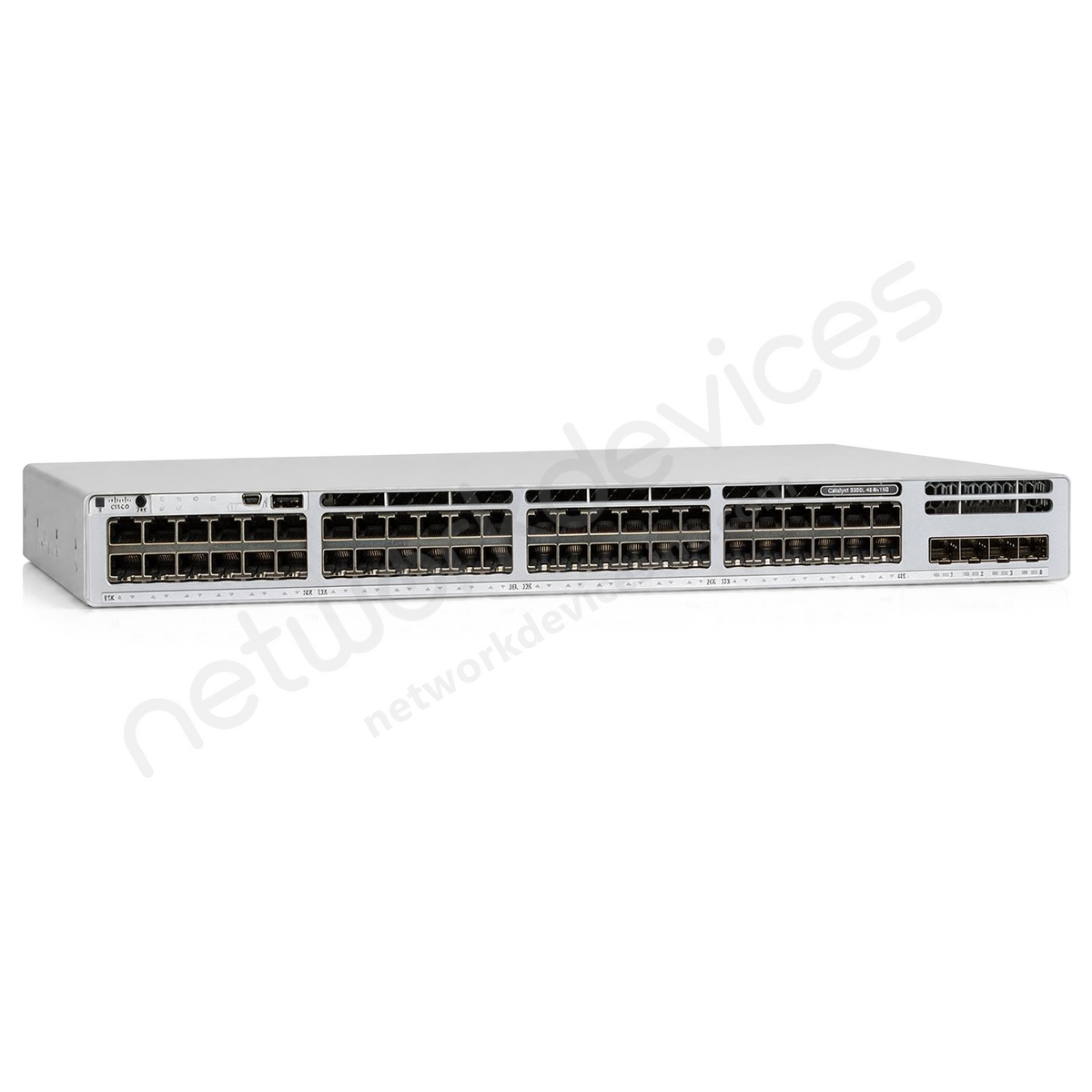

Cisco C9300L-48PF-4X-E Switch
The Cisco C9300L-48PF-4X-E is a versatile member of the Catalyst 9300 series. It provides fast and secure connectivity on 48 ports with full PoE+ support. Combined with QoS (Quality of Service) capabilities and high-speed fixed uplinks, it is ready to be the upgrade your business network requires.
Key Specs:
- Network Essentials License
- 48x1G ports
- 4 x 10G/1G SFP+ uplinks
- Full PoE+
Please see the C9300L-48PF-4X-E datasheet and compatible accessories from the tabs above.
Accessories
| Stacking Support | Stackwise-320‚ |
| Stacking bandwidth support | 320 Gbps‚ |
| Stacking hardware‚ | C9300L-STACK-KIT‚ |
| Number of members |
8 |
| Supported stack members | Other C9300 SKUs with same license level |
| Stacking accessories | |
| STACK-T3-50CM‚ | Data stack 50cm cable (default cable with C9300L Stack Kit)‚ |
| STACK-T3-1M‚ | Data stack 1m cable (cable option with C9300L Stack Kit)‚ |
| STACK T3-3M‚ | Data stack 3m cable (cable option with C9300L Stack Kit)‚ |
| C9300L-STACK-KIT‚ | Stack kit for C9300L SKUs only: Two data stack adapters and one‚ |
| C9300L-STACK-KIT2 | Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack cable |
| STACK-T3A-50CM‚ | Data stack 50cm cable (cable option with C9300L Stack Kit2) |
| STACK-T3A-1M | Data stack 1m cable (cable option with C9300L Stack Kit2) |
| STACK-T3A-3M | Data stack 3m cable (cable option with C9300L Stack Kit2) |
Specifications
| Specifications | C9300L-48PF-4X-E‚ |
| Console Ports | RJ-45-to-DB9 cable for PC connections‚ |
| DRAM | 8 GB‚ |
| Flash Memory | 16 GB‚ |
| Switching capacity | 176 Gbps‚ |
| Forwarding rate‚ | 130.95 Mpps‚ |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 QCVN 118:2018/BTTTT VCCI-CISPR 32 Class A‚ |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Properties
| Properties | C9300L-48PF-4X-E |
| Description |

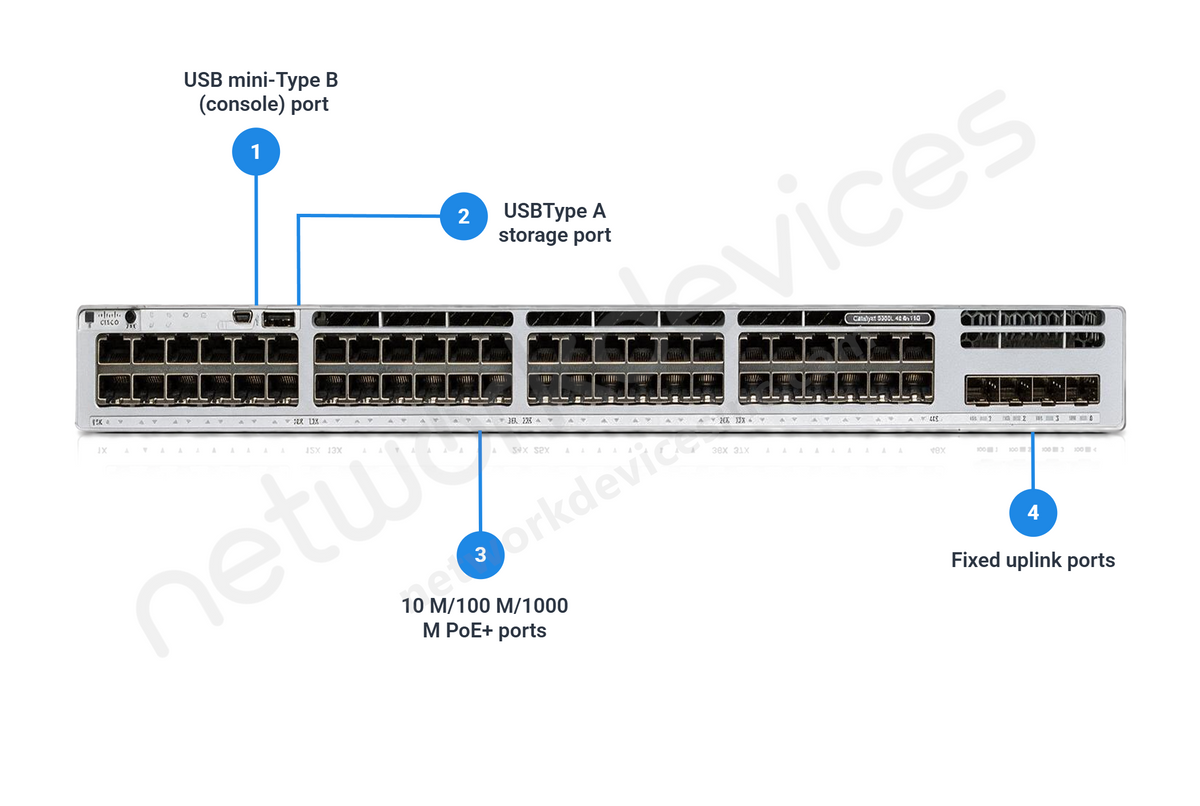

Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+ Network Essentials |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 48 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 port PoE+‚ |
| Uplink configuration | 4x 10G/1G fixed uplinks‚ |
| Cisco IOS Software | Network Essentials‚ |
| Default primary AC power supply |
PWR-C1-1100WAC-P‚ |
| Available PoE power with additional secondary power supply |
1440W (With 1100W Secondary PS) |
| Fans | ‚ - |
| Chassis + FEP + ‚ Fan Dimensions (HxWxD) Inches |
1.73 x 17.5 x 19.2‚ |
