CISCO CATALYST C9200L-24T-4X-A SWITCH
| Model: | C9200L-24T-4X-A |
| Detail: | Switch, L3, 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink), Rack-mountable |
| List Price: | |
| Price: | $2,525.00 |
| You Save: | $2,011.63 (44% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

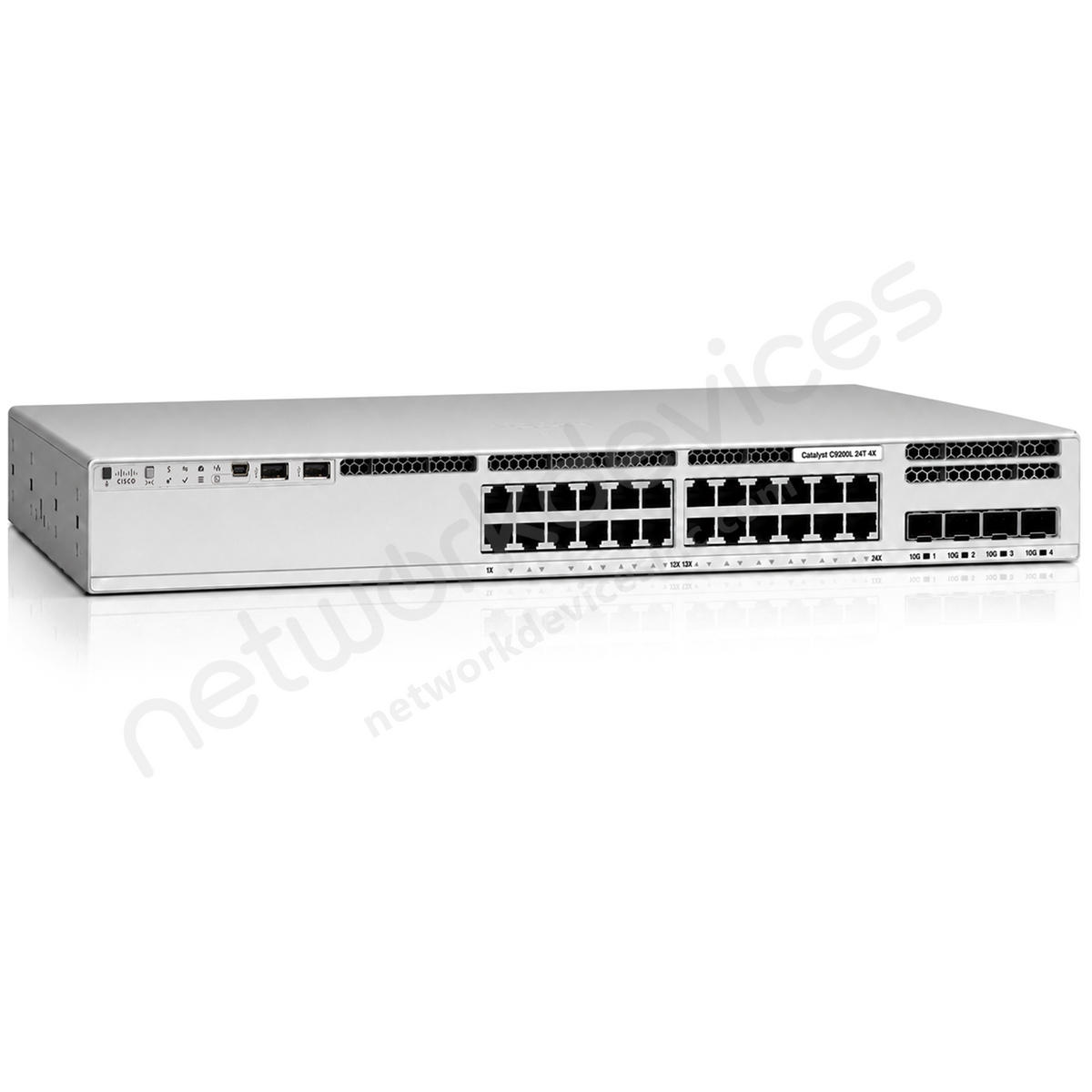

Cisco Catalyst C9200L-24T-4X-A Switch
The Cisco Catalyst C9200L-24T-4X-A Switch is an enterprise-class networking solution designed to deliver high performance, security, and scalability, making it ideal for small to medium-sized businesses and branch offices. This switch features 24 Gigabit Ethernet ports and 4 fixed 10G SFP+ uplinks, providing reliable and high-speed connectivity for a variety of network devices. The C9200L-24T-4X-A is equipped with advanced security features, Layer 3 routing capabilities, and easy management through Cisco DNA Center, ensuring a robust and efficient network infrastructure.
Key Features:
- 24 x Gigabit Ethernet Ports: Provides fast and reliable connectivity for various network devices, ensuring smooth and efficient network operations.
- 4 x 10G SFP+ Uplinks: Offers high-speed uplink options for connecting to other switches or network devices, ensuring network scalability and performance.
- Advanced Security: Includes features such as MACsec encryption and segmentation for enhanced network protection.
- Layer 3 Routing: Supports static routing, OSPF, EIGRP stub, and routed access for efficient traffic management and network segmentation.
- Easy Management: Managed through Cisco DNA Center, CLI, and a web-based UI, simplifying network operations.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and enterprise networks requiring robust and secure 10G connectivity.
- Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports with 4 fixed 10G SFP+ uplinks.
- Switching Capacity: 128 Gbps.
- Forwarding Rate: 95.23 Mpps.
- Management: Cisco DNA Center, CLI, and web-based GUI for comprehensive network management.
- Security: MACsec encryption and advanced segmentation for enhanced network security.
- Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet.
You can check the related tab for the C9200L-24T-4X-A datasheet.
Accessories
| Stacking Support | StackWise-80‚ |
| Stacking bandwidth support | 80 Gbps |
| Stacking hardware‚ | C9200L-STACK-KIT |
| Number of members |
8 |
| Supported stack members | Other C9200L models with same license level |
| Stacking accessories | |
| C9200L-STACK-KIT | Stack kit for C9200 SKUs only: Two data stack adapters and one data stack cable |
| STACK-T4-50CM | Data stack 50 cm cable (default cable with Stack Kit) |
| STACK-T4-1M | Data stack 1 m cable |
| STACK T4-3M | Data stack 3 m cable |
| Mounting Accessories | |
| ACC-KIT-T1= | Accessory kit with 19 inch Type 1 rack mount |
| RACK-KIT-T1= | 19, 23, 24 inch and ETSI Type 1 rack mount kit |
| 4PT-KIT-T2= | 4 Point rack mount kit New |
| C9K-MGNT-TRAY | Magnet and Mounting Tray for compact switches |
| C9K-CMPCT-DIN-MNT | DIN Rail Mount for compact switches |
| RACKMNT-19-CMPACT | 19-Inch Rack Mounting Brackets for compact switches |
| C9K-CMPCT-CBLE-GRD | Cable guard for compact switches (for C9K-WALL-TRAY) |
| C9K-WALL-TRAY | Wall mount bracket for compact switches |
| C9K-CMPCT-DESK-MNT | Under desk mount for compact switches |
Specifications
| Specifications | C9200L-24T-4X-A |
| Console Ports | RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| Switching capacity | 128 Gbps |
| Forwarding rate‚ | 95.23 Mpps |
| MAC addresses | 16000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | IEC 60950-1 UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950.1 Class I Equipment |
| Electromagnetic compatibility certifications |
47 CFR Part 15 CISPR 32 Class A CNS 13438 EN 300 386* EN 55032 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A KN 32 TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386* EN 55035 KN 35 TCVN 7317 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55035, EN300 386* EN 61000-3-2, EN 61000-3-3 |
| Safety compliance |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Properties
| Properties | C9200L-24T-4X-A |
| Description | Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Advantage |
| Product Family | Catalyst 9200-L |
| Product Type | Ethernet Switch |
| Number of Ports | 24 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
24 ports data |
| Uplink configuration | 4x 1/10G fixed uplinks |
| Cisco IOS Software | Network Advantage |
| Default primary AC power supply |
PWR-C5-125WAC |
| Available PoE power with additional secondary power supply |
|
| Fans | Fixed redundant |
| Chassis + FEP + ‚ Fan Dimensions (HxWxD) Inches |
1.73x17.5x12.9 |
