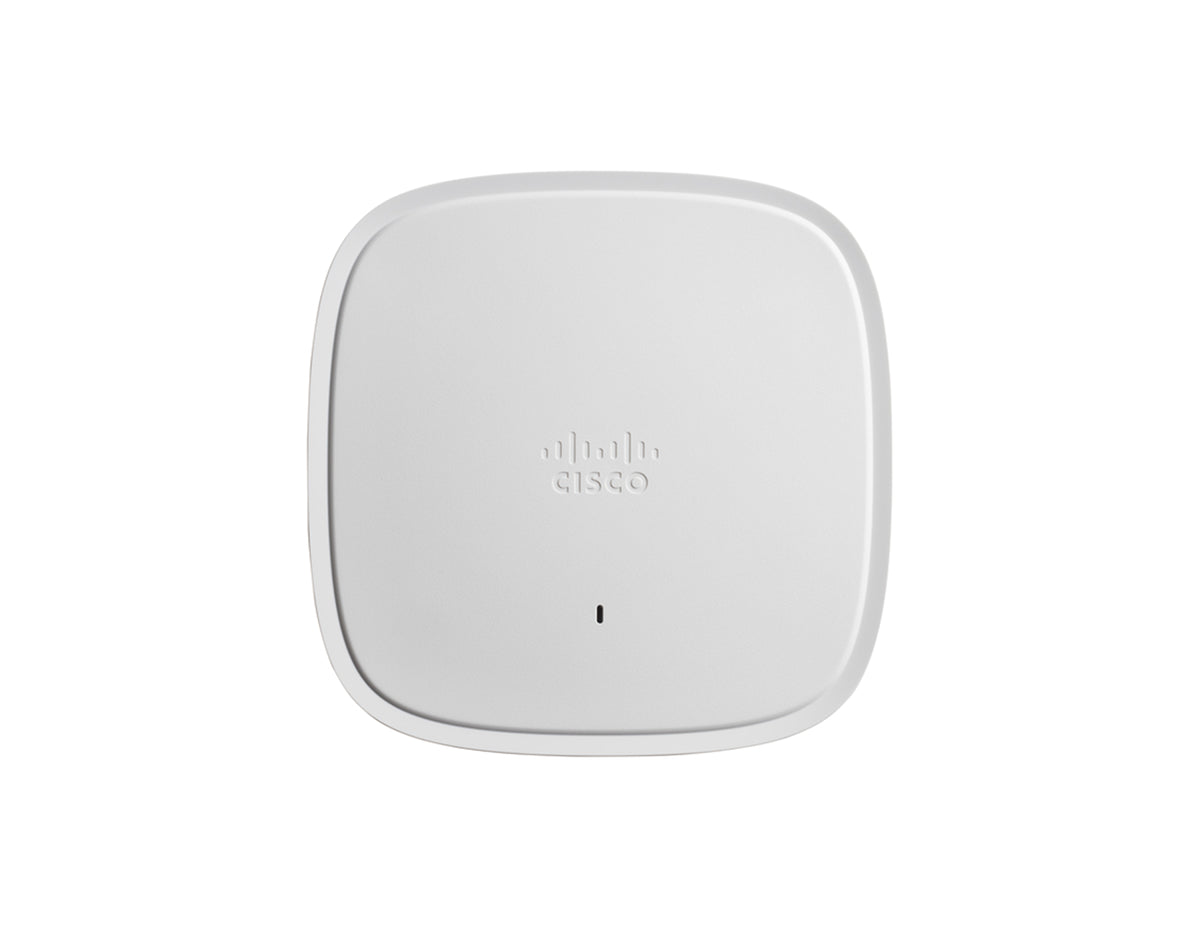

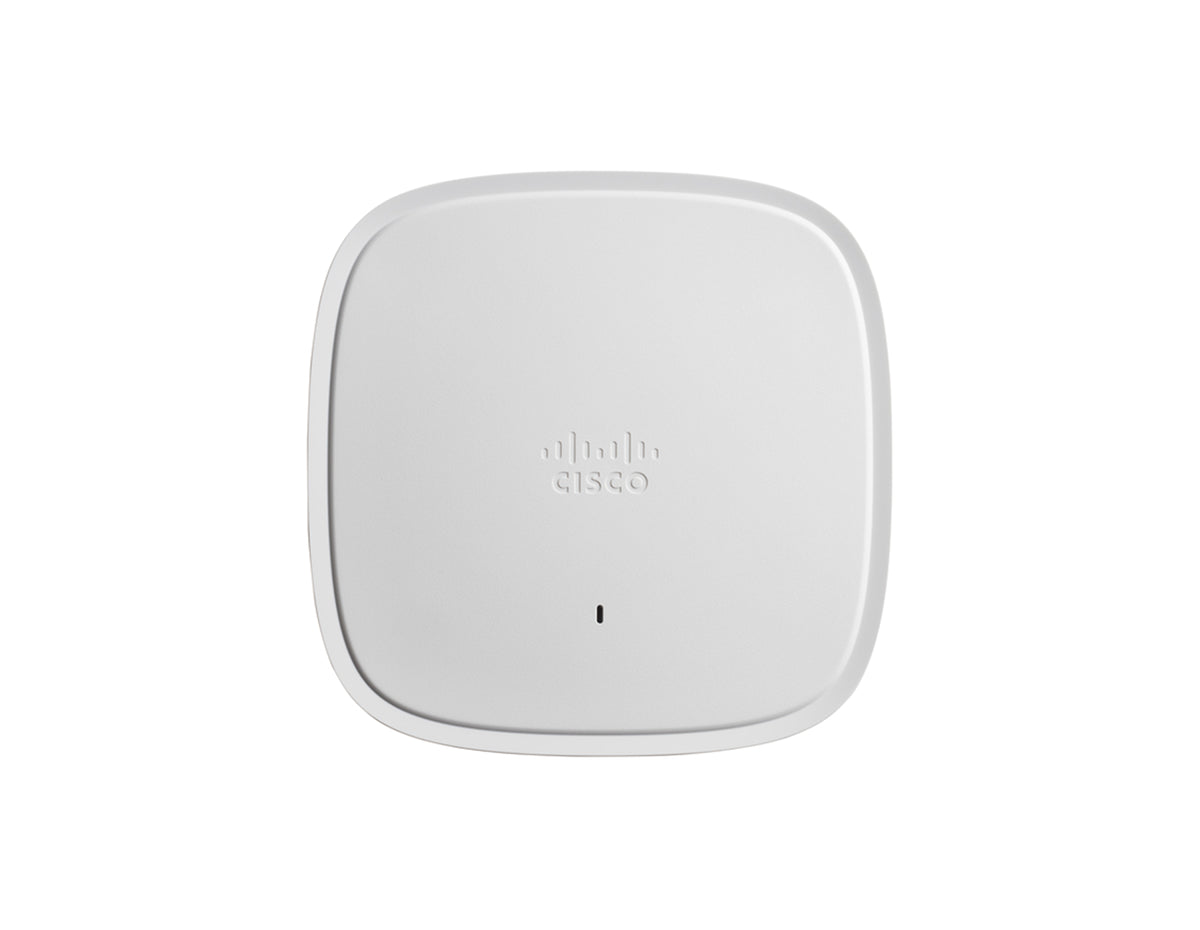

CISCO ACCESS POINT (C9120AXI-E)

Part No: C9120AXI-E
Detail: Cisco AIR-ACCPMK3700-2: A reliable accessory for enhanced network performanc
List Price: US$2,164.58
Price:
$695.00
You Save: $1,469.58 (68% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ, TX, FL and PA
Quantity:
+
-

Cisco Access Point C9120AXI-E

The Cisco Catalyst 9120AX Series Access Points represent a significant leap in wireless network technology, offering more than just compliance with the Wi-Fi 6 (802.11ax) standard. They are an integral part of Cisco's intent-based network, scaling effectively to meet the growing needs of various network sizes. The C9120AXI-E is made for indoor environments with internal antennas for the E domain.

Key Features:

  • 2.4-GHz and 5-GHz bands
  • 4x4:4 MIMO
  • Cisco DNA

The tabs contain the Cisco C9120AXI-E datasheet with all the specifics you need.

Specifications

DRAM 2048 MB
Flash 1024 MB

Encryption Algorithm

AES, TLS, PEAP, TTLS, WPA, WPA2, EAP-SIM, EAP-FAST

Authentication Method

MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM

Regulatory Domain  E regulatory domain: • 2.412 to 2.4835; 13 channels • 5.150 to 5.350 GHz; 8 channels • 5.470 to 5.725 GHz; 8 channels

Software Included

● Cisco Unified Wireless Network Software Release 8.9.x or later
● Cisco IOS ® XE Software Release 16.11 with AP Device Pack, or later

Service & Support

Operating Temperature

32 °F - 122 °F

Available transmit power settings 2.4 GHz
● 23 dBm (200mW)
● 20 dBm (100mW)
● 17 dBm (50mW)
● 14 dBm (25mW)
● 11 dBm (12.5 mW)
● 8 dBm (6.25mW)
● 5 dBm (3.13mW)
● 2 dBm (1.56mW)
● -1dBm (0.79mW)
●-4dBm(0.39mW)

5 GHz
● 26 dBm (400mW)
● 23 dBm (200mW)
● 20 dBm (100mW)
● 17 dBm (50mW)
● 14 dBm (25mW)
● 11 dBm (12.5 mW)
● 8 dBm (6.25mW)
● 5 dBm (3.13mW)
● 2 dBm (1.56mW)
● -1dBm (0.79mW)

Properties

Properties C9120AXI-E
Description Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, E Domain
Product Family Cisco Catalyst 9120AX Series Access Points
Product Type Access Point
Hardware Type  Indoor
Features  - 802.11ax (Wi-Fi 6) - Cisco RF ASIC - Uplink/downlink OFDMA - MU-MIMO technology - Target wake time - BSS coloring - Intelligent Capture - Flexible Radio Assignment - Dual 5-GHz radio support - Smart antenna connector - Cisco Mobility Express - Multigigabit Ethernet support - Bluetooth 5.0 - Container support for applications

Line Coding Format

OFDMA
MU‑MIMO technology Yes

Frequency Band

2.4 GHz, 5 GHz

Interfaces

1 x 1/2.5GBase-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0
Ports 1 x LAN

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, 802.11ax
802.11n version 2.0 (and related) capabilities  ● 4x4 MIMO with four spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support
Input power requirements  ● 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®) ● Cisco power injector, AIR-PWRINJ6= ● 802.3af PoE ● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

Internet of Things (IoT) Compatible

Yes

Dimensions in.

8.5 x 8.5 1.7 in.
