Compact Wi-Fi 6 Access for Enterprise Networks

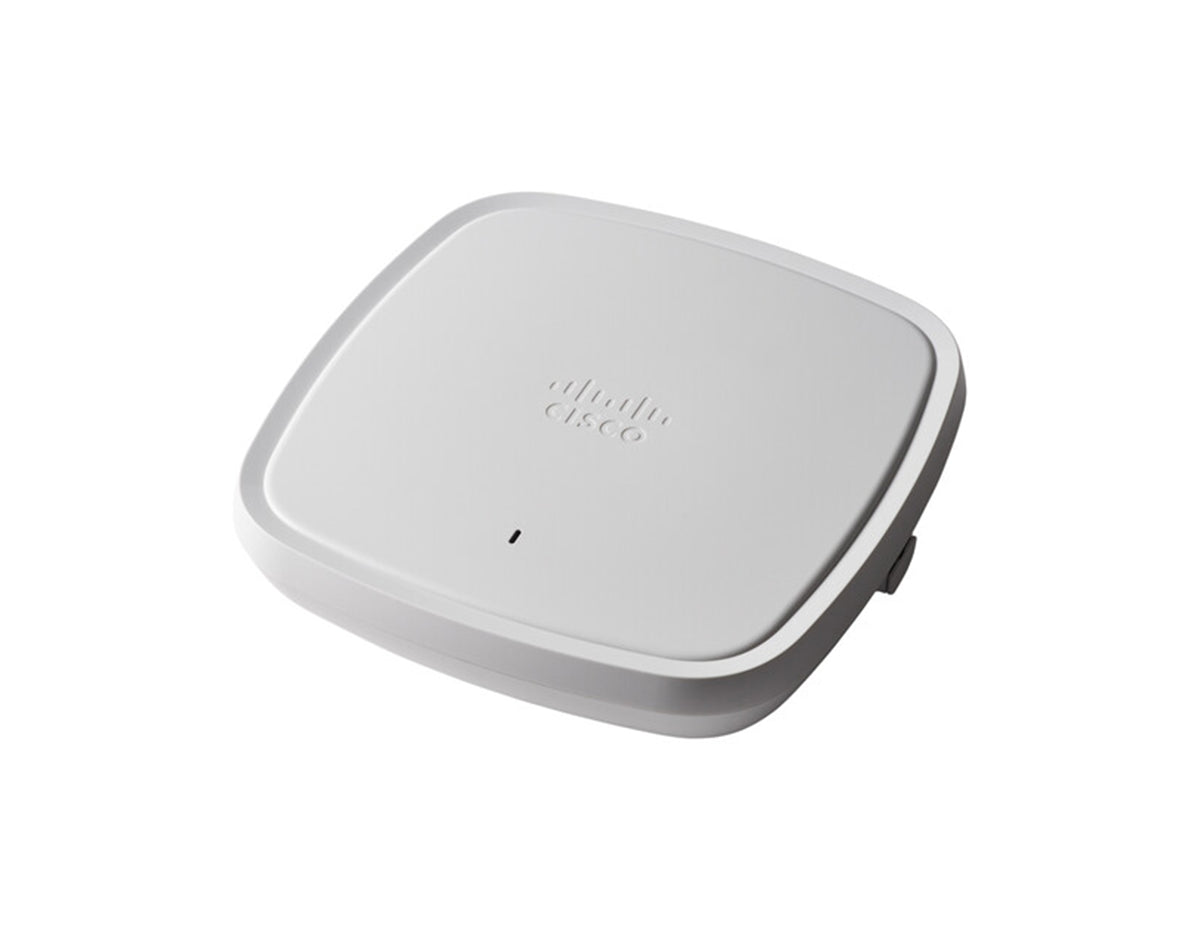

The Cisco C9105AXI-B is a Catalyst 9105AX indoor access point designed for enterprise wireless deployments that need Wi-Fi 6 connectivity in a compact internal antenna form factor. It supports 2x2 uplink and downlink MU-MIMO with two spatial streams, OFDMA, BSS coloring, Target Wake Time, and WPA3 support for modern wireless network performance.
Key Benefits and Features
- Wi-Fi 6 support helps improve efficiency for wireless users, collaboration apps, all-wireless offices, and IoT environments.
- 2x2 uplink and downlink MU-MIMO with two spatial streams supports efficient wireless connectivity for compatible clients.
- OFDMA, BSS coloring, and Target Wake Time help reduce overhead, support spatial reuse, and improve client power efficiency.
- Integrated Bluetooth Low Energy 5.0 and Zigbee radio supports location-based use cases such as asset tracking, wayfinding, and analytics.
- Internal omnidirectional antennas simplify deployment in indoor enterprise spaces.
Ideal Use Cases
- Enterprise indoor wireless access for offices and shared workspaces
- Wi-Fi 6 upgrades for organizations using Cisco wireless controllers
- High-density collaboration environments using video and cloud applications
- IoT-ready wireless deployments with BLE and Zigbee location-based services
- Secure wireless access for business and operational networks
Technical Specifications
- Brand: Cisco
- SKU: C9105AXI-B
- Product Type: Catalyst 9105AX indoor access point
- Wireless Standard: Wi-Fi 6, IEEE 802.11ax
- MIMO: 2x2 uplink and downlink MU-MIMO with two spatial streams
- PHY Data Rate: Up to 1.488 Gbps with 80 MHz at 5 GHz and 20 MHz at 2.4 GHz
- Integrated Antenna: 2.4 GHz peak gain 4 dBi and 5 GHz peak gain 5 dBi, internal omnidirectional antenna
- Interfaces: 1 x 10/100/1000 Base-T Ethernet uplink and RJ-45 management console port
- Supported Controllers: Cisco Catalyst 9800 Series, Cisco 3504, 5520, 8540, and Cisco Virtual Wireless Controller
Upgrade Indoor Wireless with Cisco Wi-Fi 6
Choose the Cisco C9105AXI-B for compact enterprise-grade Wi-Fi 6 coverage, internal antennas, controller-based management support, and efficient wireless performance for modern business environments.
