CISCO C8300-1N1S-6T ROUTER
| Model: | C8300-1N1S-6T | ||
| Detail: |
| ||
| Condition: | Brand New Sealed | ||
| Availability: | Out of Stock | ||
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. | ||
| Tax: | $0.00 Tax Outside NJ and TX | ||
| Quantity: |
Description

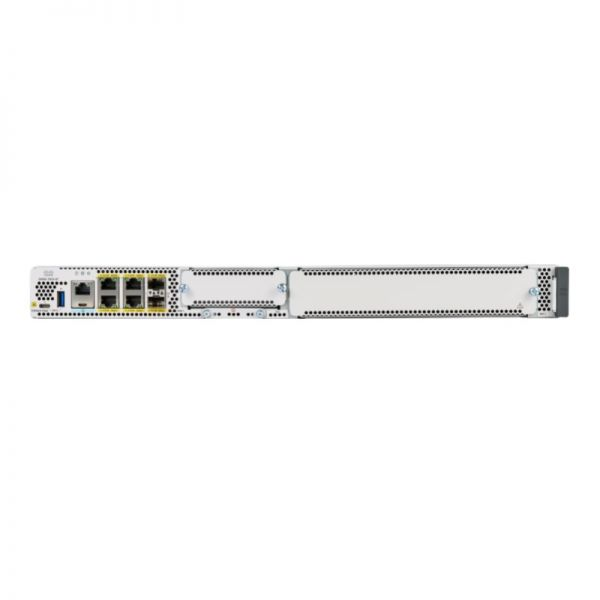

Cisco C8300-1N1S-6T Router
The C8300-1N1S-6T Router is a member of the Cisco Catalyst 8300 series. This router offers a wide range of functionalities and features that cater to various networking needs. It benefits enterprises, data centers, service providers, and individuals seeking reliable and robust network connectivity solutions. The router comes with several security measures like firewalls, intrusion detection systems, and encryption protocols to ensure the safety of your network. Moreover, it enables Quality of Service (QoS) capabilities, which allow users to manage traffic prioritization and resource allocation within the network more efficiently.
Quick Specs:
- 6x 1G Ethernet Ports
- 1x SM Slot
- 1x NIM Slot
- 8GB DRAM
Please see the related tabs for the C8300-1N1S-6T datasheet and compatible accessories.
Accessories
| Memory, storage, and accessory options Cisco Catalyst 8300 Series memory, storage, and accessory options |
|
| MEM-C8300-8GB | Cisco C8300 Edge Platform - 8 GB Memory |
| MEM-C8300-16GB | Cisco C8300 Edge Platform - 16GB Memory |
| MEM-C8300-32GB | Cisco C8300 Edge Platform - 32GB Memory |
| M2USB-16G | Cisco C8000 Edge Platform - 16G M.2 USB SSD Storage |
| M2USB-32G | Cisco C8000 Edge Platform - 32G M.2 USB SSD Storage |
| SSD-M2NVME-600G | Cisco C8000 Edge Platform - 600G M.2 NVMe SSD Storage |
| SSD-M2NVME-2T | Cisco C8000 Edge Platform – 2T M.2 NVMe SSD Storage |
| C8300-RM-19-1R | Cisco C8300 1RU Edge Platform - Rack Mount kit - 19" |
| C8300-RM-23-1R | Cisco C8300 1RU Edge Platform - Rack Mount kit - 23" |
| C8300-RM-19-2R | Cisco C8300 2RU Edge Platform - Rack Mount kit - 19" |
| C8300-RM-23-2R | Cisco C8300 2RU Edge Platform - Rack Mount kit - 23" |
| C8300-RM-4PT-1R | Cisco C8300 1RU Edge Platform – 4-post Rack Mount kit - 19" |
| C8300-RM-4PT-2R | Cisco C8300 2RU Edge Platform - 4-post Rack Mount kit - 19" |
| C8300-FAN-1R | Cisco C8300 1RU Edge Platform - Fan Tray Assembly |
| C8300-FAN-2R | Cisco C8300 2RU Edge Platform Fan Tray Assembly |
| C8300-FAN-2R-R | Cisco C8300 2RU Edge Platform Reverse Airflow Fan Tray Assembly for NEBS |
| C-RFID-1R | Cisco C8300 1RU Edge Platform - RFID |
| C-RFID-2R | Cisco C8300 2RU Edge Platform - RFID |
| C8300-SM-BLANK | Cisco C8300 SM Blank |
| C8300-NIM-BLANK | Cisco C8300 NIM Blank |
| C8300-PIM-BLANK | Cisco C8300 PIM Blank |
| The fan tray is shipped default with the Cisco Catalyst 8300 Edge Series Platforms. | |
Specifications
| Specifications | C8300-1N1S-6T is a 1RU platform with 1 SM slot and 1 NIM slot plus 6 x 1Gbps embedded Layer3 Ethernet ports |
| Description | C8300 1RU w/ 1G WAN (1 SM slot and 1 NIM slot, and 6 x 1-Gigabit Ethernet ports) |
| 10G port density | (-) |
| 1G port density | 6 |
| Slots | 1 SM 1 NIM 1 PIM |
| Memory (DRAM) default | 8 GB |
| Storage (M.2 SSD) default | 16 GB |
| SD-WAN IPsec Throughput (1400Bytes) |
Up to 2Gbps |
| SD-WAN IPsec Throughput with IQDF** (1400Bytes) |
Up to 2Gbps |
| SD-WAN IPsec Throughput (IMIX*) | 1.8Gbps |
| SD-WAN IPsec Throughput with IQDF** (IMIX*) |
1.7Gbps |
| SD-WAN Overlay Tunnels scale | 6000 |
| *IMIX is average packet size of 352 Bytes packet size ** IQDF traffic pattern: IPSec + Quality of Service (QoS) + Deep Packet Inspection (DPI) + Flexible Netflow (FNF) |
|
| 50% IQDF* + 50% (DIA w. NAT + NGFW + IPS + URLF + AMP) |
2.6Gbps |
| DIA w. NAT + NGFW + IPS + URLF + AMP |
2.1Gbps |
| * Tested with IOS XE release 17.12.2. All NGFW + UTD tests with Firewall EMIX traffic profile | |
| IPv4 Forwarding Throughput (1400Bytes) |
Up to 19.7Gbps |
| IPsec Throughput (1400Bytes) | Up to 1.9Gbps |
| IPsec Throughput (IMIX*) | 1.9Gbps |
| * IMIX is average packet size of 352 Bytes packet size | |
| Number of IPsec SVTI Tunnels | 4000 |
| Number of ACLs per system | 4000 |
| Number of IPv4 ACEs per system | 72K |
| Number of IPv4 Routes | 1.6M w/ default 8GB, up to 4M w/ 32GB |
| Number of IPv6 Routes | 1.5M w/ default 8GB, up to 4M w/ 32GB |
| Number of Queues | 16K |
| Number of NAT Sessions | 1.2M w/ default 8GB, up to 2M w/ 32GB |
| Number of Firewall Sessions | 512K |
| Number of VRFs | 4000 |
| Power consumption, no modules, single PSU | 82W |
| Minimum software requirement | Cisco IOS XE Software Release 17.3.2 |
| Dimensions (H x W x D) | 1.73 in. x 17.50 in. x 16.25 in. |
| Rack Units (RU) | 1RU |
| Chassis weight with 2X AC power supplies and fan tray | 20 lbs |
| Acoustics: Sound pressure (Typical/maximum) |
49 dBa/71 dBa |
| Acoustics: Sound power (Typical/maximum) |
60 dBa/82 dBa |
| Input voltage | AC: 85 to 264 VAC DC: -40 to 72V; 48V nominal |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Storage temperature | (-40 to 150°F) (-40 to 70°C) |
| Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5 to 85% Ambient (noncondensing) nonoperating and storage: 5 to 95% |
| Altitude | 0 to 10,000 feet (0 to 3050 meters) |
| Mean Time Between Failures (MTBF) |
536,060 hours |
| Safety certifications | UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950-1 IEC/EN 60825 Laser Safety FDA: Code of Federal Regulations Laser Safety |
| EMC (Emissions) | 47 CFR Part 15 Class A ICES 003 Class A AS/NZS CISPR 32 Class A CISPR 32 Class A EN55032 Class A VCCI-CISPR 32 Class A CNS-13438 Class A KN32 Class A IEC/EN 61000-3-2: Power Line Harmonics IEC/EN 61000-3-3: Voltage Fluctuations and Flicker |
| EMC (Immunity | IEC/EN-61000-4-2: Electrostatic Discharge Immunity IEC/EN-61000-4-3: Radiated Immunity IEC/EN-61000-4-4: Electrical Fast Transient Immunity IEC/EN-61000-4-5: Surge AC, DC, and Signal Ports IEC/EN-61000-4-6: Immunity to Conducted Disturbances IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations KN35 |
| EMC (ETSI/EN) | EN300 386: Telecommunications Network Equipment (EMC) EN55032: Multimedia Equipment (Emissions) EN55024: Information Technology Equipment (Immunity) EN55035: Multimedia Equipment (Immunity) EN61000-6-1: Generic Immunity Standard |
Properties
| Properties | C8300-1N1S-6T |
| Description | C8300-1N1S-6T is a 1RU platform with 1 SM slot and 1 NIM slot plus 6 x 1Gbps embedded Layer3 Ethernet ports |
| Product Family | Cisco Catalyst 8300 Series Edge Platforms |
| Product Type | Router |
