Cisco C1300-48T-4G Managed Network Switch 48xGE 4x1G SFP

The Cisco C1300-48T-4G is a robust Layer 3 managed switch that delivers reliable and high-speed networking solutions for small to medium-sized businesses and enterprise branch offices. With 48 Gigabit Ethernet ports and 4 dedicated Gigabit SFP uplinks, it ensures seamless data transmission with advanced traffic management, security features, and scalability. With 104 Gbps switching bandwidth and 77.38 Mpps forwarding rate, this switch is optimized for demanding business applications.

Key Features:

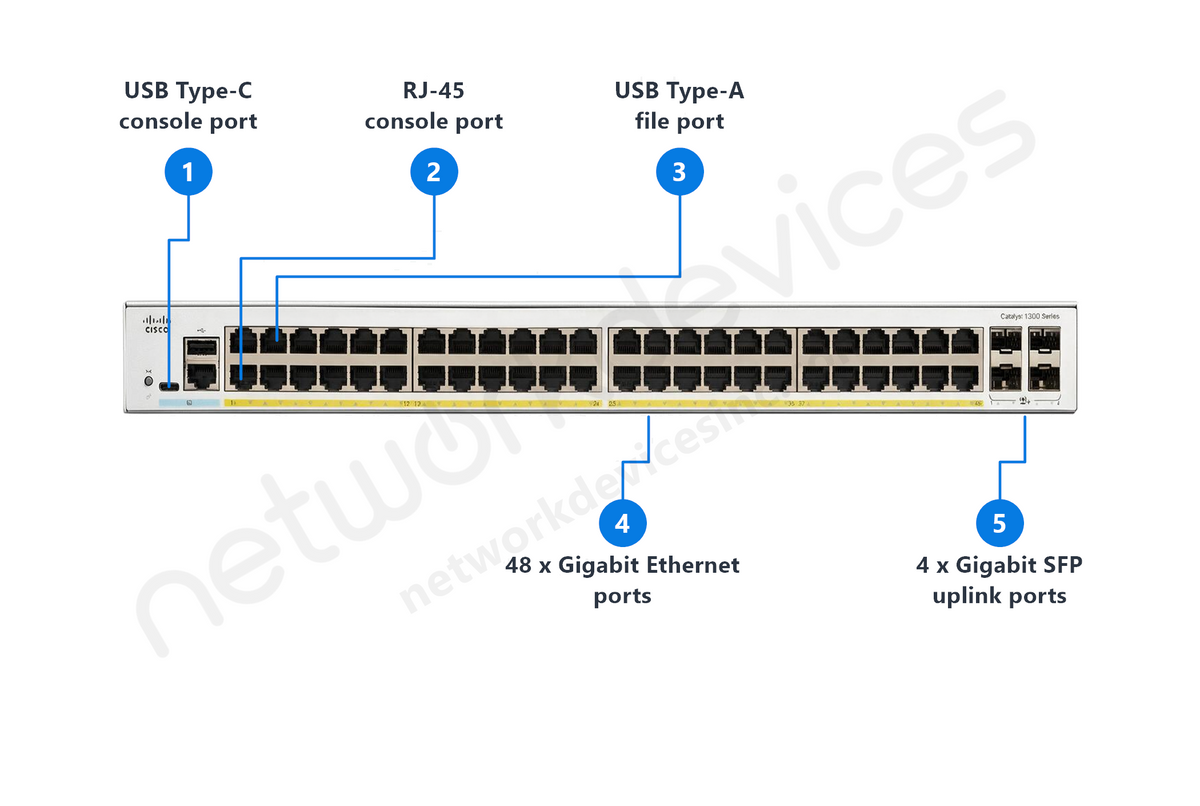

• High-Speed Connectivity: 48 auto-sensing 10/100/1000 RJ45 ports and 4 SFP uplink ports for fiber connectivity.
• Layer 3 Routing Capabilities: Supports dynamic routing, VLAN segmentation, and IPv4/IPv6 protocols.
• Enterprise-Grade Performance: 104 Gbps switching capacity with 77.38 Mpps forwarding rate ensures fast and efficient data processing.
• Advanced Traffic Management: Features Weighted Round Robin (WRR) and strict priority queuing for optimized performance.
• Robust Security Features: DHCP Snooping, DoS attack prevention, RADIUS authentication, and storm control for enhanced network security.
• Stacking Capability: Supports hardware stacking of up to 8 units, allowing centralized management.
• Optimized for Large Networks: Supports up to 2000 multicast groups and 9000-byte jumbo frames.
• Energy-Efficient Design: Max power consumption of 38.8W with an internal power supply.
• Quiet Operation: Low noise level of 29.7 dB with an efficient fan cooling system.
• Rugged Construction: Built with a durable metal chassis for rack-mountable installation.

Technical Specifications:

• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.38 Mpps
• Layer Services: Layer 2, Layer 3
• MAC Address Table Size: 16000 entries
• Multicast Groups: 2000
• Queue Management: 8 priority queues with Weighted Round Robin (WRR)
• Stacking: Yes, stackable up to 8 units
• Packet Buffer: 1.5 MB
• CPU: Dual-Core up to 1.4 GHz
• Memory: 1 GB DDR4 RAM, 512 MB Flash
• Power Draw: Max 38.8W, Idle 13.09W
• Power Supply: Internal, 100-240V AC, 50/60 Hz
• Operating Temperature: 23°F to 122°F (-5°C to 50°C)
• Storage Temperature: -13°F to 158°F (-25°C to 70°C)
• Cooling System: Fan-based
• Noise Level: 29.7 dB
• Mean Time Between Failures (MTBF): 1.47 million hours
• Certifications: UL, CSA, CE, FCC
• Physical Dimensions: 17.5 x 11.3 x 1.7 inches (445 x 288 x 44 mm)
• Weight: 8.71 lbs (3.95 kg)
