Description

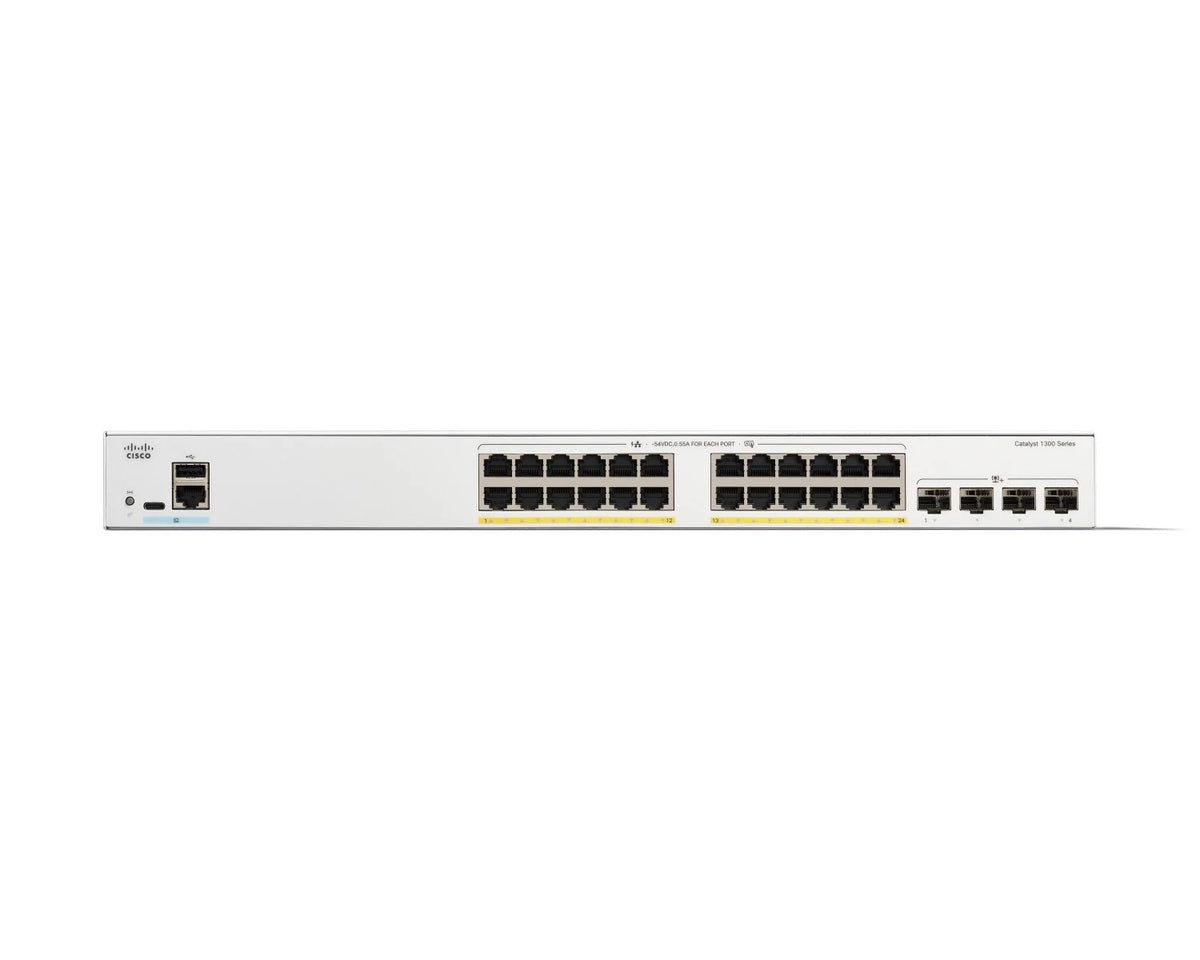

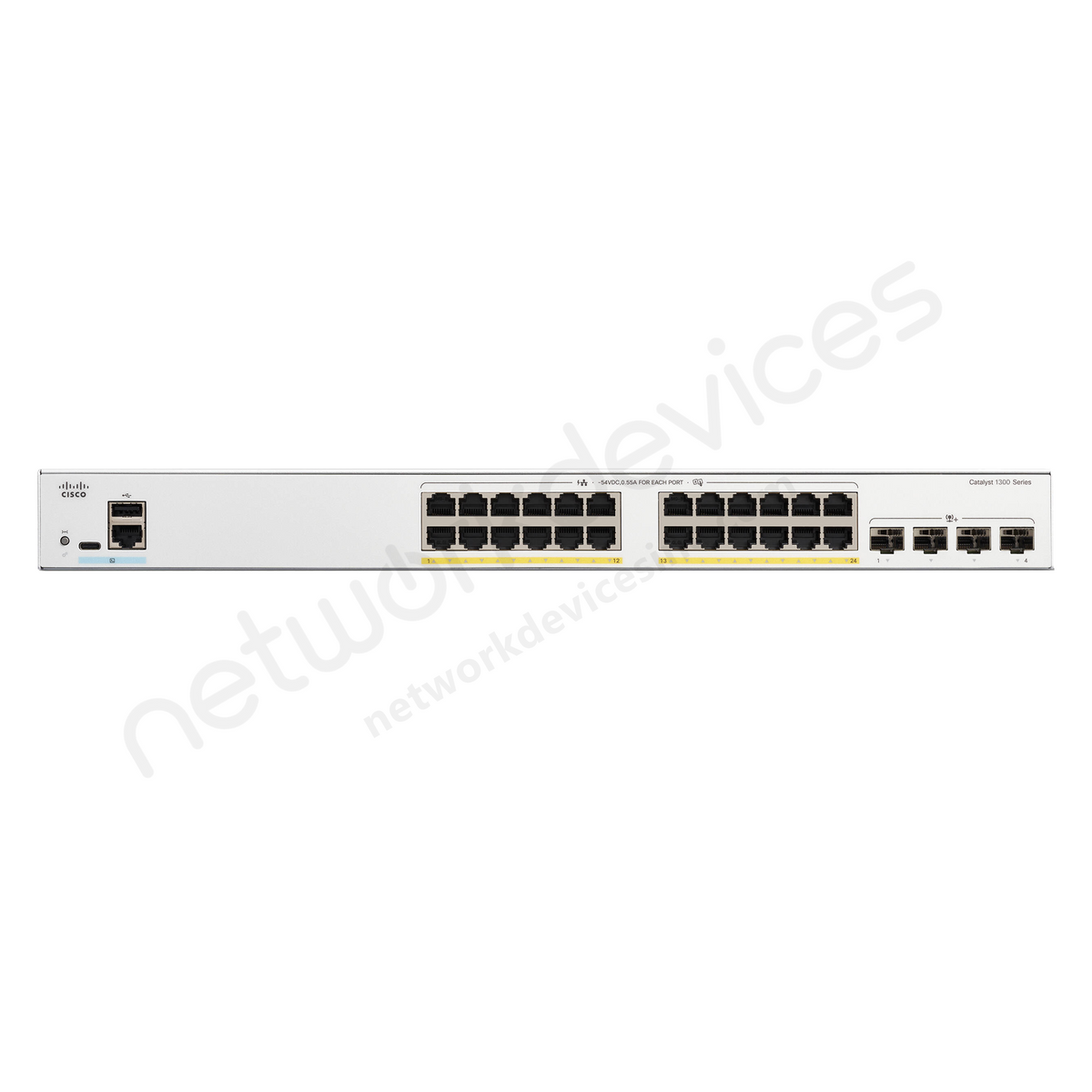

Cisco Catalyst C1300-24FP-4X 24-Port PoE+ Switch with 4 SFP+

The Cisco C1300-24FP-4X is a high-performance Layer 3 managed switch engineered for small to medium-sized businesses seeking advanced features and reliable scalability. With 24 Gigabit Ethernet PoE+ ports and 4 x 10G SFP+ uplinks, it ensures high-speed access and flexibility in network deployment. The switch supports a robust 370W PoE budget to power connected devices like access points, IP phones, and security cameras. Managed through Cisco Business Dashboard, CLI, or intuitive web GUI, it offers enterprise-level performance with features like VLAN segmentation, static routing, QoS, and enhanced security in a 1U rack-mountable form factor.

Key Features:

• PoE+ Enabled Access: 24 x 10/100/1000 Mbps PoE+ ports with up to 30W per port and a total PoE power budget of 370W.
• High-Speed Uplinks: 4 x 10G SFP+ uplink ports for seamless fiber backbone connectivity.
• Enterprise-Class Routing: Static Layer 3 routing support with dual-stack IPv4/IPv6 capabilities.
• Powerful Management: Manage via Web GUI, CLI, Cisco Business Dashboard, or mobile app for maximum flexibility.
• Enhanced Security: Access control lists, 802.1X authentication, DHCP snooping, and port security for robust network protection.
• Quality of Service: 8 queues per port with WRR queuing, priority scheduling, and DSCP/CoS-based traffic classification.
• Energy Efficiency: IEEE 802.3az support and fan-assisted cooling help maintain optimal performance with lower consumption.
• Reliable Construction: 1U rack-mountable chassis with robust build and front panel stacking support.

Technical Specifications:

• Model: C1300-24FP-4X

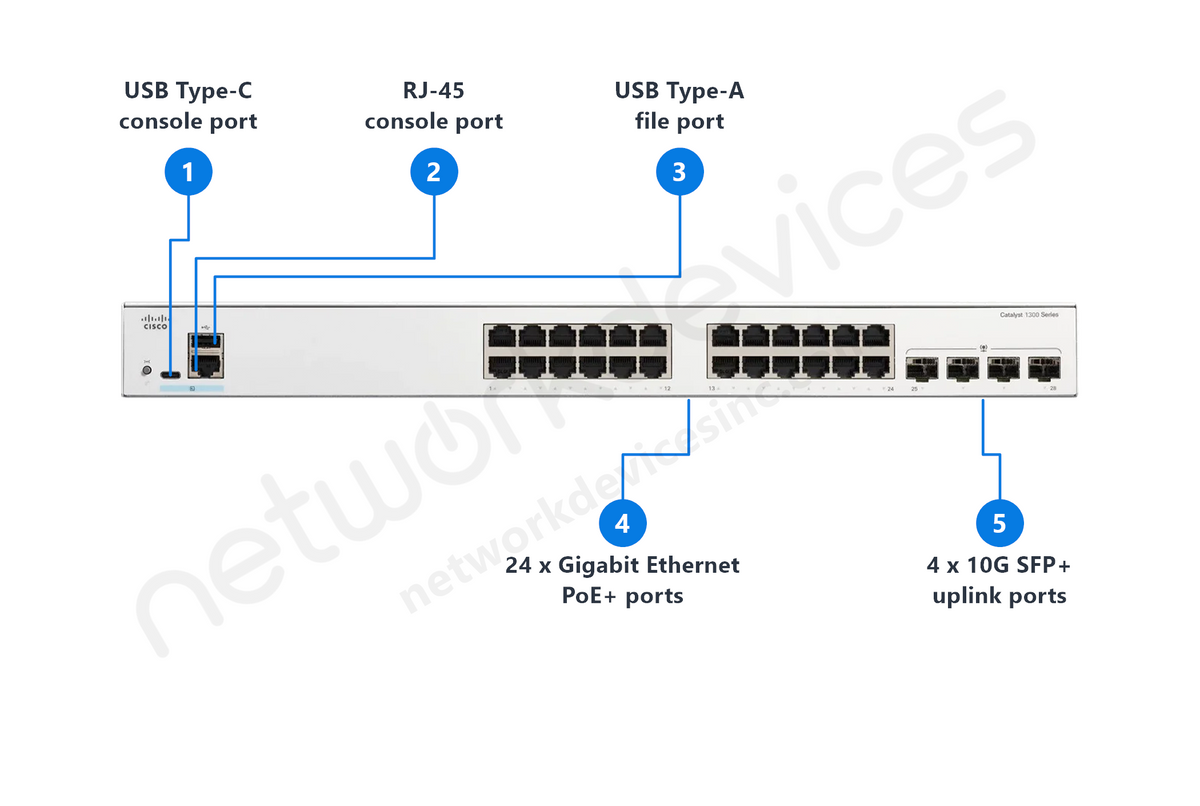

• Ports: 24 x 10/100/1000Base-T PoE+, 4 x 10G SFP+
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.23 Mpps
• PoE Budget: 370W (IEEE 802.3af/at)
• MAC Address Table: 16,000 entries
• Memory: 1 GB DDR4 RAM, 512 MB Flash
• Packet Buffer: 1.5 MB
• Layer Support: Layer 3 static routing (32 IPv4 routes, 16 interfaces)
• VLANs: Up to 4093 VLANs supported
• QoS: 8 queues per port, CoS/DSCP classification, WRR scheduling
• Security: ACLs, 802.1X, DHCP snooping, DoS protection, port-based security
• Management: Web GUI, CLI, SSH, SNMP v1/2c/3, Cisco Business Dashboard
• Stacking: Supports front panel stacking
• Power Supply: Internal, 100–240V AC, 50–60 Hz
• Power Consumption: Max 437.40W
• Cooling: 1 internal fan
• Form Factor: 1U Rackmount
• Dimensions: 445 x 345 x 44 mm (17.5 x 13.6 x 1.7 in)
• Weight: Approx. 4.6 kg (10.14 lb)
• Operating Temperature: -5°C to 50°C (23°F to 122°F)
