Cisco Catalyst C1300-16P-2G 16-Port PoE+ Switch with 120W and 2 SFP

Name: Cisco Catalyst C1300-16P-2G 16-Port PoE+ Switch with 120W and 2 SFP
Brand: Cisco
SKU: C1300-16P-2G-NEW
Price: 675.0 USD
Availability: OutOfStock

Part Number: C1300-16P-2G

Technical Details

16× Gigabit PoE+ (30W) RJ-45, 2× 1G SFP uplinks, 36 Gbps switching, 26.78 Mpps forwarding, Layer 3, fanless, rack-mountable

$697.82

$675.00

3% OFF

You Save: $22.82

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

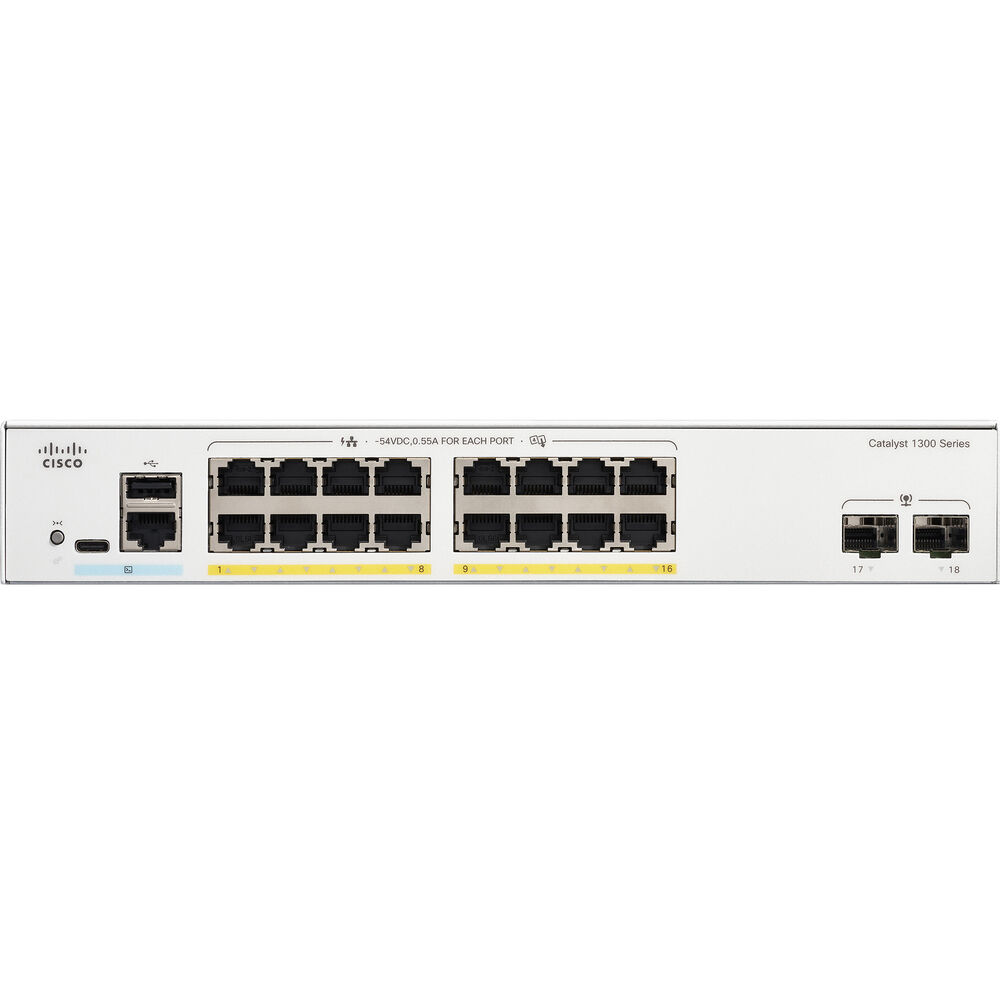

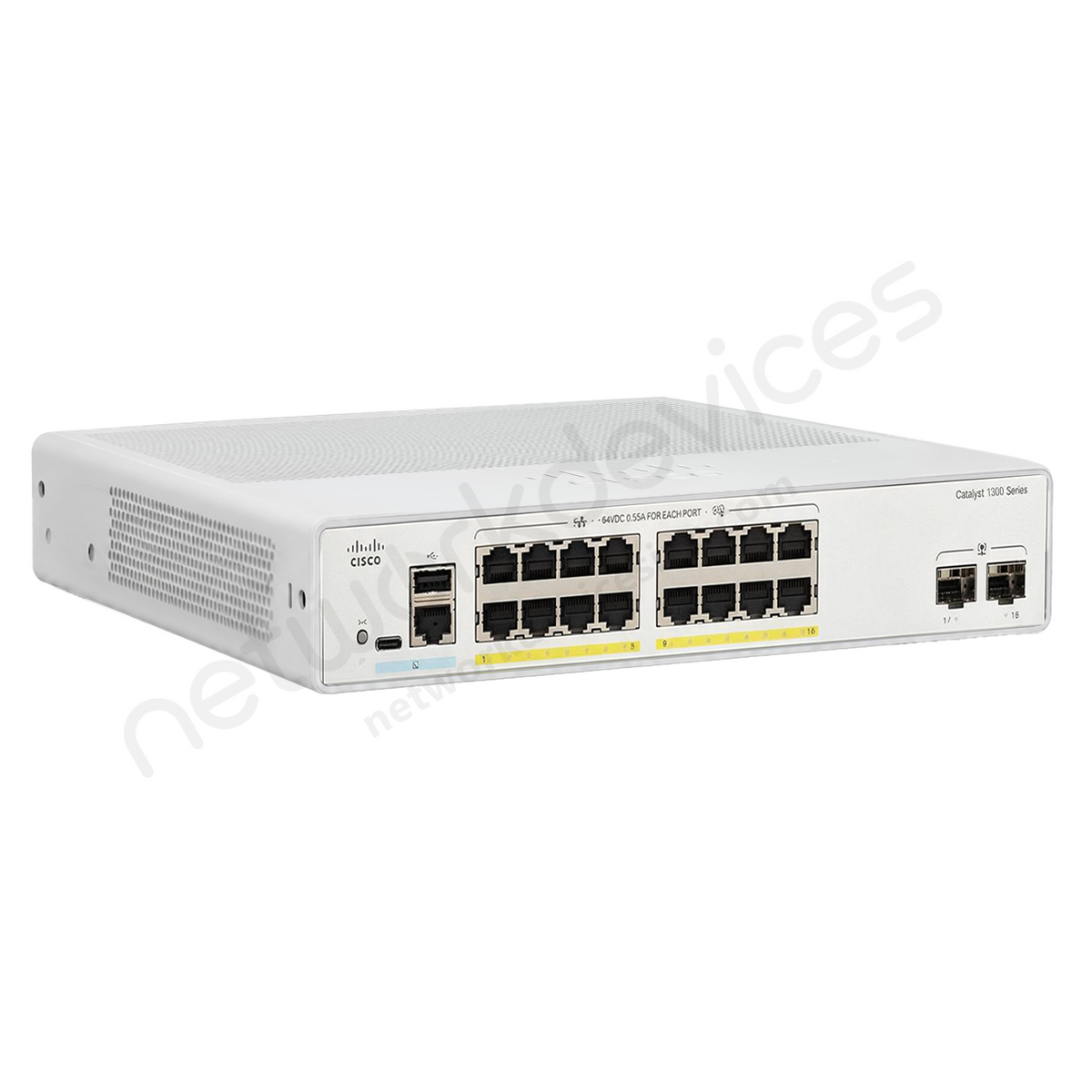

Cisco Catalyst C1300-16P-2G 16-Port PoE+ Switch

The Cisco Catalyst C1300-16P-2G is a fanless, fully managed Layer 3 Gigabit access switch for SMB and branch deployments that need quiet operation and PoE+ power. It provides 16 × 10/100/1000 PoE+ downlinks (30 W/port) and 2 × 1G SFP uplinks, delivering wire-speed performance with a 36 Gbps switching fabric and 26.78 Mpps forwarding. With a 120 W PoE budget, rich L2/L3 services (static, RIP v2, PBR), advanced QoS, and strong security (802.1X, DHCP snooping, IPSG, DAI), it powers access points, phones, and cameras while keeping acoustics at zero. Operations are simplified via the Web GUI, CLI/SSH, SNMP, the embedded Cisco Business Dashboard probe, and Cisco Business mobile app.

Key Features

Silent PoE+ access: Fanless design with 120 W total PoE+ budget (up to 30 W/port).
Wire-speed performance: 36 Gbps switching / 26.78 Mpps forwarding for non-blocking throughput.
Enterprise security: 802.1X, DHCP Snooping, IP Source Guard, DAI, and granular ACLs.
L3 services: IPv4/IPv6 static routing, RIP v2, and PBR for efficient segmentation.
Simplified ops: Web/CLI/SNMP, Cisco Business Dashboard probe, PnP onboarding.

Technical Overview

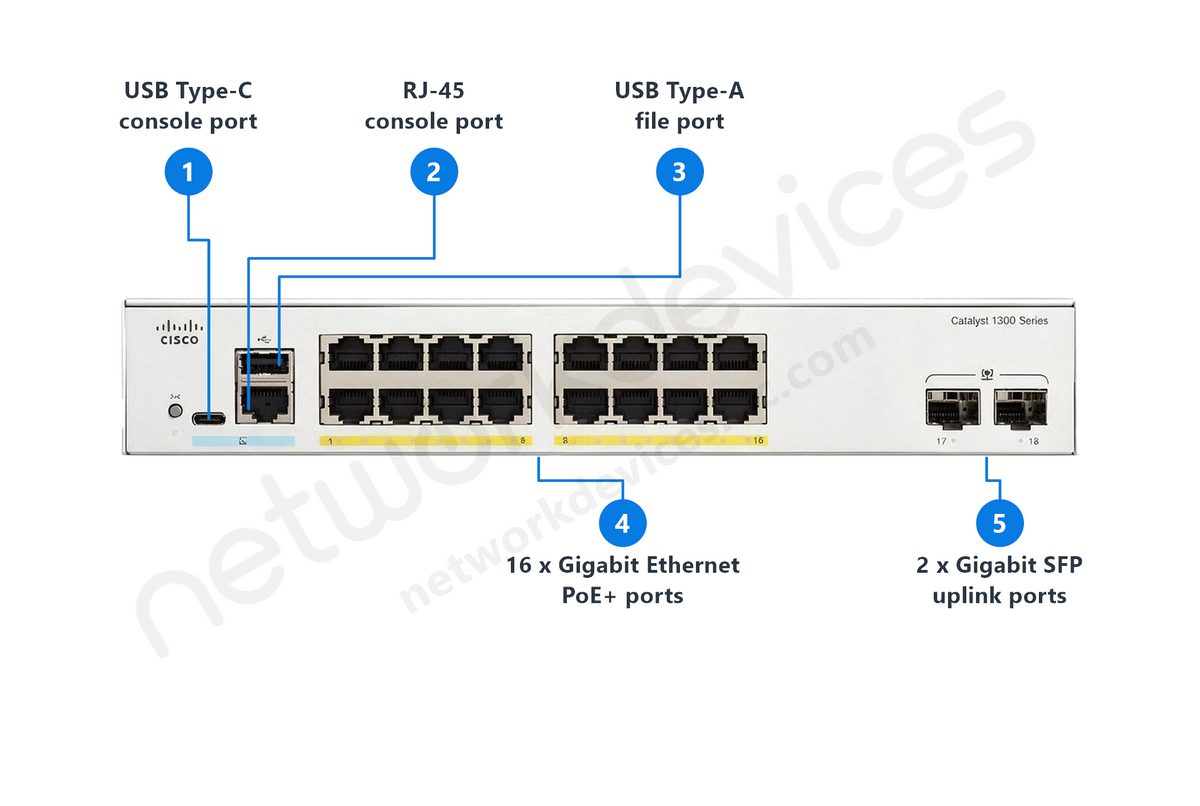

Interfaces: 16 × 1G PoE+ RJ-45; 2 × 1G SFP uplinks.
Tables & buffers: 16K MAC; 1.5 MB shared packet buffer; 8 QoS queues/port.
L2 resiliency: STP/RSTP/MSTP with PVST+/RPVST+; LACP aggregation.
Multicast: IGMP snooping/querier; up to 2000 groups.
Power & thermal: ≈20.6/22.1 W system max (110/220 V); ≈159.4/154.5 W with PoE; ≈527 BTU/hr; idle ≈12.6/13.6 W.
Mechanical: 268 × 323.3 × 43.94 mm; ~2.38 kg; 1U rack-mount.
Environment: 0–50 °C operation; 10–90% RH non-condensing.

Properties

Product Line	Cisco Catalyst 1300 Series
Model	C1300-16P-2G
Product Type	Managed Layer 3 Gigabit PoE+ Switch
Total System Ports	18 (16 × 10/100/1000 PoE+ RJ-45, 2 × 1G SFP)
PoE Budget	120 W total (IEEE 802.3af/at; up to 30 W/port)
Switching Capacity	36 Gbps
Forwarding Rate	26.78 Mpps
Packet Buffer	1.5 MB (aggregate)
MAC Address Table	16,000 entries
CPU / Memory / Flash	ARM dual-core 1.4 GHz / 1 GB DDR4 / 512 MB
Stacking	Not supported
Cooling / Acoustics	Fanless (silent)
Power Supply	Internal, 100–240 VAC, 50/60 Hz
System Power (Max)	≈20.6 W @110 V / ≈22.1 W @220 V
Power (with PoE)	≈159.4 W @110 V / ≈154.5 W @220 V
Idle Power	≈12.6 W @110 V / ≈13.6 W @220 V
Heat Dissipation	≈527 BTU/hr (with PoE)
Dimensions (W × D × H)	268 × 323.3 × 43.94 mm (10.56 × 12.72 × 1.73 in)
Weight	≈2.38 kg (5.25 lb)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Certifications	UL 62368, CSA, CE, FCC Part 15 Class A

Specifications

Layer Support	L2 & L3: IPv4/IPv6 static routing, RIP v2, Policy-Based Routing (PBR); up to 990 routes & 128 SVIs
VLANs	Up to 4093; Private VLAN/PVE; Voice/Guest VLAN; VLAN translation; Q-in-Q
Spanning Tree	802.1D STP, 802.1w RSTP (default), 802.1s MSTP; PVST+/RPVST+
Link Aggregation	IEEE 802.3ad LACP (up to 8 groups; up to 8 ports/group)
Multicast	IGMP snooping v1/v2/v3 with querier; up to 2000 multicast groups
ACLs	IPv4/IPv6/MAC; protocol/port/DSCP; ingress/egress; up to 1024 rules
QoS	8 queues/port; Strict Priority & WRR; DiffServ/DSCP; rate limiting & shaping
Security	802.1X (RADIUS), DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Port Security, Storm Control, DoS prevention
Jumbo Frames	Up to 9000 bytes
Management	Web GUI, CLI/SSH, SNMP v1/v2c/v3, Cisco Business Dashboard (embedded probe), Cisco Business mobile app, PnP
Discovery	LLDP, LLDP-MED, Cisco Discovery Protocol

Accessories

Accessory	Details
CAB-CONSOLE-RJ45	Console cable, 6 ft, RJ-45
CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C=	USB-C console cable
PWR-CLP	Power cable restraining clip
RCKMNT-CMPCT-1K=	19″ rack-mount kit for compact models
