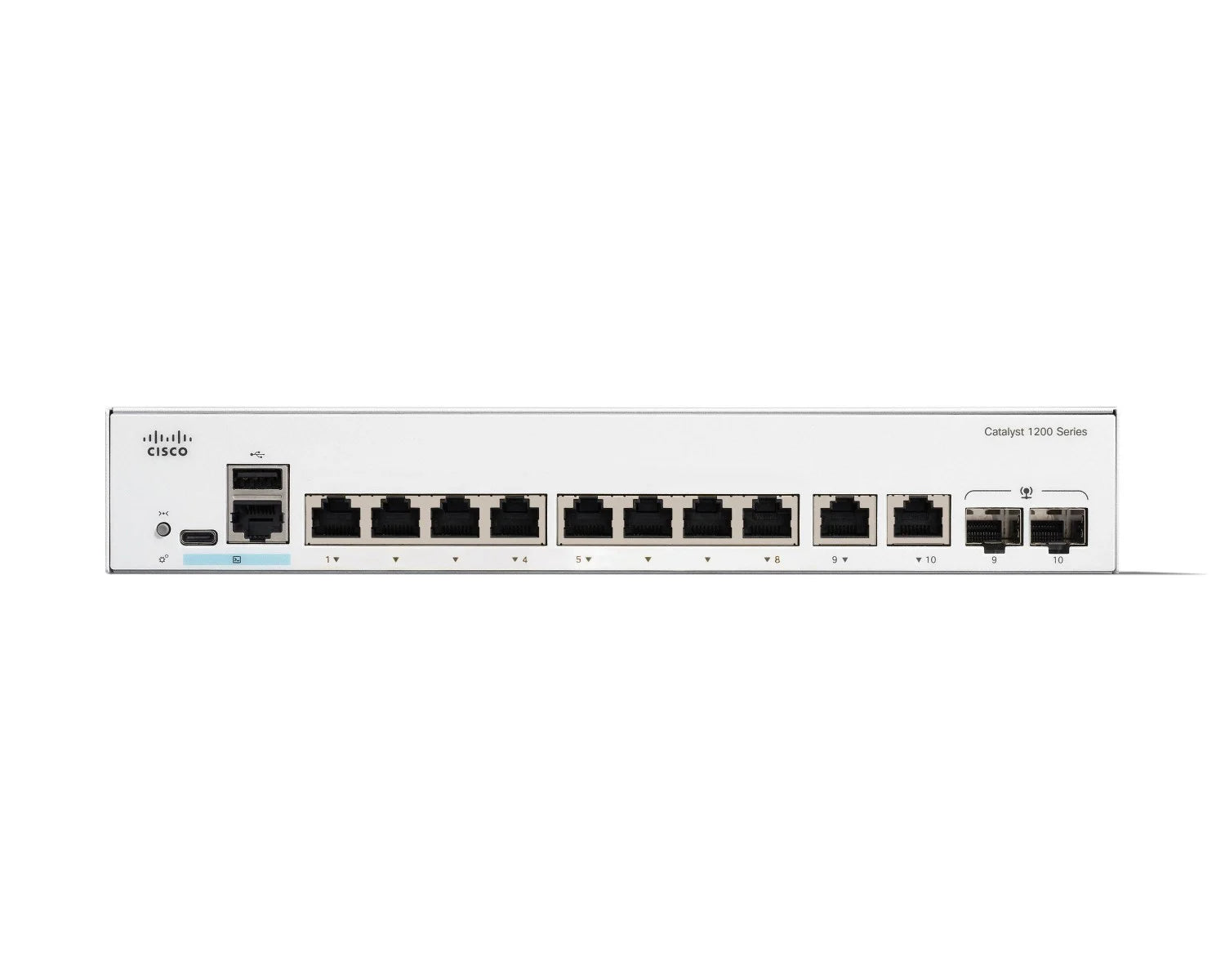

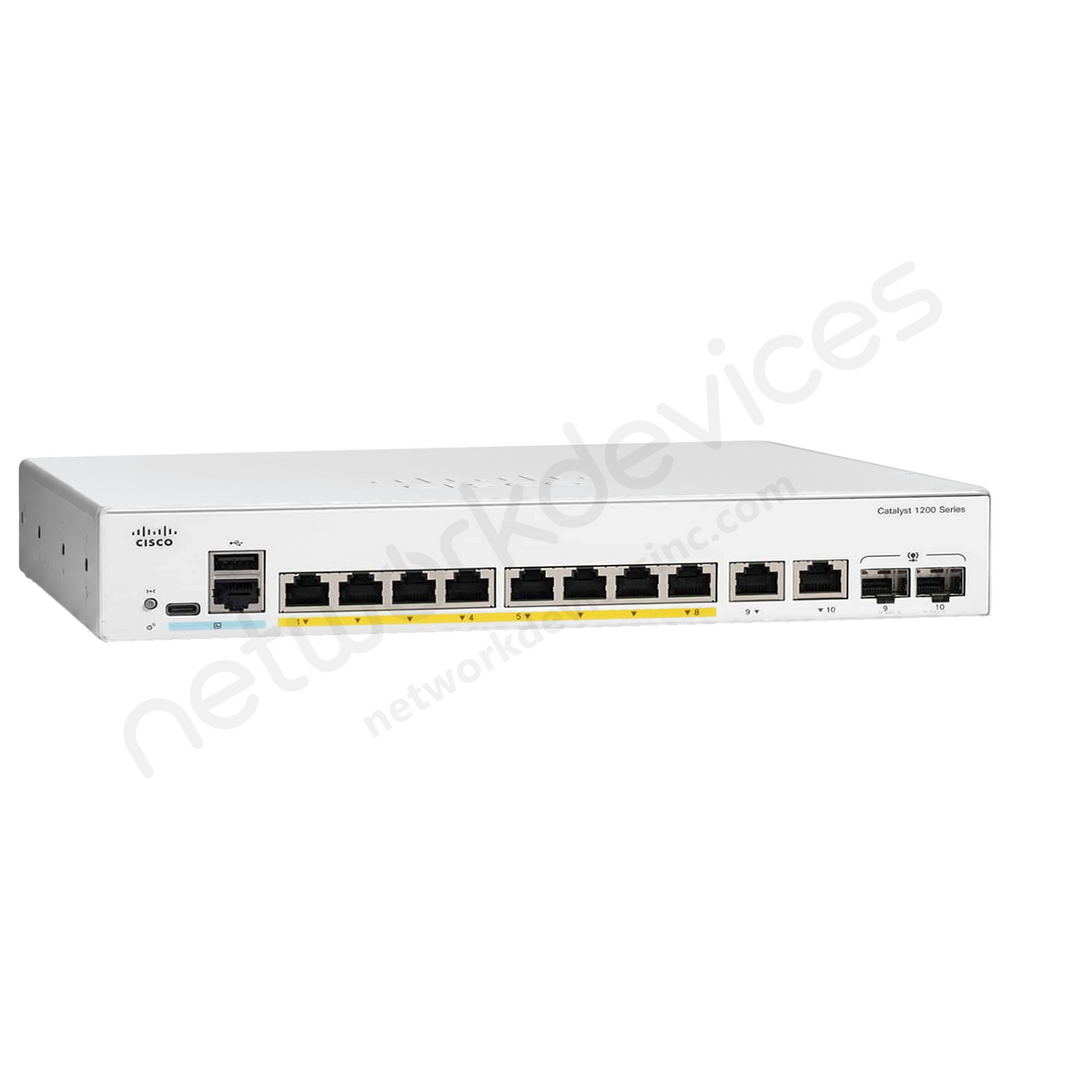

Cisco Catalyst C1200-8T-E-2G 8-Port Fanless Gigabit Switch

Cisco Catalyst C1200-8T-E-2G 8-Port Fanless Gigabit Switch

The Cisco C1200-8T-E-2G delivers enterprise-grade reliability in a compact, silent chassis ideal for deskside, retail, and small IT rooms. Eight Gigabit access ports and two combo RJ-45/SFP uplinks provide flexible copper or fiber backhaul, while a non-blocking 20 Gbps fabric keeps traffic flowing at wire speed. Administrators can onboard quickly through Cisco Business Dashboard or the intuitive web UI, with optional CLI/SNMP for advanced workflows. With Layer 2 depth, Layer 3 static routing, robust QoS, and strong access controls, the 8T-E-2G cleanly segments, prioritizes, and secures small business networks.

Key Features:

• Compact, silent platform: Fanless 1U design suited for noise-sensitive spaces.
• Flexible uplinks: Two 1G combo ports (RJ-45/SFP) for copper or fiber backhaul.
• Wire-speed performance: 20 Gbps switching and 14.88 Mpps forwarding.
• Built-in security: 802.1X, ACLs, DHCP snooping, DoS protection, and port security.
• Smart operations: Cisco Business Dashboard, web GUI, CLI, and SNMP management.
• Traffic engineering: 8 queues/port with 802.1p/DSCP QoS and jumbo-frame support.

Technical Overview:

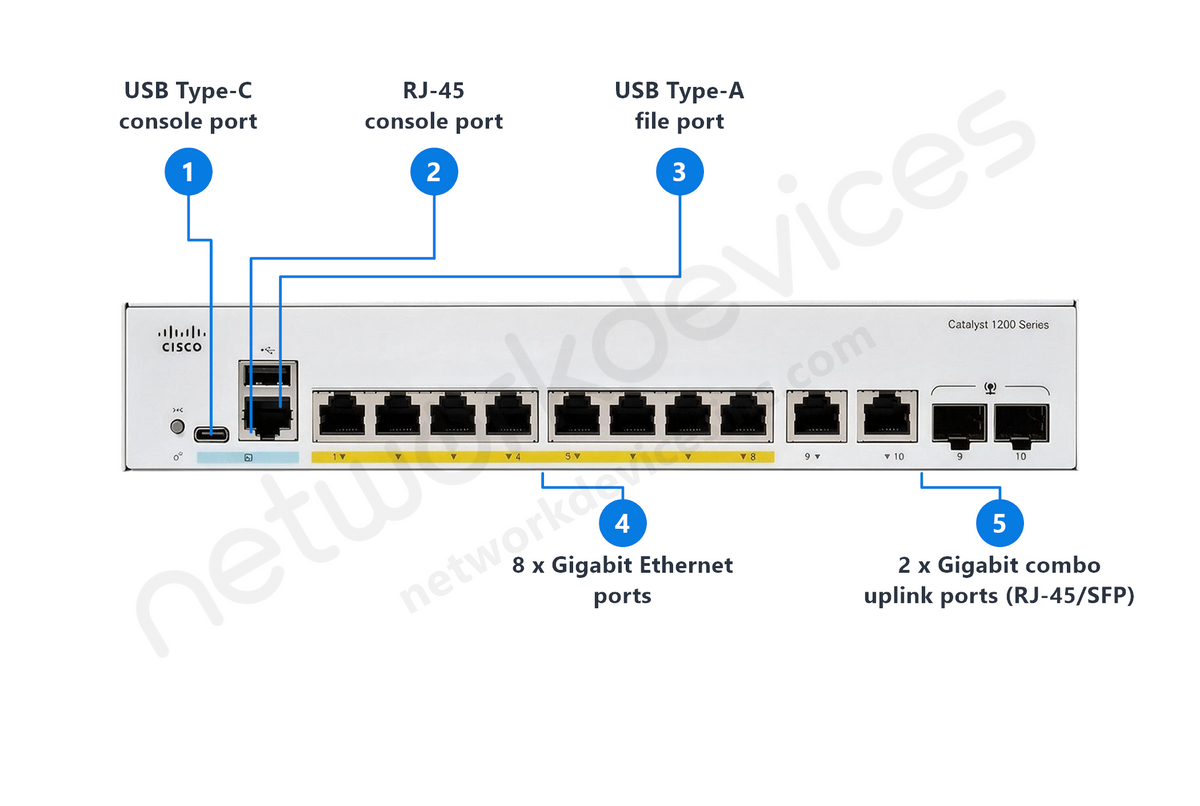

• Interfaces: 8 × 1G RJ-45 downlinks; 2 × 1G combo RJ-45/SFP uplinks (one active per combo).
• L2/L3: STP/RSTP/MSTP, VLANs (≤255 active), LACP (≤4 groups, ≤8 ports/group), IPv4 static routing (≤32 routes, ≤16 SVIs).
• Multicast: IGMP snooping v1/v2/v3 with querier.
• Buffers & tables: 1.5 MB shared buffer; 8K MAC; jumbo frames up to 9000 bytes.
• Management I/O: RJ-45 & USB-C console; HTTP/HTTPS; SSH/Telnet; SNMP.
• Physicals: 268 × 185 × 44 mm; ≈ 1.39 kg; external AC adapter.
• Environment: −5 to 50 °C operating range.
