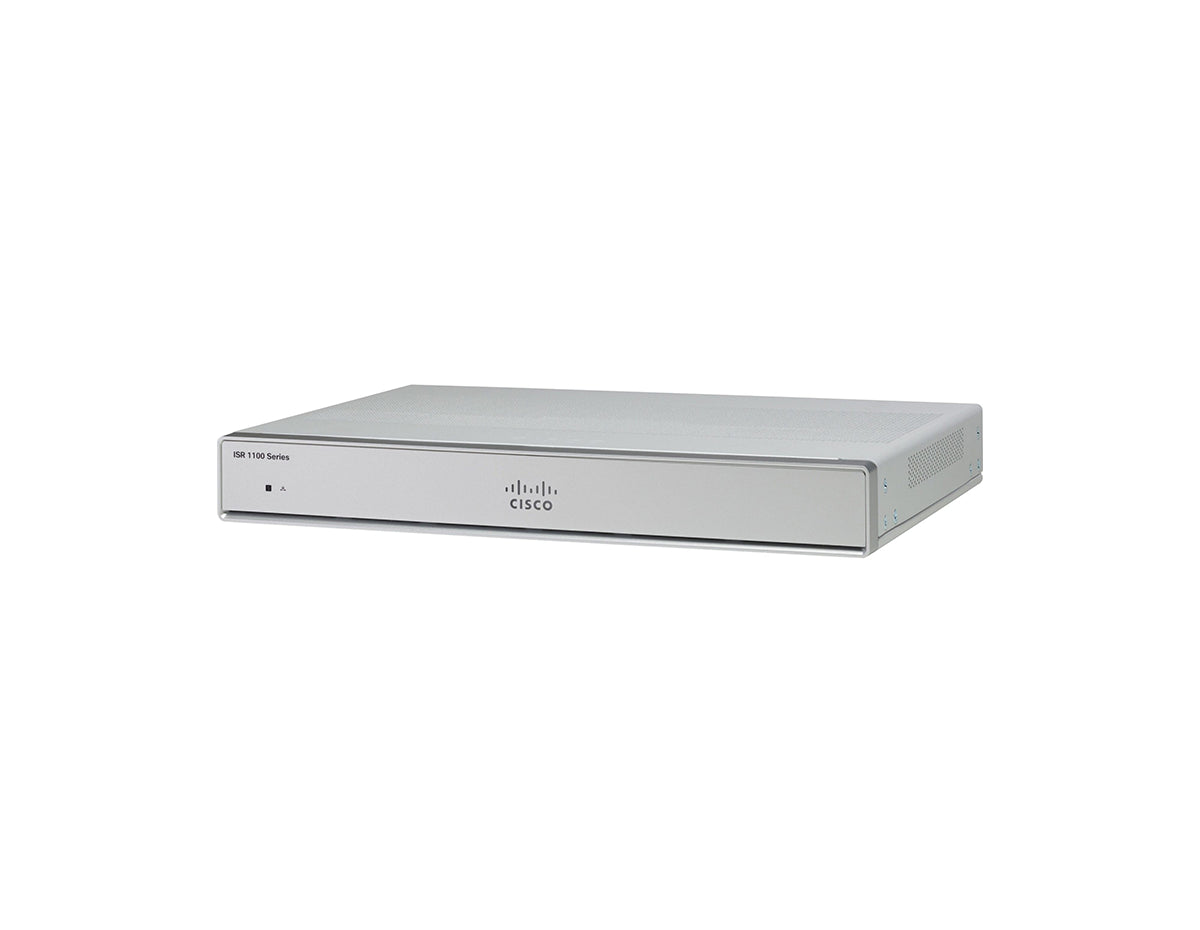

Model: | C1161X-8PLTEP |
Detail: | Router, 8-port switch, GigE, WAN ports: 2 |
List Price: | |
Price: | $1,295.00 |
You Save: | $1,560.00 (55% OFF) |
Condition: | Brand New Sealed |
Availability: | Out of Stock |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |
Get Internet access, advanced security, and wireless services in one device. Cisco 1000 Series Integrated Services Routers (ISRs) are fixed, high-performance routers that are easy to deploy and manage. Small yet powerful, they provide highly secure broadband, Metro Ethernet, and wireless LAN connectivity.
Accessories | Rack-mount kit for all 1100 Series ISRs. |
Small Form-Factor Pluggable | |
GLC-EX-SMD | 1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. |
GLC-ZX-SMD | 1000BASE-ZX SFP; with DOM. |
GLC-LH-SMD | GE SFP, LC connector LX/LH transceiver; with DOM. |
GLC-FE-100ZX | 100BASE-ZX SFP (80km). |
GLC-SX-MMD | GE SFP, LC connector SX transceiver; with DOM. |
GLC-ZX-SM | 1000BASE-ZX SFP. |
GLC-BX-D | 1000BASE-BX SFP, 1490NM. |
GLC-BX-U | 1000BASE-BX SFP, 1310NM. |
Specifications | C1161X-8PLTEP |
Dram | 4 GB |
Flash Memory | 4 GB |
AC input voltage | Universal 100 to 240 VAC |
Operating Temperature |
32° to 104°F (0° to 40°C). |
Operating humidity | 10% to 85% relative humidity (noncondensing) |
Standard safety certifications | UL 60950-1, 2nd edition. CAN/CSA C22.2 No. 60950-1, 2nd edition. EN 60950-1, 2nd edition. CB to IEC 60950-1, 2nd edition with all group differences and national deviations |
EMC emissions | EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1. |
LEDs | WWAN (green/amber). SIM status (green/amber). Received signal strength indication (RSSI) bar (green). 3G/LTE service (green/amber). GPS (green/amber). Speed and link for Gigabit Ethernet WAN port (green). Speed and link for all Fast Ethernet LAN ports (green). |
Bands Supported | LTE bands 1-5, 7, 12, 13, 20, 25, 26, 29, 30, and 41. FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 MHz and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7). TDD LTE 2500 MHz (band 41). Carrier aggregation band combinations: 1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41. |
TELNET & CLI | Yes |
Properties | C1161X-8PLTEP |
Product Family | Cisco 1100 Series |
Product Type | Integrated Services Routers |
WAN GE | 1 |
WAN GE/SFP combo | 1 |
10/100/1000 Ethernet ports | up to 10 |
ADSL2/VDSL2+ | N/A |
LTE Advanced (CAT6) | Yes with Pluggable Technology |
802.11ac | N/A |
LAN GE | 8 |
PoE | 4 |
PoE+ | 2 |
Integrated USB 3.0 AUX/console | Yes |
Dimensions in. (H x W x D) | 1.65 x 12.7 x 8.9 |
Integrated USB 3.0 AUX/console | Yes |
