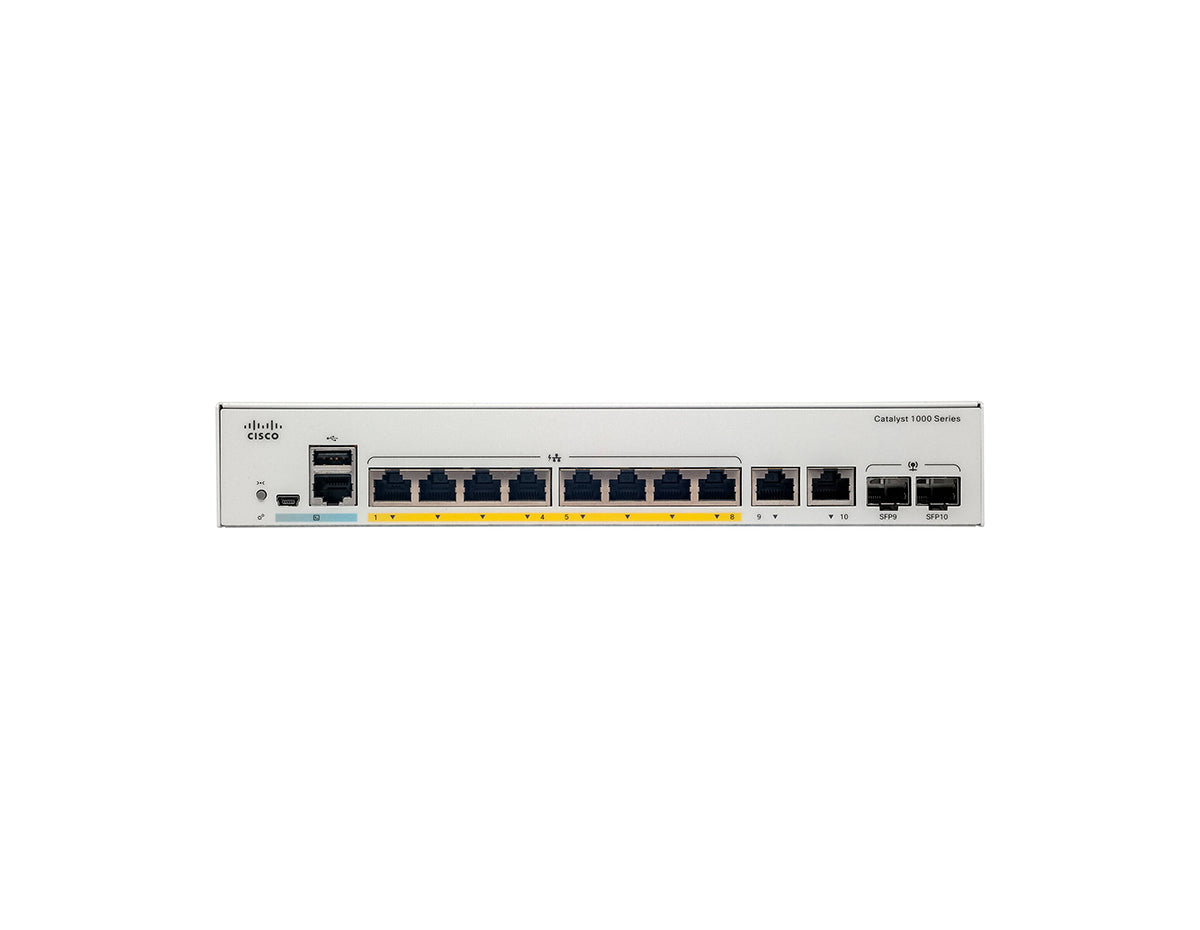

Cisco Catalyst C1000-8FP-E-2G-L 8-Port Managed PoE+ Switch, 2x1G SFP/RJ-45 Combo
The C1000-8FP-E-2G-L is an 8-port PoE+ Layer 2 managed switch with 2x 1G combo uplinks and an external power supply. It delivers 120W of PoE and supports Single IP Management.
Overview
Cisco Catalyst 1000 Series switches are fixed managed Gigabit Ethernet Layer 2 switches for small businesses and branch offices, built for out-of-the-wiring-closet and IoT deployments and administered through Cisco IOS using a CLI, an on-box web UI, and Bluetooth over-the-air console access. The C1000-8FP-E-2G-L is the 8-port full PoE+ configuration that draws from an external power adapter rather than an internal supply, which is the only difference from the internal-supply C1000-8FP-2G-L. Its 120W PoE budget is shared across all 8 access ports to support denser powered-device deployments than a smaller partial budget, its two 1G SFP/RJ-45 combo uplinks accept fiber or copper for aggregation, and its fanless design runs silently outside a dedicated closet.
Technical Details
The Cisco Catalyst C1000-8FP-E-2G-L is a Layer 2 managed compact fanless switch with 8 Gigabit Ethernet (10/100/1000) full PoE+ ports and two fixed 1G SFP/RJ-45 combo uplinks, running Cisco IOS and powered by an external power supply. Switching capacity is 20 Gbps and forwarding rate is 14.88 Mpps. It supports IEEE 802.3af PoE and 802.3at PoE+ up to 30W per port, with a 120W PoE power budget shared across all 8 access ports. It provides no data-plane stacking, though the Gigabit Ethernet uplinks support Cisco Single IP Management of up to eight switches under one IP address. It powers and connects endpoints such as wireless access points, IP phones, and IP cameras in small-business and branch wiring closets.
Small Business
Retail
Branch Office
Best For
The C1000-8FP-E-2G-L suits small-business and branch sites that need to power endpoints such as wireless access points, IP phones, and IP cameras and prefer an external power supply for the installation. Its 120W full PoE+ budget is suitable for a denser mix of powered devices, with actual device counts depending on each device's power draw, and its two 1G SFP/RJ-45 combo uplinks give fiber or copper aggregation.
Not suitable if:
- you need a larger PoE budget than 120W, since a full set of higher-draw powered devices can exceed it
- you need more than 8 access ports, since this is an 8-port model
- you need 10G uplinks, since the two uplinks are fixed 1G SFP/RJ-45 combo ports
- you need Layer 3 routing, since this switch operates at Layer 2 only
- you prefer a self-contained unit with an internal power supply
C1000-8FP-E-2G-L Specifications
| Class & Licensing | |
|---|---|
| License Tier | None |
| License Detail / MTBF | No license tiers; MTBF 1,706,649 hours |
| Ports & Uplinks | |
| PoE Budget | 120W |
| Port Speed | Gigabit |
| Uplink Configuration | 2x 1G SFP/RJ-45 combo |
| Performance & Scale | |
| Stacking | No |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| MAC Table | 16,000 |
| Hardware & Memory | |
| DRAM | 512 MB |
| Flash | 256 MB |
| Power & Thermal | |
| Power Input / PSU | 110-220V AC (auto-ranging); external power supply, 50 to 60 Hz |
| Redundant PSU | No |
| Cooling | Fanless |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.73 x 10.56 x 7.28 in |
| Weight | 5.95 lbs (2.70 kg) |
| Operating Temperature | Sea level -5 to 50°C; Up to 5,000 ft (1500 m) -5 to 45°C; Up to 10,000 ft (3000 m) -5 to 40°C |
| Operating System | Cisco IOS |
Part Number Decode
- C1000 — C1000 is the platform prefix, identifying a Cisco Catalyst 1000 Series Gigabit Ethernet model.
- 8 — 8 is the port count, indicating 8 access ports.
- FP — FP is the port-type marker for full PoE+, indicating a higher shared PoE budget for denser powered-device deployments.
- E — E is the power-source marker, indicating the external-power-supply variant that draws from an external adapter rather than an internal supply.
- 2G — 2G is the uplink code, indicating two fixed 1G SFP/RJ-45 combo uplinks.
- L — L is the standard model suffix Cisco uses across the Catalyst 1000 ordering line, not a selectable license tier.
C1000-8FP-E-2G-L Accessories
| CAB-CONSOLE-RJ45 | Console Cable 6 Feet with RJ-45 |
| CAB-CONSOLE-USB | Console Cable 6 Feet with USB Type A and mini-B Connectors |
| PWR-CLP | Power Cable Restraining Clip |
| RCKMNT-19-CMPCT | 19-inch rack mount bracket for C1000, 3560-CX and 2960-CX |
| RCKMNT-23-CMPCT | 23- and 24-inch rack mount bracket for C1000, 3560-CX and 2960-CX |
FAQ
Does the Cisco Catalyst C1000-8FP-E-2G-L support PoE, and how much power does it provide?
Yes. The Cisco Catalyst C1000-8FP-E-2G-L supports IEEE 802.3af PoE and 802.3at PoE+ delivering up to 30W per port. It has a 120W full PoE+ budget; all 8 Gigabit Ethernet access ports support PoE+ up to 30W per port, subject to the shared total PoE budget. It can power devices such as wireless access points, IP phones, and IP cameras directly over the network cabling, with the total draw depending on each device's power against the 120W budget.
What is the difference between the C1000-8FP-E-2G-L and the C1000-8FP-2G-L?
The two switches are identical in switching hardware: 8 Gigabit Ethernet full PoE+ ports, a 120W PoE budget, two 1G SFP/RJ-45 combo uplinks, and Cisco IOS. They differ only in power source. The C1000-8FP-E-2G-L draws from an external power adapter, indicated by the E in the part number, while the C1000-8FP-2G-L uses an internal power supply. Both are fanless. Choose the external-supply model where an external adapter suits the installation.
What is the difference between the C1000-8FP-E-2G-L and the C1000-8P-E-2G-L?
Both are external-supply 8-port Cisco Catalyst 1000 PoE+ switches with two 1G SFP/RJ-45 combo uplinks and Cisco IOS, and both deliver PoE+ up to 30W per port. They differ in PoE budget. The C1000-8FP-E-2G-L provides a 120W full PoE+ budget for denser powered-device deployments, while the C1000-8P-E-2G-L provides a smaller 67W partial budget. On both, all access ports support PoE+ up to 30W per port, subject to the shared total PoE budget. Choose the FP model for denser powered-device deployments.
What transceivers do the uplinks on the C1000-8FP-E-2G-L use?
The Cisco Catalyst C1000-8FP-E-2G-L has two fixed 1G SFP/RJ-45 combo uplink ports. Each combo port accepts either a 1-Gigabit SFP transceiver for fiber or a standard RJ-45 copper connection, with one medium active at a time. These are 1-Gigabit slots and do not support 10G SFP+ optics. Specific transceiver compatibility should be verified against the manufacturer's transceiver compatibility matrix at tmgmatrix.cisco.com. Transceivers are sold separately.
Can the C1000-8FP-E-2G-L be stacked?
No. The Cisco Catalyst C1000-8FP-E-2G-L does not provide data-plane stacking, so there is no shared switching fabric across units. As a Gigabit Ethernet model it does support Cisco Single IP Management, which uses the uplink ports to connect up to eight switches so they can be managed under a single IP address. This eases configuration and troubleshooting but is not a high-bandwidth stacked data plane.
Is the Cisco Catalyst C1000-8FP-E-2G-L end of life?
Cisco has published an End-of-Sale and End-of-Life notice for the Cisco Catalyst 1000 Series. The last day to order from Cisco was April 30, 2025, and the Last Date of Support is April 30, 2030. Network Devices Inc. sells new, factory-sealed C1000-8FP-E-2G-L units from inventory, and Cisco support continues under active service contracts through the Last Date of Support.
What condition is the C1000-8FP-E-2G-L sold in, and what warranty applies?
The Cisco Catalyst C1000-8FP-E-2G-L is sold new and factory-sealed. It is covered by a Network Devices Inc. one-year warranty and a 30-day return policy.
