High-Speed Multigigabit Module for Catalyst 8000 Edge Platforms

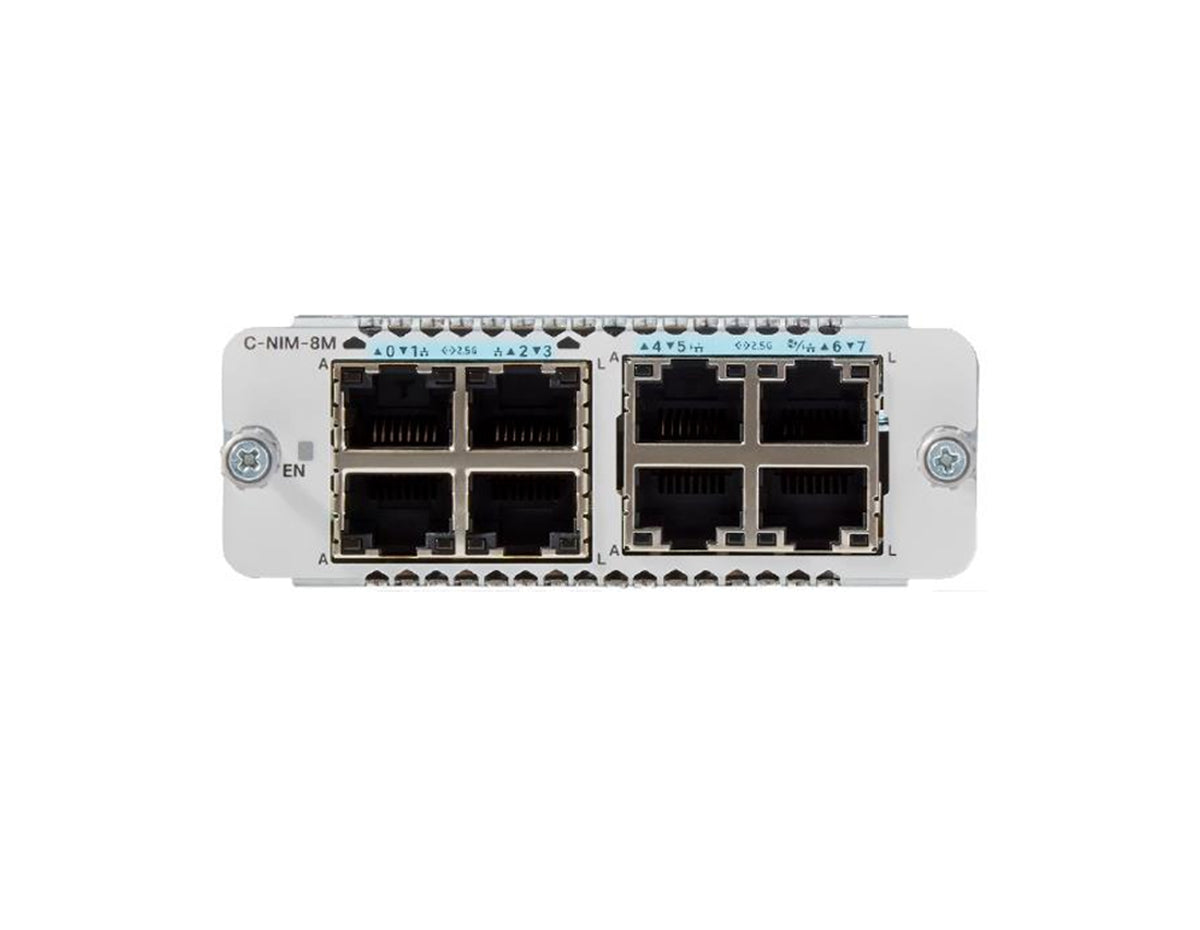

The Cisco C-NIM-8M is a high-performance Network Interface Module designed to elevate the capabilities of Cisco Catalyst 8300 and 8200 Series Edge Platforms. Engineered for modern, high-bandwidth branch environments, this module integrates switching and routing into a single unit, offering eight Multigigabit (mGig) ports capable of speeds up to 2.5 Gbps.
This module is essential for branches deploying Wi-Fi 6/6E access points, cellular gateways, and high-performance endpoints that require robust power and speed. With integrated UPOE+ (802.3bt), it delivers up to 90W of power per port on four designated ports, eliminating the need for external power injectors.
Key Features and Strategic Advantages
- 2.5G Multigigabit Connectivity: Future-proof your branch with 8 ports supporting 100M/1G/2.5G speeds, optimizing performance for high-speed uplinks and local devices. (Note: 10M connections are not supported).
- 90W UPOE+ Power Delivery: Ports 4, 5, 6, and 7 are compliant with IEEE 802.3bt, providing up to 360W total power to support power-hungry IoT devices and advanced Access Points.
- Flexible WAN/LAN Architecture: The two highest-numbered ports (6 and 7) are "Flex Ports" that can be toggled to native Layer 3 WAN mode, offering full feature parity with onboard Catalyst 8000 WAN ports.
- Enterprise-Grade Security: Features full IEEE 802.1AE MACsec encryption (128-bit and 256-bit) for LAN, and WAN MACsec with Tag-in-Clear support on Layer 3 ports, ensuring data integrity across the network. Includes Cisco TrustSec SGT support.
- Seamless SD-WAN Integration: Fully compatible with Cisco Catalyst SD-WAN Manager (vManage release 20.12 and later) for centralized orchestration and automated policy management.
Deployment Scenarios
- High-Density Branch Offices: Consolidate switching and routing in a single chassis to reduce Total Cost of Ownership (TCO) and simplify management.
- Wi-Fi 6 Infrastructure: Utilize 2.5G mGig ports to prevent bottlenecks when connecting next-gen Wireless Access Points.
- Secure Edge Networking: Implement end-to-end segmentation and encryption using MACsec and TrustSec Security Group Tagging (SGT).
- Hybrid WAN Access: Leverage the L3 Flex ports to terminate high-speed Ethernet WAN links directly into the module.
Technical Specifications Overview
- Interface: 8 × 100/1000/2500 BASE-T RJ-45
- PoE Capability: 802.3af/at/bt (Up to 90W on 4 ports)
- Supported Platforms: Catalyst 8200, 8200L, 8300 Series
- Switching: Line-rate Layer 2 switching; Auto-MDIX; 802.1Q Trunking
- Physical Specs: 1.25" H × 3.5" W × 7.24" D; 10.7 oz (300 g)
- Compliance: NEBS (GR-1089) for intrabuilding cabling
Upgrade Your Network Infrastructure
Equip your Catalyst Edge Platform with the speed and power required for tomorrow's applications. The Cisco C-NIM-8M offers the perfect blend of mGig performance, UPOE+ power, and SD-WAN flexibility.
