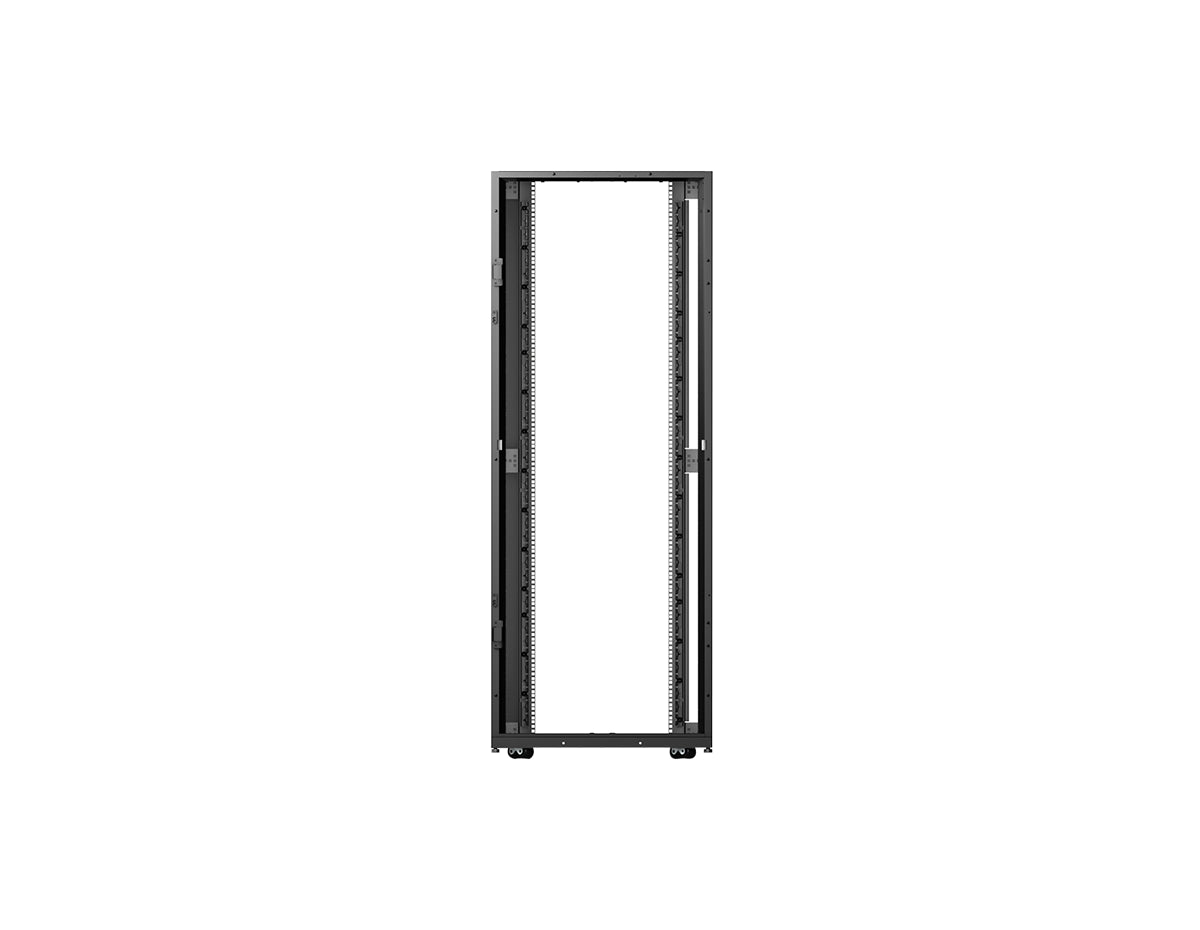

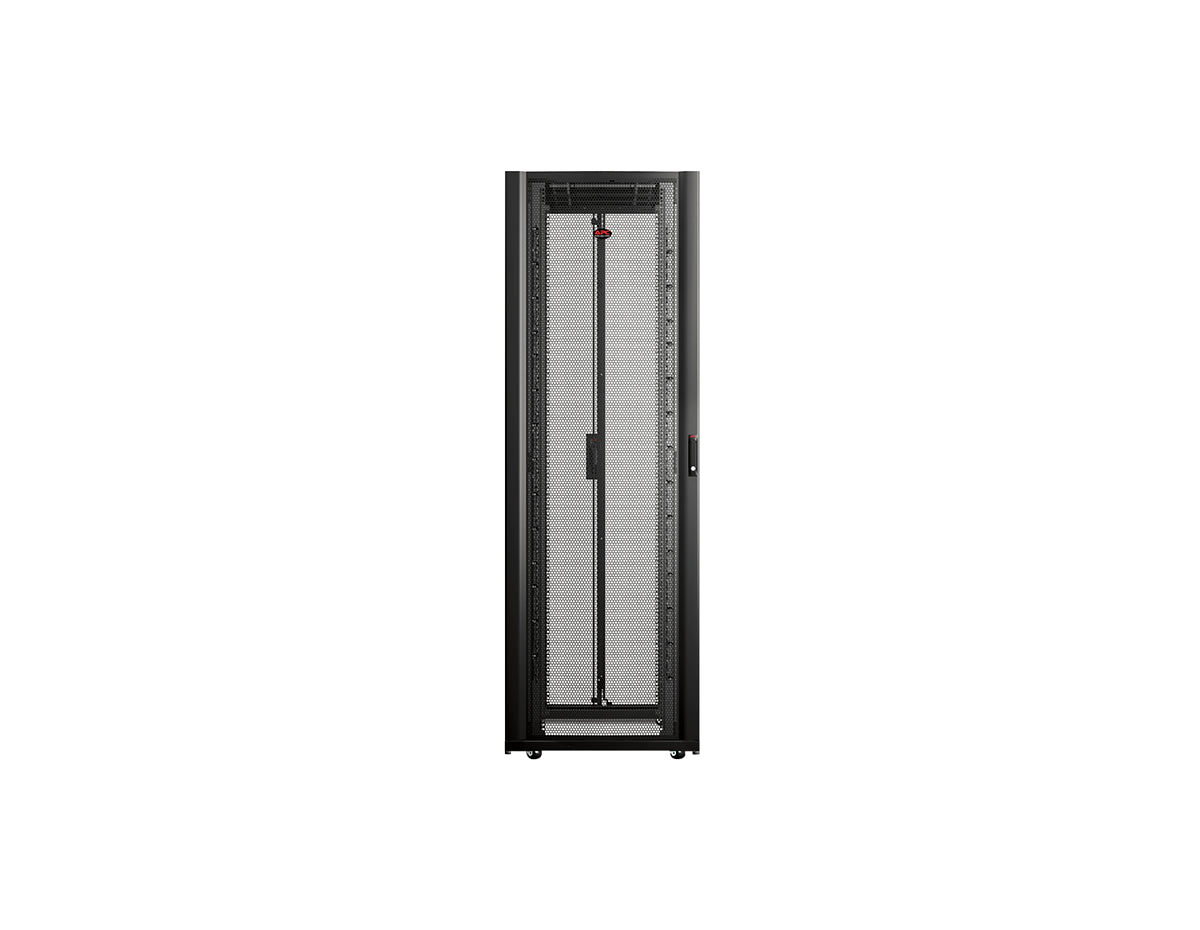

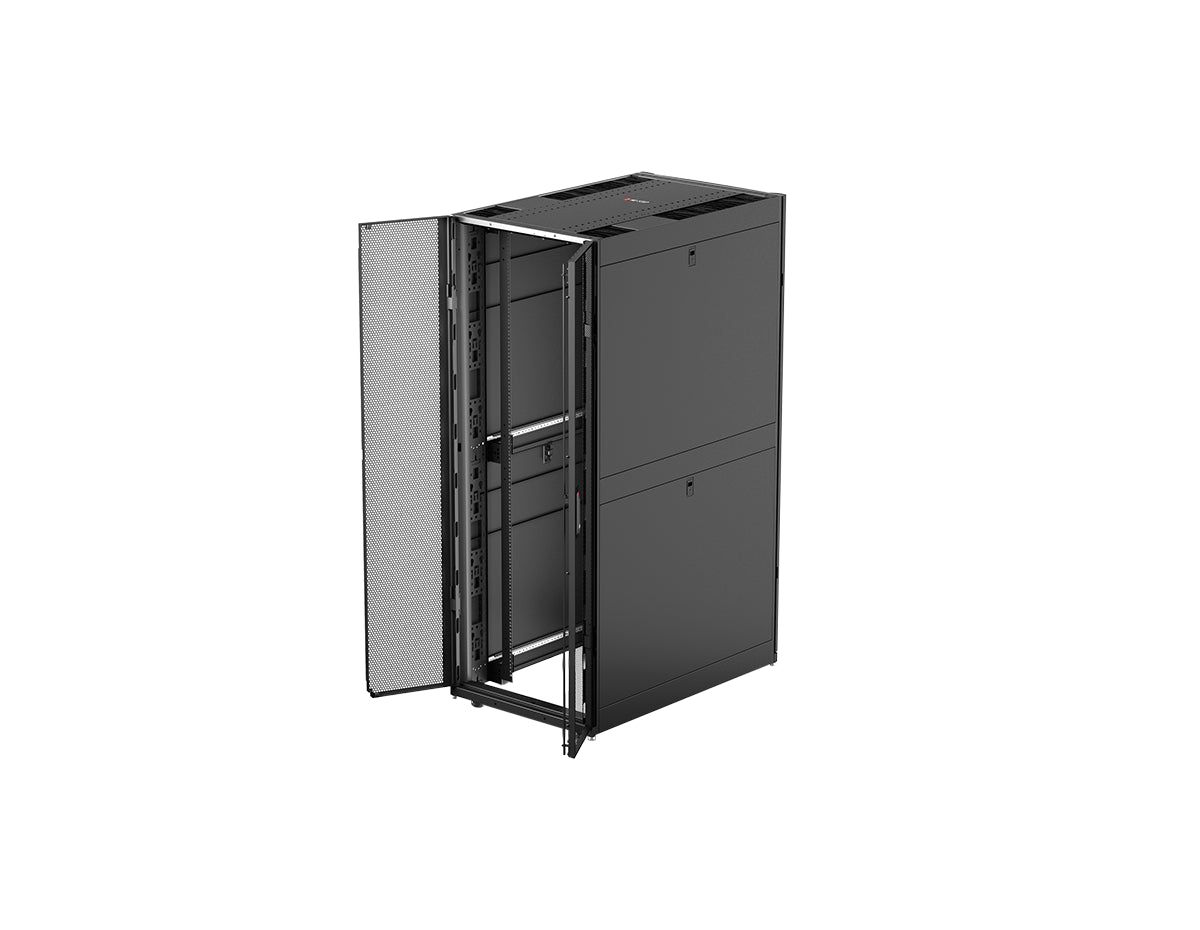

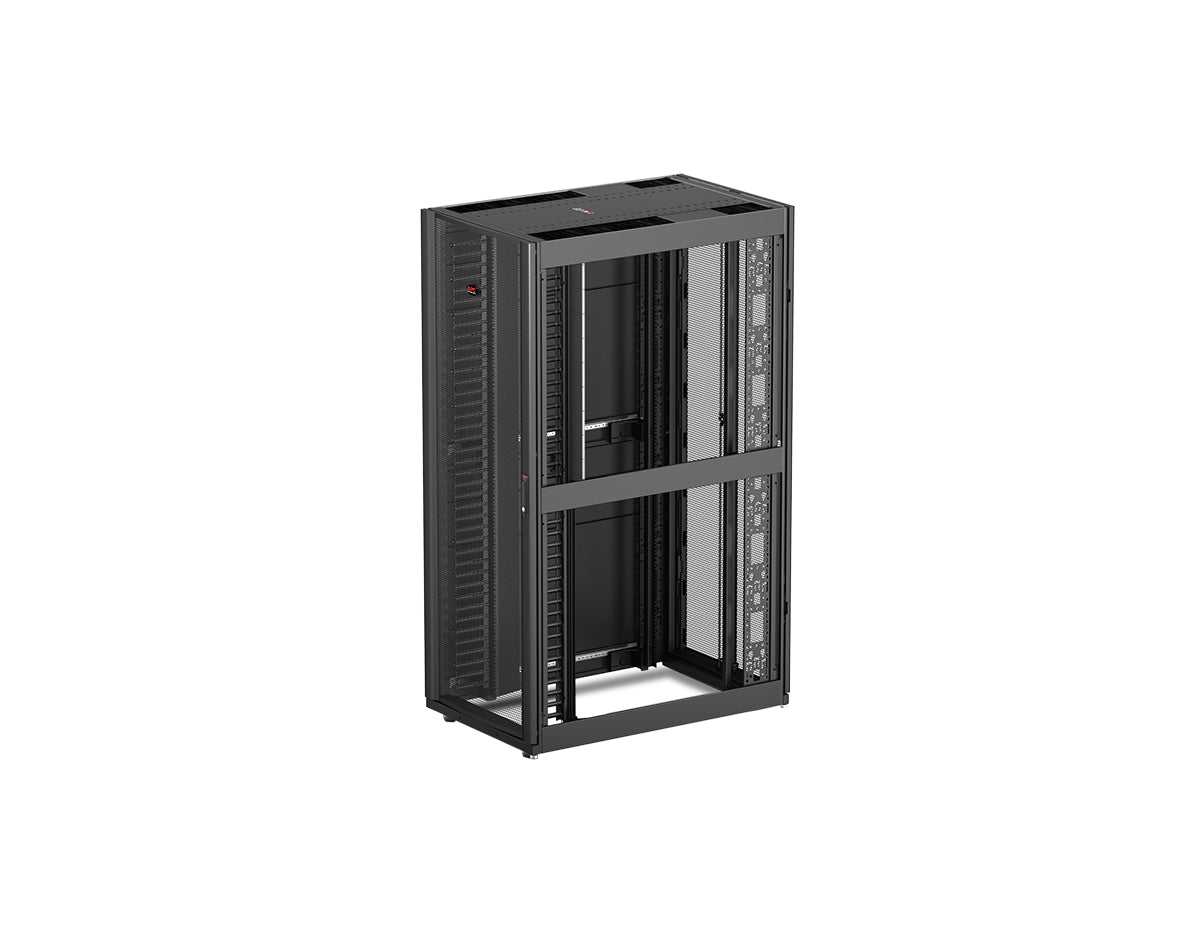

APC NetShelter SX Networking Rack Enclosure AR3347

The APC NetShelter SX Networking Rack Enclosure AR3347 provides optimized infrastructure management for high-density networking environments. This 48U enclosure supports large equipment such as switches and SAN directors, while maintaining efficient cold air intake and hot exhaust isolation when used with optional airflow kits.

Constructed with 16 and 18-gauge steel, the AR3347 accommodates up to 3750 lbs static load and 2250 lbs dynamic load, offering long-term durability. The unit features integrated vertical cable managers and an improved cable access roof to handle large cable bundles, ensuring streamlined equipment organization.

Equipped with keyed-alike doors and side panels, pre-installed casters, and leveling feet, this rack simplifies deployment and mobility. Its 19-inch rack width, 41.26-inch maximum depth, and tool-less mounting rails make installation fast and secure. Certified to UL 2416 and EIA-310E standards, this enclosure meets global safety and performance requirements.

Key Features:

• Capacity: 48U with 19-inch rack width compatibility.
• Design: Black steel enclosure with 16 and 18-gauge construction.
• Load Capacity: Supports 3750 lbs static load and 2250 lbs dynamic load.
• Airflow Management: Enhanced cable access and optional cold air isolation.
• Security: Keyed-alike locking doors and side panels.
• Mounting: Tool-less rails with a maximum depth of 41.26 inches.
• Dimensions: 2258H x 750W x 1200D mm (88.90" x 29.53" x 47.24").
• Included Equipment: Baying hardware, pre-installed casters, cable managers, and leveling feet.
• Certifications: UL 2416, UL 60950-1, EIA-310E compliant.

Why Choose the APC NetShelter SX Networking Rack Enclosure AR3347?

The APC NetShelter SX AR3347 offers scalable, high-capacity infrastructure support for networking and IT environments. With enhanced airflow management, secure access features, and high load tolerance, this rack is designed to protect critical hardware while maximizing performance efficiency.

Choose the AR3347 to improve equipment organization, reduce setup time, and optimize cable management for high-density networking operations.
