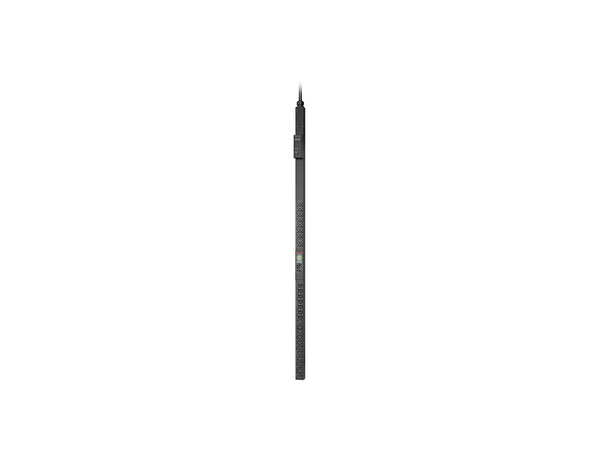

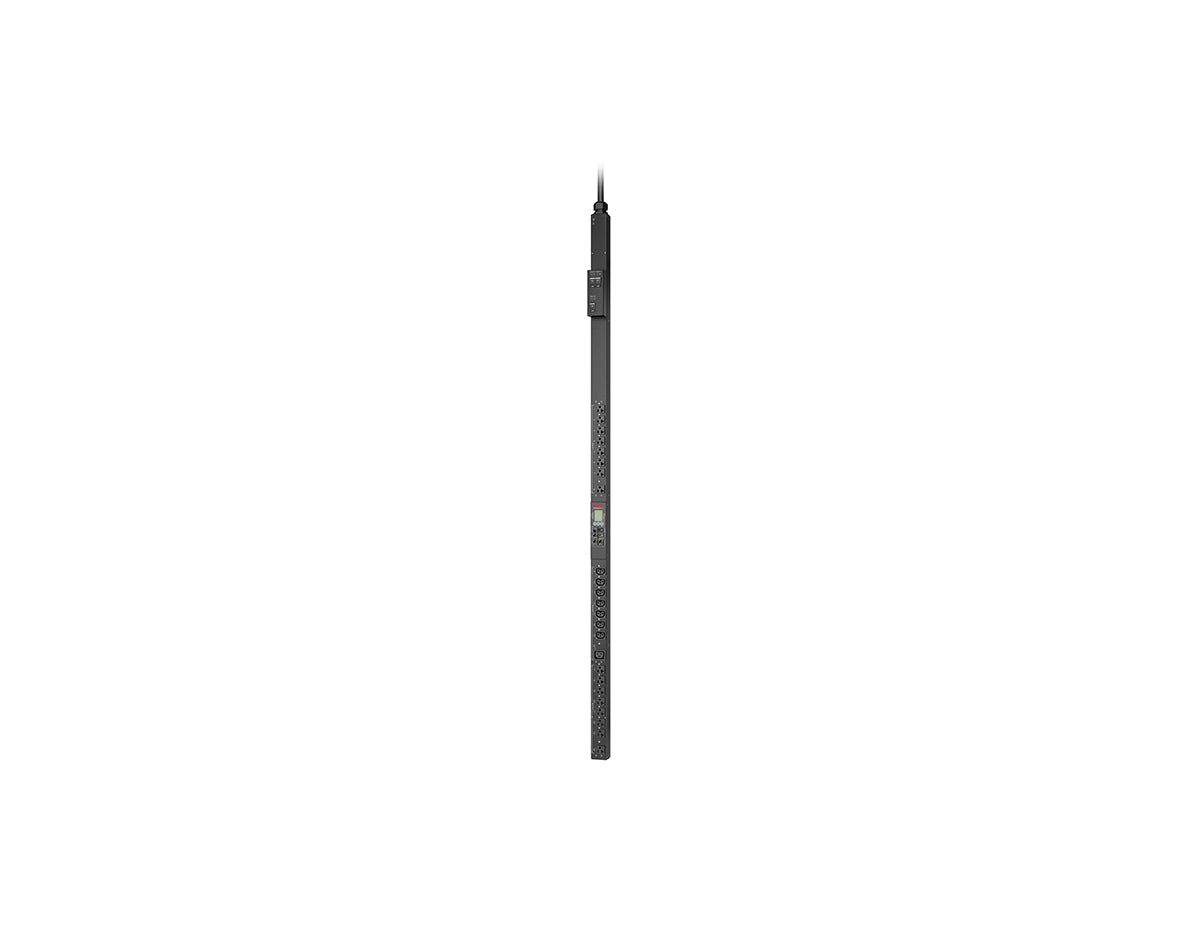

APC APDU9970 - NetShelter Switched Rack PDU 9K Series 0U 30A

[accessories]

Installation Guide	Included in the box
Rack Mounting Brackets	Included in the box
Safety Guide	Included in the box

[/accesories]

Overview

The APC NetShelter APDU9970 Switched Rack PDU provides enterprise-class power distribution in a compact 0U vertical design. With 30A capacity, advanced outlet-level control, and integrated SNMP/Redfish management, it is engineered for high-density IT environments that demand precision, uptime, and full remote power monitoring.

Key Features & Benefits

• High-Density Outlet Configuration: 16 NEMA 5-20R, 7 C13/C15, and 1 C19/C21 outlets maximize compatibility with diverse IT loads.
• Switched Functionality: Remote on/off outlet control streamlines management and reduces downtime during maintenance.
• Integrated Network Management: Built-in SNMP and Redfish protocols deliver seamless monitoring across IT ecosystems.
• Vertical 0U Form Factor: Saves critical rack space while supporting high-capacity deployments.
• Wide Environmental Tolerance: Operates from -5°C to 60°C, ensuring resilience in challenging conditions.

Technical Deep Dive

The APDU9970 operates with a line-rated current of 24A and supports input voltages of 120/208V, making it highly adaptable for modern data centers. Its switched functionality enables administrators to control individual outlets remotely, a critical capability for load shedding, device reboot, or energy optimization strategies.

By incorporating SNMP and Redfish, the PDU seamlessly integrates into network management frameworks. These protocols provide real-time visibility into energy consumption, load balancing, and fault alerts, enabling proactive IT operations. The vertical 0U mounting design maximizes rack density without consuming rack units, a significant advantage for high-density deployments.

Engineered for demanding environments, the APDU9970 is designed to withstand up to 10,000 feet of altitude and wide humidity ranges, making it suitable for both controlled and edge deployments.

Ideal Applications

• Enterprise data centers with high outlet density requirements
• Co-location and hosting facilities
• Telecommunications network racks
• Distributed IT and edge deployments

Frequently Asked Questions (FAQs)

Q1: How is the APDU9970 installed?
A: It is a 0U vertical PDU with included mounting brackets for easy integration into NetShelter racks.

Q2: What performance can I expect?
A: The PDU supports a line-rated 24A current with 30A input. Load capacity reaches 4992VA. Runtime depends on connected UPS systems and load type.

Q3: How can the PDU be managed?
A: It includes network connectivity with SNMP and Redfish, allowing remote monitoring, outlet control, and integration into DCIM platforms.

Brand	APC by Schneider Electric
Model	APDU9970
Product Type	NetShelter Switched Rack PDU
Form Factor	0U Vertical
Dimensions (H x W x D)	72.008" x 2.2" x 1.8" (1829 x 56 x 46 mm)
Weight	20.79 lb (9.43 kg)
Color	Black
Number of Rack Units	0U
Mounting Mode	Not rack-mountable
Cooling	Not specified

PDU Type	Switched (9K Series)
Input Voltage	120 V / 208 V
Output Voltage	120 V / 208 V
Input Plug Type	NEMA L14-30P
Input Frequency	50/60 Hz
Line Rated Current	24 A (Input current limit 30 A)
Load Capacity	4992 VA
Outlets	16 × NEMA 5-20R, 7 × IEC C13/C15, 1 × IEC C19/C21
Communication Ports	SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature	23–140 °F (-5–60 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	5–95%
Storage Humidity	5–95%
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	cUL Listed, FCC Part 15 Class A, UL 62368-1, RoHS, REACh
Warranty	3 years repair or replace
