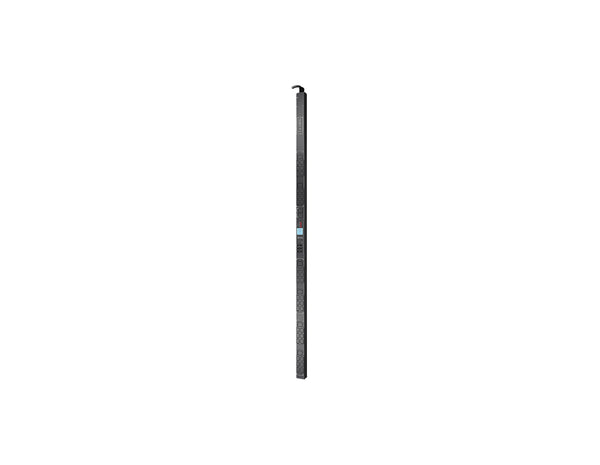

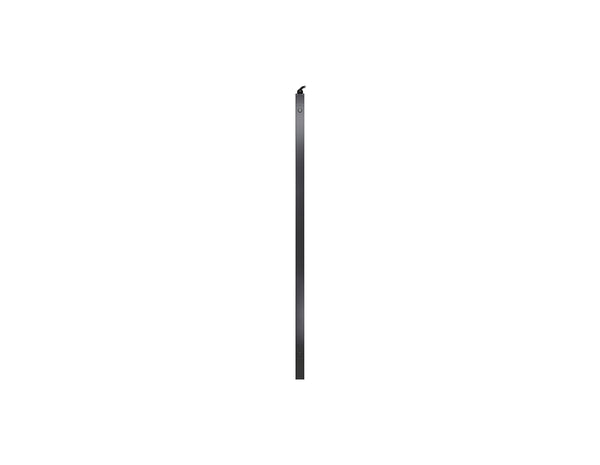

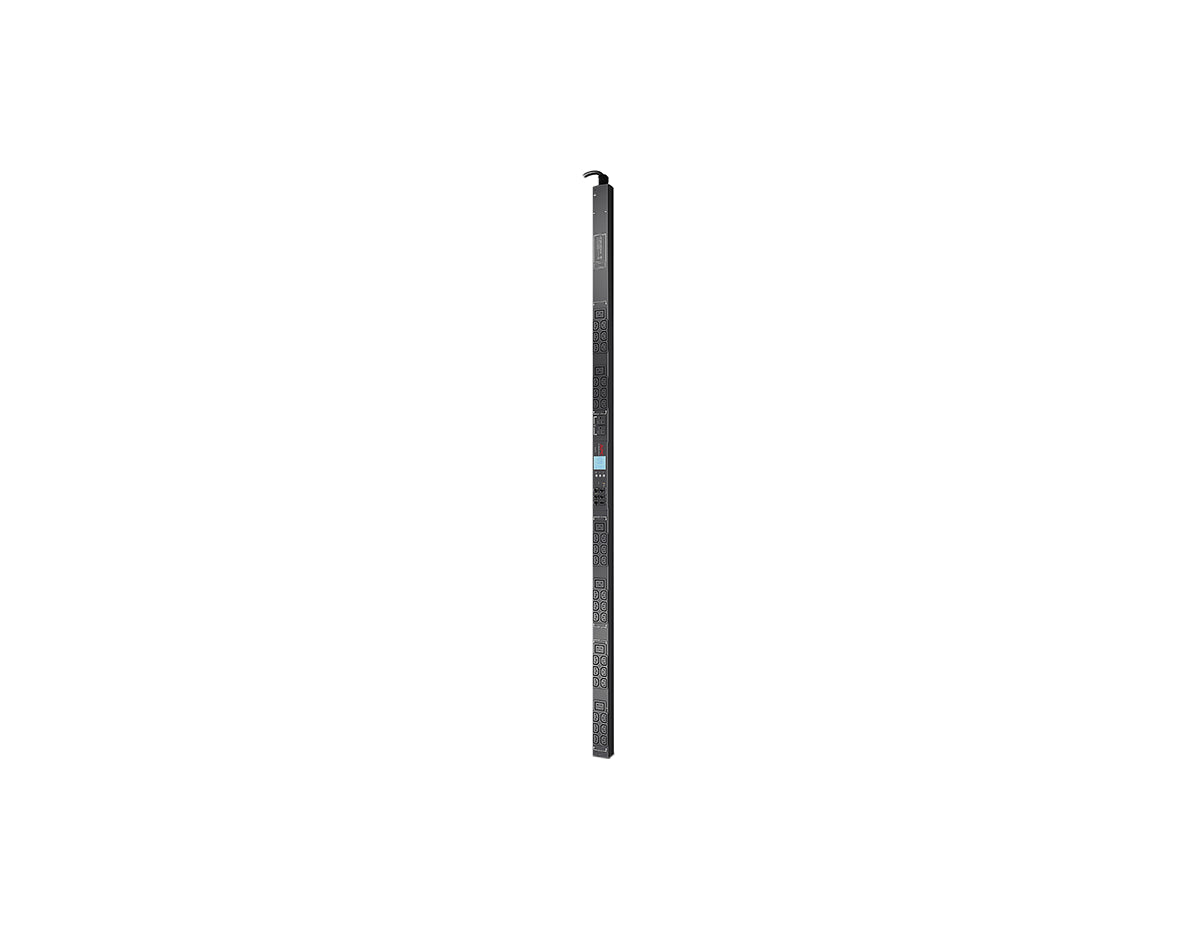

APC AP8861 - Metered Rack PDU 5.7kW 208V 3-Phase 0U

[accessories]

Installation Guide	Included in the box
Rack Mounting Brackets	Included in the box
Serial Configuration Cable	Included in the box
Safety Guide	Included in the box

[/accesories]

Overview

The APC AP8861 Metered Rack PDU delivers reliable 5.7kW 3-phase power distribution in a 0U vertical form factor. Designed for high-density IT environments, it combines local metering with remote monitoring to safeguard against overloads while maximizing rack space efficiency.

Key Features & Benefits

• High Density Outlets: 44 total outlets (36 C13, 6 C19, 2 NEMA 5-20R) for flexible equipment support.
• Remote Monitoring: Web, SNMP, and CLI access for real-time load and energy visibility.
• Locking IEC Receptacles: Secures power cords against accidental disconnection.
• Local LCD Display: Instant view of voltage, current, and power usage.
• Environmental Monitoring: Supports external sensors for temperature and humidity tracking (sold separately).
• Zero U Design: Vertical mounting preserves rack space for core equipment.

Technical Deep Dive

The AP8861 uses PDU-level metering to provide precise load visibility. By tracking volts, amps, and kWh consumption, administrators gain actionable data to balance loads and prevent costly downtime.

Its locking IEC outlets reduce the risk of accidental power interruptions, particularly in busy data center environments. Combined with ultra-low profile circuit breakers, recovery from overload conditions is fast and seamless.

Remote manageability is built-in, with support for web browser, SNMP, and CLI interfaces. This ensures administrators can configure alerts, review historical load logs, and monitor energy use from any location.

Ideal Applications

• Data centers with mixed server and storage equipment
• High-density racks requiring maximum outlet availability
• Colocation facilities with strict uptime requirements
• Enterprise IT environments with remote management needs

Frequently Asked Questions (FAQs)

Q1: How is the AP8861 installed?
A: It mounts vertically in 0U rack space using included brackets. No additional tools required for NetShelter racks.

Q2: What power does it provide?
A: The unit delivers 5.7kW capacity at 208V 3-phase input with a NEMA L21-20P plug. Runtime is dependent on connected loads.

Q3: How is the PDU managed?
A: Local LCD provides live data, while remote monitoring is available via web, SNMP, and CLI for proactive power management.

Brand	APC by Schneider Electric
Model	AP8861
Product Type	NetShelter Metered Rack PDU
Form Factor	0U Vertical
Dimensions (H x W x D)	70.5" x 2.2" x 1.7" (1791 x 56 x 44 mm)
Weight	13.98 lb (6.34 kg)
Color	Black
Number of Rack Units	0U
Mounting Mode	Rack-mounted (Vertical, Side Mountable)
Cooling	Not specified

PDU Type	Metered
Input Voltage	208 V (3 Phase)
Output Voltage	120 V / 208 V

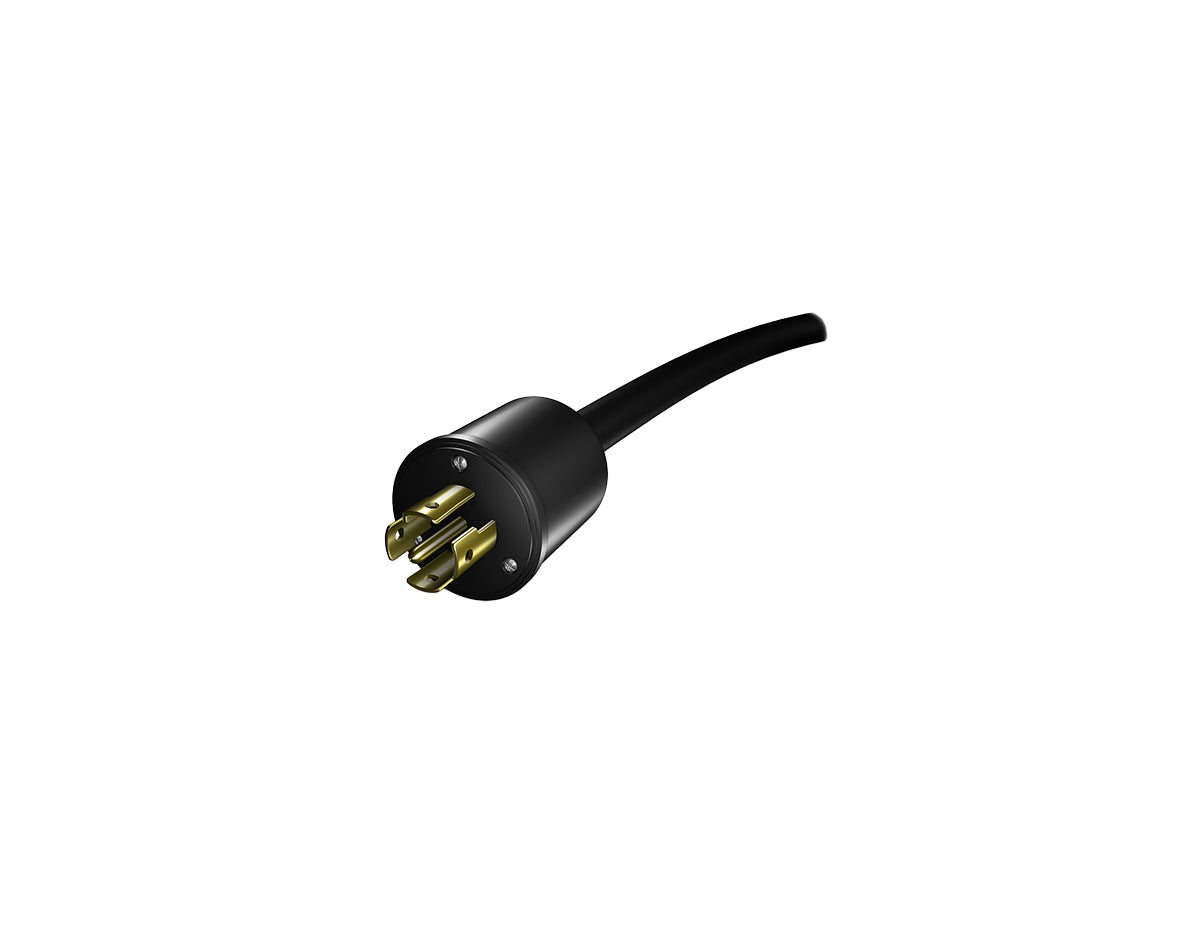

Input Plug Type	NEMA L21-20P
Input Frequency	50/60 Hz
Line Rated Current	16 A (Input current limit 20 A)
Load Capacity	5700 VA
Outlets	36 × IEC C13, 6 × IEC C19, 2 × NEMA 5-20R
Communication Ports	Web, SNMP, CLI, Serial configuration
Operating Temperature	23–140 °F (-5–60 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	5–95%
Storage Humidity	5–95%
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	CSA C22.2 No.60950, UL 60950-1, RoHS, REACh
Warranty	2 years repair or replace
