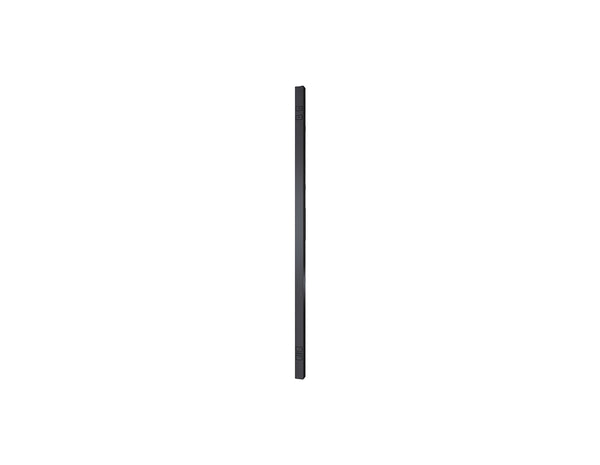

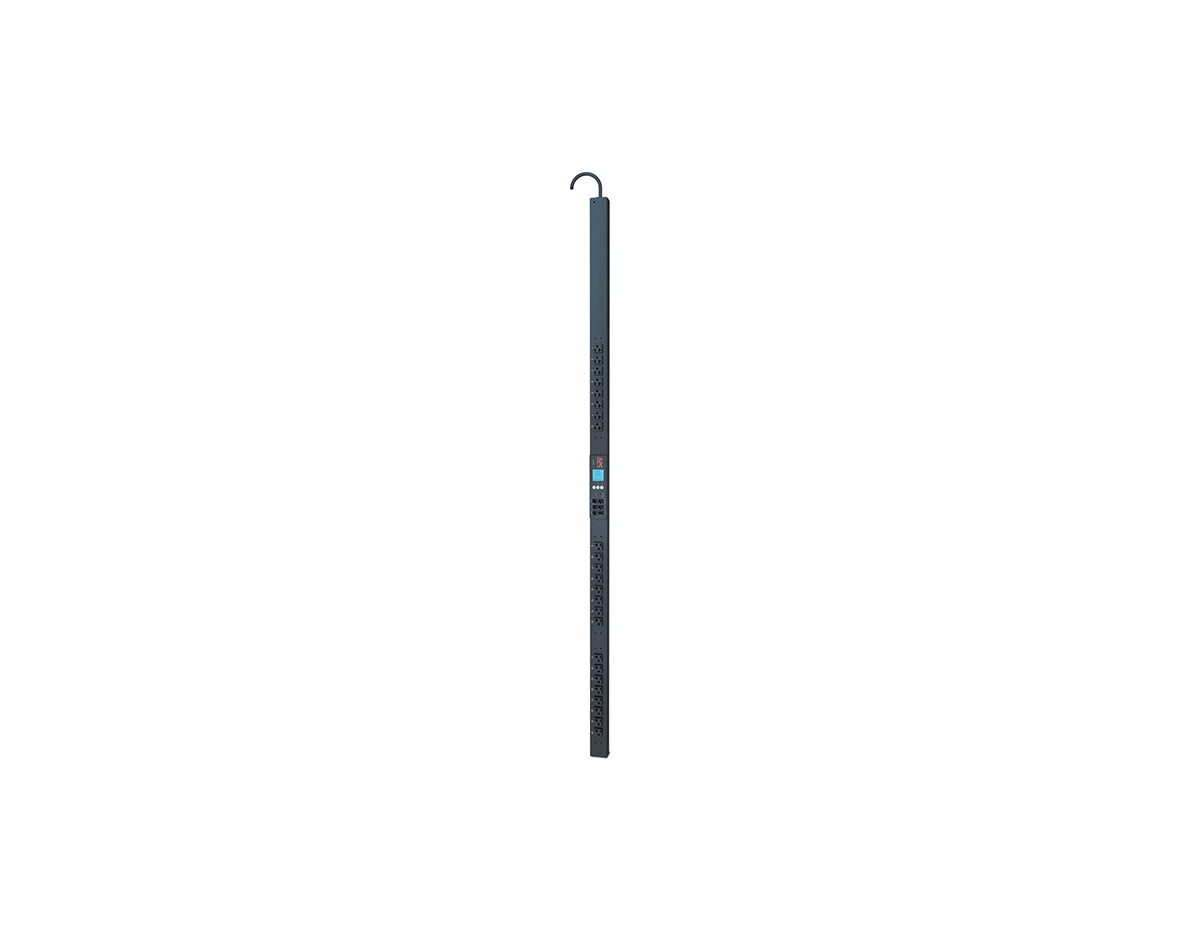

APC AP8830 - Metered Rack PDU 20A 0U with 24 NEMA 5-20R Outlets

Overview

The APC AP8830 Metered Rack PDU is designed for efficient power distribution in demanding IT environments. Featuring active metering, local and remote monitoring, and 24 NEMA 5-20R outlets, it enables precise energy optimization and proactive circuit protection. Its 0U vertical form factor saves valuable rack space while supporting reliable power for dense server and network deployments.

Key Features & Benefits

• Active Metering: Provides real-time power data for improved load balancing and energy management.
• User-Defined Alarms: Alerts administrators of potential overloads to prevent downtime.
• 24 NEMA 5-20R Outlets: High outlet density ensures connectivity for multiple rack-mounted devices.
• Remote Access: Secure Web, SNMP, and Telnet interfaces streamline monitoring and configuration.
• Low-Profile Circuit Breakers: Safeguards equipment without sacrificing rack space efficiency.

Technical Deep Dive

The AP8830 operates on a 20A input at 100–120V, delivering up to 1920 VA of load capacity. Its integrated active metering continuously monitors power consumption, enabling data-driven insights into rack-level energy use. This functionality assists data center managers in right-sizing IT equipment and optimizing total cost of ownership.

The inclusion of secure remote interfaces—Web, SNMP, and Telnet—allows administrators to access and configure the PDU from anywhere. Combined with APC’s centralized management platforms such as InfraStruxure Central, Operations, Capacity, and Energy Efficiency, this ensures full visibility of power usage and system health.

Equipped with 24 NEMA 5-20R outlets, the PDU maintains secure connectivity while reducing the risk of accidental disconnections. Its ultra-low-profile breakers provide additional protection with minimal rack footprint.

Ideal Applications

• Data center racks with dense server deployments
• Network closets and distribution environments
• Branch offices requiring energy monitoring
• IT managers seeking advanced load management

Frequently Asked Questions (FAQs)

Q1: How is the AP8830 installed?
A: It mounts vertically in a 0U configuration, with included brackets for flexible rack placement.

Q2: What is its load capacity?
A: The AP8830 delivers up to 1920 VA at 20A input. Runtime depends on load and operational environment.

Q3: How can the unit be managed?
A: It supports secure Web, SNMP, and Telnet interfaces and integrates with APC’s InfraStruxure Central for centralized management.

Brand	APC by Schneider Electric
Model	AP8830
Product Type	NetShelter Metered Rack PDU
Form Factor	0U Vertical
Dimensions (H x W x D)	70.5" x 2.2" x 1.7" (1791 x 55 x 44 mm)
Weight	12.32 lb (5.59 kg)
Color	Black
Number of Rack Units	0U
Mounting Mode	Rack-mounted (Vertical, Side Mountable)
Cooling	Not specified

PDU Type	Metered
Input Voltage	100 V / 120 V
Output Voltage	100 V / 120 V
Input Plug Type	NEMA L5-20P
Input Frequency	50/60 Hz
Line Rated Current	16 A (Input current limit 20 A)
Load Capacity	1920 VA
Outlets	24 × NEMA 5-20R
Communication Ports	Web, SNMP, Telnet
Operating Temperature	23–140 °F (-5–60 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	5–95%
Storage Humidity	5–95%
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, RoHS, REACh
Warranty	2 years repair or replace
