APC AP7801B - NetShelter 1U Metered Rack PDU 20A 120V

[accessories]

Cord Retention Brackets	Included in the box
Installation Guide	Included in the box
Rack Mounting Brackets	Included in the box
User Manual	Included in the box

[/accesories]

Overview

The APC NetShelter AP7801B is a metered rack power distribution unit engineered to provide reliable, monitored power for enterprise IT racks. Its 1U horizontal design integrates seamlessly into network and server environments, delivering consistent 120V power with clear load visibility through its front-facing meter display.

Key Features & Benefits

• 1U Horizontal Form Factor: Saves vertical rack space while ensuring simple integration.
• Metered Load Monitoring: Real-time visibility of current draw for capacity planning.
• High Load Capacity: Supports up to 1920VA across 8 outlets for multiple devices.
• Reliable Input Plug: NEMA L5-20P input for secure connection to 20A circuits.
• Durable Construction: Built for data center and enterprise environments with long-term performance.

Technical Deep Dive

The AP7801B leverages APC’s proven NetShelter platform to provide dependable rack power distribution. Its integrated digital display allows administrators to monitor real-time load in amperes, enabling proactive capacity management and preventing overloads.

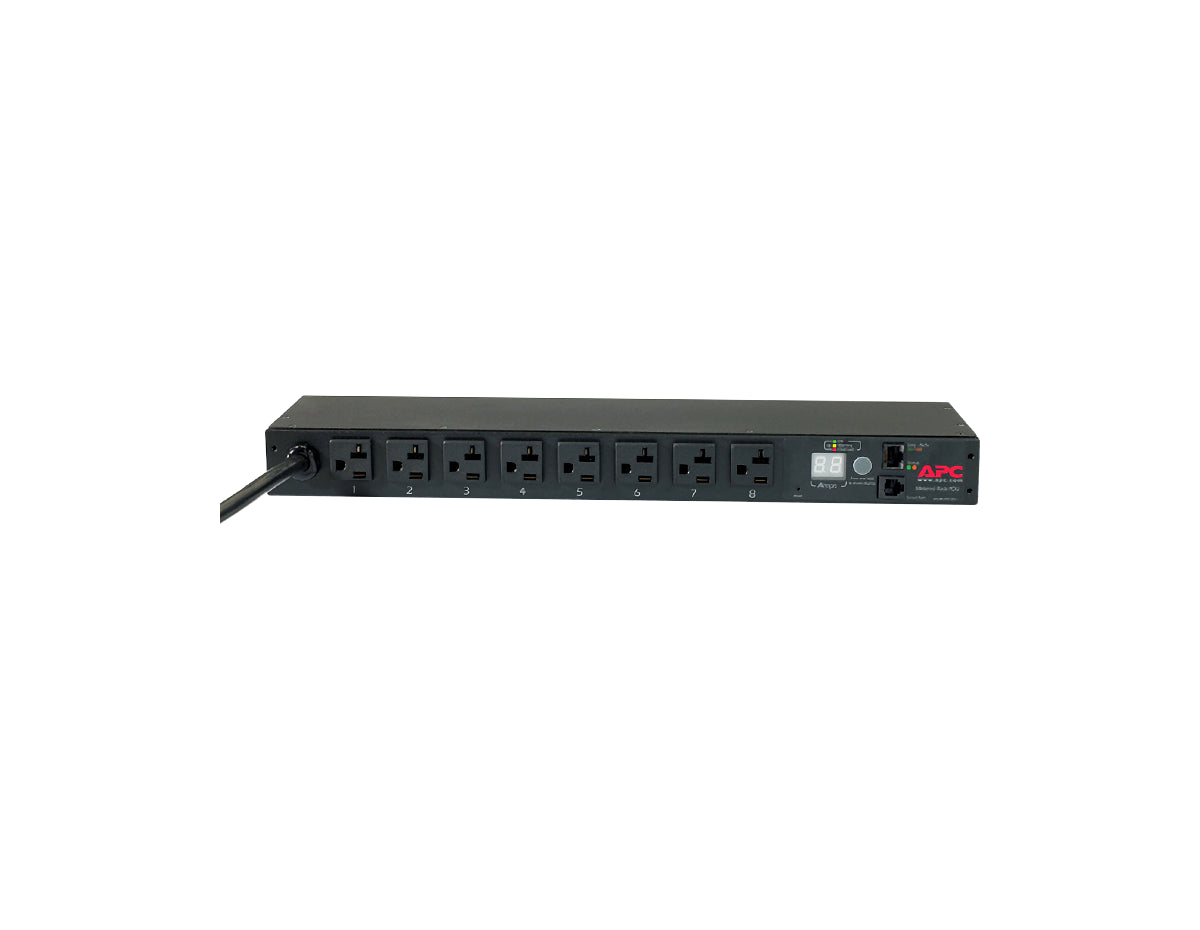

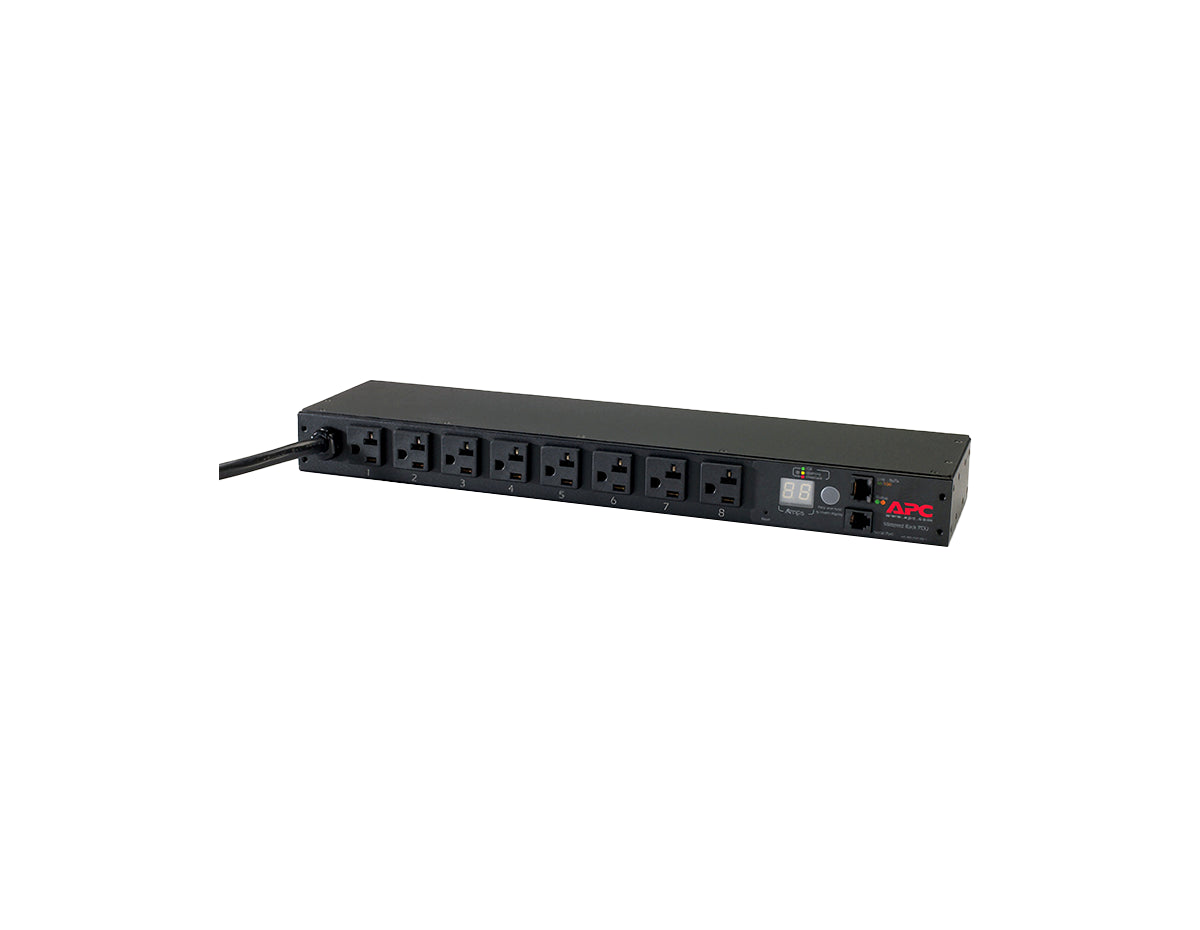

With a 20A input and 1920VA total load capacity, the unit powers network switches, servers, and storage systems reliably. The NEMA L5-20P input plug ensures secure power delivery, while the 8 NEMA 5-20R outlets distribute clean 120V power to connected devices.

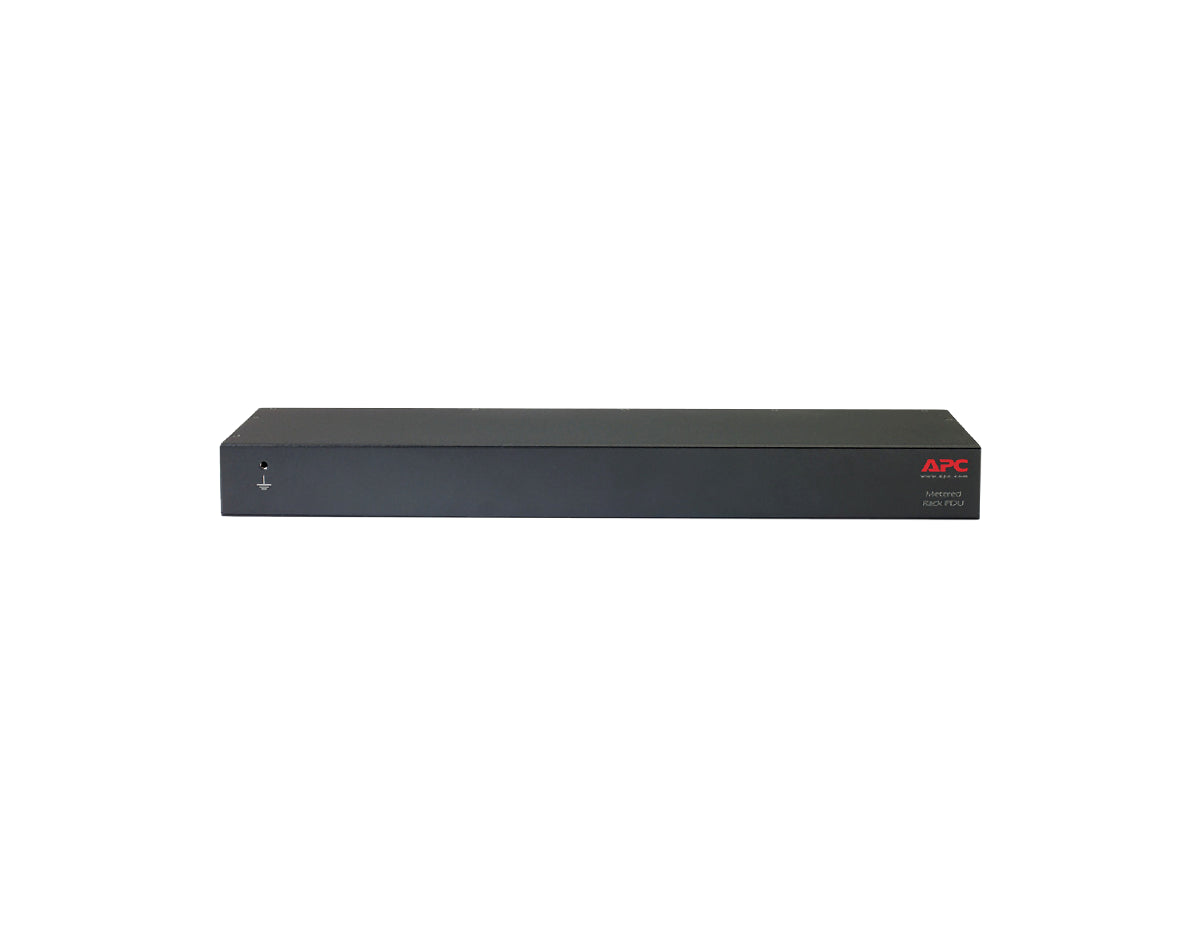

The slim 1U horizontal profile makes it a versatile choice for installations with limited vertical rack space, ensuring efficient use of available capacity without compromising accessibility.

Ideal Applications

• Enterprise server racks
• Network closets and branch offices
• High-density IT environments
• Edge computing and managed service deployments

Frequently Asked Questions (FAQs)

Q1: How is the AP7801B installed?
A: It is a 1U horizontal rackmount PDU, supplied with brackets for front or rear mounting in standard racks.

Q2: What performance can I expect?
A: The PDU supports up to 1920VA with 8 NEMA 5-20R outlets. Performance depends on load type and circuit capacity.

Q3: How is power usage monitored?
A: A front-mounted digital meter provides instant amperage readings, simplifying load balancing and preventing overloads.

Brand	APC by Schneider Electric
Model	AP7801B
Product Type	NetShelter Metered Rack PDU
Form Factor	Rackmount 1U
Dimensions (H x W x D)	1.7" x 17.5" x 4.02" (44 x 444 x 102 mm)
Weight	3.81 lb (1.73 kg)
Color	Not specified
Number of Rack Units	1U
Mounting Mode	Rack-mounted (Horizontal, Front/Rear)
Cooling	Not specified

PDU Type	Metered
Input Voltage	100 V / 120 V
Output Voltage	120 V
Input Plug Type	NEMA L5-20P
Input Frequency	50/60 Hz
Line Rated Current	16 A (Max 20 A)
Load Capacity	1920 VA
Outlets	8 × NEMA 5-20R
Communication Ports	Not specified
Operating Temperature	23–113 °F (-5–45 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	5–95%
Storage Humidity	5–95%
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	cUL Listed, CSA, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950, EU RoHS (Compliant with Exemptions), REACh Declaration
Warranty	2 years repair or replace
