CISCO AIR-PWRINJ7 POWER INJECTOR
| Model: | AIR-PWRINJ7 |
| Detail: | Cisco AIR-PWRINJ7 Power Injector The Cisco Multigigabit 802.3bt Power Injector is a dependable power injector that adheres to industry standards and has the capacity to power modern high-performance access points |
| Price: | $315.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

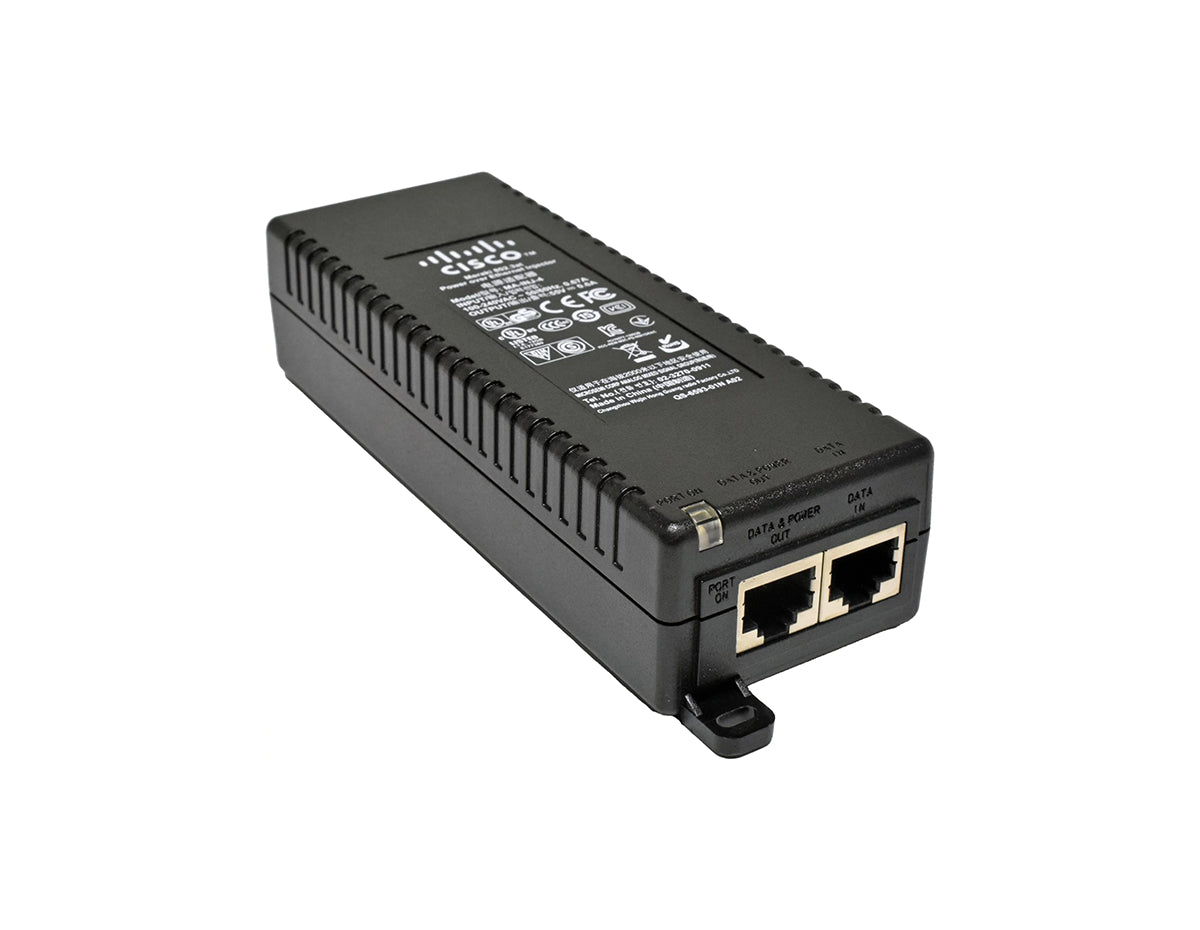

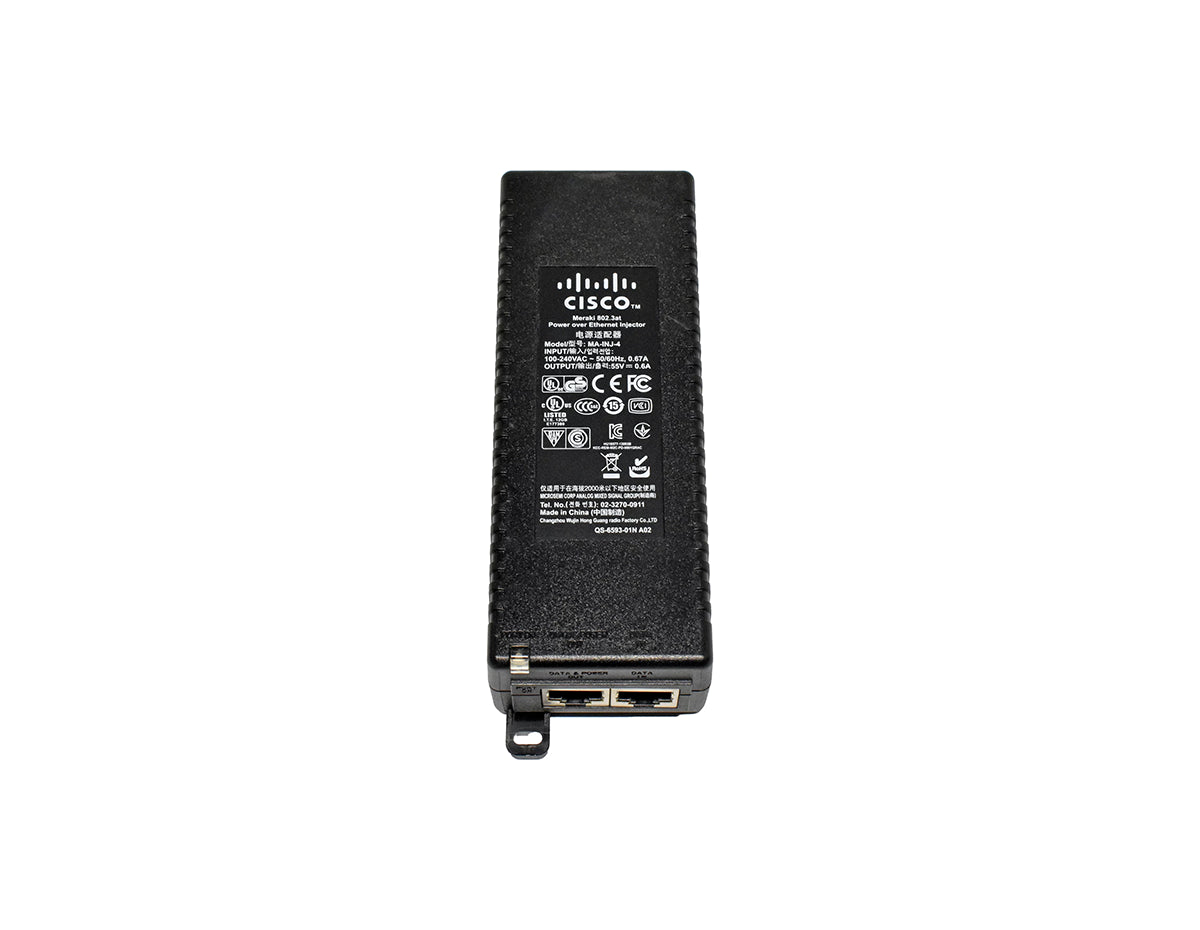

Cisco AIR-PWRINJ7 Power Injector
The Cisco Multigigabit 802.3bt Power Injector is a dependable power injector that adheres to industry standards and has the capacity to power modern high-performance access points and various network devices. Access to power is a significant challenge in wireless network design, and the installation of power cables is a considerable cost factor in wireless setups. The Cisco PoE Injector facilitates the simultaneous transmission of data and power to a Cisco access point through a single Ethernet cable. This capability enables the strategic placement of devices to optimize wireless coverage while reducing installation expenses.
Quick Specs:
- 1x 5GbE Ethernet Input Port
- 1x 5GbE Ethernet Output Ports
- Maximum Output Power: 50W
- Compatibility: Cisco Catalyst Access Points
Please see the related tabs for the AIR-PWRINJ7 datasheet.
Accessories
Specifications
| Specifications | Cisco AIR-PWRINJ7 Power Injector |
| Nominal Input Voltage | 100 ~ 240Vac |
| Input Voltage Range | 90 ~ 264Vac |
| Nominal Input Frequency | 50 ~ 60Hz |
| Input Frequency Range | 47 ~ 63Hz |
| Input Current | 2.0A Maximum |
| Average Efficiency | (@115Vac / 60Hz >88% (on board)) (@230Vac / 50Hz >89% (on board)) |
| No-Load Power Consumption | (@115Vac / 60Hz <0.21W) (@230Vac / 50Hz <0.15W) |
| Rated Output Voltage | 56Vdc |
| Output Voltage Range | 54 ~ 57Vdc (on board) |
| Output Current | 0 ~ 1.161A |
| Leakage Current | <250uA at 264 Vac |
| Insulation Resistance | DC 500V 10M ohm minimum |
| Overvoltage | Auto-Recovery |
| Overload / Overcurrent | Auto-Recovery |
| Over Temperature | Auto-Recovery |
| Short Circuit | Auto-Recovery |
| Interfaces | Data Input 1 x 10/100/1000/2500/5000 BASE-T autosensing (RJ-45) Data+Power Output (PoE): 1 x 10/100/1000/2500/5000 BASE-T autosensing (RJ-45) AC power input: C14 type socket |
| Indicators | Two Status LED indicate input power and PoE status |
| Dimensions (W x L x H) | (without cables): 2.6 x 5.5 x 1.5 in (65 x 140 x 38.5 mm) |
| Weight | 0.5 lbs. (1.1 kg) |
| Environmental | ● Operating ◦ Temperature: 14° to 104°F (–10° to 40°C) ◦ Humidity: 5% to 95% (noncondensing) ◦ Maximum altitude: 10,000 ft (3,048 m) ● Nonoperating (storage and transportation) ◦ Temperature: –13° to 149°F (–25° to 65°C) ◦ Humidity: 5% to 90% (noncondensing) ◦ Maximum altitude: 15,000 ft (4500 m) @ 77°F (25°C) |
| Compliance | ● IEC 61000-4-2, +/– 6kV ● IEC 61000-4-3, 3V/m, 80%am, 1kHz, 80MHz to 1GHz Criterion A ● IEC 61000-4-4. +/–1kV on input, Criterion B ● IEC 61000-4-5 (lightning surge, AC Input port), 1.2/50 μs / 8/20 μs combination wave, +/–6kV from line to line,+/–6kV line to earth, Generator impedance：2ohm; Criterion B ● EN55204 (lightning surge, RJ45 port), 10/700 μs wave +/–2kV all lines to earth ● IEC-61000-4-6 (conducted immunity), 3V, 80%AM, 1kHz, 150 kHz–80MHz; Criterion A ● CISPR 32/EN55032 Class B FCC Part 15 Class B ● Safety UL, CE, CCC, IEC/UL/EN 62368 |
Properties
| Properties | Cisco AIR-PWRINJ7 Power Injector |
| Description | The Cisco Multigigabit 802.3bt Power Injector is a reliable, standards-compliant power injector capable of powering the latest high-performance access points and other network devices. |
| Product Family | Cisco Multigigabit 802.3bt Power Injector |
| Product Type | Power Injector |
