Cisco AIR-ANT2535SDW-R Access Point Antenna
- Antenna
- 5 dBi (for 5 GHz)
- 3 dBi (for 2.4 GHz)
- Outdoor
- Indoor
- For Aironet 2802E, 3802E Series Access Points
$81.60
$38.00
Instant Savings
$43.60

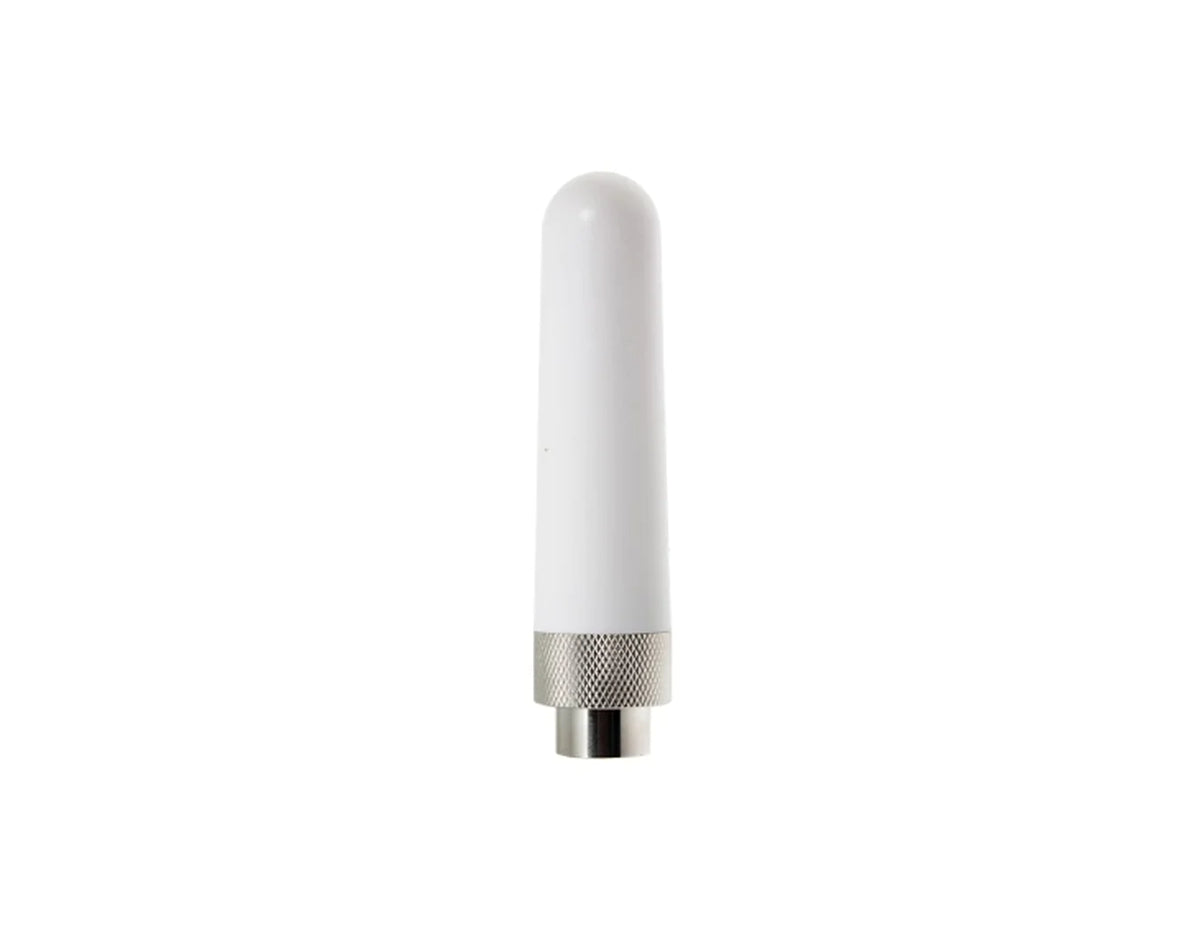

Cisco AIR-ANT2535SDW-R Access Point Antenna
The Cisco AIR-ANT2535SDW-R Access Point Antenna is designed for indoor use with the Cisco Aironet 1600, 2600, 2800, 3600, 3700, 3800, and Cisco Catalyst 9120AXE series access points. It is a single white dipole antenna with an RP-TNC connector and does not articulate like other dipole antennas.
Key Features:
For detailed specifications, refer to the AIR-ANT2535SDW-R datasheet in the tabs.
| Specifications | AIR-ANT2535SDW-R |
| Description | The Cisco AIR-ANT2535SDW-R antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the Cisco Aironet 1600, 2600, 3600, 3700, and Cisco Catalyst 9120AXE series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area. |
| Product Family | Cisco Aironet Series |
| Product Type | Antenna |
| Antenna Type | Omnidirectional |
| Operational Frequency Ranges | 2.4-2.5 GHz & 5.15-5.925 GHz |
| Nominal Input Impedance* | 50 Ohms |
| VSWR | 2.0:1 |
| Polarization | Vertical |
| 2.4 - 2.5 GHz Nominal Peak Gain | 3 dBi |
| 5.15 - 5.925 GHz Nominal Peak Gain | 5 dBi |
| 2.4 - 2.5 GHz Elevation Plane Beamwidth | 35° |
| 5.15 - 5.925 GHz Elevation Plane Beamwidth | 35° |
| 2.4 - 2.5 GHz Port-to-Port Isolation* | > 20 dB |
| 5.15 - 5.925 GHz Port-to-Port Isolation* | > 23 dB |
| Connector Type | Male RP-TNC |
| UV Stability | ASTM D-4674 Method 1 |
| Diameter | 1.25 in. (3.18 cm) x 3.3 in. (8.4 cm) |
| Operating Temperature Range | -30° C to 70° C |
