Each Cisco Aironet radio product is designed to perform in a variety of environments. Implementing the antenna system can greatly improve coverage and performance. To optimize the overall performance of a Cisco wireless LAN, it is important to understand how to maximize radio coverage with the appropriate antenna selection and placement. Wall-mount indoor/outdoor antenna with two RP-TNC connectors. The pigtail cable is plenum rated and 36" long.
| Properties |

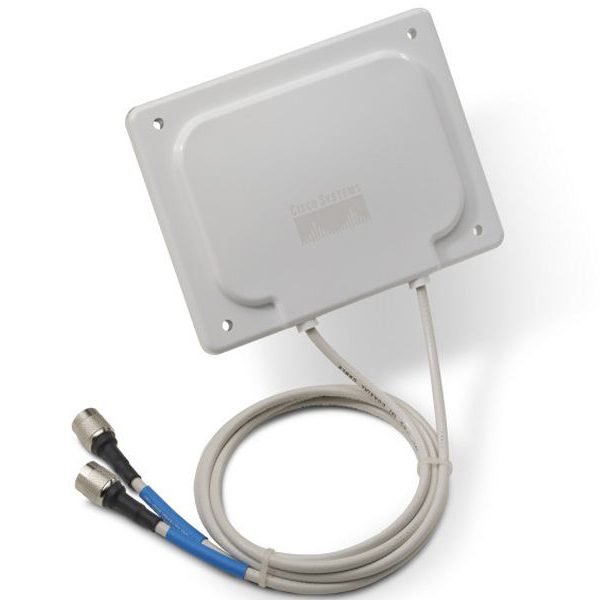

Cisco AIR-ANT2465P-R 6.5-dBi Diversity Patch Antenna |
| Description |
Indoor/outdoor diversity patch antenna designed for 2.4 GHz Cisco Aironet deployments |
| Compatibility |
Cisco Aironet 2.4-GHz radios with RP-TNC connectors |
| Product Type |
Diversity Patch Antenna |
| Specifications |
AIR-ANT2465P-R |
| Antenna Type |
Diversity patch |
| Frequency Range |
2400 – 2484 MHz |
| Nominal Impedance |
50 Ohms |
| VSWR |
2:1 max |
| Peak Gain |
6.5 dBi |
| Polarization |
Linear, vertical |
| E-plane Beamwidth |
65° |
| H-plane Beamwidth |
75° |
| Front-to-back Ratio |
15 dB |
| Cross-pol Discrimination |
15 dB |
| Cable |
36 in. (91.4 cm), Times AA-9303 or equivalent, plenum rated |
| Connector |
RP-TNC plug |
| Dimensions (L x W x H) |
4.4 x 6.6 x 1 in (11.1 x 16.7 x 2.5 cm) |
| Operating Temperature |
–22°F to 158°F (–30°C to 70°C) |
| Storage Temperature |
–40°F to 185°F (–40°C to 85°C) |
| Environment |
Indoor/Outdoor |
| Included Accessories |
4 x #8 x ¾ in screws, 4 plastic anchors, 4 end caps |
| Suggested Cable |
High-quality, low-loss coaxial cable (keep cable short to reduce signal loss) |
