Omnidirectional antennas are connected to the access point via short, attached plenum cables. The antennas can be mounted to a ceiling and provide a large, circular coverage area. Omnidirectional antennas can also be used to provide good coverage in a retail environment, both inside and outside, as well as in areas where trucks or police cars park to upload data. The antenna operates in the 2.4 GHz frequency range and is designed for indoor or outdoor use.
| Properties |

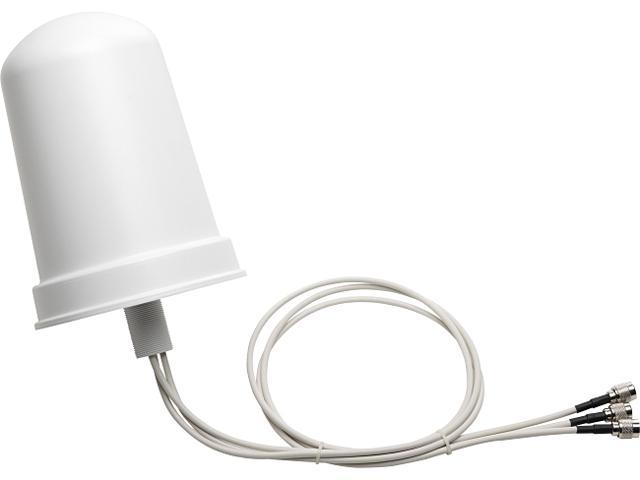

Cisco AIR-ANT2440NV-R 2.4-GHz MIMO Omnidirectional Antenna |
| Description |
Wall-mounted indoor/outdoor antenna for extended 2.4-GHz coverage in Cisco Aironet deployments |
| Compatibility |
2.4-GHz Cisco Aironet radios with RP-TNC connector |
| Product Type |
3-Element MIMO Omnidirectional Antenna |
| Specifications |
AIR-ANT2440NV-R |
| Antenna Type |
3-element MIMO omnidirectional |
| Frequency Range |
2400–2484 MHz |
| VSWR |
2:1 or less |
| Peak Gain |
4 dBi |
| Polarization |
Linear, vertical |
| Azimuth Plane |
Omnidirectional |
| Elevation Beamwidth |
36° |
| Dimensions |
8.6 in (21.8 cm) length, 6.3 in (16 cm) diameter |
| Weight |
1.33 lb (623.6 g) |
| Cable |
3 ft (91.4 cm), plenum-rated |
| Connector |
RP-TNC |
| Operating Environment |
Indoor or Outdoor |
| Temperature Range |
–22°F to 158°F (–30°C to 70°C) |
| Included Accessories |
Mount interface bracket, wall bracket, base bracket, cap screws, wing screw, screen mesh washer, spherical washer, jam nut, gasket, Allen wrench |
| Suggested Cable |
High-quality, low-loss coaxial cable (keep short to reduce signal loss) |
