Juniper ACX6000 line of Universal Metro Routers directly addresses evolving metro network architectures that extend operational intelligence from the service provider edge to the access network. The ACX6000 line bridges the complexity between packet optical transport and the IP/MPLS networking layer by collapsing both domains into a seamless, multilayer solution. From there, it delivers a single-pane-of-glass view into network operations.

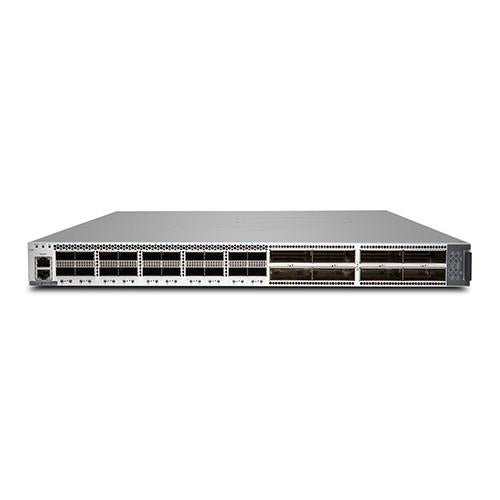

| Properties | Juniper ACX6360-OR-DC |
| Description | ACX6360 Optical Router configuration, 20x100GbE QSFP28/QSFP+ client ports, 8x100/200G CFP2-DCO pluggable DWDM optics, redundant fans and redundant DC power supplies, front-to-back airflow |
| Product Family | ACX6000 Series |
| Product Type | Router |
| Built-In Interface Options | |
| 10GbE (SFP+) | 80** |
| 40GbE (QSFP) | 20 |
| 100GbE (QSFP28) | 20 |
| 100/200 Gbps (CFP2-DCO) | 8 |
| **Via QSFP+ 4x10GbE breakout | |
| Dimension (WxHxD) | 17.36 x 1.72 x 24.40 in (44.09 x 4.37 x 61.98 cm) |
| Weight (lb/kg) fully configured | 30 lb (13.6 kg) |
| Power | -40 to -72 VDC power |
| Maximum power draw | 756 W (with optical SFP transceivers) |
| Rack unit | 1 U |
| Specifications | ACX6360-OR-DC |
| System Throughput | 3.6/7.2 Tbps |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 5%-90% RH noncondensing |
| Platform Features | Link Aggregation Control Protocol (LACP) Link Layer Discovery Protocol (LLDP) IPv4 IPv6 RPF Equal-cost multipath (ECMP) Enhanced load balancing based on L2-L4 header info OSPF IS-IS BGP Indirect/composite next hop RSVP LDP Path Computation Element Protocol (PCEP) RSVP-TE BGP-LU LDP-RSVP RSVP fast reroute (FRR) Segment routing IEEE 802.1AE/802.1X industry-compliant 256AES MACsec CLI NETCONF SNMP v2/v3 SLAX/Python on-box scripting tools ZTD YANG |
| Safety Approvals | CAN/CSA-C22.2 No. 60950-1 UL 60950-1 EN 60950-1 IEC 60950-1CB Scheme EN 60825-1 |
| EMC | AS/NZS CISPR22 Class A EN55022 Class A VCCI Class A FCC Part 15 Class A IECS-003 Issue 4 BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions KN 22, Class EN-61000-4-6 Low Frequency Common Immunity EN-61000-4-11 Voltage Dips and Sags CISPR 24/EN55024 Information Technology Equipment Immunity Characteristics |
| ETSI (European Telecommunications Standardization Institute) | EN 300 386 V1.6.1 Telecommunication Network Equipment, Electromagnetic Compatibility Requirements ETSI EN 300 019-2-1 (2000)Storage, Class T1.2 ETSI EN 300 019-2-2 (1999)Transportation, Class T2.3 ETSI EN 300 019-2-3 (2003)Stationary Use at Weather Protected Locations, Class T3.2 ETSI 300753 (1997)Acoustic Noise Emitted by Telecommunications Equipment |
| Other EMC Requirements | Deutsche Telekom 1TR9 (2008) EMC Specification British Telecom EMC Immunity Requirements (2007) |
| NEBS | SR-3580 NEBS Criteria Levels (Level 3 Compliance) GR-63-CORE: NEBS, Physical Protection Telecommunications Equipment (Issue 6 compliant) |
| Telecomm Compliance | Device management: NETCONF, CLI, SNMP v1/v2/v3 End-to-end provisioning of E-Line, emulated LAN (ELAN), Layer 3 VPN (L3VPN), OAM, class of service (CoS) Device and service-level fault management Device and service-level performance management |
