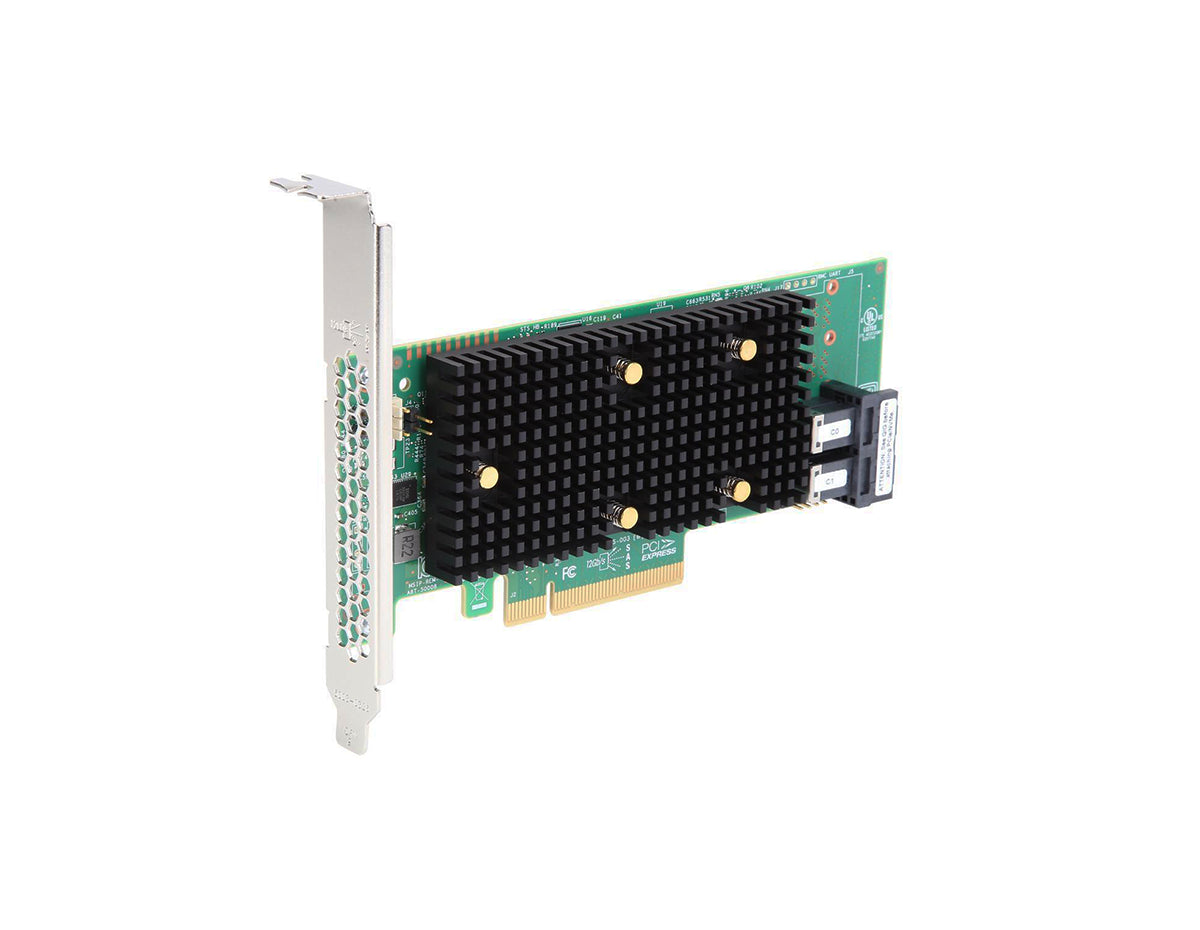

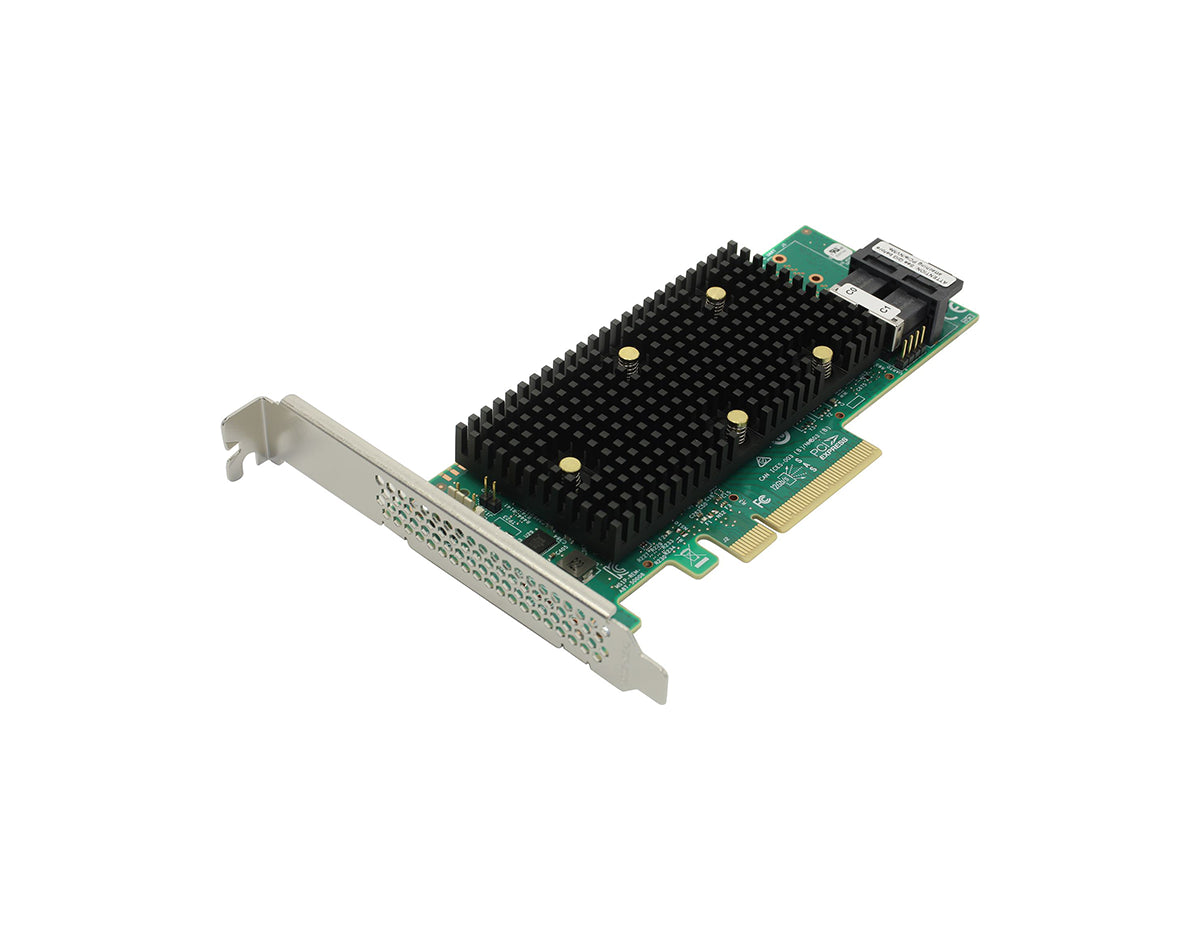

Broadcom MegaRAID 9440-8i 8-Port Tri-Mode RAID Controller

Tri-Mode RAID Connectivity for Internal Server Storage

The Broadcom MegaRAID 9440-8i is an eight-port internal Tri-Mode RAID controller designed to support SAS, SATA, and PCIe NVMe storage through a single adapter. Powered by the SAS3408 controller, the 9440-8i uses a PCIe 3.1 x8 host interface and provides two internal SFF-8643 connectors for direct-attached server storage configurations.

Broadcom Tri-Mode SerDes technology enables operation with NVMe, SAS, and SATA storage devices. The controller supports SAS transfer rates of 12, 6, and 3 Gb/s and SATA transfer rates of 6 and 3 Gb/s. For NVMe direct attachment, the 9440-8i supports two x4 or two x2 devices.

Key Benefits and Features

• Eight internal ports for direct-attached server storage
• Tri-Mode support for SAS, SATA, and PCIe NVMe storage
• PCIe 3.1 x8 host interface with transfer rates up to 8.0 GT/s per lane
• Two internal SFF-8643 connectors
• Supports up to 63 SAS/SATA devices and 2 NVMe devices per controller

Ideal Use Cases

• Internal server storage configurations
• Mixed SAS, SATA, and NVMe storage deployments
• Direct-attached storage applications
• Data center and cloud infrastructure requiring Tri-Mode connectivity

Deploy Tri-Mode RAID Storage with the Broadcom 9440-8i

Choose the Broadcom MegaRAID 9440-8i for internal storage systems requiring eight ports, PCIe 3.1 x8 connectivity, and support for SAS, SATA, and NVMe storage through a single Tri-Mode RAID controller.
