Part No: | 901-R710-US00 |
Detail: | Wireless access point - Wi-Fi - 2.4 GHz, 5 GHz |
List Price: |
|
Price: |
$479.00
|
You Save: | $816.00 (63% OFF) |
Condition: | Brand New Sealed |
Availability: | Ask For ETA |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
Quantity: |
|
OPTIONAL ACCESSORIES | |
902-0162-XXYY | • PoE injector (24W) (Sold in quantities of 1, 10 or 100) |
902-1169-XX00 | • Power Supply (12V, 2.0A, 24W) |
902-0120-0000 | • Spare, Accessory Mounting Bracket |
902-0123-0000 | • Flush-frame acoustic ceiling bracket for R710. Flushframe only – not applicable for standard (recessed frame) acoustic ceiling |
902-0195-0000 | • Spare, T-bar ceiling mount kit for mounting to flush frame ceiling |

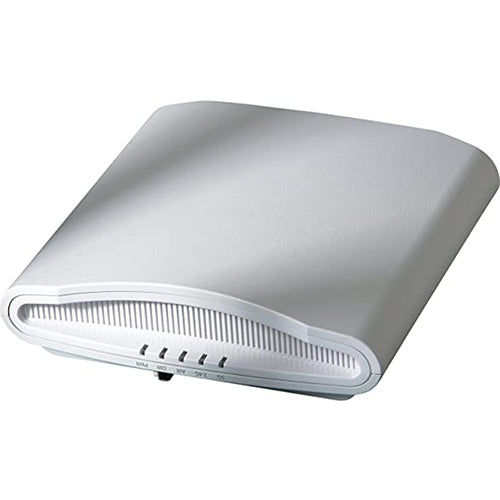

Specifications | Ruckus ZoneFlex R710 Access Point (901-R710-US00) |
WI-FI | |
Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac Wave 2 |
Supported Rates | · 802.11ac: 6.5 to 1,733Mbps (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80) · 802.11n: 6.5 Mbps to 600Mbps (MCS0 to MCS31) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps |
Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
MIMO | · 4x4 SU-MIMO · 4x4 MU-MIMO |
Spatial Streams | · 4 streams for SU-MIMO · 3 streams for MU-MIMO |
Channelization | · 20, 40, 80MHz |
Security | · WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, WPA3, AES, 802.11i, Dynamic PSK · WIPS/WIDS |
Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
RF | |
Antenna Type | · BeamFlex+ adaptive antennas with polarization diversity · Adaptive antenna that provides 4,000+ unique antenna patterns |
Antenna Gain (max) | · Up to 3dBi |
Peak Transmit Power (aggregate across MIMO chains) |
· 2.4GHz: 28dBm · 5GHz: 28dBm |
Minimum Receive Sensitivity (Rx Sensitivity varies by band, channel width and MCS rate) | -104dBm |
Frequency Bands | · ISM (2.4-2.484GHz) · U-NII-1 (5.15-5.25GHz) · U-NII-2A (5.25-5.35GHz) · U-NII-2C (5.47-5.725GHz) · U-NII-3 (5.725-5.85GHz) |
2.4GHZ RECEIVE SENSITIVITY | |
HT20 | MCS0 : -97 MCS7 : -79 |
HT40 | MCS0 : -94 MCS7 : -77 |
5GHZ RECEIVE SENSITIVITY | |
VHT20 | MCS0 : -98 MCS7 : -80 |
VHT40 | MCS0 : -94 MCS7 : -77 |
VHT80 | MCS0 : -91 MCS7 : -74 |
2.4GHZ TX POWER TARGET | |
MCS0 HT20 | 22 |
MCS7 HT20 | 19 |
5GHZ TX POWER TARGET | |
VHT20 | 22 |
MCS0, VHT40 | 22 |
MCS7, VHT40, VHT80 | 19 |
MCS9, VHT40, VHT80 | 16 |
PERFORMANCE AND CAPACITY | |
Peak PHY Rates | • 2.4GHz: 600Mbps • 5GHz: 1733Mbps |
Client Capacity | • Up to 512 clients per AP |
SSID | • Up to 31 per AP |
RUCKUS RADIO MANAGEMENT | |
Antenna Optimization | • BeamFlex+ • Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
Wi-Fi Channel Management | • ChannelFly |
Client Density Management | • Band Balancing • Client Load Balancing • Airtime Fairness • Airtime-based WLAN Prioritization |
SmartCast Quality of Service | • QoS-based scheduling • Directed Multicast • L2/L3/L4 ACLs |
Mobility | • SmartRoam |
Diagnostic Tools | • Spectrum Analysis • SpeedFlex |
NETWORKING | |
Controller Platform Support | • SmartZone • ZoneDirector • Unleashed* • Standalone * Refer to Unleashed datasheets for SKU ordering information. |
Mesh | • SmartMesh™ wireless meshing technology. Self-healing Mesh |
IP | • IPv4, IPv6, dual-stack |
VLAN | • 802.1Q (1 per BSSID or dynamic per user based on RADIUS) • Port-based |
802.1x | • Authenticator & Supplicant |
Tunnel | • L2TP |
Policy Management Tools | • Application Recognition and Control • Access Control Lists • Device Fingerprinting |
PHYSICAL INTERFACES | |
Ethernet | • Two 1Gbps Ethernet ports • Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable • Link Aggregation (LACP) |
USB | • 1 USB 2.0 port, Type A |
PHYSICAL CHARACTERISTICS | |
Physical Size | • 22 cm (L), 22 cm (W), 6 cm (H) • 8.7in (L) x 8.7in (W) x 2.4in (H) |
Weight | • 1.12 kg (2.5 lb) |
Mounting | • Wall, Drop ceiling, Desk • Secure bracket (sold separately) |
Physical Security | • Hidden latching mechanism • Kensington Lock Hole • T-bar Torx |
Operating Temperature | • -4ºC (-14ºF) to 60ºC (140ºF) |
Operating Humidity | • Up to 95%, non-condensing |
POWER (Max power varies by country setting, band, and MCS rate) | |
802.3af | • 2.4GHz: 2x4, 19dBm per chain • 5GHz: 4x4, 20dBm per chain • Functional Limitation: 2nd Ethernet disabled USB disabled |
802.3at, PoE+/injector, VDC | • 2.4GHz: 4x4, 22dBm per chain • 5GHz: 4x4, 20dBm per chain • Functional Limitation: None |
Max Power Consumption | • Peak: 25W, including USB loading and 100m cable |
CERTIFICATIONS AND COMPLIANCE | |
Wi-Fi Alliance* | • Wi-Fi CERTIFIED™ a, b, g, n, ac • Passpoint®, Vantage |
Standards Compliance** | • EN 60950-1 Safety • EN 60601-1-2 Medical • EN 61000-4-2/3/5 Immunity • EN 50121-1 Railway EMC • EN 50121-4 Railway Immunity • IEC 61373 Railway Shock & Vibration • UL 2043 Plenum • EN 62311 Human Safety/RF Exposure • WEEE & RoHS • ISTA 2A Transportation |
*For a complete list of WFA certifications, please see the Wi-Fi Alliance website **For current certification status, please see price list |
|
SOFTWARE AND SERVICES | |
Location Based Services | • SPoT |
Network Analytics | • SmartCell Insight (SCI) |
Security and Policy | • Cloudpath |
Properties | Ruckus ZoneFlex R710 Access Point (901-R710-US00) |
Description | Indoor 802.11ac Wave 2 4x4:4 Wi-Fi Access Point |
Product Family | Ruckus ZoneFlex R700 |
Product Type | Access Point |
