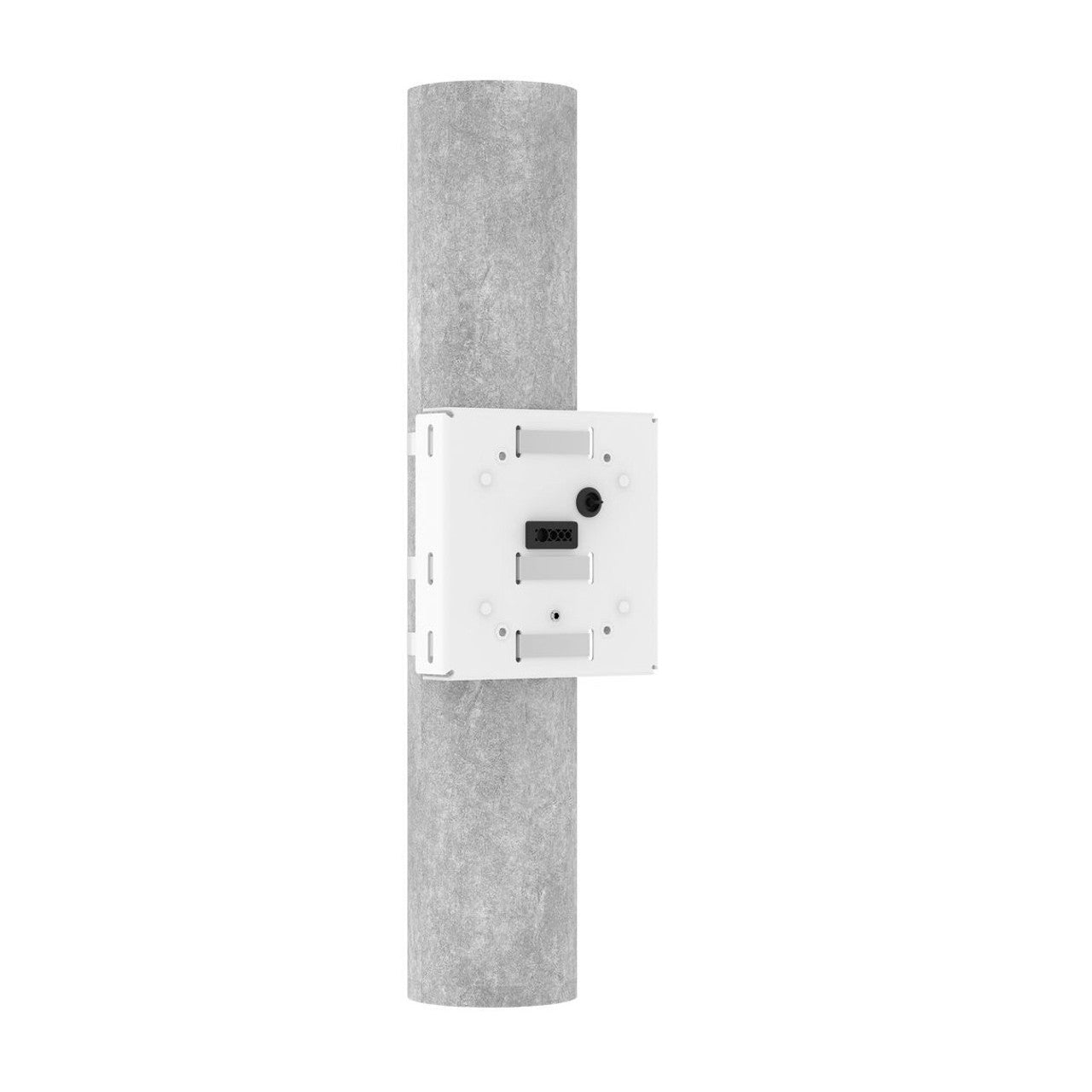

AXIS T94N01G Pole Mount (5901-341)

The AXIS T94N01G Pole Mount is a high-quality, impact-resistant mounting solution built for Axis positioning cameras, positioning units, and AXIS T98A cabinet series. Designed for extreme environments, this mount is made from marine-grade SUS 316L stainless steel, making it highly resistant to corrosion in marine, underground, and other demanding outdoor conditions. It features an IK10 rating for impact protection, ensuring robust defense against vandalism. The closed-back design and cable gasket provide additional protection against insect infestation, while its adjustable design accommodates pole diameters from 100 to 410 mm (4 to 16 inches).

Key Features:

• Marine-Grade Stainless Steel: SUS 316L construction ensures durability in harsh conditions.
• Impact-Resistant: IK10-rated design for protection against vandalism.
• Weatherproof & Corrosion-Resistant: Suitable for outdoor and marine environments.
• Adjustable Fit: Supports pole diameters from 100-410 mm (4-16 inches).
• Insect-Proof Cable Gasket: Sealed design prevents insect infestation and ensures secure cabling.
• Supports Axis Cameras & Cabinets: Compatible with Axis positioning cameras, AXIS T94J01A Wall Mount, AXIS T91D62 Telescopic Parapet Mount, and AXIS T98A-VE Cabinet Series.

Technical Specifications:

• Material: Powder-coated stainless steel SUS 316L
• Color: White (NCS S 1002-B)
• Mounting Type: Pole mount
• Pole Diameter Compatibility: 100-410 mm (4-16 inches)
• Maximum Load: 25 kg (55.1 lb)
• Impact Resistance: IK10
• Weatherproof Rating: NEMA 250 Type 4X
• Operating Temperature: -45°C to 70°C (-49°F to 158°F)
• Cable Routing: Back cable hole
• Dimensions: 49 x 231 x 226 mm (1.9 x 9.1 x 8.9 in)
• Weight: 1.7 kg (3.7 lb)
• Included Accessories: Installation guide, three stainless steel straps (1450 mm), insect-proof cable gasket for four cables, gasket C M20, and set screw.
• Optional Accessories: Stainless steel straps (700 mm or 570 mm) for additional mounting options.
