Description

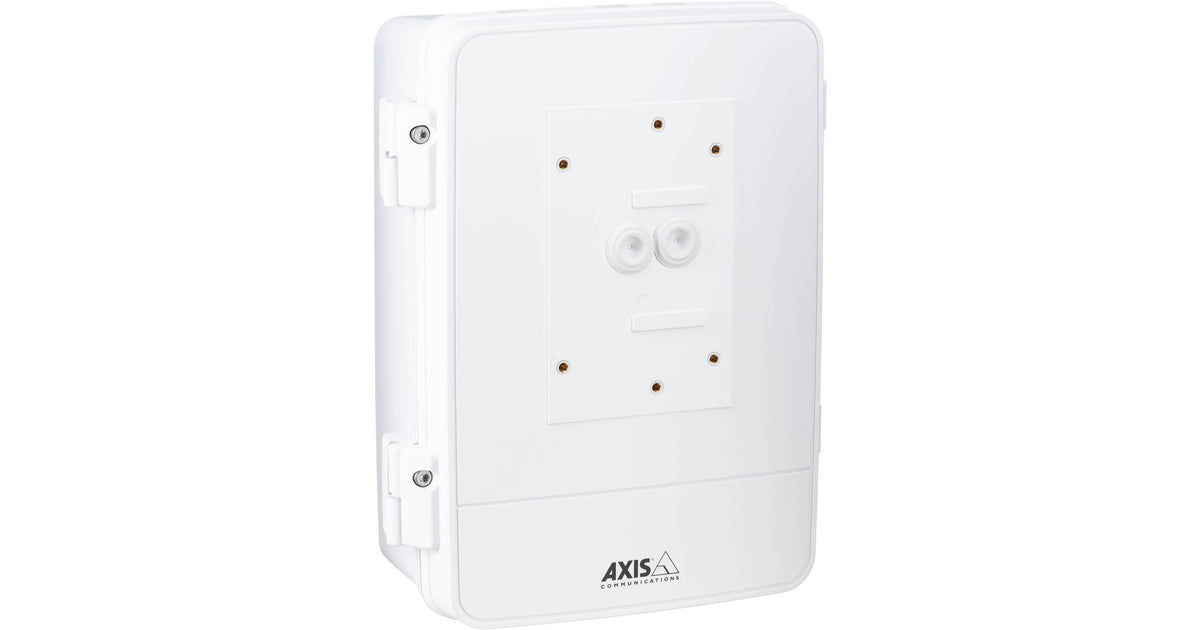

AXIS T98A18-VE Surveillance Cabinet (5900-181)

The AXIS T98A18-VE Surveillance Cabinet is a highly durable, outdoor-ready enclosure designed to protect surveillance infrastructure, including power supplies, media converters, and other accessories. Built to withstand extreme weather conditions, it features an IP66 and NEMA 4X-rated polycarbonate casing, offering dust, water, and impact resistance. Its IK10-rated vandal-proof design makes it ideal for city surveillance, critical infrastructure, and public security applications. The cabinet comes with a pre-mounted DIN rail and cable management accessories, simplifying installation and ensuring reliable operation in demanding environments.

Key Features:

• Outdoor-Ready & Weatherproof: IP66 and NEMA 4X-rated for dust, water, and extreme weather protection.
• Vandal-Resistant Construction: IK10 impact resistance to withstand tampering and vandalism.
• Pre-Configured for Easy Installation: Includes a mounting plate, cable gaskets, and a pre-mounted DIN rail.
• Compatible with Axis Cameras: Designed for use with Axis PTZ and fixed dome cameras.
• Secure Cable Management: Features pre-mounted cable gaskets and integrated protection.
• Wide Operating Temperature Range: Reliable performance from -40°C to 75°C (-40°F to 167°F).

Technical Specifications:

• Material: Polycarbonate cabinet with stainless steel mounting plate
• Color: White (NCS S 1002-B) and stainless steel
• Ingress Protection: IP66 (weatherproof), NEMA 4X
• Impact Resistance: IK10 (vandal-resistant)
• Operating Temperature: -40°C to 75°C (-40°F to 167°F)
• Humidity: 10–100% RH (condensing)
• Weight: 3.5 kg (7.7 lb)
• Dimensions: 361 x 249 x 131 mm (14.2 x 9.8 x 5.2 in)
• Included Accessories: Installation guide, pre-mounted cable gaskets, pre-mounted DIN rail, cable clamps, cable straps, power cover, device mounting bracket, additional mounting screws
• Optional Accessories: AXIS Sunshield, AXIS Door Switch A, AXIS Cabinet Lock A, AXIS Electrical Safety Kits
