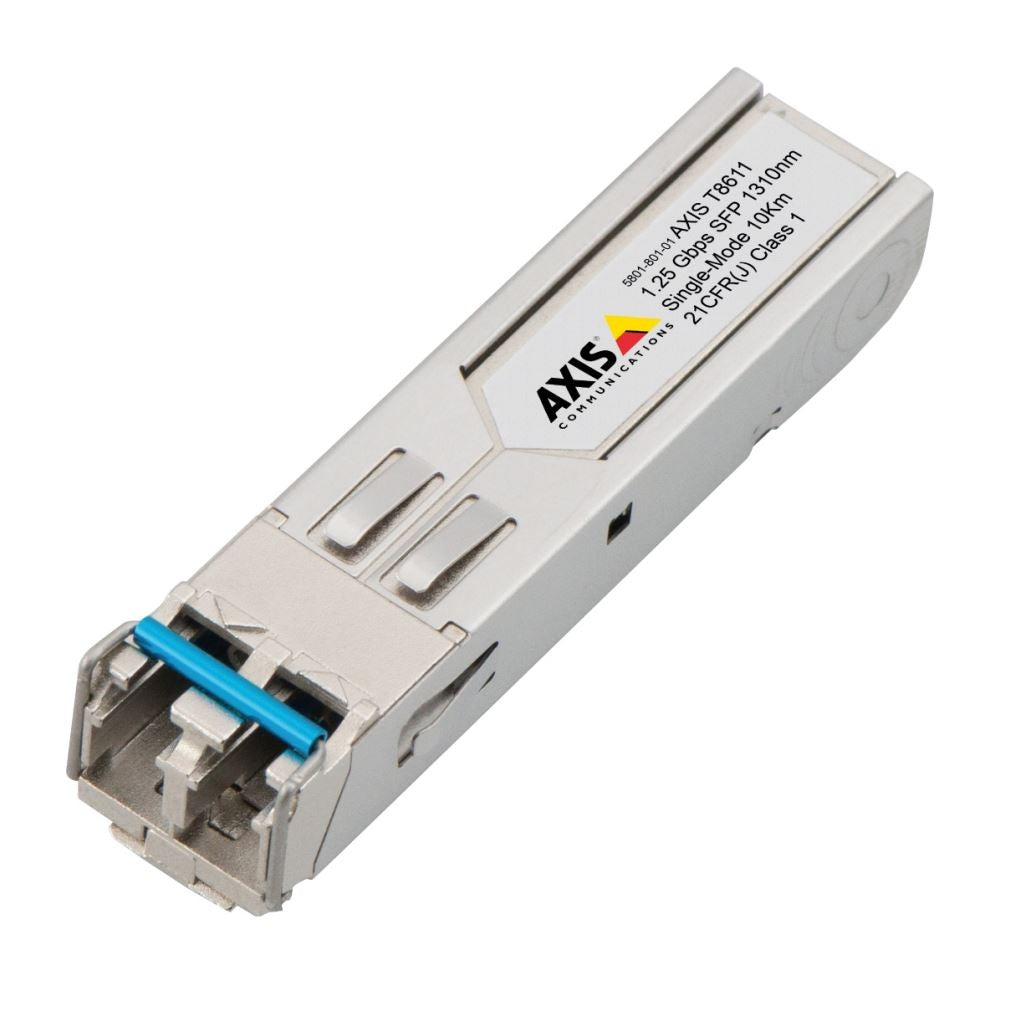

AXIS T8611 10KM Single-mode LC.LX SFP Module (5801-801)

The AXIS T8611 SFP Module LC.LX is a small form-factor pluggable (SFP) transceiver designed to enable fiber optic network connections for Axis devices, including switches and routers. Featuring a 1310 nm long-wavelength FP laser diode, this module allows gigabit Ethernet transmission over a single-mode 9/125 µm optical fiber for distances up to 10 km (6.21 miles). It complies with the SFP Multi-Source Agreement (MSA) and supports hot-plugging, ensuring seamless integration without disrupting network operations. Built for industrial environments, it features an extended operating temperature range and includes link-loss support for network redundancy.

Key Features:

• 10 km Transmission Range: Supports long-distance gigabit Ethernet connections over single-mode fiber.
• Single-Mode Fiber Optic Connectivity: Uses 1310 nm wavelength for stable signal transmission.
• Industrial-Grade Design: Wide operating temperature range from -40°C to 85°C (-40°F to 185°F).
• Hot-Pluggable Module: Can be inserted or removed without network downtime.
• Link-Loss Feature: Enables network redundancy and improved failover handling.
• MSA Compliance: Fully compatible with all Axis products that support SFP modules.

Technical Specifications:

• Transceiver Type: Single-mode fiber
• Wavelength: 1310 nm
• Maximum Transfer Distance: 10 km (6.21 miles)
• Switching Capacity: 1.25 Gbps
• Supported Protocols: Gigabit Ethernet
• Connector Type: LC duplex receptacle
• Hot-Pluggability: Yes
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10–90% RH (non-condensing)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Storage Humidity: 5–95% RH (non-condensing)
• Certifications: EN 55022 Class B, FCC Part 15 Subpart B Class B, IEC/EN/UL 60950-1, RoHS, REACH, WEEE
• Compatibility: Works with all Axis devices that support SFP slots
