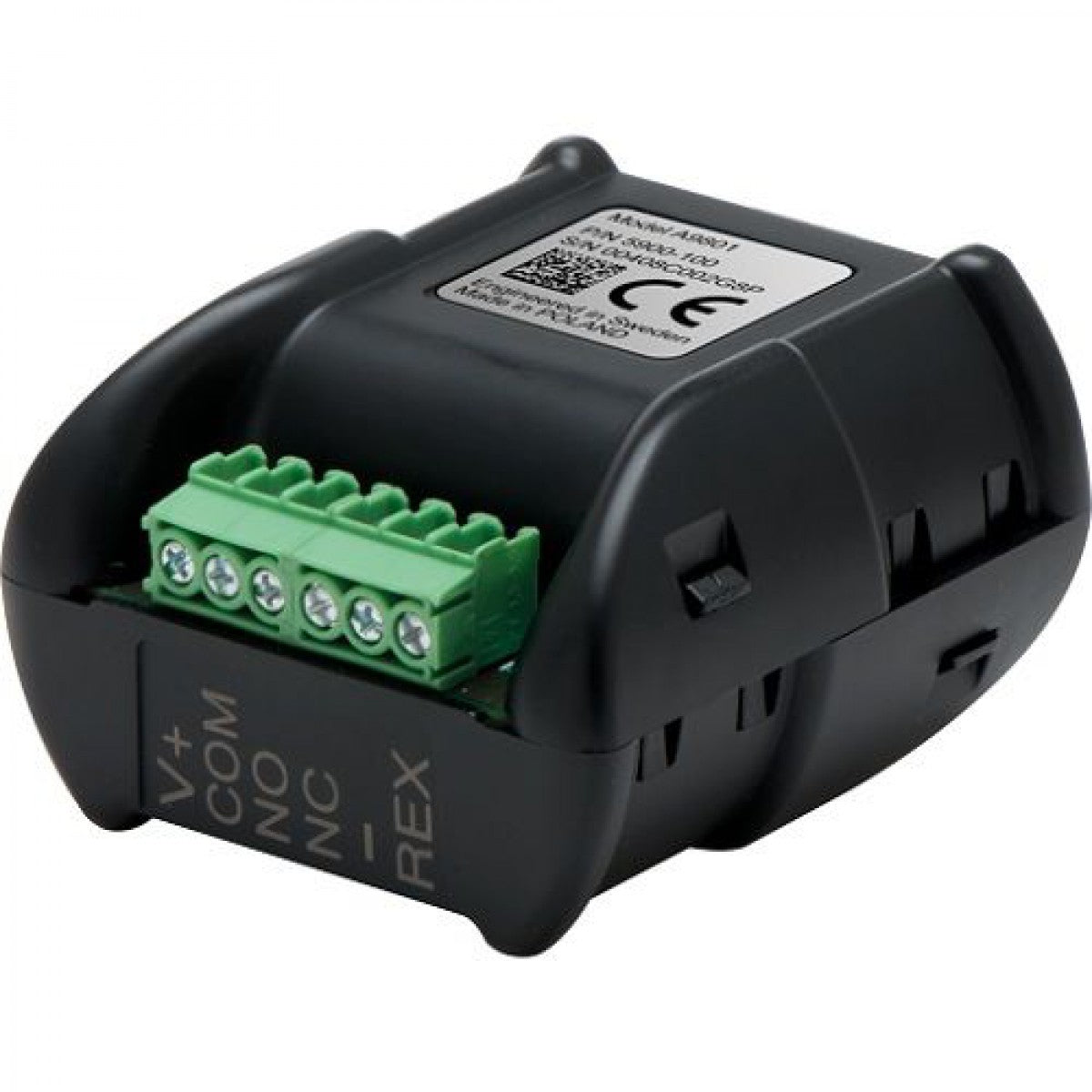

AXIS A9801 Security Relay (5801-141)

The AXIS A9801 Security Relay is designed to improve security for doors controlled by Axis network video door stations. This compact relay, which fits in most standard installation boxes, is installed on the secure side of the door. In case of tampering or vandalism attempts, the relay cuts the connection to the door strike, ensuring that the door remains securely locked. The relay also acts as a power transformer, doubling the 12 V output from a door station to enable control of 24 V locks without the need for additional wiring or power supplies. The normal function can be restored via the relay's reset button.

Key Features:

• Enhanced Security: Automatically cuts connection to the door strike in case of tampering, ensuring the door remains locked.
• Supports Multiple Door Strikes: Compatible with both 12 V and 24 V door strikes for added flexibility.
• Compact Design: Fits easily into standard installation boxes (US Single Gang, EU 60mm).
• Power Transformer: Doubles the 12 V output, allowing control of 24 V locks without extra wiring or power supply.
• Easy Installation: Pre-configured for simple installation with Axis door stations.

Technical Specifications:

• Environment: Indoor
• Input: On +/-: min 11 V, max 13 V, max 750 mA; On relay: max 30 V DC, max 1.2 A
• Output: 12 V (730 mA), 24 V (300 mA)
• Mounting: Shelf mount; fits in standard installation boxes (US Single Gang, EU 60mm)
• Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F), 10-100% humidity (condensing)
• Certifications: EN 55022 Class A, EN 55024, EN 61000-6-1, FCC Part 15 Class A, UL 60950-1, UL294
• Dimensions: 48 x 45 x 30 mm (1.9 x 1.8 x 1.2 in)
• Weight: 100 g (0.2 lbs)
