Keep Every Angle Covered with Precision PTZ Control

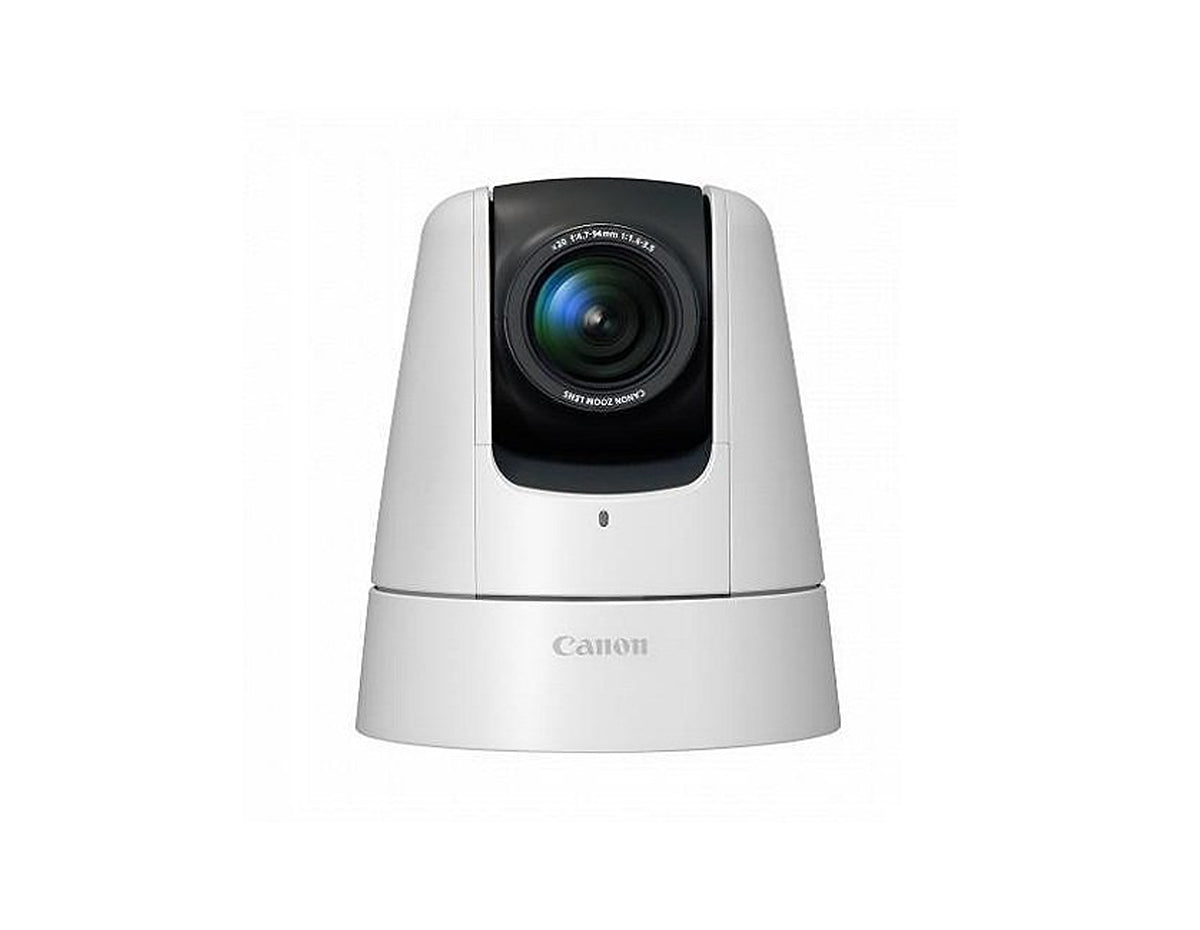

The Canon VB-M46 is a professional 1.3MP PTZ IP security camera engineered for high-visibility indoor surveillance. Equipped with a powerful 20x optical zoom and advanced Wide Dynamic Range (WDR), it captures clear, detailed footage even in challenging lighting conditions. With fast, high-precision pan, tilt, and zoom performance, the VB-M46 ensures critical areas remain in focus at all times.
Key Benefits & Features
- 20x Optical Zoom with Autofocus: The 4.7–94mm lens with F1.6–F3.5 aperture delivers detailed close-ups and a wide 62.4° horizontal viewing angle, ensuring flexible scene coverage for large indoor spaces.
- Exceptional Low-Light Performance: Advanced sensors capture color images at 0.02 lux and monochrome at 0.003 lux, maintaining high-resolution clarity in dim environments such as warehouses or retail floors.
- Advanced PTZ Mechanics: A 340° pan range and 100° tilt range with speeds up to 150°/sec allow for rapid, precise repositioning across expansive monitoring areas.
- H.265 / H.264 Multi-Stream Video: Delivering 1.3M resolution at 60 fps with simultaneous multi-stream output, this camera optimizes bandwidth without compromising video quality.
- Enterprise-Grade Security & Compliance: Fully ONVIF Profile S, G, and T compliant with SSL/TLS encryption and IEEE 802.1X authentication for secure network integration.
Ideal Use Cases
- Retail stores requiring flexible PTZ monitoring and loss prevention
- Corporate offices, lobbies, and reception areas
- Warehouses and logistics facilities for asset tracking
- Educational campuses and public building hallways
- Indoor critical infrastructure monitoring
Technical Specifications
- Image Sensor: 1/2.8 type CMOS, approx. 1.3 megapixels
- Lens: 20x optical zoom, 16x digital zoom, fast autofocus
- Focal Length: 4.7–94 mm (35mm equivalent: 30.5–610 mm)
- Minimum Illumination: 0.02 lux (color), 0.003 lux (mono)
- Pan/Tilt Range: 340° pan (±170°), 100° tilt (-90° to +10°)
- Video Compression: JPEG, H.264, H.265
- Max Frame Rate: Up to 60 fps (60 Hz) / 50 fps (50 Hz)
- Network Interface: RJ45, 100Base-TX (Auto)
- Power Supply: PoE IEEE802.3at Type 1 or 12V DC
- Dimensions: Φ132 x 155 mm; Weight approx. 1100 g
Upgrade Your Surveillance with Intelligent PTZ Control
Enhance indoor security with precise zoom, intelligent detection functions, and reliable Canon imaging technology. Order your Canon VB-M46 today.
