AXIS T91E61 WALL MOUNT (5506-481)
| Part No: | 5506-481 |
| Detail: | Compact form factor for discreet installations in indoor and outdoor environments, Built with durable materials to withstand harsh weather conditions and tampering, Max Load: 10 kg (22 lb) |
| Price: |
$49.00
|
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

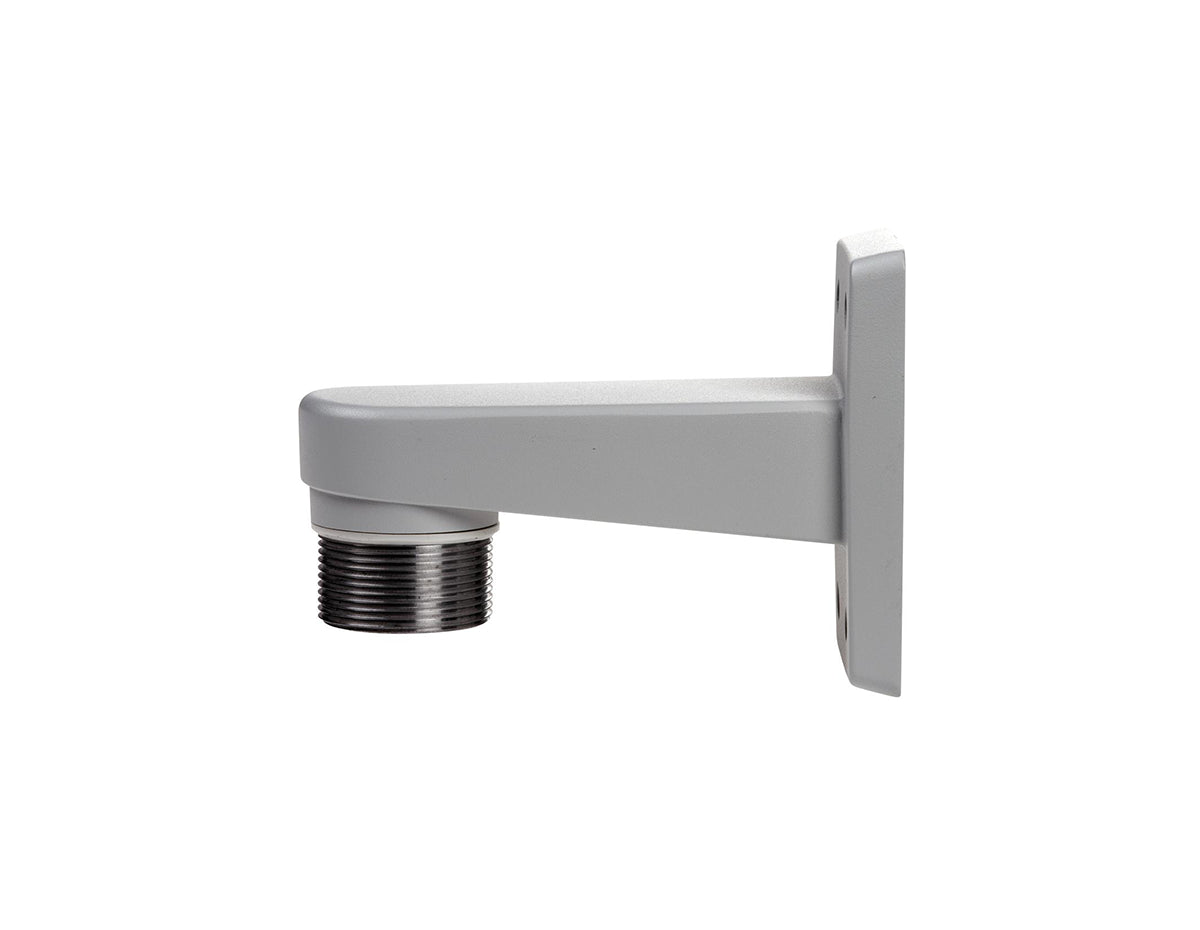

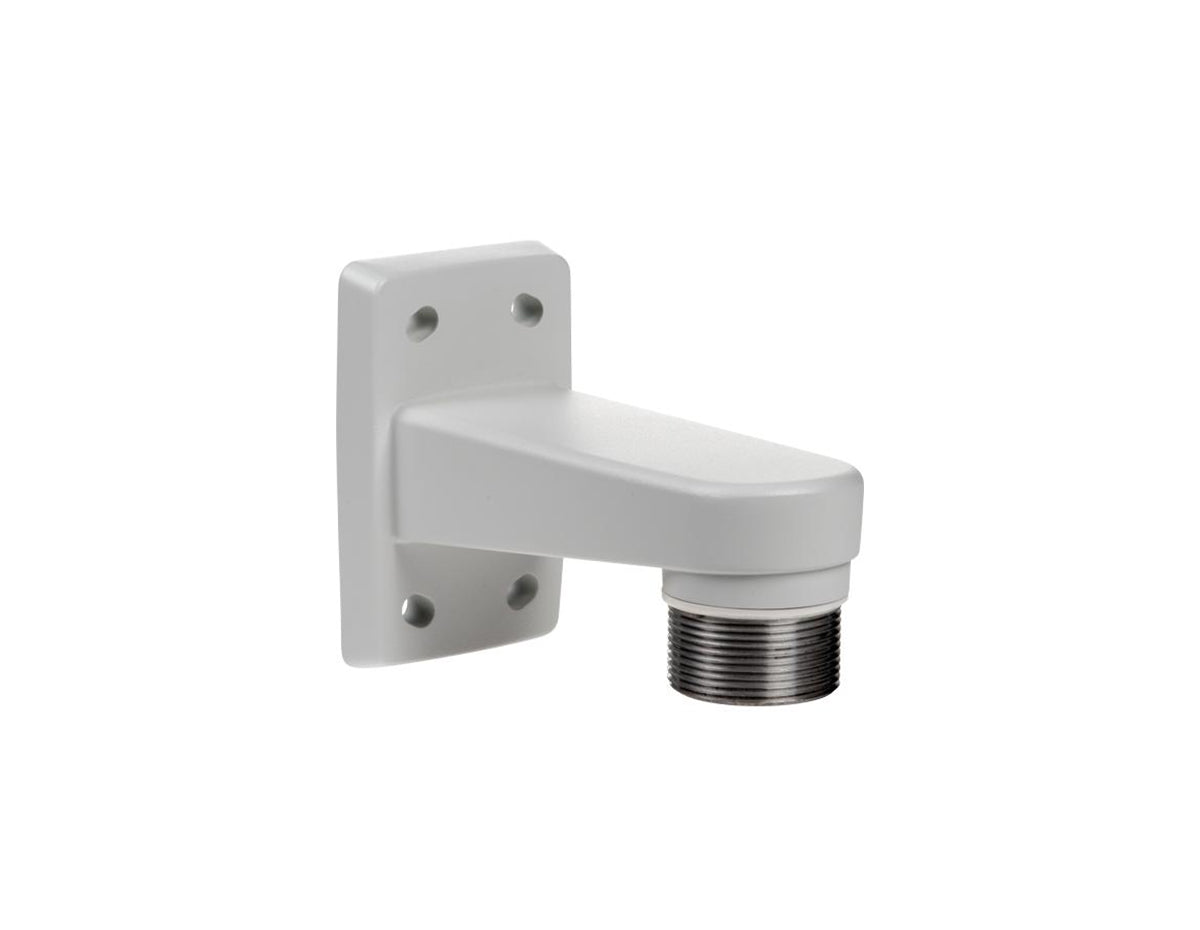

AXIS T91E61 Wall Mount
The AXIS T91E61 Wall Mount is specifically designed for Axis fixed dome network cameras, providing a neat and discreet installation solution for both indoor and outdoor environments. Made from impact-resistant and corrosion-resistant materials, this wall mount is suitable for tough environments. It is compatible with all Axis fixed dome pendant kits with a 1.5” NPS thread and can be mounted on AXIS T94R01P Conduit Back Box to enable cable protection using conduits.
Key Features:
- Small and Robust Design: Compact form factor for discreet installations in indoor and outdoor environments.
- Impact and Corrosion Resistant: Built with durable materials to withstand harsh weather conditions and tampering.
- Flexible Installation: Compatible with Axis fixed dome pendant kits and can be installed on poles, corners, and AXIS T98A-VE Cabinet Series with the appropriate accessories.
- Easy Cable Routing: Supports internal cable routing through the back or side cut-outs for clean installations.
Technical Specifications:
- Material: Powder-coated, chromated aluminum (white NCS S 1002-B)
- Max Load: 10 kg (22 lb)
- Cable Routing: Internal (Back: Cable hole, Side: Cut-outs)
- Operating Environment: Indoor/Outdoor
- Compliance: RoHS, REACH, CE, IK10, NEMA 250 Type 4X
- Dimensions: 80 x 161 x 120 mm (3.1 x 6.3 x 4.7 in)
- Weight: 525 g (1.15 lb)
For more information about the AXIS T91E61 Wall Mount, visit the Axis product page.
Specifications
| Compatibility | Supports Axis fixed dome pendant kits with 1.5” NPS thread; compatible with AXIS T94R01P Conduit Back Box for cable protection |
| Temperature Range | Tested for stable operation in environments ranging from -50 °C to 60 °C (-58 °F to 140 °F) |
| Ingress Protection | NEMA 250 Type 4X rated, ensuring resistance to dust and water in outdoor settings |
| Corrosion Testing | Tested in salt spray conditions for 240 hours to verify outdoor corrosion resistance |
| Vibration Testing | Verified for stability in installations exposed to vibrations up to 5 Hz |
| Humidity Resistance | Operates effectively in 10% to 100% relative humidity (condensing environments) |
| Material Composition | Powder-coated, chromated aluminum for long-term corrosion protection |
| Cable Routing Options | Supports back and side routing for flexible cable management |
| Certifications | CE certified, compliant with RoHS and REACH standards |
| EMC Compliance | Meets EN 55032, EN 55024, and FCC Part 15 standards for electromagnetic compatibility |
| Load Bearing Capacity | Tested to safely support loads up to 10 kg (22 lb) in varied environmental conditions |
| Mounting Orientation | Supports various mounting configurations, including wall, pole, and corner (with additional accessories) |
| Reliability | Passed environmental testing in high and low temperature cycles over 72 hours |
| Maintenance Requirements | Minimal maintenance; designed for durability in extreme weather and high-traffic areas |
| Noise Level | Silent operation, with passive cooling and no moving parts |
| Color Finish | White NCS S 1002-B, designed to match typical Axis camera finishes |
| Firmware Updates | Not applicable |
