AXIS T8415 Wireless Installation Tool (5506-231)

Name: AXIS T8415 Wireless Installation Tool (5506-231)
Brand: Axis
SKU: 5506-231-NEW
Price: 689.0 USD
Availability: InStock

Part Number: 5506-231

Technical Details

Connects to any smartphone via Wi-Fi for convenient camera adjustments, Capable of powering an Axis PoE camera up to 30 W, Support for 2.4 GHz and 5 GHz frequencies.

$689.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

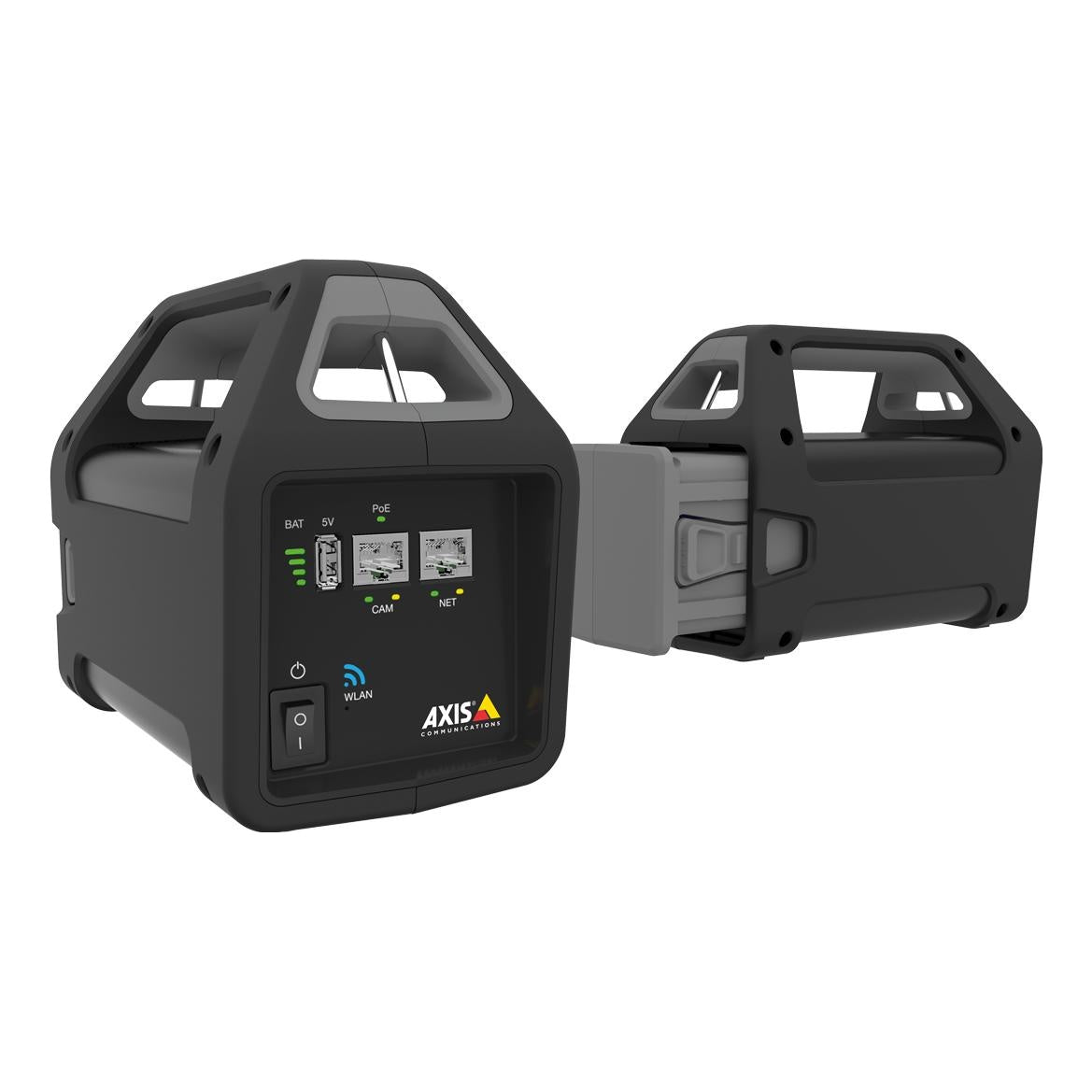

Axis T8415 Wireless Installation Tool

The Axis T8415 Wireless Installation Tool is a versatile, battery-powered handheld device designed to simplify the installation and maintenance of Axis network cameras. It connects directly to the camera, displaying live video, and allows for easy adjustments such as focus, IP address configuration, and image rotation via a smartphone or tablet. With its powerful battery, the T8415 can power an Axis PoE camera up to 30 W for hours, ensuring that installation can be completed without needing additional power sources. The tool’s built-in Wi-Fi feature enables quick and secure connections to a mobile device, providing a seamless installation experience.

Key Features:

Wireless Connectivity: Connects to any smartphone via Wi-Fi for convenient camera adjustments.
Powerful Battery: Capable of powering an Axis PoE camera up to 30 W for extended periods.
Multiple Camera Discovery: Supports the discovery of multiple cameras, including ONVIF-compatible devices.
Native App Support: Dedicated app available for iOS and Android devices, offering easy camera installation and setup.
Ease of Use: Simple plug-and-play operation with support for basic camera functions like focus, IP configuration, and image rotation.

Technical Overview:

Recommended for: Installation and maintenance of Axis network cameras in various environments.
Network Connector: 10BASE-T/100BASE-TX.
Wireless Interface: IEEE 802.11b/g/n/ac with support for 2.4 GHz and 5 GHz frequencies.
Power: PoE+ (IEEE 802.3at Type 2 Class 4), USB (5 V, 2.1 A), Battery (12 V, 3.4 Ah, Lead-acid, VRLA).
Operating Conditions: 0 °C to 50 °C (32 °F to 122 °F), humidity 20–80% RH (non-condensing).
Dimensions: 150 x 100 x 205 mm (5 15/16 x 3 15/16 x 8 1/16 in).
Weight: Full unit: 2.2 kg (4.8 lb); Battery module: 1.6 kg (3.5 lb).
Included Accessories: Carrying strap, AXIS Installation Tool Battery 12 V 3.4 Ah, AXIS Installation Charger Adaptor 12 V 1 A.

You can check the related tab for the Axis T8415 Wireless Installation Tool datasheet.

Properties

Product Name	Axis T8415 Wireless Installation Tool
Description	Handheld, battery-powered device designed for easy installation and maintenance of Axis network cameras.
Wireless Connectivity	Enables connection to a smartphone via Wi-Fi, allowing camera adjustments without additional cables.
Battery Power	Capable of powering Axis PoE cameras up to 30 W for hours, enabling extended installation sessions.
Multiple Camera Discovery	Supports discovery of multiple cameras, including ONVIF-compatible models.
Native App Support	Compatible with iOS and Android apps for streamlined installation and setup.
Ease of Use	Plug-and-play functionality with support for basic functions like focus adjustment, IP configuration, and image rotation.
Portable Design	Compact and easy-to-carry tool, ideal for technicians in the field.
Recommended Use	Best suited for installation and maintenance of Axis cameras across varied environments.
Network Compatibility	Supports 10BASE-T/100BASE-TX for reliable network connections.
Wireless Standards	IEEE 802.11b/g/n/ac compatible, operates on both 2.4 GHz and 5 GHz frequencies.
Power Supply	Can be powered by PoE+, USB, or internal battery for flexibility in power options.
Temperature Range	Designed to operate between 0 °C to 50 °C (32 °F to 122 °F).
Humidity Range	Functions in humidity levels of 20–80% RH (non-condensing), suitable for various climates.
Portability	Equipped with a carrying strap for ease of transport during installations.
Battery Type	12 V, 3.4 Ah Lead-acid VRLA battery module for long-lasting use.

Specifications

Network Connector	Supports 10BASE-T/100BASE-TX for direct network connections to Axis cameras.
Wireless Interface	IEEE 802.11b/g/n/ac, dual-band (2.4 GHz and 5 GHz) for versatile wireless connectivity.
Battery Capacity	12 V, 3.4 Ah Lead-acid, VRLA battery for extended operation time.
Power Options	Can be powered by PoE+ (IEEE 802.3at Type 2 Class 4), USB (5 V, 2.1 A), or internal battery.
Operating Temperature	0 °C to 50 °C (32 °F to 122 °F), suitable for a range of indoor environments.
Humidity Range	Operates within 20–80% RH (non-condensing), ideal for standard climate conditions.
Dimensions	150 x 100 x 205 mm (5 15/16 x 3 15/16 x 8 1/16 in), compact size for portability.
Weight	Full unit: 2.2 kg (4.8 lb); Battery module: 1.6 kg (3.5 lb) for easy handling.
Camera Power Capability	Can power a PoE camera up to 30 W, supporting high-powered camera models.
Wireless Frequencies	Compatible with both 2.4 GHz and 5 GHz for flexible connection options.
Device Support	Supports Axis network cameras and ONVIF-compatible cameras, broadening compatibility.
Power Supply Compatibility	Compatible with various power sources for adaptability in diverse installation environments.
Setup Assistance	Native app for iOS and Android, simplifying installation steps and camera adjustments.
Portability Features	Comes with a carrying strap for ease of transport during installation tasks.

Accessories

Included Accessories

Carrying strap, AXIS Installation Tool Battery 12 V 3.4 Ah, AXIS Installation Charger Adaptor 12 V 1 A.
