AXIS T98A18-VE 120V Media Converter Cabinet A (5505-381)

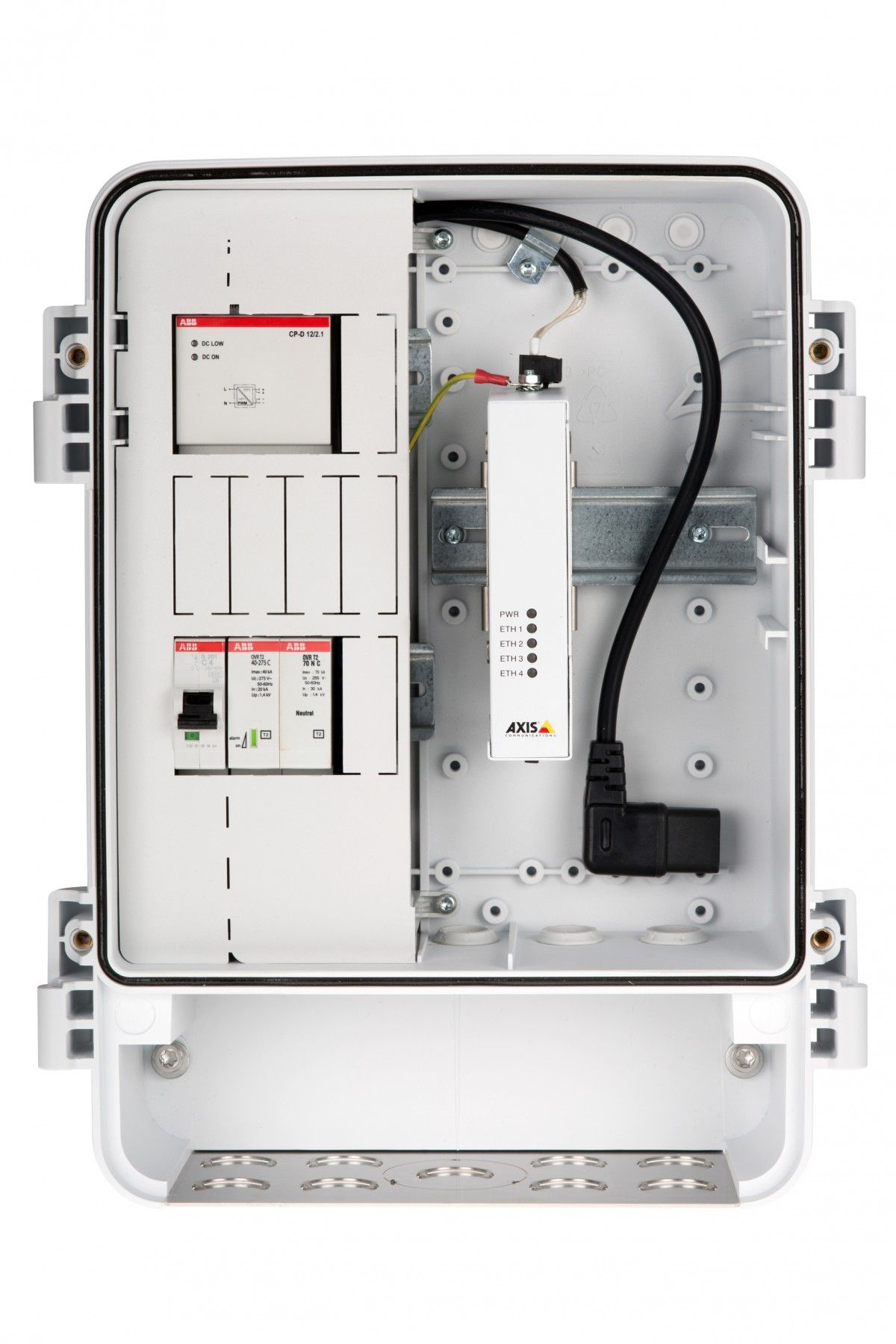

The AXIS T98A18-VE 120V Media Converter Cabinet A is a durable and pre-configured outdoor enclosure designed to safeguard Axis network cameras and accessories. Engineered for demanding environments, this cabinet provides reliable protection against vandalism, harsh weather, and temperature fluctuations. It comes pre-installed with a power supply, electrical safety kit, media converter, and DIN clip for midspan support. Its integrated mounting plate simplifies installation while ensuring secure cable management. Compatible with Axis PTZ dome cameras, this cabinet is ideal for city surveillance and critical infrastructure security applications.

Key Features:

• Pre-Configured System: Includes power supply, media converter, and electrical safety kit.
• Weatherproof & Vandal-Resistant: IP66 and IK10-rated for outdoor durability.
• Supports Fiber Installations: Equipped with SFP ports for fiber optic connectivity.
• Flexible Power Input: 120V AC input for reliable power distribution.
• Optimized for Axis PTZ Cameras: Designed for seamless integration with Axis surveillance solutions.
• Easy Installation: Includes pre-mounted cable gaskets, DIN rails, and surge protection.

Technical Specifications:

• Power Input: 120V AC (90-175V AC), Max. 4A
• Power Output: Input voltage, Max. 4A
• Network Connectivity: 2x RJ45 (10/100 Mbps), 2x SFP (100/1000 Mbps)
• Ingress Protection: IP66-rated (weatherproof)
• Impact Resistance: IK10-rated (vandal-resistant)
• Operating Temperature: -40°C to 65°C (-40°F to 149°F)
• Material: Polycarbonate cabinet with stainless steel mounting plate
• Weight: 4.4 kg (9.7 lb)
• Dimensions: 361 x 249 x 131 mm (14.2 x 9.8 x 5.2 in)
• Included Accessories: Pre-mounted cable gaskets, power supply, surge protection, DIN rail, installation guide
• Optional Accessories: AXIS Cabinet Lock A, AXIS Door Switch A, AXIS T98-VE Sunshield
