AXIS T91B63 Ceiling Mount (5504-641)

Name: AXIS T91B63 Ceiling Mount (5504-641)
Brand: Axis
SKU: 5504-641-NEW
Price: 145.95 USD
Availability: InStock

Part Number: 5504-641

Technical Details

Supports up to 15 kg (33 lb), Compatible with Axis pendant kits and conduit adapters, Suitable for various environments, providing reliable performance both indoors and outdoors.

$145.95

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

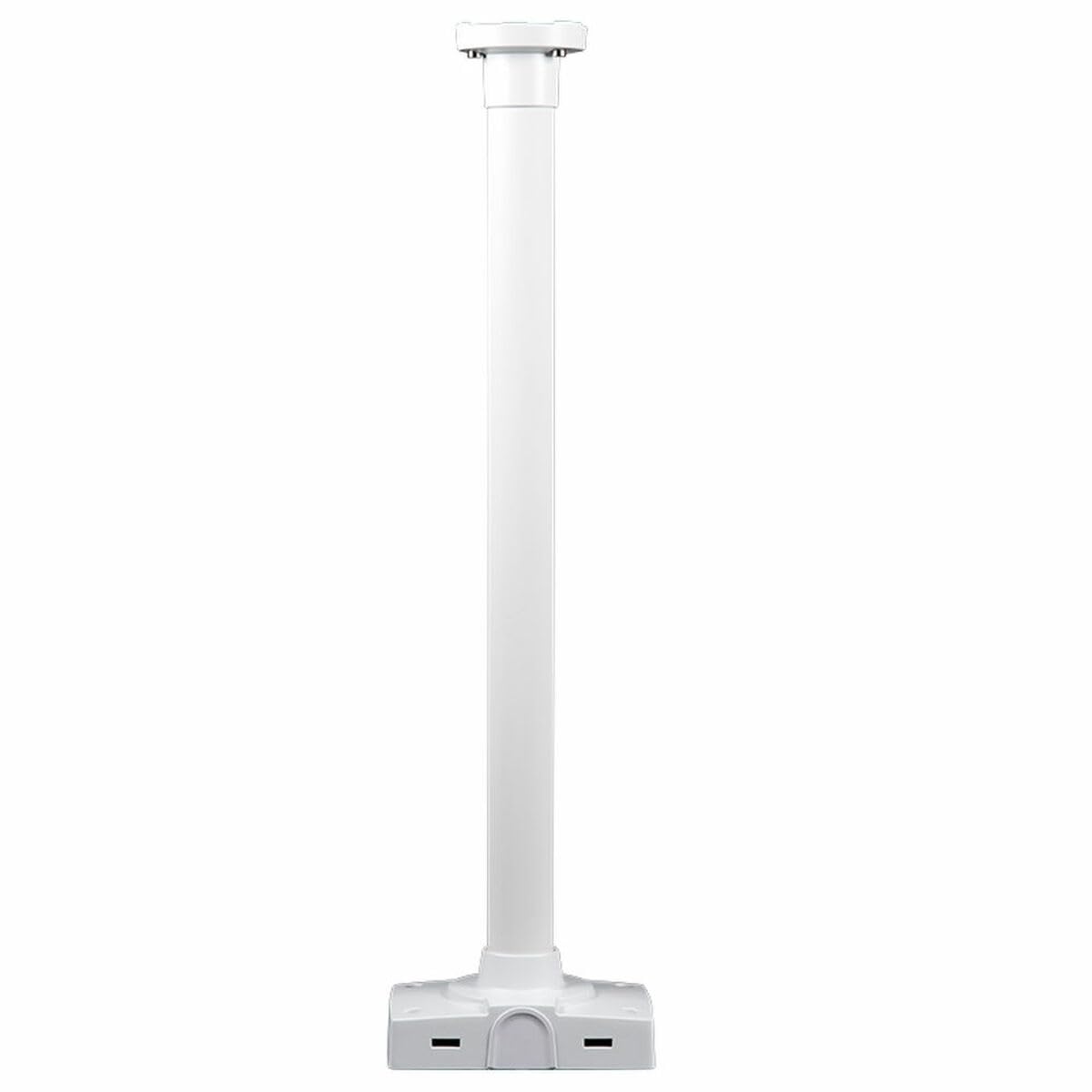

Axis T91B63 Ceiling Mount

The Axis T91B63 Ceiling Mount is a robust and versatile mounting solution designed for installations at high ceilings. Made from durable aluminum, this ceiling mount is suitable for both indoor and outdoor environments, offering IK10 vandal resistance for secure and safe installations. The T91B63 includes the AXIS T94A01D Pendant Kit, which is used in combination with PTZ cameras, and the AXIS T91A6 Pipe Seal for added protection. It is compatible with Axis pendant kits that feature a 1.5" NPS inner thread and Axis ACI 3/4" conduit adapters, allowing for flexible cable routing through the back or from the side using a conduit connection.

Key Features:

Indoor and Outdoor Use: Suitable for various environments, providing reliable performance both indoors and outdoors.
Robust Construction: Made from durable aluminum and offering IK10 vandal resistance for secure installations.
Flexible Installation: Compatible with Axis pendant kits and conduit adapters, with options for cable routing through the back or side.
Complete Package: Includes the AXIS T94A01D Pendant Kit and AXIS T91A6 Pipe Seal for a comprehensive installation solution.
Ease of Installation: Designed for simple and straightforward installation, ensuring a hassle-free setup.

Technical Overview:

Recommended for: High-ceiling installations requiring robust and secure mounting solutions for Axis cameras.
Material: Aluminum with IK10 vandal resistance.
Dimensions: 140 x 196 mm (5 1/2 in x 7 3/4 in); Length: 750 mm (29 1/2 in).
Weight: 2.0 kg (4.4 lb).
Maximum Load: Supports up to 15 kg (33 lb).
Cable Routing: Options for back cable hole or side cable conduit holes (M20, 3/4”).
Included Accessories: Installation guide, AXIS T94A01D Pendant Kit, AXIS T91A6 Pipe Seal.

You can check the related tab for the Axis T91B63 Ceiling Mount datasheet.

Properties

Product Name	Axis T91B63 Ceiling Mount
Description	Durable ceiling mount for high-ceiling installations, suitable for both indoor and outdoor environments with IK10 vandal resistance.
Indoor and Outdoor Use	Designed for reliable performance in varied environments, suitable for both indoor and outdoor use.
Robust Construction	Made from durable aluminum and IK10-rated for impact resistance, ensuring secure installations.
Flexible Installation	Compatible with Axis pendant kits and conduit adapters, with cable routing options from the back or side.
Complete Package	Includes AXIS T94A01D Pendant Kit and AXIS T91A6 Pipe Seal for secure and comprehensive installations.
Ease of Installation	Simple installation design for quick and hassle-free setup.
High-Ceiling Compatibility	Ideal for installations on high ceilings, providing a stable and reliable mounting solution.
Cable Management	Allows for back or side cable routing options, adaptable to various installation requirements.
Recommended Use	Suitable for high-ceiling setups requiring durable and vandal-resistant mounting for Axis cameras.
Material	Constructed from durable aluminum for longevity in demanding environments.
Mounting Flexibility	Compatible with Axis ACI 3/4" conduit adapters for flexible setup configurations.

Specifications

Material	Constructed from aluminum with IK10-rated vandal resistance, suitable for both indoor and outdoor applications.
Impact Resistance	IK10-rated for high resistance to impact and vandalism, ideal for high-security areas.
Maximum Load Capacity	Supports up to 15 kg (33 lb), compatible with large cameras and heavy equipment.
Weather Resistance	Suitable for outdoor installations, providing durability in various weather conditions.
Dimensions	140 x 196 mm (5 1/2 in x 7 3/4 in); Length: 750 mm (29 1/2 in) for secure and adaptable high-ceiling mounting.
Weight	2.0 kg (4.4 lb), providing stability and strength for secure camera installations.
Cable Routing Options	Allows for back cable hole or side conduit (M20, 3/4") for organized and protected cable management.
Pendant Kit Compatibility	Works with Axis pendant kits featuring a 1.5" NPS inner thread for easy integration.
Mounting Orientation	Designed for ceiling mounting, providing flexibility in high-ceiling surveillance applications.
Corrosion Resistance	Powder-coated finish provides protection against corrosion, suitable for outdoor use.
Pipe Seal Compatibility	Includes AXIS T91A6 Pipe Seal for additional protection and secure cable management.
Installation Flexibility	Compatible with Axis ACI 3/4" conduit adapters, allowing for varied installation setups.
Vandal Protection	IK10 impact resistance for secure, tamper-proof installations.
Load-Bearing Design	Engineered to support substantial loads, suitable for heavy-duty camera installations.

Accessories

Included Accessories

Installation guide, AXIS T94A01D Pendant Kit, AXIS T91A6 Pipe Seal.
