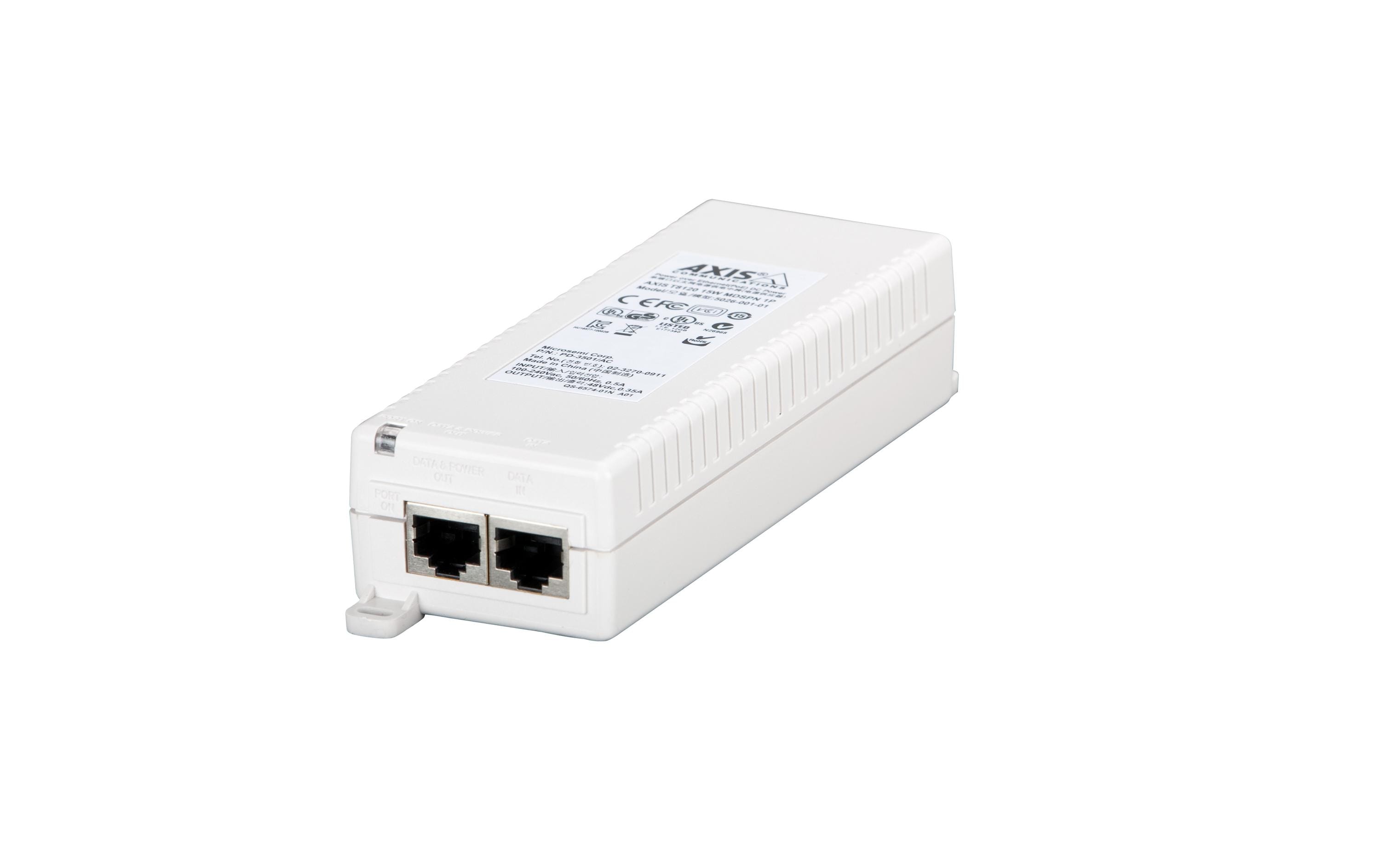

AXIS T8120 Midspan 15 W 1-port, 10 pcs

The AXIS T8120 Midspan 15 W 1-port is an efficient Power over Ethernet (PoE) solution designed to deliver power and data through a single Ethernet cable to network devices. With IEEE 802.3af compliance, this midspan offers an easy plug-and-play installation for Axis devices that support PoE. This version comes in a pack of 10, making it ideal for large installations and deployments. The AXIS T8120 Midspan reduces installation costs by eliminating the need for separate power supplies and additional cabling.

Key Features:

• IEEE 802.3af Compliance: Ensures compatibility with most Axis devices that support PoE.
• Plug-and-Play Installation: Simplifies setup with auto-sensing and automatic power provisioning to PoE-supported devices.
• Data and Power over Ethernet: Delivers data and up to 15.4 W of power through a single Ethernet cable.
• Flexible Installation: Can be mounted on walls or shelves for convenience.
• Compact Design: Takes up minimal space with dimensions of 33 x 53 x 140 mm (1.3 x 2.1 x 5.5 in).

Technical Specifications:

• Data Rate: 10/100/1000 Mbps
• Connectors: Shielded RJ45, EIA 568A/568B
• Power Output: 48 V DC, max 15.4 W per port
• Input Voltage: 100–240 V AC, 50/60 Hz
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Weight: 450 g (1 lb)
• Dimensions: 33 x 53 x 140 mm (1.3 x 2.1 x 5.5 in)
