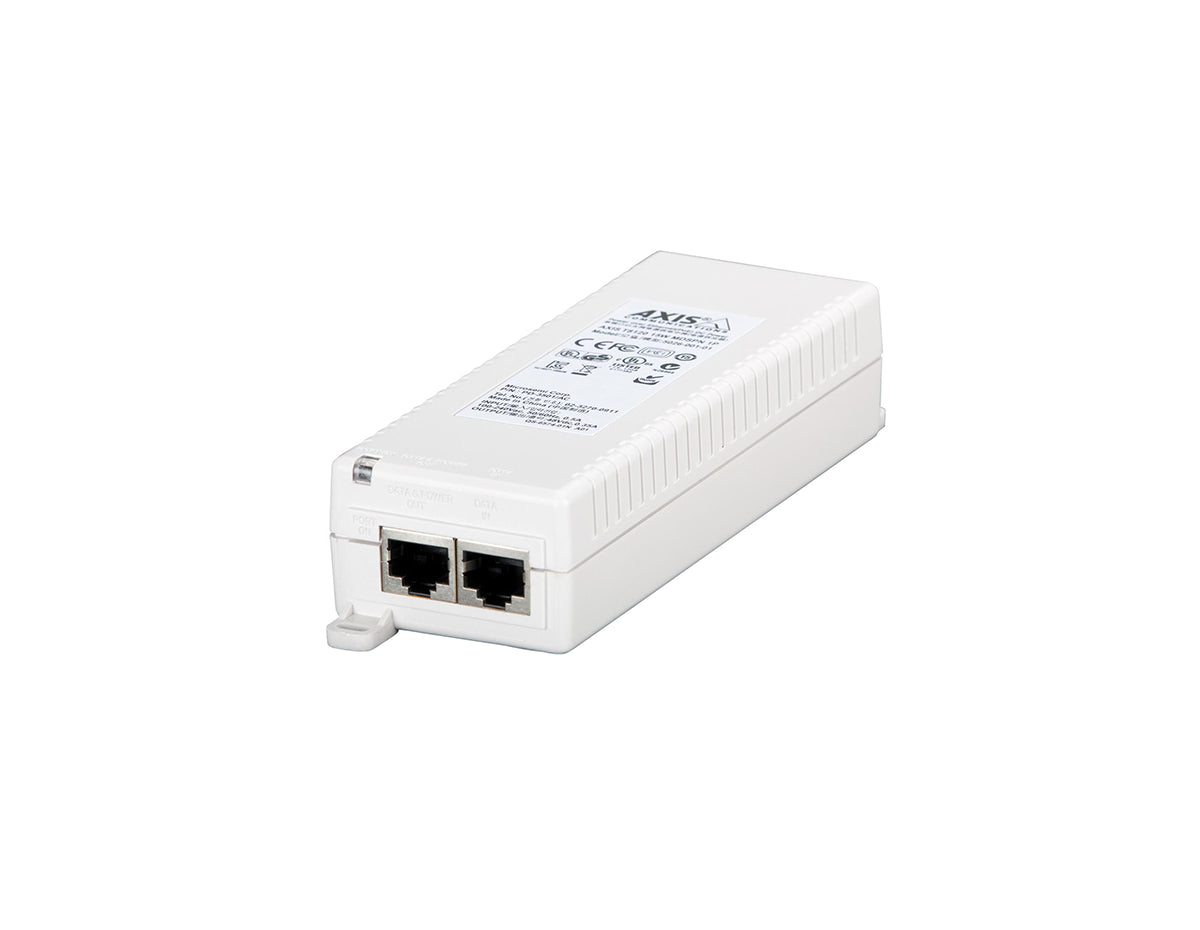

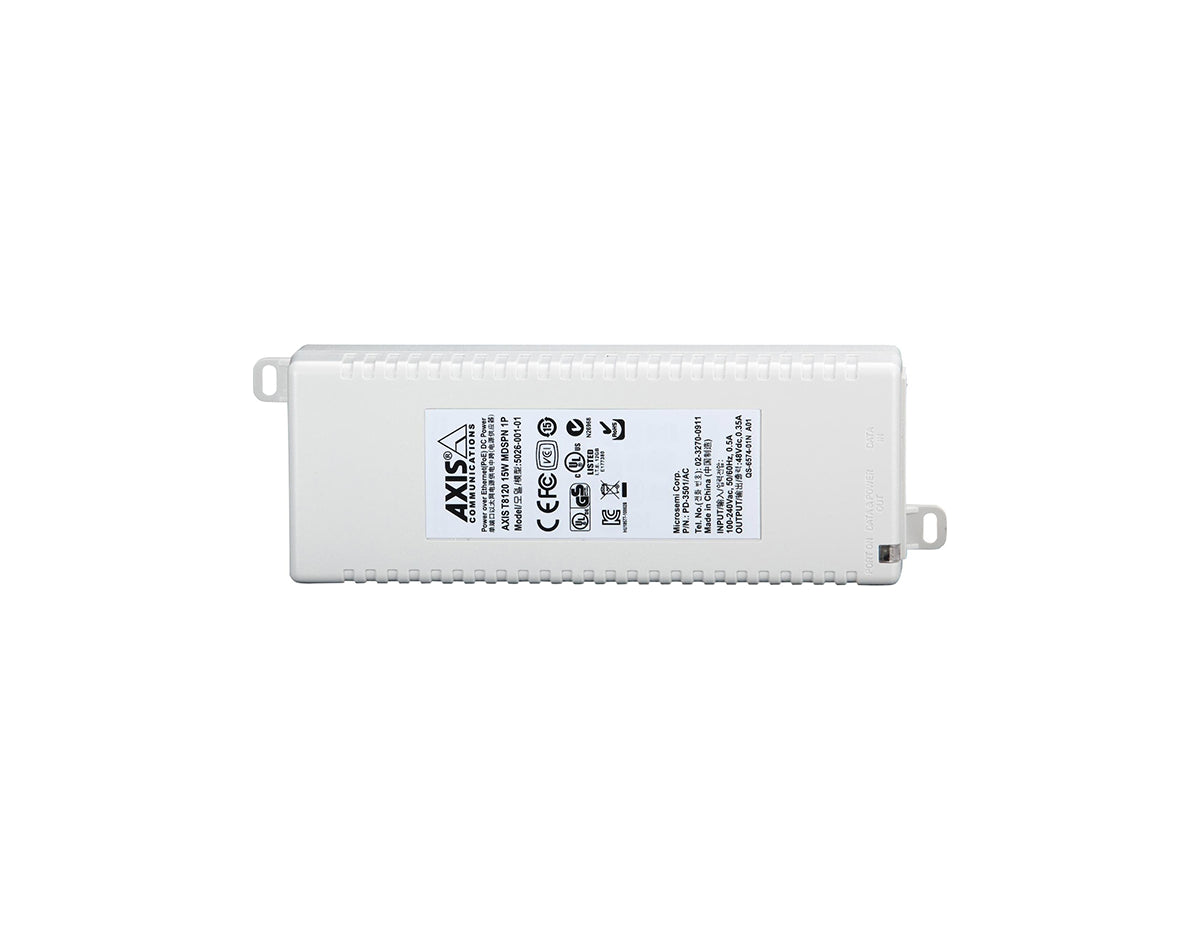

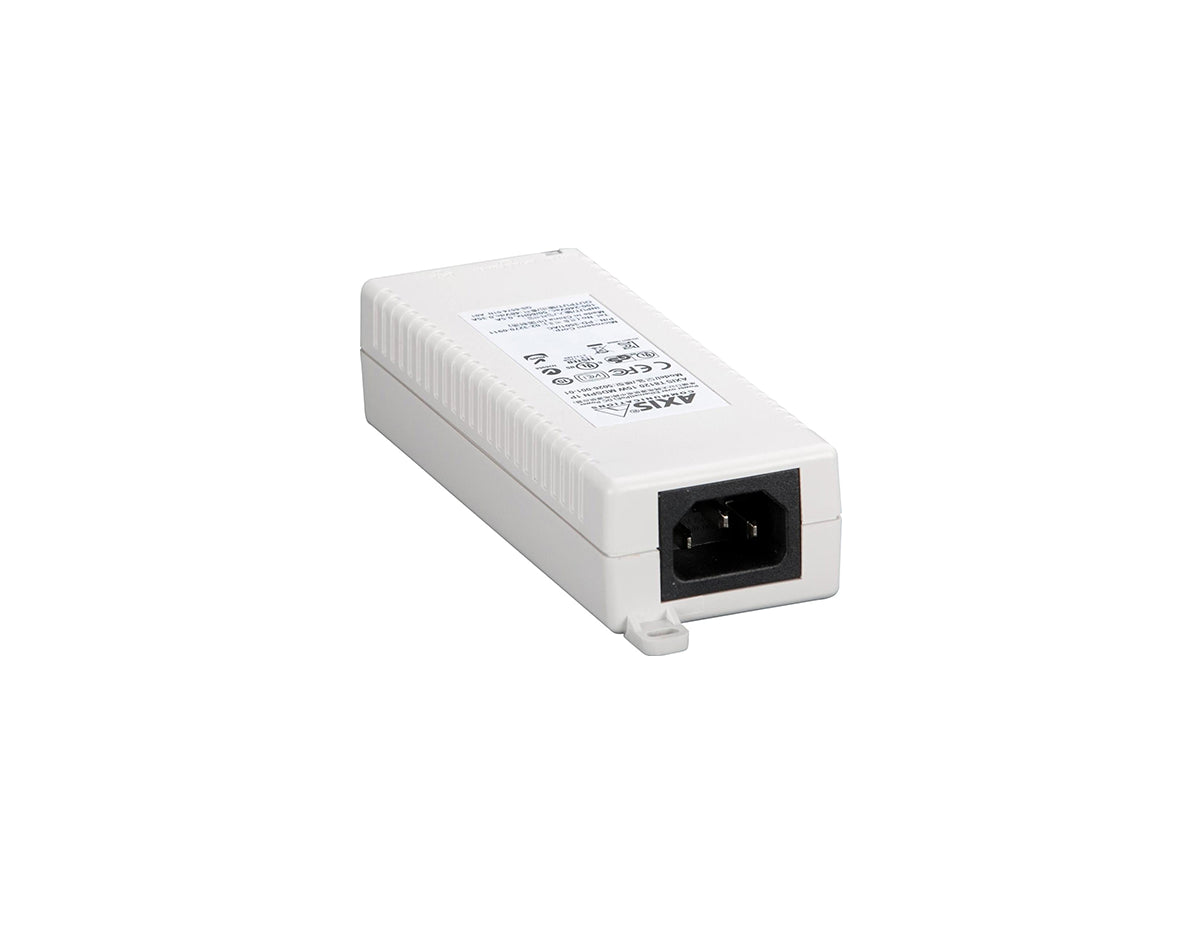

AXIS T8120 15W Midspan 1-Port

The AXIS T8120 15W Midspan 1-Port is a compact and cost-effective Power over Ethernet (PoE) solution designed to power network devices through existing Ethernet cables. Delivering up to 15.4 W of power per port, it complies with IEEE 802.3af standards, making it compatible with a wide range of Axis network devices. The midspan eliminates the need for additional power cables, offering an easy plug-and-play installation. It's ideal for powering network cameras and other PoE devices in small to medium-sized installations.

Key Features:

• 15.4 W PoE Power: Provides reliable power delivery to PoE-enabled devices, supporting up to 15.4 W per port.
• Plug-and-Play Installation: Automatically detects and powers PoE-enabled devices for simple and fast setup.
• IEEE 802.3af Compliance: Ensures compatibility with most Axis network products with built-in PoE support.
• Cost-Effective Solution: Reduces installation costs by eliminating the need for additional power cables.
• Compact Design: Fits easily into network setups with its small form factor and versatile mounting options.

Technical Specifications:

• Power Output: 15.4 W per port, 48 V DC
• Data Rate: 10/100/1000 Mbps
• Connectors: Shielded RJ45, EIA 568A/568B
• Power Input: 100–240 V AC, 50–60 Hz
• Operating Conditions: 0 °C to 40 °C (32 °F to 104 °F)
• Dimensions: 33 x 53 x 140 mm (1.3 x 2.1 x 5.5 in)
• Weight: 450 g (1 lb)
• Compliance: IEEE 802.3af, cUL/UL, TUV, CE

For more information about the AXIS T8120 15W Midspan 1-Port, visit the Axis product page.
