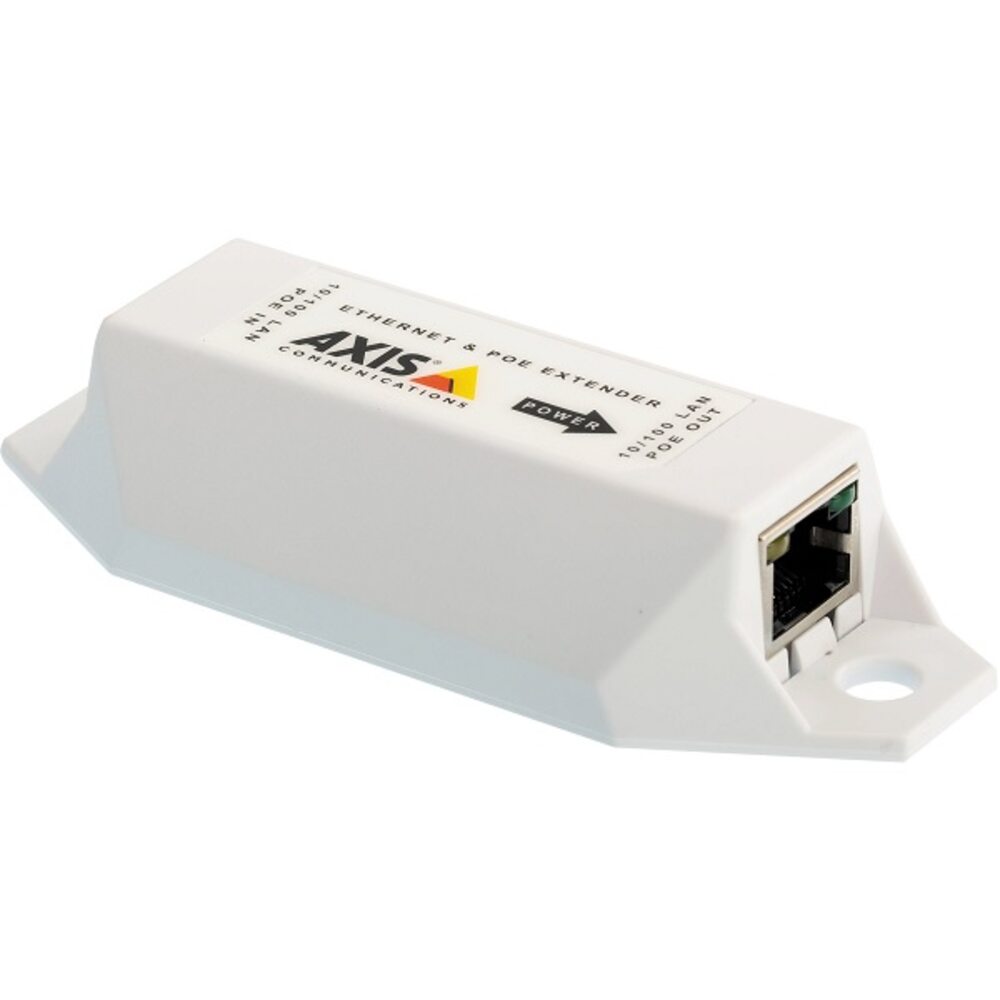

Axis T8129 Power over Ethernet Extender

The Axis T8129 Power over Ethernet Extender is the ideal solution for extending the distance between Axis network video products beyond the standard 100 meters (328 feet). By adding an AXIS T8129 for every additional 100 meters of cable, you can extend both Ethernet and PoE connections to greater distances, depending on the camera model and power source. This extender does not require an additional power supply, as the connected network camera is powered by a single PoE switch or midspan, simplifying installation. With plug-and-play installation, the extender maintains full-rate network throughput across the extended distance.

Key Features:

• Extended Distance: Enables Ethernet and PoE connections beyond 100 meters (328 feet), allowing for more flexible installations.
• No Additional Power Supply Needed: The extender is powered directly by the PoE switch or midspan, simplifying installation.
• Full-Rate Network Throughput: Maintains full network speed across the entire extended distance, ensuring reliable performance.
• Plug-and-Play Installation: Automatically forwards in-line power to PoE and High PoE-enabled devices, with no manual configuration required.
• Compatibility: Works with IEEE 802.3af and IEEE 802.3at standards, making it compatible with a wide range of Axis network devices.

Technical Overview:

• Recommended for: Extending the distance of Ethernet and PoE connections in installations where the standard 100 meters is not sufficient.
• Data Rate: 10/100 Mbps half/full duplex.
• Connectors: Shielded RJ45, EIA 568A and 568B.
• Network Cables: Requires shielded Category 5 (or higher) cables.
• Operating Conditions: -10 °C to 50 °C (14 °F to 122 °F), humidity max. 85% RH (non-condensing).
• Dimensions: 105 x 40 x 22 mm (4.1 x 1.6 x 0.9 in).
• Weight: 45 g (1.6 oz).
• Mounting Options: Can be mounted on a wall or shelf.

You can check the related tab for the Axis T8129 Power over Ethernet Extender datasheet.
