AXIS P1377-LE Network Camera (41809-001)

Name: AXIS P1377-LE Network Camera (41809-001)
Brand: Axis
SKU: 41809-001-NEW
Price: 1139.0 USD
Availability: InStock

Part Number: 41809-001

Technical Details

Captures 5 MP video at 30 fps or up to 180 fps in HDTV 720p, Axis Zipstream technology supporting, 1/2.7” progressive scan RGB CMOS

$1,139.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

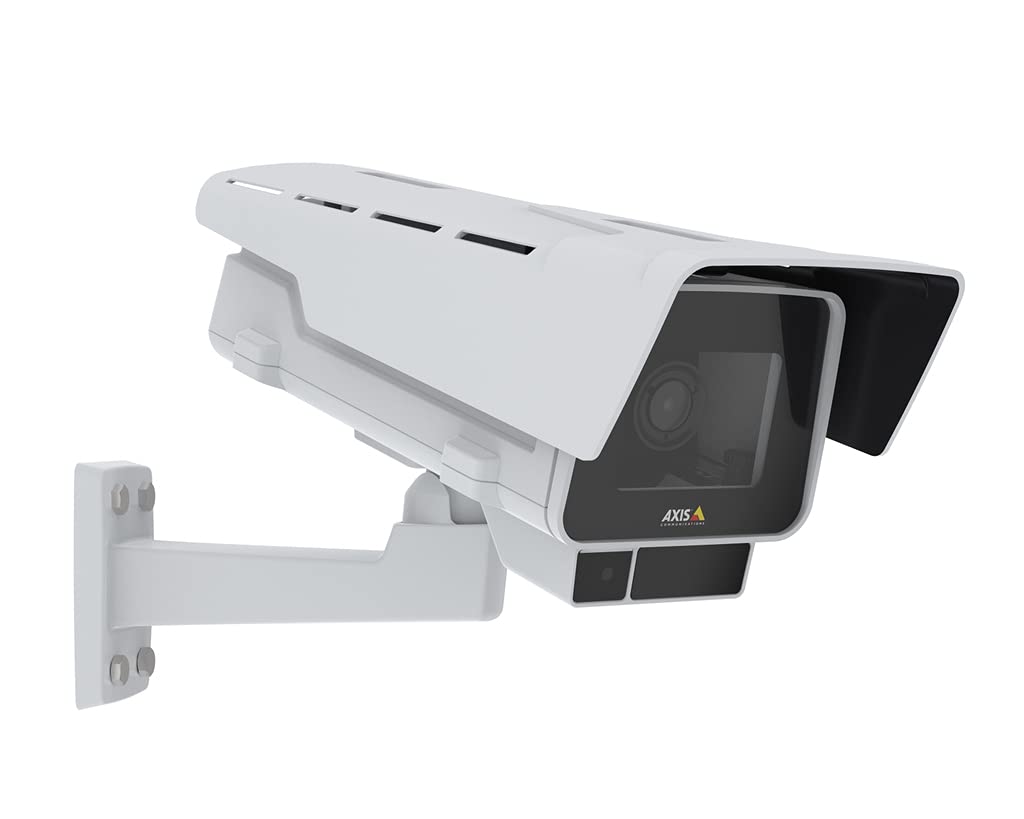

Axis P1377-LE Network Camera

The Axis P1377-LE Network Camera is a fully-equipped 5 MP surveillance solution designed for outdoor use, offering robust performance in extreme temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). With its durable design, this camera delivers exceptional image quality in challenging lighting conditions, thanks to features like Axis OptimizedIR for clear surveillance in complete darkness and Forensic WDR for capturing details in complex scenes. The P1377-LE also includes advanced security features like signed firmware and secure boot, ensuring the integrity of your surveillance system.

Key Features:

High-Resolution Video: Captures 5 MP video at 30 fps or up to 180 fps in HDTV 720p, ensuring clear and detailed footage.
OptimizedIR and Forensic WDR: Provides superior performance in low light and challenging scenes, with effective IR illumination and wide dynamic range.
Secure and Reliable: Includes signed firmware, secure boot, and electronic image stabilization for enhanced system security and stability.
Flexible Lens Options: Equipped with a CS mount and support for motorized i-CS lenses, allowing easy lens changes to suit different requirements.
Efficient Streaming: Axis Zipstream technology supporting H.264 and H.265 reduces bandwidth and storage requirements without compromising image quality.

Technical Overview:

Recommended for: Outdoor surveillance in harsh environments, where high-resolution video and advanced security features are essential.
Image Sensor: 1/2.7” progressive scan RGB CMOS.
Lens: Varifocal 2.8–8 mm, F1.2, IR corrected, CS-mount with P-Iris, offering horizontal FOV: 90°–38°, vertical FOV: 67°–28°.
Minimum Illumination: 0.13 lux (color) and 0.03 lux (B/W) with IR illumination.
Video Compression: H.264, H.265, Motion JPEG, with Axis Zipstream technology for optimized bandwidth usage.
Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), IP66/IP67 and NEMA 4X-rated, IK10 impact-resistant casing.
Power: 12–28 V DC, PoE IEEE 802.3af/802.3at, Class 4 (max 25.5 W), with typical power consumption of 11.1 W.
Dimensions: 404 x 159 x 168 mm (15.9 x 6.3 x 6.6 in).
Weight: 2.4 kg (5.3 lb).
Included Accessories: Installation guide, wall mount bracket, sunshield, connector kit, IK10 tool, and Torx® screwdrivers.

You can check the related tab for the Axis P1377-LE datasheet.

This product has reached its end-of-life. The recommended replacement model is P1387-LE (02736-001)

Properties

Product Name	Axis P1377-LE Network Camera
Description	5 MP outdoor network camera providing high-resolution surveillance with advanced features for low-light and challenging conditions.
High-Resolution Video	Captures 5 MP video at 30 fps and up to 180 fps in HDTV 720p for clear and detailed monitoring.
Low-Light Performance	Equipped with Axis OptimizedIR and Forensic WDR for effective imaging in low-light and high-contrast scenes.
Security Features	Includes signed firmware, secure boot, and electronic image stabilization to ensure system integrity and stability.
Flexible Lens Options	CS mount with motorized i-CS lens compatibility allows easy customization for various surveillance needs.
Efficient Streaming	Axis Zipstream technology with H.264 and H.265 compression reduces bandwidth and storage usage without loss of quality.
Durability	Engineered for extreme outdoor use, IP66/IP67, NEMA 4X, and IK10-rated for impact and weather resistance.
Temperature Range	Operates reliably in temperatures from -40 °C to 60 °C (-40 °F to 140 °F), suitable for harsh climates.
Power Options	Supports 12–28 V DC and PoE IEEE 802.3af/802.3at, Class 4 (max 25.5 W), with typical power consumption of 11.1 W.
Image Stabilization	Features electronic image stabilization to minimize blurring from vibrations or motion.
Recommended Use	Ideal for outdoor surveillance requiring high-resolution imaging and enhanced security features.
Lens Customization	Comes with a varifocal 2.8–8 mm lens, with P-Iris for optimal image quality.
Mounting Compatibility	Compatible with various mounting options, including wall and pole mounts.
Field of View	Horizontal FOV: 90°–38°, Vertical FOV: 67°–28°, adjustable for tailored viewing angles.
Weather Resistance	Protected against dust, water, and impact with IP66/IP67, NEMA 4X, and IK10 ratings.

Specifications

Image Sensor	1/2.7” progressive scan RGB CMOS for high-quality image capture.
Lens Type	Varifocal 2.8–8 mm, F1.2, IR-corrected CS-mount lens with P-Iris for flexible viewing options.
Field of View	Horizontal FOV: 90°–38°, Vertical FOV: 67°–28°, suitable for different monitoring needs.
Minimum Illumination	0.13 lux (color) and 0.03 lux (B/W) with IR illumination for low-light visibility.
Video Compression	H.264, H.265, and Motion JPEG with Axis Zipstream for optimized bandwidth usage.
Operating Temperature	Designed to operate from -40 °C to 60 °C (-40 °F to 140 °F) in extreme outdoor conditions.
Weather Resistance	IP66/IP67, NEMA 4X-rated for dust and water protection, ideal for outdoor installations.
Impact Resistance	IK10-rated for impact protection, suitable for high-risk areas.
Power Requirements	12–28 V DC, PoE IEEE 802.3af/802.3at, Class 4 (max 25.5 W), with typical power of 11.1 W.
Dimensions	404 x 159 x 168 mm (15.9 x 6.3 x 6.6 in), robust for prominent mounting.
Weight	2.4 kg (5.3 lb), providing stability in outdoor settings.
Security Features	Signed firmware and secure boot, ensuring system integrity.
Image Stabilization	Electronic image stabilization for reduced motion blur in dynamic environments.
Lens Options	Compatible with motorized i-CS lenses, providing flexibility for different focal lengths.
Heat Management	Designed for efficient operation across a wide temperature range.

Accessories

Included Accessories

Wall mount bracket, sunshield, connector kit, IK10 tool, Torx® screwdrivers.
