HONEYWELL VOYAGER XP 1472G CORDLESS BARCODE SCANNER (1472G1D-2USB-5-R)
| Model: | 1472G1D-2USB-5-R |
| Detail: |
Expected Duration of Operation: 14 hours, Power Options: Battery: 2400 mAh Li-ion minimum,
< |
| Price: | $225.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

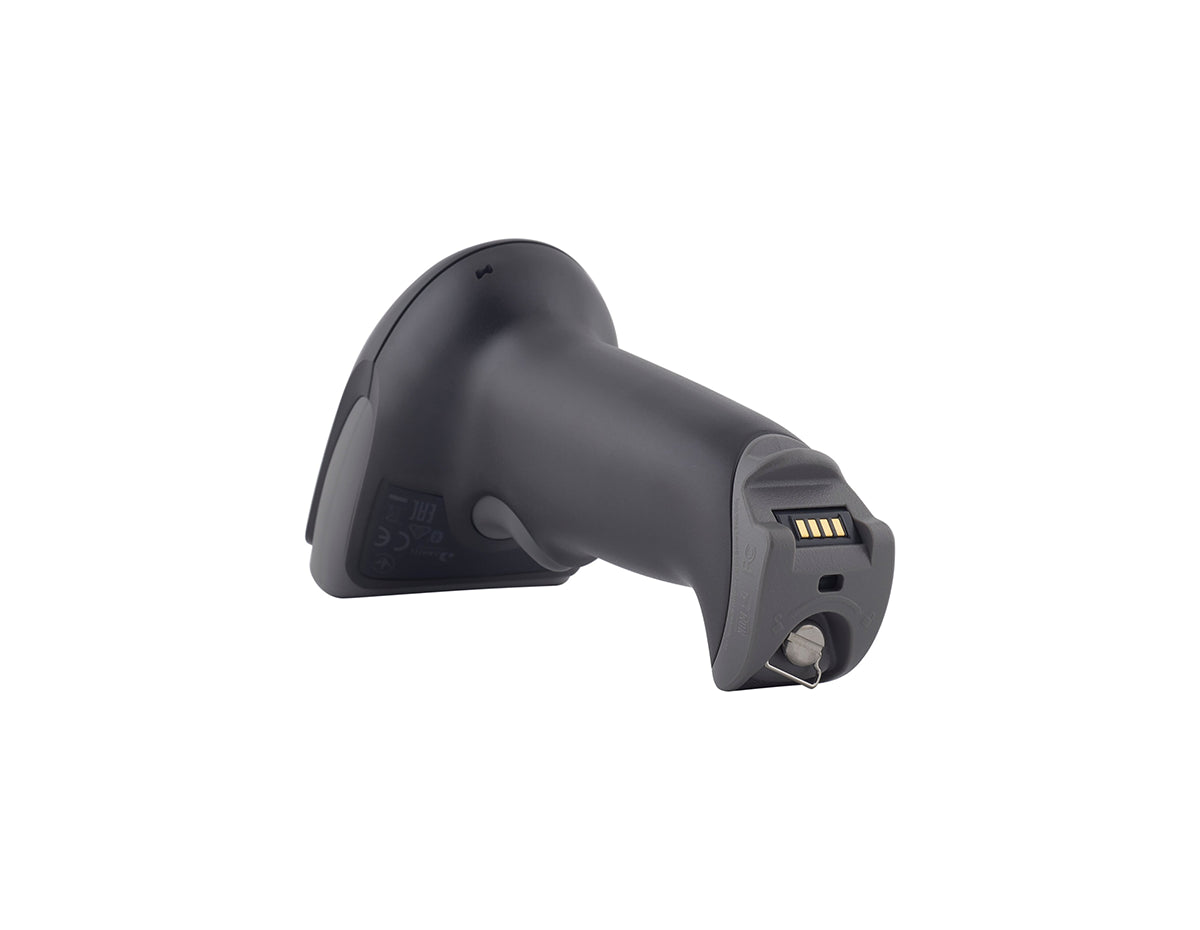

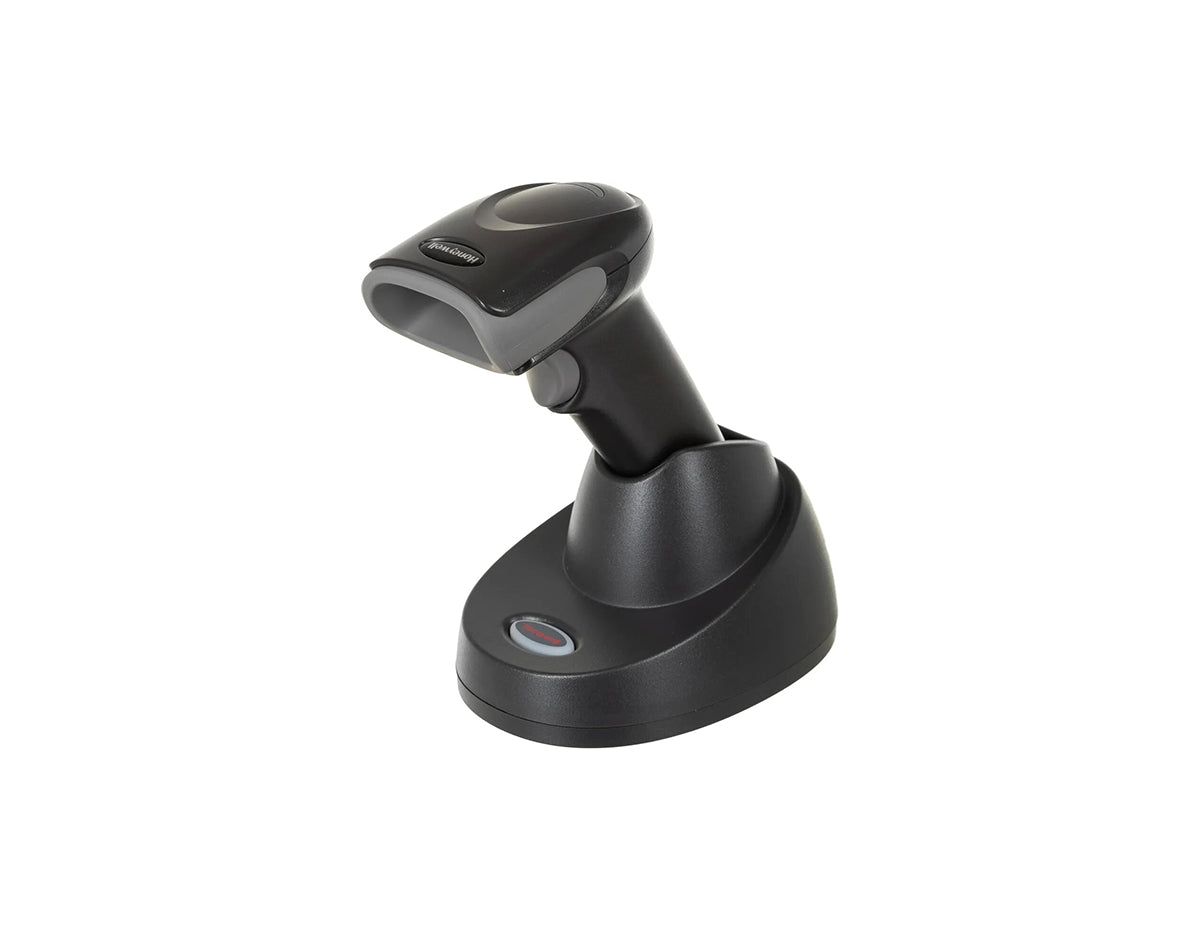

Honeywell 1472G1D-2USB-5-R Voyager XP 1472g Cordless Scanner
Designed for in-store retail environments requiring a highly accurate 2D scanning solution in a durable form factor, the Voyager™ Extreme Performance (XP) 1472g cordless scanner delivers industry-leading scanning capability on traditional barcodes and digital screens – even on damaged and difficult-to-read codes.
Quick Specs:
- Operating Temperature: 5°C to 40°C (41°F to 104°F) charging, 0°C to 50°C (32°F to 122°F) non-charging
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Humidity: 0% to 95% relative humidity, non-condensing
- Tumble Spec: 1,000 0.5 m (1.6 ft) tumbles (impacts)
- Drop: Engineered to withstand 30 1.8 m (6 ft) drops to concrete
- Environmental Sealing: IP52
- Light Levels: 0 to 100,000 lux (9,290 foot-candles)
Wireless:
- Radio/Range: 2.4 GHz to 2.5 GHz (ISM Band), Adaptive Frequency Hopping Bluetooth v4.2
- Range: 30 m (98 ft) line of sight with Honeywell charger/communication base
- Power Options: Battery: 2400 mAh Li-ion minimum
- Number of Scans: Up to 50,000 scans per charge
- Expected Duration of Operation: 14 hours
- Expected Charge Time: 4.5 hours
- User Indicators: Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume)
Mechanical/Electrical:
- Dimensions (L x W x H): 62 mm x 173 mm x 82 mm (2.5 in x 6.8 in x 3.2 in)

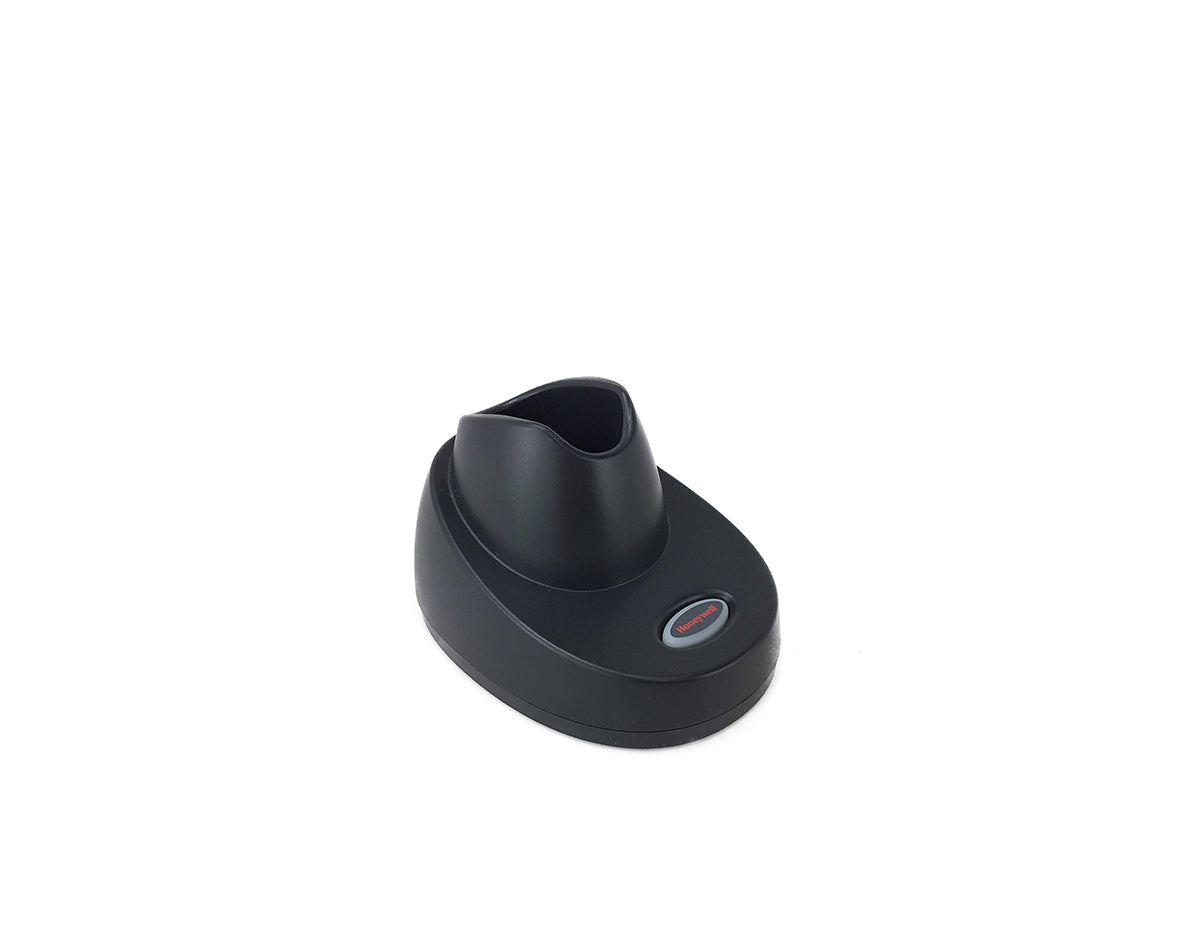

- Charger/Communication Base: (CCB01-010BT-V1N) 132 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in)
- Scanner Weight: 210 g (7.4 oz)
- Charger/Communication Base: 179 g (6.3 oz)
- Operating Power (Charging): 2.5 W (0.5A @ 5V)
- Standby Power: Charger/Communication Base: 0.5 W (0.1A @ 5V)
- Host System Interfaces: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)
Scan Performance:
- Scan Pattern: Area Image (1040 x 720 pixel array)
- Motion Tolerance: 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
- Print contrast: 20%
- Scan Angle: Horizontal: 39.2° nominal, Vertical: 27.4° nominal
- Roll, Pitch, Skew: ±180°, ±65°, ±70°
- Barcode Types: Reads standard 1D, PDF, 2D, and DotCode symbologies
Specifications
| Wireless Communication | 2.4 GHz to 2.5 GHz (ISM Band), Bluetooth v4.2 |
| Battery Capacity | 2400 mAh Li-ion |
| Battery Life | Up to 14 hours per charge |
| Charging Time | 4.5 hours to full charge |
| Scan Pattern | Area Image (1040 x 720 pixel array) |
| Motion Tolerance | 70 cm/s for 13 mil UPC |
| Print Contrast | Minimum 20% |
| Operating Power | 2.5 W (charging), 0.5 W standby |
| Scanner Weight | 210 g |
| Base Dimensions | 132 mm x 102 mm x 81 mm |
| Base Weight | 179 g |
| Temperature Range | Operating: 5°C to 40°C (charging), 0°C to 50°C (non-charging) |
| Storage Temperature | -40°C to 60°C |
| Humidity Tolerance | 0% to 95% RH, non-condensing |
| Environmental Rating | IP52-rated for dust and moisture resistance |
| Drop Specification | Engineered to withstand 30 drops from 1.8 m to concrete |
| Host Interfaces | USB, Keyboard Wedge, RS-232, RS485 for IBM 46xx |
| Scan Performance | Reads 1D, PDF, 2D, DotCode symbologies |
Properties
| Product Name | Honeywell Voyager XP 1472g Cordless Scanner (1472G1D-2USB-5-R) |
| Product Description | Cordless area-imaging scanner for retail, designed for high-accuracy 2D scanning |
| Operating Temperature | 5°C to 40°C (charging), 0°C to 50°C (non-charging) |
| Storage Temperature | -40°C to 60°C |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Tumble Spec | 1,000 tumbles from 0.5 m |
| Drop Specification | Withstands 30 drops from 1.8 m to concrete |
| Environmental Sealing | IP52-rated |
| Light Levels | 0 to 100,000 lux |
| Battery | 2400 mAh Li-ion, 14-hour operation per charge |
| Charging Time | Approximately 4.5 hours |
| User Indicators | Good Decode LEDs, Rear View LEDs, Adjustable Beeper |
| Dimensions | 62 mm x 173 mm x 82 mm |
| Weight | 210 g |
| Wireless Range | 30 m line of sight |
| Host System Interfaces | USB, Keyboard Wedge, RS-232, RS485 for IBM 46xx |
| Barcode Types | Standard 1D, PDF, 2D, and DotCode symbologies |
| Scan Angle | Horizontal: 39.2°; Vertical: 27.4° |
