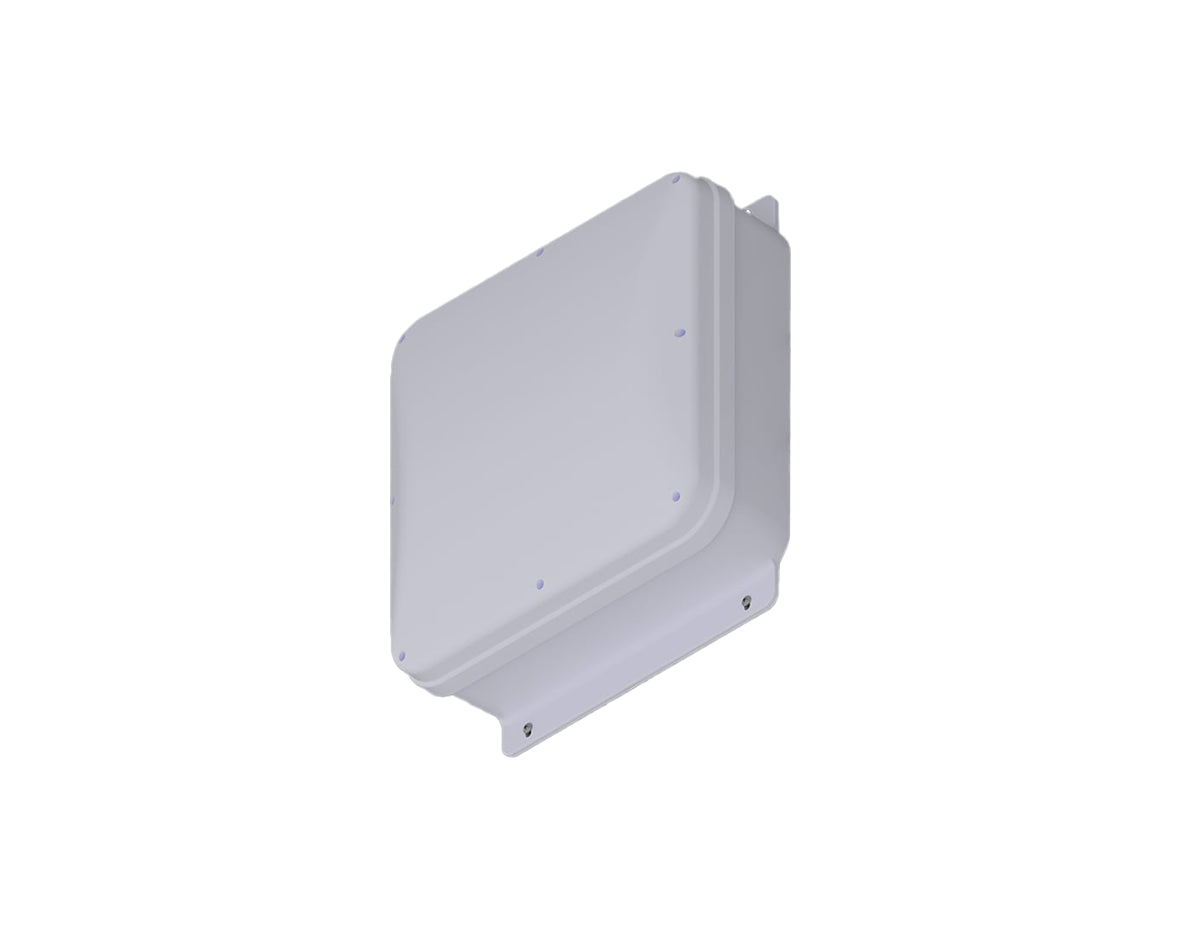

Oberon Skybar Environmental Wireless AP Enclosure (1020-12125)

Protect Critical Wireless Infrastructure in Harsh Environments

The Oberon 1020-12125 Skybar Environmental Enclosure is the larger-format solution for safeguarding wireless access points in demanding indoor and outdoor deployments. Engineered by Chatsworth Products, this rugged NEMA 4X enclosure shields APs from dust, moisture, corrosive agents, and impacts while ensuring peak wireless performance through its RF-transparent polycarbonate construction.

Key Benefits & Features

• NEMA 4X and IP66 Protection: Designed for harsh environments, offering superior resistance against water, dust, corrosion, and pressure spray.
• RF-Transparent Polycarbonate: High-quality UL94-V0 material ensures minimal signal attenuation for internal antenna APs.
• Universal Internal Mounting: This larger 12125 variant includes an internal ABS mounting panel to accommodate a wide range of vendor APs.
• Industrial Durability: UV-stabilized light gray surface reduces solar loading, while the heavy-duty T-bar bracket provides a secure ceiling or wall interface.
• Tamper-Resistant Security: Features a gasketed screw-on cover with recessed Phillips and Torx captive screws to prevent unauthorized access.

Ideal Use Cases

• Stadiums and Auditoriums: Overhead or wall-mounted deployments requiring impact and weather protection.
• Industrial & Manufacturing: High-exposure areas subject to dust, moisture, or chemical washdown.
• Outdoor Public Spaces: Campus-wide WiFi and smart city infrastructure requiring UV-stabilized housing.
• Warehouses: Protection from accidental impacts in high-traffic logistics environments.

Technical Specifications

• Product Type: NEMA 4X Wireless Access Point Enclosure
• Model: 1020-12125 (Large Skybar)
• Material: UL94-V0 Polycarbonate enclosure with ABS internal panel
• Environmental Rating: NEMA 1, 2, 4, 4X, 12, 13 and IP66 compliant
• Mounting Options: T-Bar, wall, or optional pole and right-angle bracket mounting
• Wireless Compatibility: Fully RF transparent for internal or small detachable antennas
• Included Hardware: Enclosure, T-bar bracket, internal panel, captive screws, and washers
• Design: Compact Skybar aesthetic with paintable exterior surface

Secure Your Wireless Network Infrastructure Today

Maintain the integrity and longevity of your network hardware with the Oberon 1020-12125. Deploy with confidence in any environment. Order today to ensure your wireless infrastructure is protected against the elements.

Model	Oberon 1020-12125
Product Type	Wireless Access Point Enclosure
Series	Oberon Skybar Environmental Enclosures 1020
Application	Indoor and outdoor AP protection
Mounting Type	T-Bar ceiling mount, wall mount
Material	Gray Textured UL94-V0 Polycarbonate (Enclosure); Light Gray ABS UL-94HB (Internal Panel)
Cover Type	Opaque (Standard) or Clear (C SKU)
Environmental Rating	NEMA 1, 2, 4, 4X, 12, 13; IEC 529-IP66
Special Protection	Protection against weather, dust, liquid spills, pressure spray, and impacts
Wireless Transparency	Transparent to wireless signals
UV Resistance	UV stabilized for outdoor exposure
Color	Light gray (to reduce solar loading)
Compatibility	Cisco AIR-AP-BRACKET-1 or -2, Meraki MR series, and most vendor APs

Design	Larger rugged Skybar enclosure for AP protection in stadiums, gyms, and industrial areas
Installation Options	Ceiling mount, wall mount, pole mounting (with accessory), or right-angle mount
Mounting Hardware	Integrated 18 Ga. White Powder Coated Steel T-bar bracket
Internal Components	Includes Universal Mounting Panel for versatile AP attachment
Ingress Protection	Designed for wet, dusty, and corrosive environments (IP66)
Solar Considerations	Light gray color minimizes solar load; paintable surface
Temperature Impact	AP operating temperature de-rating of approx. 8°C required inside enclosure
Cover Design	Screw-on cover with gasket and recessed tamper-resistant screws
Customization	Polycarbonate material is easily drilled for custom cable entry
Mounting Compatibility	Supports Cisco, Meraki, and universal T-bar mounting patterns

Included	(1) Enclosure; (1) T-Bar Bracket; (1) Universal Mounting Panel; (4) M4 x 20 mm Captive Phillips Lid Screws; (4) M4 x 20 mm Captive Torx Lid Screws; (4) #6 x 5/16 in. Pan Head Screws; (4) #6 x 5/16 in. Flat Head Screws; (4) Cushioning Washers
Optional Mounting	Right angle bracket (39-1020-12125-RAB); Pole mount bracket (39-1020-PMK)
Related Models	1020-00 (Compact Opaque); 1020-C (Compact Clear); 1020-12125-C (Large Clear)
