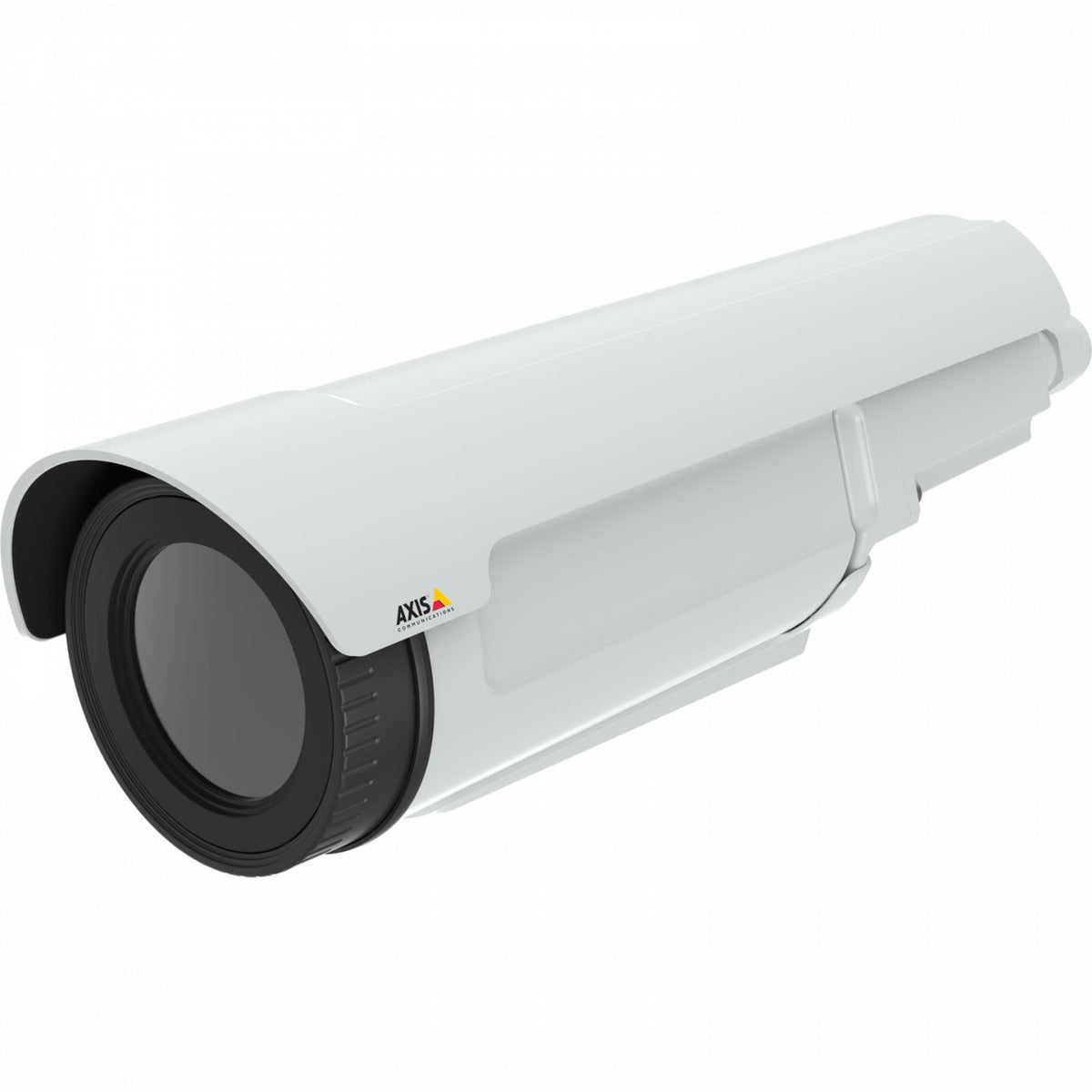

AXIS Q1942-E PT Mount 19 mm 8.3 fps Thermal Network Camera

The AXIS Q1942-E PT Mount 19 mm 8.3 fps Thermal Network Camera is a high-performance thermal camera designed for reliable long-range detection in various weather and lighting conditions. With a 19 mm lens offering a 31° horizontal field of view and an 8.3 fps frame rate, this camera is ideal for medium-range detection and perimeter surveillance. Its thermal imaging technology ensures accurate detection even in low-contrast environments. Built to withstand harsh outdoor conditions, this camera is IP66- and NEMA 4X-rated for protection against dust, water, and impact. Axis Zipstream technology reduces bandwidth and storage requirements while maintaining high image quality.

Key Features:

• 19 mm Lens with 31° Field of View: Ideal for medium-range detection and perimeter protection.
• 8.3 fps Frame Rate: Provides smooth thermal video for accurate real-time detection.
• Pan/Tilt Mount Ready: Designed for flexible installation with pan/tilt motors for enhanced coverage.
• Rugged Outdoor Design: IP66- and NEMA 4X-rated for protection against dust, water, and impact in harsh environments.
• Axis Zipstream Technology: Reduces bandwidth and storage usage while preserving critical image details.

Technical Specifications:

• Image Sensor: Uncooled microbolometer, 640x480 pixels
• Lens: 19 mm, F1.23, horizontal field of view: 31°
• Frame Rate: 8.3 fps
• Power: Power over Ethernet (PoE) IEEE 802.3af/at, typical 4.8 W, max 11.8 W
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Weight: 1.8 kg (4.0 lb)
